X-Sense SWS0A Smart Water Leak Detector (3-Pack) Instruction Manual

Introduction

Thank you for choosing the X-Sense SWS0A Smart Water Leak Detector. This device is designed to provide early warning of water leaks in your home, helping to prevent potential water damage. It features an ultra-thin design, high-sensitivity sensors, and sends alerts directly to your smartphone via the X-Sense Home Security app when connected to an X-Sense SBS50 Base Station (required, not included with this 3-pack).

Please read this manual thoroughly before installation and use to ensure proper operation and safety.

Product Overview

What's in the Box

3 x X-Sense SWS0A Water Leak Detectors
6 x AAA Alkaline Batteries (2 per detector)
User Manual

Key Features

Ultra-Thin Design: At only 17 mm thick and 77 mm in diameter, it fits into tight and hard-to-reach spaces.
High Sensitivity: Equipped with 2 top and 4 bottom ultra-sensitive water probes, detecting water leaks as shallow as 0.3 mm and even falling drops.
IP67 Waterproof: Ensures reliable operation in humid environments like bathrooms and kitchens.
Long-Range Wireless Connection: Up to 500 meters (1640 feet) in open spaces, ensuring alerts are received even from remote areas of your home.
App Notifications: Receive instant alerts on your smartphone, adjust alarm volume, view alarm history, and temporarily silence alerts.
Long Battery Life: Batteries last up to 3 years, with replaceable batteries extending autonomy to 5 years.

Image: Three X-Sense SWS0A water leak detectors and their packaging.

Image: The X-Sense SWS0A detector's compact dimensions (17mm thick, 77mm diameter) allow for versatile placement in various locations such as near radiators, water pipes, washing machines, and toilets.

Setup

1. Install Batteries

Gently twist the top cover of the detector counter-clockwise to open it.
Insert two AAA alkaline batteries, ensuring correct polarity (+/-).
Replace the cover and twist clockwise until securely closed.

2. Pair with X-Sense SBS50 Base Station

The SWS0A detector requires an X-Sense SBS50 Base Station (sold separately) to function and send app notifications. Follow the instructions provided with your SBS50 Base Station to add new devices.

Ensure your SBS50 Base Station is powered on and connected to your Wi-Fi network.
Open the X-Sense Home Security app and follow the in-app instructions to add a new device.
The detector will automatically connect to the base station when in range.

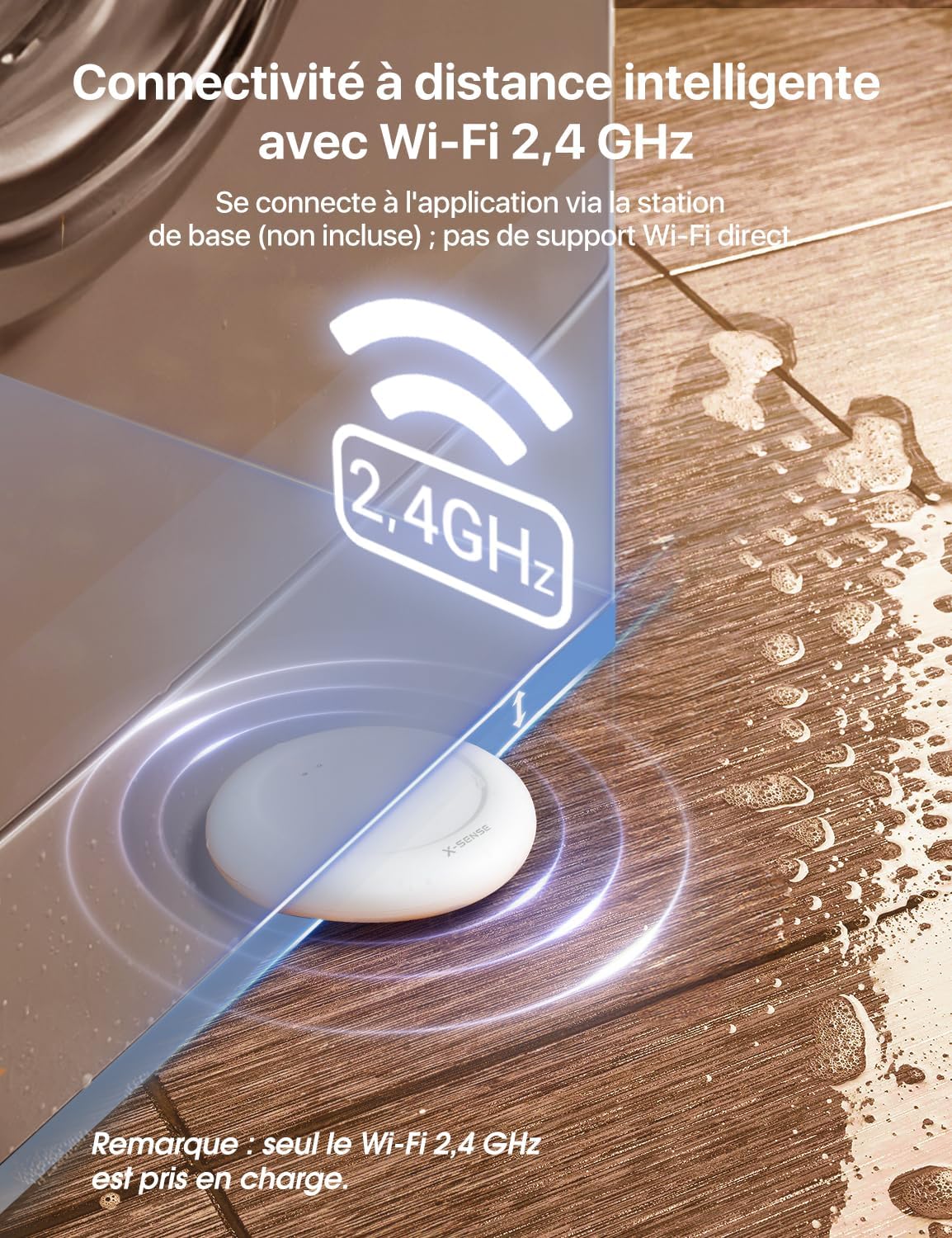

The X-Sense water leak detector placed on a wooden floor near a water spill, with a graphic indicating 2.4GHz Wi-Fi connectivity. A note states that only 2.4GHz Wi-Fi is supported. — Image: The detector connects to the app via the base station using 2.4 GHz Wi-Fi. Direct Wi-Fi connection is not supported.

3. Optimal Placement

Place the detector in areas prone to water leaks. Its compact size allows for placement in:

Under sinks
Near water heaters
Behind toilets
Under dishwashers or washing machines
In basements or wine cellars
Near windows or pipes

Ensure the detector is placed on a flat surface where water would first accumulate. The long-range wireless connection allows for flexible placement throughout your home, up to 500 meters from the base station in open areas.

An illustrative diagram showing various household locations where the water leak detector can be used, including wine cellars, laundry rooms, toilets, windows, garages, bathrooms, water pipes, and radiators. — Image: The detector can be used throughout the house, even in hard-to-reach places, to detect leaks in various areas.

A cutaway diagram of a multi-story house showing the X-Sense base station centrally located and a water leak detector in the garage. A blue beam illustrates the 500m wireless range, indicating full home coverage. — Image: Full home coverage is achieved with stable connection between the sensor and base station, offering a wireless range of up to 500 meters.

Operating Instructions

Leak Detection and Alerts

When the X-Sense SWS0A detector senses water, it will trigger an alert sequence:

The LED indicator on the detector will flash red.
The connected SBS50 Base Station will emit an audible alarm up to 100 dB.
You will receive an instant notification on your smartphone via the X-Sense Home Security app.

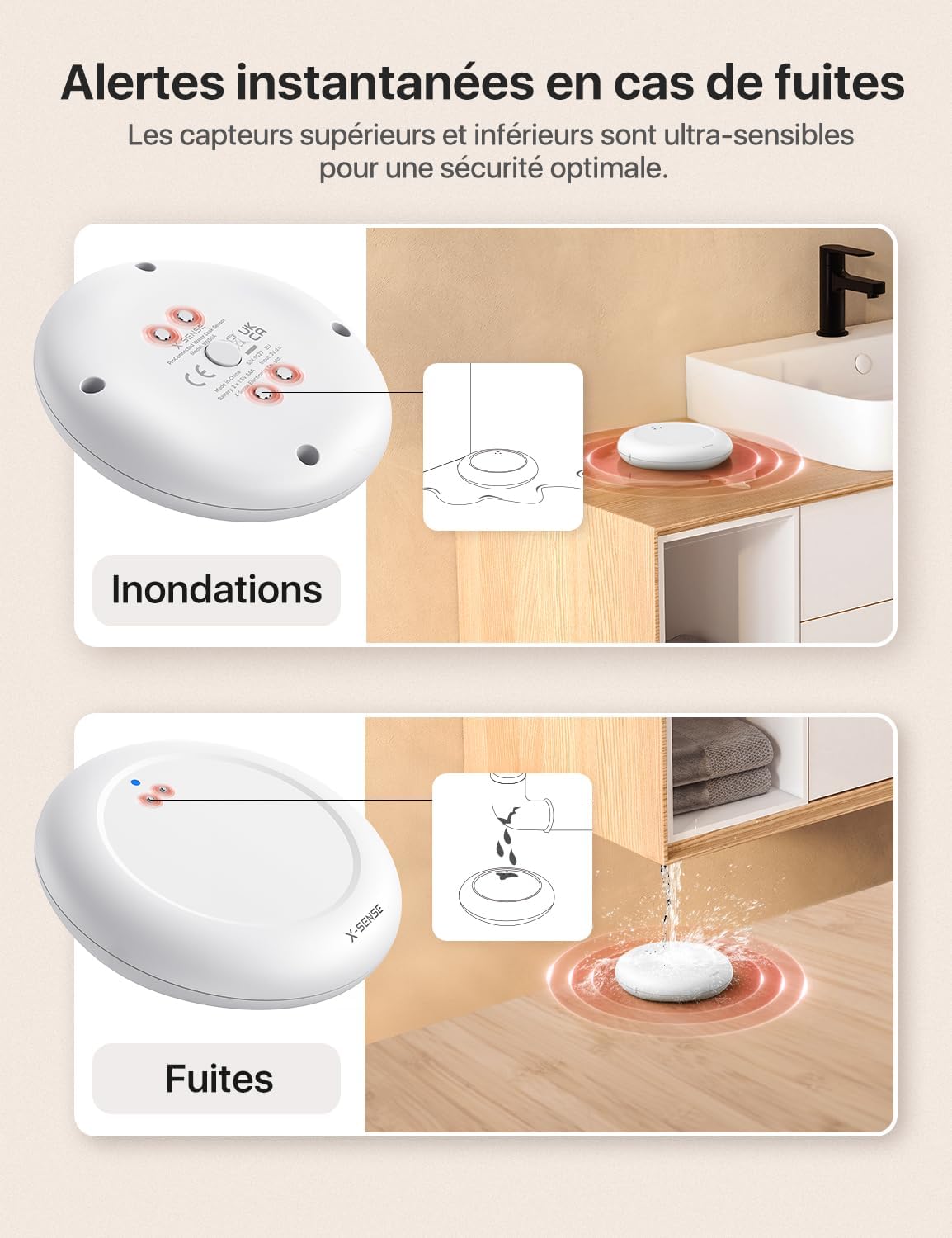

Two diagrams illustrating the X-Sense water leak detector's functionality. The top diagram shows the detector on a bathroom counter, detecting a flood. The bottom diagram shows the detector on a wooden floor, detecting a leak from above. — Image: Instant alerts are provided for both floods and leaks, thanks to ultra-sensitive top and bottom sensors.

X-Sense Home Security App Functions

The app provides comprehensive control and monitoring:

Alarm Volume Control: Adjust the base station's alarm volume.
Mute Alarms: Temporarily silence alarms from the app.
Alarm History: Review past alarm events.
Snooze Function: Temporarily disable alerts for 10 minutes, 30 minutes, 2 hours, 6 hours, or 12 hours.
Device Test: Perform a test to ensure the detector is working correctly.
Low Battery Alert: Receive notifications when the detector's battery is low.
Sensor Sharing: Share access to the sensor with family and friends.

A person holding a smartphone displaying the X-Sense Home Security app interface, showing a 'Water detector triggered' alert with options to 'Remind me later' or 'Silence'. The detector is visible on a wet wooden surface in the background. — Image: Instant notifications on the app allow you to receive alerts and control your device remotely.

A man looking at his smartphone, which displays a map with a 'Home' location and three contact icons, indicating the ability to share device alerts with family and friends. — Image: Share the device with family and friends so everyone receives alerts and can respond to issues.

Official Product Video

Video: This video demonstrates the X-Sense water leak detector in action, showing how it detects a leak and triggers an alert, leading to a quick resolution.

Maintenance

Battery Replacement

The detector's batteries typically last up to 3 years. When the battery is low, you will receive an alert via the X-Sense Home Security app. Replace the batteries promptly to ensure continuous protection.

Twist the top cover counter-clockwise to open the detector.
Remove the old AAA batteries.
Insert two new AAA alkaline batteries, observing correct polarity.
Close the cover by twisting clockwise until it clicks into place.

A transparent view of the X-Sense water leak detector showing its internal components and batteries, with a graphic overlay indicating '5 years' for extended autonomy. — Image: The sensor operates reliably for 5 years, powered by replaceable batteries with a 3-year lifespan.

Cleaning

Wipe the detector with a soft, damp cloth as needed. Do not use harsh chemicals or abrasive cleaners. Ensure the water probes are clean and free of debris for optimal performance.

Water Resistance

The SWS0A detector has an IP67 rating, meaning it is protected from dust and can withstand immersion in water up to 1 meter for 30 minutes. This makes it suitable for use in damp environments.

The X-Sense water leak detector partially submerged in shallow water, illustrating its IP67 waterproof rating. — Image: With an IP67 rating, this sensor can be used reliably in humid and dusty environments.

Troubleshooting

Problem	Possible Cause	Solution
No alarm from base station or app notification	Detector not paired with SBS50 Base Station. Base station not connected to Wi-Fi. Detector out of range. Low battery.	Ensure detector is paired with SBS50 Base Station. Check base station's Wi-Fi connection. Relocate detector closer to the base station. Replace batteries.
Detector LED not flashing on water detection	Low battery. Sensor probes are dirty. Detector malfunction.	Replace batteries. Clean sensor probes. Contact X-Sense support if problem persists.
False alarms	High humidity or condensation. Detector placed on a damp surface.	Relocate detector to a drier spot. Ensure the placement surface is dry.

For further assistance, please refer to the X-Sense Home Security app or contact customer support.

Specifications

Feature	Detail
Model	SWS0A
Power Source	2 x AAA Alkaline Batteries (included)
Battery Life	Up to 3 years (5 years with replaceable batteries)
Detection Height	0.3 mm
Waterproof Rating	IP67
Dimensions (Detector)	77 mm (diameter) x 17 mm (thickness)
Wireless Range	Up to 500 m (1640 ft) in open spaces
Compatible Devices	Smartphone, Tablet (via X-Sense Home Security App)
Control Method	Application
Base Station Alarm Noise Level	100 Decibels
UPC	850066548080

Warranty and Support

Warranty Information

X-Sense provides a warranty for this product. Please refer to the warranty card included in your package or visit the official X-Sense website for detailed warranty terms and conditions.

Customer Support

If you have any questions, require technical assistance, or need to report an issue, please contact X-Sense customer support. You can find contact information on the X-Sense official website or within the X-Sense Home Security app.

Spare parts are available for 5 years from the date of purchase.
