1. Product Overview
The Enhulk 40V 13-Inch Cordless Electric Snow Shovel is designed for efficient snow removal from various surfaces. This battery-powered unit offers freedom of movement without the constraints of a power cord, making snow clearing tasks easier and more enjoyable. It features a robust motor, dual 20V battery packs for extended operation, an adjustable handle for ergonomic use, and a directional plate for controlled snow dispersal.
Image 1.1: Enhulk 40V 13-Inch Cordless Electric Snow Shovel main unit.
2. Important Safety Information
Read all safety warnings and instructions before operating this product. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury. Save all warnings and instructions for future reference.
- Personal Safety: Always wear appropriate personal protective equipment, including eye protection, non-slip footwear, and hearing protection. Keep bystanders, children, and pets at a safe distance from the operating area.
- Electrical Safety: Use only the specified battery packs and charger. Do not expose the tool to rain or wet conditions. Avoid placing the machine directly on snow after use to prevent damage.
- Battery Care: Ensure batteries are cooled down for at least 20 minutes before charging. If the machine fails to start or operate, check the battery temperature. Allow the battery to warm up indoors if it is too cold, then try again. Store batteries in a dry, safe place.
- Operation Safety: Always maintain a firm grip on the handles. Be aware of the snow discharge direction. Do not attempt to clear snow that is too deep or heavy for the unit, as this can cause damage or injury.
3. Assembly and Components
3.1 Included Components
Verify that all components are present before assembly:
- Enhulk Electric Snow Shovel Unit
- Adjustable Front Handle
- Directional Plate
- 2 x 20V Battery Packs
- Dual Quick Charger

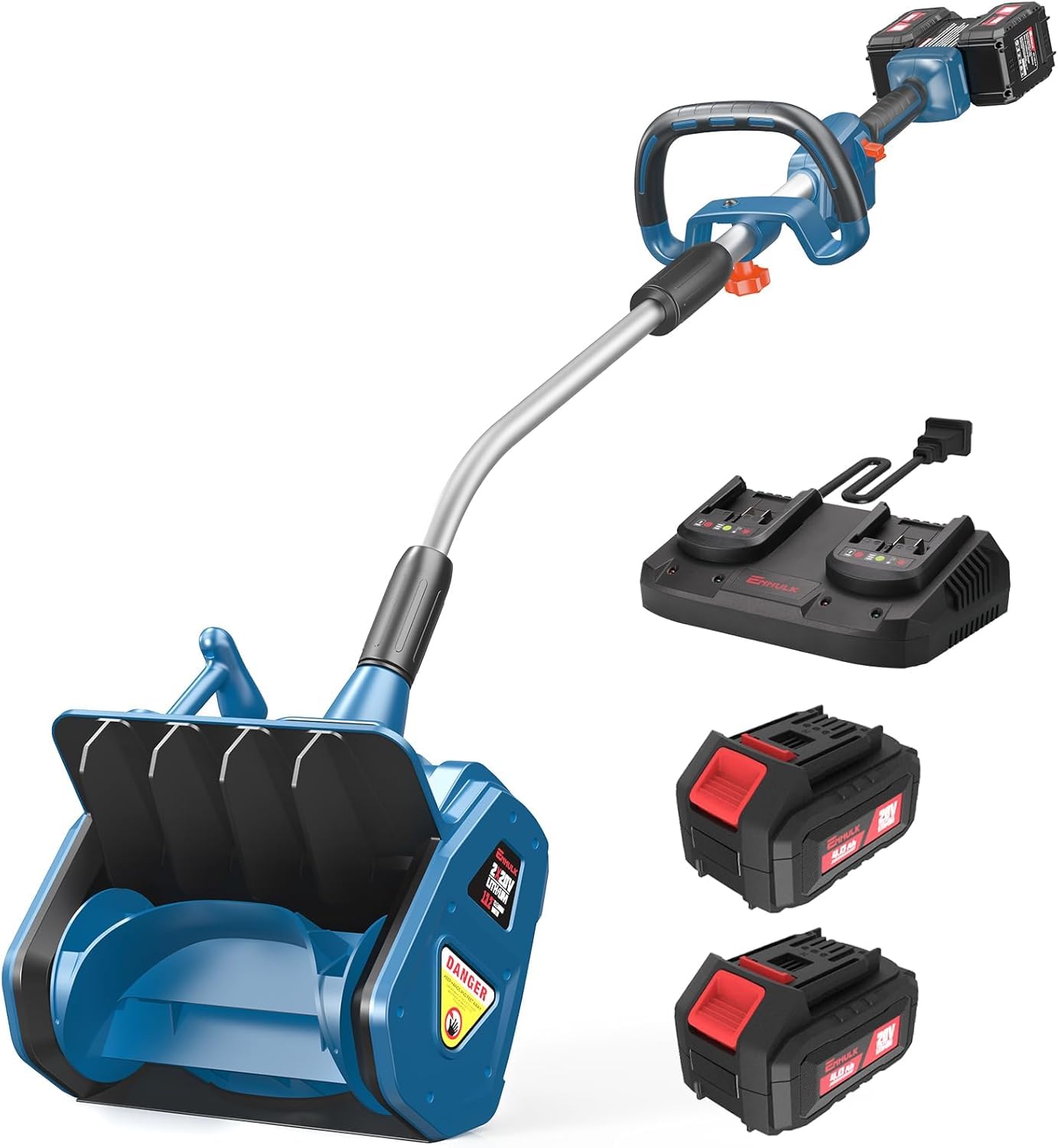

Image 3.1: Enhulk Snow Shovel with included battery packs and charger.
3.2 Assembly Instructions
The Enhulk Electric Snow Shovel is designed for quick and easy assembly. Follow these steps:
- Connect the Handle: Align the upper handle section with the main shovel unit. Insert the handle into the designated slot and secure it by twisting the knob until it is firm.
- Attach the Directional Plate: Position the directional plate onto the snow shovel's discharge chute. Ensure it clicks securely into place, allowing for rotation.
- Charge Batteries: Before first use, fully charge both 20V battery packs using the provided dual quick charger. Allow batteries to cool for 20 minutes before charging.
Image 3.2: Illustration of connecting the shovel handle.
4. Operating Instructions
4.1 Battery Installation and Charging
- Insert fully charged 20V battery packs into the designated slots on the snow shovel. Ensure they click into place.
- To charge, remove batteries from the unit and place them on the dual quick charger. Allow batteries to cool for 20 minutes before charging to optimize battery life.

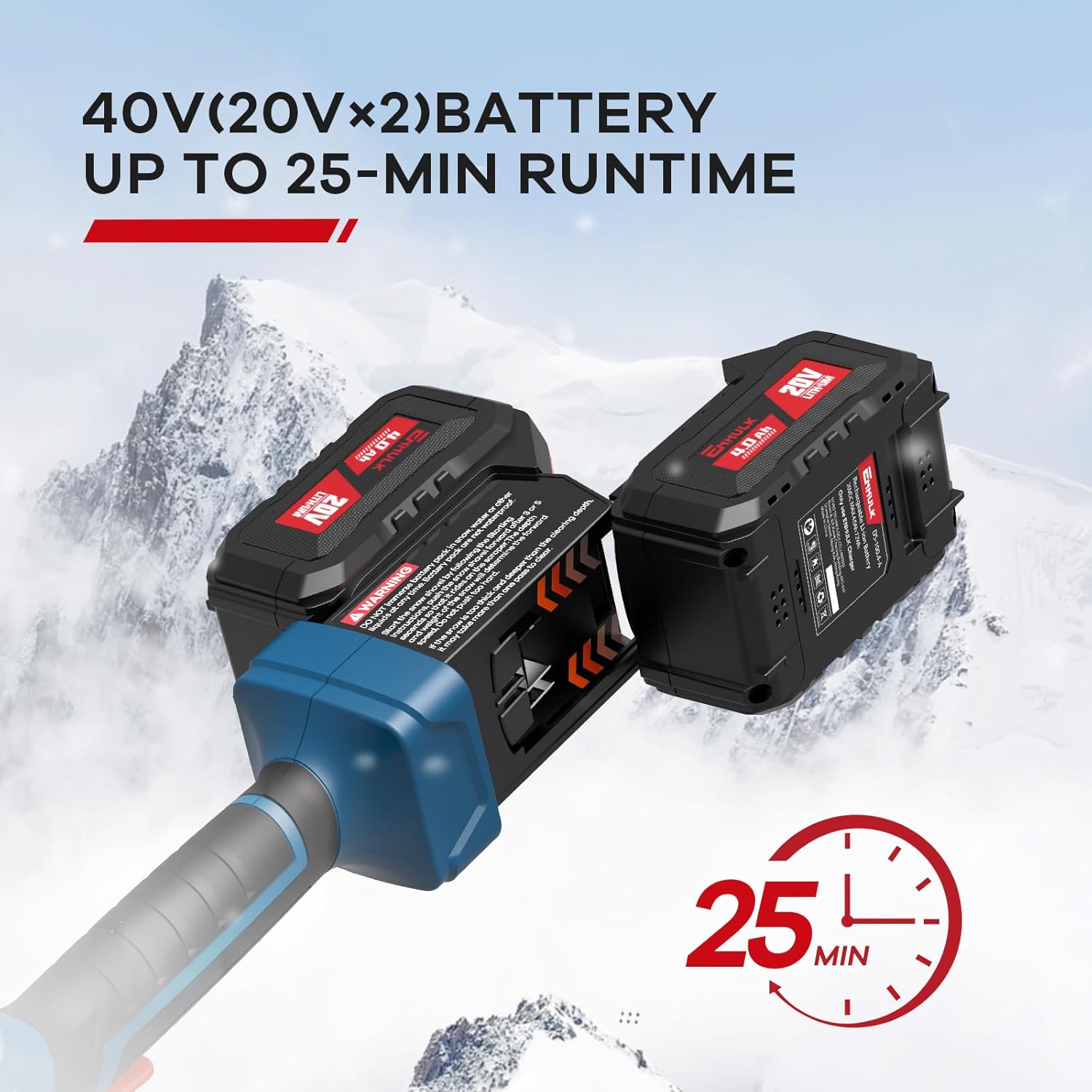

Image 4.1: Dual 20V battery packs for the Enhulk snow shovel.
4.2 Starting and Stopping the Unit
The snow shovel features dual safety switches to prevent accidental activation:
- To Start: Press the safety lock button located on the side of the handle with your thumb. While holding the safety lock, squeeze the trigger switch on the handle. The unit will start.
- To Stop: Release the trigger switch. The unit will power off.
Image 4.2: Illustration of the 2-step quick start process.
4.3 Snow Clearing Operation
- Clearing Capacity: The shovel can clear paths up to 13 inches wide and 8 inches deep in a single pass.
- Snow Type: This unit is specifically designed for handling fluffy snow. Performance may vary significantly with wet, heavy, or icy snow. Avoid attempting to clear snow banks left by city plows.
- Adjustable Handle: Adjust the front handle to a comfortable position to reduce strain on your back during operation.
- Directional Plate: Rotate the snow deflector +/- 30 degrees to control the direction of snow dispersal.
- Recommended Use: Ideal for steps, patios, decks, walkways, and driveways. Suitable for various terrains including wooden, cement, and gravel surfaces (except cobblestone surfaces).
Image 4.3: Visual representation of the 13.2-inch clearing width and 8-inch clearing depth.
Image 4.4: Close-up of the 3-position adjustable directional plate.
Image 4.5: User demonstrating the adjustable handle for ergonomic use.
Image 4.6: User operating the Enhulk snow shovel to clear snow.
5. Maintenance
- Cleaning: After each use, remove any snow or debris from the shovel unit. Use a damp cloth to wipe down surfaces. Do not use harsh chemicals or abrasive cleaners.
- Storage: Store the snow shovel in a dry, protected area when not in use. Avoid placing it directly on snow or in wet conditions. The detachable design allows for compact storage.
- Battery Storage: Store battery packs in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, charge batteries to approximately 50% capacity.
- Inspection: Periodically inspect the unit for any signs of wear or damage, especially the auger blades and directional plate. Ensure all fasteners are tight.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not start or operate. | Battery temperature is too low. Batteries are not properly inserted or charged. Safety lock and trigger not engaged correctly. | Allow batteries to warm up indoors. Ensure batteries are fully charged and correctly seated. Press safety lock then squeeze trigger simultaneously. |
| Reduced snow clearing performance. | Snow is wet, heavy, or icy. Overloading the unit. | This unit is optimized for fluffy snow. For wet/heavy snow, take smaller passes or consider manual methods. Reduce the amount of snow being cleared in each pass. |
| Battery runtime is shorter than expected. | Batteries not fully charged. Operating in very cold temperatures. Clearing dense or heavy snow. | Ensure batteries are fully charged before use. Battery performance can decrease in extreme cold. Heavy loads consume more power. |
7. Specifications
| Feature | Detail |
|---|---|
| Model | B0DCMN8VXX |
| Brand | Enhulk |
| Power Source | Battery Powered (2 x 20V) |
| Voltage | 40V (2 x 20V Battery Packs) |
| Clearing Width | 13 inches (approx. 33 cm) |
| Clearing Depth | 8 inches (approx. 20.3 cm) |
| Max Runtime | Up to 25 minutes (with 2 x 20V battery packs) |
| Weight | 14.3 pounds (approx. 6.5 kg) with battery pack |
| Adjustable Handle | Yes |
| Directional Plate | Yes, +/- 30 degrees rotation |
8. Warranty and Customer Support
For detailed warranty information, please refer to the warranty card included with your product or visit the official Enhulk website. If you encounter any issues or require assistance, please contact Enhulk customer service. Contact details can typically be found on the product packaging or the Enhulk brand website.
