Introduction
Thank you for choosing the Higeego H8 Heavy Duty Covered Garment Rack. This instruction manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new storage solution. Please read this manual thoroughly before use and retain it for future reference.
Product Features
- Material: Constructed from durable carbon steel with a polyester fabric cover.
- Dimensions: Overall dimensions with cover are 70.1"L x 17.3"W x 76.4"H.
- Weight Capacity: Supports up to 780 lbs, suitable for heavy items.
- Adjustable Shelves: Features 5 adjustable wire shelves and 3 hanging rods for customizable storage configurations.
- Dustproof Cover: Includes a zippered oxford fabric cover to protect contents from dust and maintain a tidy appearance.
- Sturdy Construction: Powder-coated carbon steel frame resists water and rust, ensuring stability and longevity.
- Easy Assembly: Designed for straightforward assembly without the need for special tools.

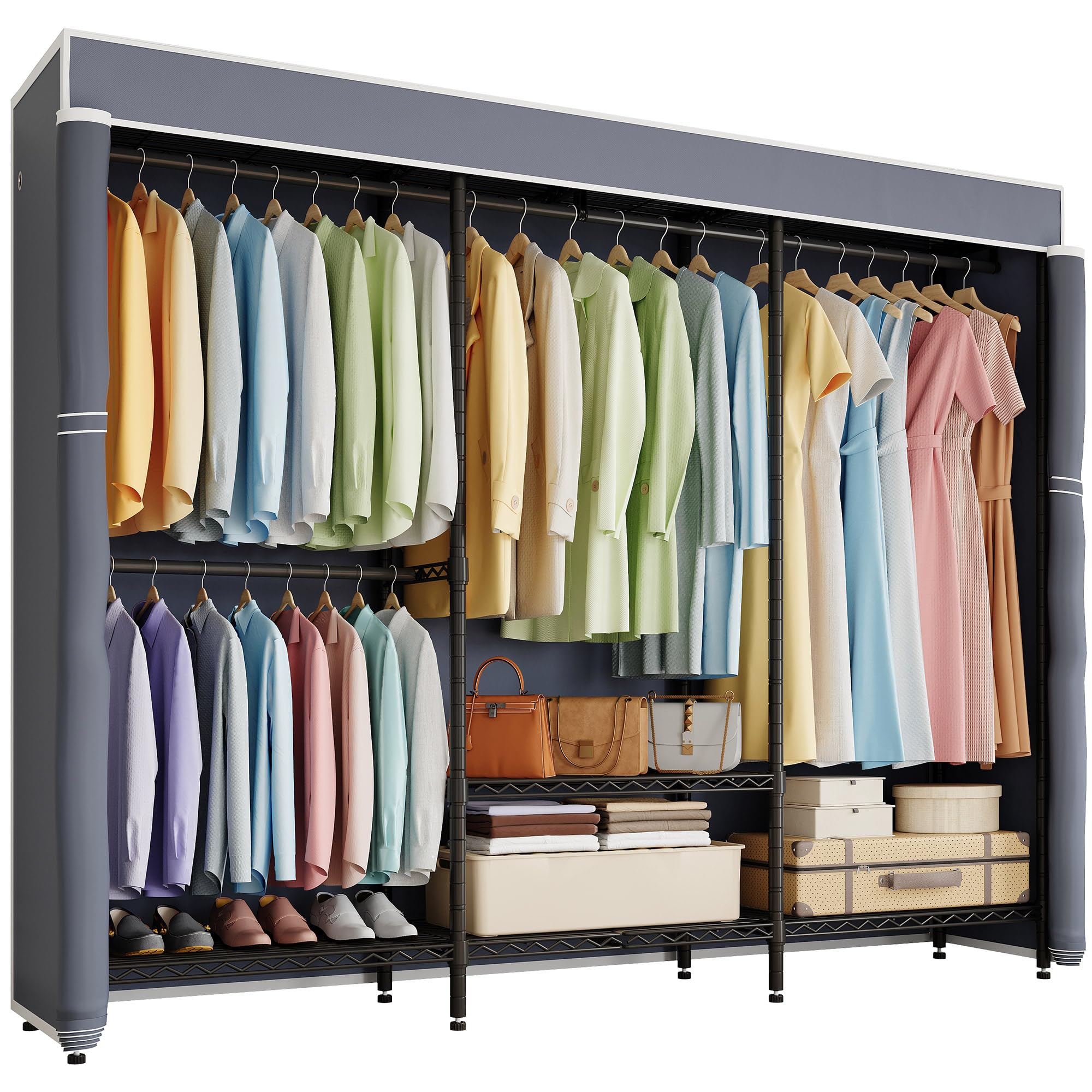

Image: The Higeego H8 Covered Garment Rack, showcasing its overall design and grey cover.
Safety Information
- Do not exceed the maximum weight capacity of 780 lbs. Distribute weight evenly across shelves and hanging rods.
- Ensure all connections are securely fastened during assembly to prevent collapse.
- Use the included anti-tip device to secure the rack to a wall, especially if children are present.
- Keep small parts away from children during assembly.
- Avoid climbing or hanging on the rack.
- Place the rack on a flat, stable surface.
Package Contents
Before assembly, verify that all components listed below are present and undamaged:
- Polyester Fabric Cover
- Wire Shelves (5 units)
- Detachable Hanger Rods (3 units)
- Adjustable Leveling Feet
- Plastic Clips
- Anti-tip Device
- Assembly Instructions
Assembly Instructions
The Higeego H8 Garment Rack is designed for easy, tool-free assembly. Follow these steps carefully:
- Unpack Components: Lay out all parts on a clean, soft surface to prevent scratches. Refer to the package contents list to ensure all pieces are present.
- Assemble Vertical Poles: Connect the pole sections by inserting them into each other. Ensure they are firmly seated.
- Attach Plastic Clips: Snap the plastic clips onto the vertical poles at the desired height for your shelves. Ensure the arrow on each clip points upwards.
Image: Attaching plastic clips to the vertical poles.
- Install Shelves: Slide the wire shelves down over the poles until they rest securely on the plastic clips. Apply even pressure to ensure the shelf is level.
- Attach Hanging Rods: Secure the detachable hanger rods between the vertical poles at your preferred height.
- Install Leveling Feet: Screw the adjustable leveling feet into the bottom of the vertical poles. Adjust them to ensure the rack is stable and level on uneven floors.
Image: Adjustable leveling feet for stability.
- Apply Dustproof Cover: Drape the polyester fabric cover over the assembled rack. Secure it using the integrated ties and zippers.
- Secure with Anti-tip Device: Attach the anti-tip device to the top of the rack and secure it to a wall stud according to the separate instructions provided with the device.
Video: A short demonstration of the Higeego H8 portable closet with its dust-proof cover, highlighting its large capacity.
Operating Instructions
- Adjusting Shelves: To change shelf height, remove items from the shelf, detach the plastic clips, reposition them to the desired height, and re-attach the shelf.
- Using Hanging Rods: Utilize the three hanging rods for clothes, scarves, or other items that benefit from hanging storage.
- Dust Protection: Keep the zippered cover closed when not accessing items to protect them from dust and maintain a neat appearance.
- Loading: Distribute weight evenly. Place heavier items on lower shelves and lighter items on upper shelves or hanging rods.
Image: A close-up view of a shelf with stored items, illustrating the rack's storage capabilities.
Maintenance
- Cleaning the Frame: Wipe the carbon steel frame with a damp cloth and mild detergent. Dry thoroughly to prevent rust.
- Cleaning the Cover: The polyester fabric cover can be spot cleaned with a damp cloth and mild soap. Air dry completely. Do not machine wash or tumble dry.
- Regular Checks: Periodically check all connections and leveling feet to ensure they remain tight and secure.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Rack is unstable/wobbly. | Uneven floor; loose connections; uneven weight distribution. | Adjust leveling feet; tighten all connections; redistribute items evenly. |
| Shelf slides down. | Plastic clips not properly installed or damaged; excessive weight. | Ensure clips are securely snapped into place with arrows pointing up; reduce weight on the shelf. |
| Zipper on cover is stuck. | Fabric caught in zipper; zipper teeth misaligned. | Gently pull fabric away from zipper; try to realign teeth by moving slider back and forth carefully. |
Specifications
| Attribute | Detail |
|---|---|
| Brand | Higeego |
| Model Number | H8 |
| Color | Black Rack with Grey Cover |
| Material | Carbon Steel, Metal, Polyester |
| Product Dimensions (L x W x H) | 70.1" x 17.3" x 76.4" |
| Maximum Weight Recommendation | 780 Pounds |
| Number of Shelves | 5 |
| Included Components | Cover, Shelves, Detachable Hanger Rod, Adjustable Leveling Feet, Plastic Clips, Anti-tip Device |
Image: Dimensional diagram of the Higeego H8 Garment Rack.
Warranty and Support
For warranty information or product support, please refer to the documentation included with your purchase or visit the official Higeego website. Contact customer service for assistance with any issues or questions.
Manufacturer: Higeego
