WOCKODER R608 Record Player Turntable Instruction Manual

1. Introduction

Thank you for purchasing the WOCKODER R608 Record Player Turntable. This device is designed to provide a versatile audio experience, allowing you to enjoy your vinyl records, stream music wirelessly via Bluetooth, or connect external audio sources. This manual provides essential information for safe operation, setup, and maintenance of your record player.

2. Safety Instructions

• Power Source: Ensure the power supply matches the voltage requirements specified on the unit. Use only the provided power adapter.
• Water and Moisture: Do not expose the unit to rain, moisture, or liquids. Avoid placing objects filled with liquids, such as vases, on the unit.
• Heat Sources: Keep the unit away from heat sources such as radiators, heat registers, stoves, or other heat-producing appliances.
• Ventilation: Ensure proper ventilation. Do not block any ventilation openings.
• Cleaning: Unplug the unit from the power outlet before cleaning. Use a soft, dry cloth. Do not use liquid cleaners or aerosol cleaners.
• Servicing: Do not attempt to service the unit yourself. Refer all servicing to qualified service personnel.
• Placement: Place the unit on a stable, flat surface to prevent damage from falling.

3. Package Contents

Verify that all items listed below are included in your package:

• WOCKODER R608 Turntable Unit
• Power Adapter
• 45 RPM Adapter
• Instruction Manual

4. Product Overview

The WOCKODER R608 is an all-in-one record player featuring a belt-driven system for reduced vibration and improved sound quality. It includes built-in stereo speakers and offers multiple playback options.

Image: Overview of the WOCKODER R608 Turntable highlighting its key features including wireless connectivity, AUX-in, headphone jack, built-in speakers, three-speed vinyl player, RCA output, and included 45 RPM adapter.

Key Components:

• Turntable Platter: Where records are placed.
• Tonearm: Holds the stylus and tracks the record grooves.
• Stylus (Needle): The part that reads the record.
• Speed Selector: Allows selection of 33 1/3, 45, or 78 RPM.
• Auto-Stop Switch: Enables or disables automatic stopping of the platter at the end of a record.
• Built-in Speakers: Integrated stereo speakers for direct audio playback.
• Bluetooth Receiver: For wireless audio streaming from compatible devices.
• AUX-IN Port: For connecting external audio devices via a 3.5mm cable.
• RCA Line Out Ports: For connecting to external amplifiers or powered speakers.
• Headphone Jack: For private listening.
• Dust Cover: Protects the turntable from dust when not in use.

Image: Close-up view of the WOCKODER R608 Turntable showing the stylus, belt drive mechanism with spring, auto-stop button, and AUX-IN/RCA Line Out ports.

5. Setup

1. Unpack: Carefully remove the turntable from its packaging. Retain packaging for future transport or storage.
2. Placement: Place the unit on a flat, stable surface away from direct sunlight, heat sources, and excessive dust or vibration.
3. Dust Cover: Attach the dust cover to the hinges at the back of the unit.
4. Stylus Protector: Remove the clear plastic stylus protector from the needle before use.
5. Power Connection: Connect the power adapter to the DC IN port on the back of the turntable and then plug it into a wall outlet.

6. Operating Instructions

6.1 Playing Vinyl Records

1. Power On: Turn the Power/Volume knob clockwise to power on the unit. The power indicator light will illuminate.
2. Select Speed: Set the speed selector switch (33, 45, or 78 RPM) to match the record you are playing. Use the 45 RPM adapter for 7-inch singles if needed.
3. Place Record: Place your vinyl record on the turntable platter.
4. Lift Tonearm: Gently lift the tonearm using the cue lever.
5. Position Tonearm: Move the tonearm over the desired starting point of the record.
6. Lower Tonearm: Slowly lower the tonearm onto the record using the cue lever. The record will begin to play.
7. Adjust Volume: Adjust the volume using the Power/Volume knob.
8. Auto-Stop Function: If the Auto-Stop switch is ON, the platter will stop spinning automatically when the record finishes. If OFF, the platter will continue to spin.
9. End Playback: When the record finishes, lift the tonearm using the cue lever and return it to the tonearm rest. Turn the Power/Volume knob counter-clockwise to power off the unit.

Image: A user carefully placing a vinyl record onto the WOCKODER R608 Turntable's platter, demonstrating the initial step of playing a record.

Image: The WOCKODER R608 Turntable displaying its three-speed playback capability (33 1/3, 45, or 78 RPM) and illustrating support for 7, 10, and 12-inch vinyl records.

6.2 Bluetooth Connection

The turntable features a built-in Bluetooth receiver, allowing you to stream audio from your smartphone or other Bluetooth-enabled devices through the turntable's speakers.

1. Power On: Turn on the turntable.
2. Activate Bluetooth: The turntable will automatically enter Bluetooth pairing mode. The power indicator light may flash or change color (refer to specific model indicator behavior).
3. Pair Device: On your mobile device, enable Bluetooth and search for available devices. Select "WOCKODER R608" (or similar name) from the list.
4. Confirmation: Once paired, a confirmation sound may play, and the indicator light will become solid.
5. Play Music: Start playing music on your connected device. The audio will play through the turntable's speakers.

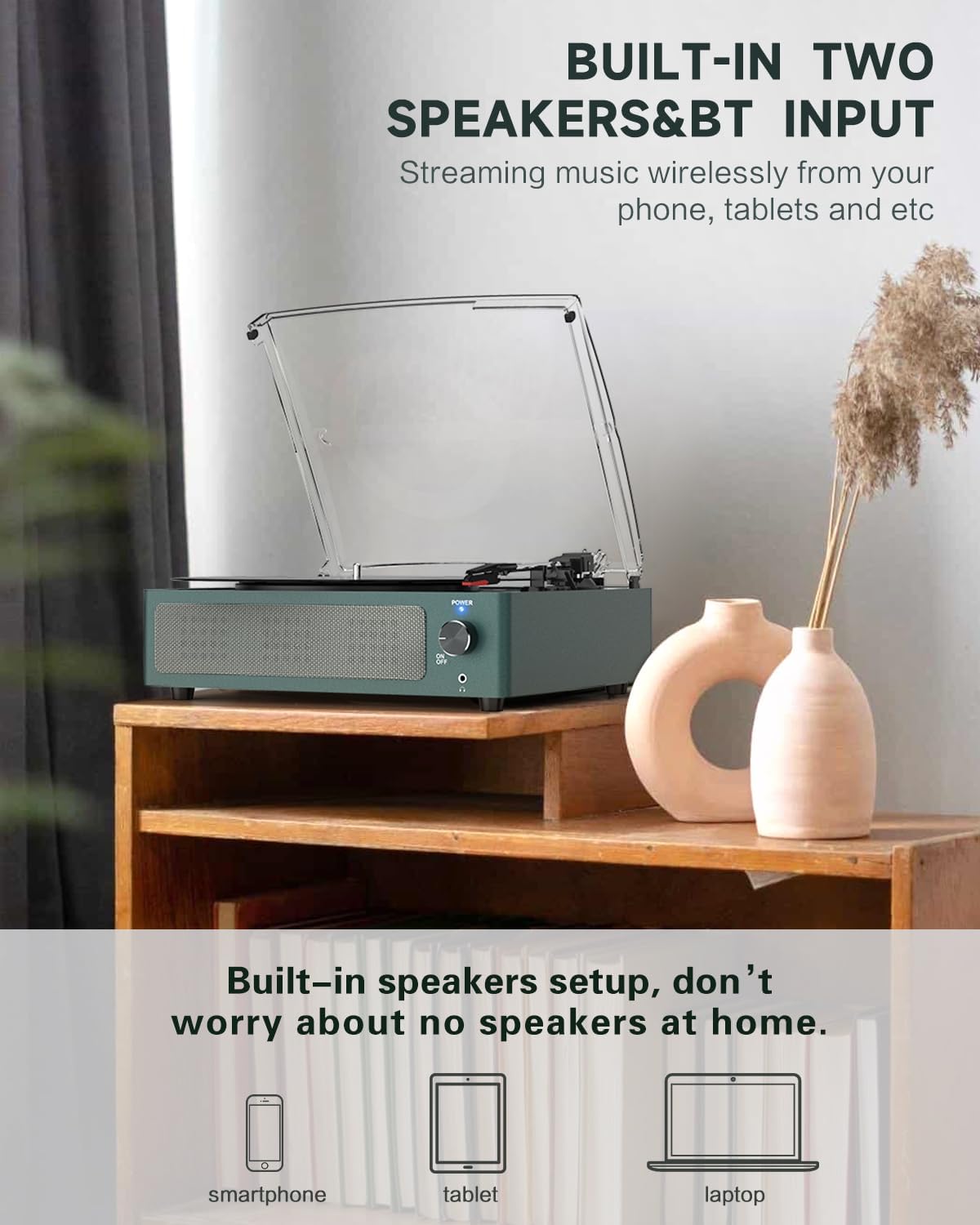

Image: The WOCKODER R608 Turntable showcasing its built-in speakers and Bluetooth input capability, allowing wireless music streaming from smartphones, tablets, and laptops.

6.3 AUX-IN Connection

Connect external audio devices (e.g., MP3 players, CD players) to the turntable using a 3.5mm AUX cable.

1. Connect Cable: Plug one end of a 3.5mm AUX cable into the AUX-IN port on the turntable and the other end into the headphone jack or line-out port of your external audio device.
2. Play Audio: Start playing audio on your external device. The sound will be routed through the turntable's speakers.
3. Adjust Volume: Adjust the volume using the turntable's Power/Volume knob and/or the volume control on your external device.

6.4 RCA Line Out

For enhanced sound or to connect to a home audio system, use the RCA Line Out ports.

1. Connect RCA Cable: Connect an RCA cable (not included) to the RCA Line Out ports (Red for Right, White for Left) on the back of the turntable.
2. Connect to External System: Connect the other end of the RCA cable to the corresponding input ports on your amplifier or powered speakers.
3. Adjust Volume: Adjust the volume primarily through your external amplifier or speakers.

6.5 Headphone Use

For private listening, plug headphones into the headphone jack on the front of the unit.

• Connect Headphones: Plug your headphones (3.5mm jack) into the headphone port.
• Automatic Speaker Mute: The built-in speakers will automatically mute when headphones are connected.
• Adjust Volume: Adjust the volume using the Power/Volume knob.

7. Maintenance

7.1 Cleaning the Unit

• Wipe the exterior of the unit with a soft, dry cloth.
• Do not use harsh chemicals, cleaning solvents, or strong detergents.

7.2 Stylus Care

• Handle the stylus carefully. Avoid touching the needle with your fingers.
• Clean the stylus periodically with a soft brush, brushing from back to front.
• Replace the stylus when you notice a degradation in sound quality or visible wear.

7.3 Record Care

• Keep records clean and free of dust. Use a record brush before each play.
• Store records vertically in their sleeves in a cool, dry place.

8. Troubleshooting

If you encounter issues with your WOCKODER R608, refer to the following common problems and solutions:

9. Specifications

10. Warranty and Support

This WOCKODER R608 Record Player Turntable comes with a standard manufacturer's warranty. For specific warranty details, claims, or technical support, please refer to the warranty card included in your package or contact WOCKODER customer service directly. You may also refer to the retailer's return policy for initial product issues.

For further assistance, please visit the official WOCKODER website or contact their support channels.
