1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Loupusuo L08 MAX Smart Toilet. Please read this manual thoroughly before installation and use, and retain it for future reference.
2. Safety Information
- Ensure the toilet is connected to a grounded electrical outlet.
- Do not immerse the product in water or spray water directly onto electrical components.
- Keep the remote control dry and away from water.
- Do not use abrasive cleaners or harsh chemicals on the toilet surface.
- For any repairs, contact qualified service personnel.
3. Package Contents
Verify that all components are present before beginning installation:
- Loupusuo L08 MAX Smart Toilet Unit
- Remote Control
- Installation Instructions
- Angle Valve
- Screws
- Wax Ring
- Backup Battery (for power outage flushing)
Image: All components included in the Loupusuo L08 MAX Smart Toilet package, such as the toilet unit, remote control, installation guide, angle valve, screws, wax ring, and backup battery.
4. Product Overview
The Loupusuo L08 MAX Smart Toilet integrates advanced features for enhanced hygiene and comfort.
Key Features:
- Automatic Lid/Seat Operation: Radar sensing for automatic opening and closing.
- Heated Seat: Adjustable temperature settings for comfort.
- Integrated Bidet: Warm water sprayer with adjustable water temperature, pressure, and nozzle position for rear and feminine wash.
- Warm Air Dryer: Adjustable air temperature for a hands-free drying experience.
- Automatic Dual Flush: Foot sensor operation and off-seat auto flush.
- LED Display: Real-time monitoring of water, seat, and drying temperatures.
- Night Light: Integrated lighting for visibility in low-light conditions.
- Power Outage Flushing: Backup battery ensures functionality during power failures.
- Self-Cleaning Nozzle: Automatic cleaning of the bidet nozzle before and after use.
- Slow-Close Seat: Prevents slamming and reduces noise.
Image: Front view of the Loupusuo L08 MAX Smart Toilet, showcasing its sleek design and integrated LED display on the lid.
5. Setup and Installation
The Loupusuo L08 MAX Smart Toilet is designed for easy installation. Ensure your bathroom has a nearby power outlet and the standard 12-inch rough-in distance.
Installation Steps:
- Measure: Confirm the 12-inch rough-in distance and available space (26.77in*16.54in*19.71in).
- Install Fixing Block: Secure the fixing block to the floor according to the provided instructions.
- Fasten Toilet Bowl: Carefully place and fasten the toilet bowl to the installed fixing block.
- Connect Water Supply: Connect the water supply line to the toilet and open the water valve.
- Connect Power: Plug the toilet into a nearby electrical outlet.
Image: Visual guide illustrating the dimensions and four-step installation process: Measure, Install, Connect, and Use.
Installation Video:
Video: A detailed installation guide for the Loupusuo Smart Toilet, demonstrating each step of the setup process.
6. Operating Instructions
Your Loupusuo L08 MAX Smart Toilet offers multiple ways to control its advanced features.
6.1 Automatic Lid/Seat Operation
The toilet features radar sensing to automatically open the lid and seat when you approach, and close them when you leave.
- To Enable/Disable Auto-open: Press and hold the "Cover" button on the remote. 1 beep = Auto-open ON; 2 beeps = Auto-open OFF.
- To Adjust Microwave Sensing Range: Press and hold both "Night Light" and "Water Pressure + or -" buttons. Level 0 = OFF; Level 1-5 = Increasing detection distance (Level 5 is maximum).
- To Adjust Lid/Seat Opening Force: Press and hold "Seat Cover" until the display shows numbers. Press "Cover" to increase lid opening force; Press "Seat Cover" to increase seat lifting force.
Image: A person approaching the smart toilet, demonstrating the automatic lid and seat opening feature via foot sensor.
6.2 Heated Seat
The seat temperature can be adjusted for optimal comfort, especially in colder environments.
- Adjust seat temperature using the remote control or the knob. The LED display shows the current temperature.
Image: Close-up view of the heated seat and hot air drying mechanism, with temperature settings displayed.
6.3 Bidet Functions
The integrated bidet offers various washing modes with adjustable settings.
- Rear Washing Mode: For posterior cleansing.
- Feminine Washing Mode: For gentle feminine cleansing.
- Moving Cleaning: The nozzle moves back and forth for a wider cleaning area.
- Water Pressure Adjustment: Adjust the intensity of the water spray (5 levels).
- Nozzle Position Adjustment: Adjust the nozzle's forward/backward position.
- Water Temperature Adjustment: Adjust the water temperature (4 levels).
- Self-Cleaning Nozzle: The stainless steel nozzle cleans itself before and after each use.
Image: Detailed view of the multi-function cleaning nozzles, illustrating different spray patterns for various cleaning modes.
6.4 Drying Function
After washing, use the warm air dryer for a comfortable and hygienic finish.
- Warm Air Dryer: Provides adjustable air temperature (4 levels) for drying.
6.5 Automatic Flushing
The toilet offers multiple automatic flushing options.
- Off-Seat Auto Flush: The toilet automatically flushes when you stand up and move away.
- Foot Sensor Operation: Wave your foot past the sensor at the base of the toilet to initiate a flush.
- To Adjust Auto-flush: Press and hold the "High/Low" button on the remote. 1 beep = Auto-flush ON; 2 beeps = Auto-flush OFF.
Image: Illustration of the powerful off-seat auto flush system, showing water swirling effectively within the bowl.
6.6 Manual Flushing
In addition to automatic flushing, manual options are available.
- Side Knob: A knob on the side of the toilet allows for manual flushing.
- Remote Control: The remote control includes a dedicated "Flush" button.
6.7 Night Light
The toilet features an integrated night light for convenience and safety during nighttime use.
- The night light can be controlled via the remote control.
6.8 Power Outage Flushing
A backup battery system ensures the toilet can still flush during a power outage.
- Connect the backup battery as instructed to enable flushing during power failures.
6.9 Control Methods
Operate the toilet using either the intuitive knob or the comprehensive remote control.
- Knob Control: Long press the knob to turn the toilet on/off. Rotate counter-clockwise for hip cleaning, clockwise for feminine cleaning. Short press to stop.
- Remote Control: Provides full control over all functions, including water temperature, seat temperature, drying temperature, water pressure, nozzle position, and lighting.
Image: Close-up of the remote control and the integrated knob on the toilet, showing various function icons for easy operation.
Operation Video:
Video: An operational video for the Loupusuo L08 MAX Smart Toilet, demonstrating various features and control methods.
7. Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your smart toilet.
- Ceramic Surface: The easy-to-clean ceramic surface simplifies daily cleaning. Use mild, non-abrasive cleaners.
- Nozzle Cleaning: The bidet nozzle performs automatic self-cleaning. Periodically inspect and gently clean the nozzle with a soft brush if necessary.
- IPX4 Waterproof: The toilet is IPX4 waterproof, allowing for safe cleaning without fear of water damage to the main unit.

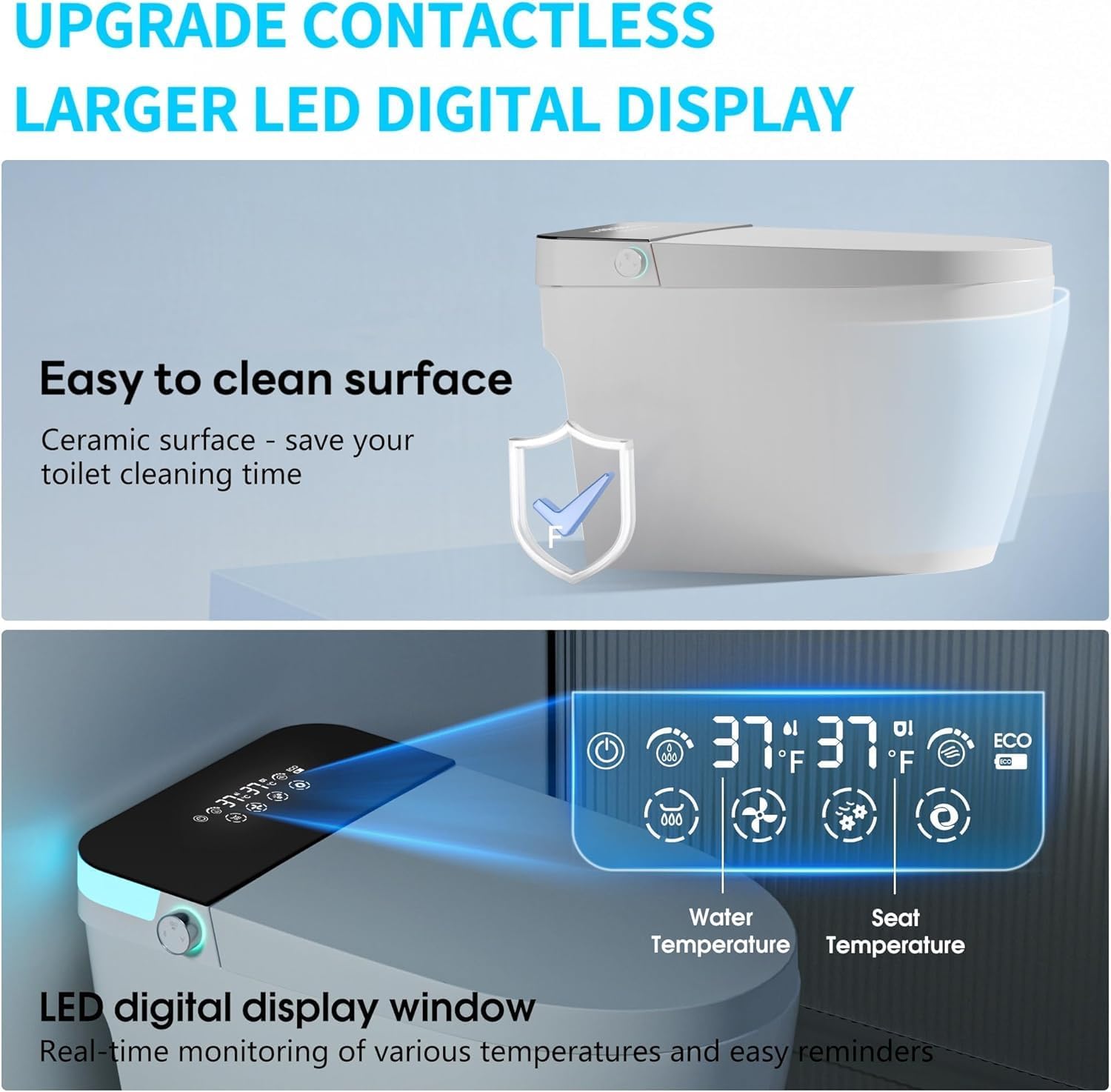

Image: The LED digital display showing real-time temperature monitoring, highlighting the easy-to-clean ceramic surface.
8. Troubleshooting
If you encounter any issues, refer to the following common solutions:
- No Power/Functions Not Working: Check if the power cord is securely plugged in. Ensure the water valve is open. Verify the backup battery is connected during power outages.
- Remote Control Not Responding: Ensure the remote control batteries are functional. Re-pair the remote with the toilet if necessary (refer to the "Operating Instructions" section for code matching).
- Weak Flush/Incomplete Rinse: Check water pressure. Ensure the water supply valve is fully open. Inspect the swirl rinse water hose for any blockages or flow reducers.
- Lid/Seat Not Opening/Closing Automatically: Check the microwave sensing range settings. Ensure no obstructions are blocking the sensors.
- Bidet Nozzle Malfunction: Perform a self-cleaning cycle. If issues persist, ensure water pressure is adequate.
9. Specifications
| Feature | Specification |
|---|---|
| Model | L08 MAX (WT08C) |
| Product Dimensions | 16.54"D x 16.54"W x 17.91"H |
| Material | Ceramic |
| Item Weight | 88 Pounds |
| Installation Type | Floor Mounted |
| Rough-in | 12 inches |
| Rated Power Input | 1050W |
| Water Flow | 5.28 GPM |
| Water Pressure | 35-108 psi |
10. Warranty and Support
Loupusuo offers a 12-month free replacement parts service and 24/7 customer support for your peace of mind. For assistance, please contact Loupusuo customer service.
