Introduction
Thank you for choosing the ENJOYWOOD 48" x 20" Adjustable Height Workbench. This manual provides detailed instructions for the assembly, operation, and maintenance of your new workbench. Please read this manual thoroughly before use to ensure safe and efficient operation. This workbench is designed for use in garages, workshops, offices, and home environments, offering a robust and versatile work surface.

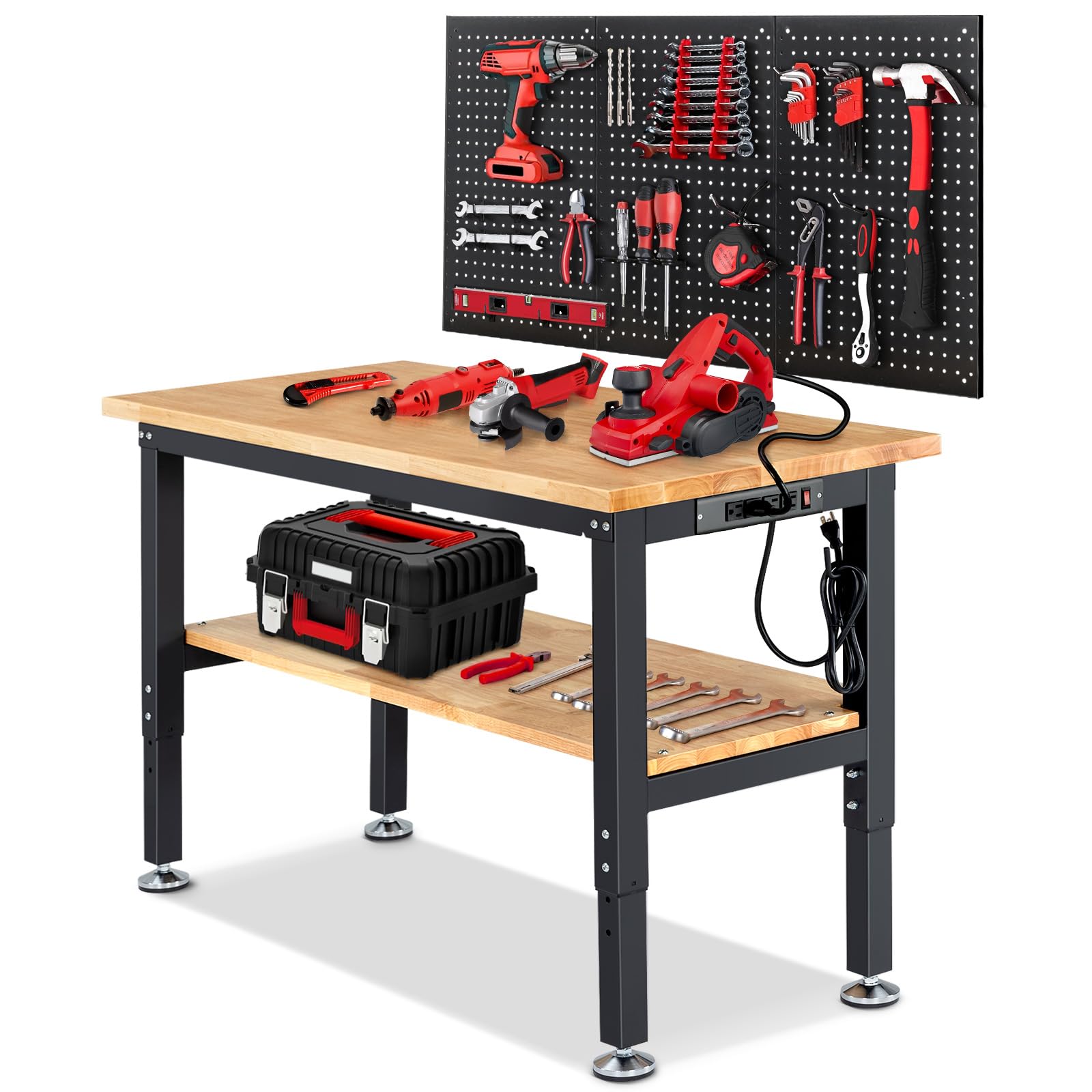

An overview of the ENJOYWOOD 48x20 adjustable height workbench, featuring a solid rubberwood top and a lower storage shelf, designed for various work environments.
Safety Information
- Always ensure the workbench is placed on a stable, level surface.
- Do not exceed the maximum load capacity of 3000 lbs for the tabletop and 500 lbs for the under-table shelf.
- Keep children and pets away from the workbench during assembly and operation.
- Wear appropriate personal protective equipment (PPE) when working with tools on the bench.
- Ensure all fasteners are securely tightened before use. Periodically check and re-tighten as necessary.
- When adjusting the height, ensure no objects are obstructing the legs and that the locking pins are fully engaged.
Package Contents
Please verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.
- Rubberwood Tabletop (1)
- Under-Table Shelf (1)
- H-shaped Steel Legs (4)
- Adjustable Metal Feet (4)
- Power Strip with AC Outlets (1)
- Assembly Hardware (Screws, Washers, Allen Wrench)
- Instruction Manual (1)
Assembly Instructions
Follow these steps carefully for proper assembly. It is recommended to have two people for assembly.
- Attach Legs to Tabletop: Place the rubberwood tabletop upside down on a soft, clean surface to prevent scratches. Attach the H-shaped steel legs to the pre-drilled holes on the underside of the tabletop using the provided screws. Do not fully tighten yet.
- Install Under-Table Shelf: Position the under-table shelf between the steel legs at the desired height. Secure it to the legs using the appropriate screws. Ensure it is level.
- Secure All Fasteners: Once all components are in place, fully tighten all screws using the provided tool.
- Attach Adjustable Feet: Screw the adjustable metal feet into the bottom of each leg.
- Install Power Strip: Mount the power strip to the designated area on the side of the workbench using the provided hardware.
- Upright the Workbench: With assistance, carefully flip the workbench upright.
This image demonstrates the workbench's impressive load capacity, showing weights on both the main tabletop (2500 lbs) and the under-table shelf (500 lbs), supported by rugged H-shaped steel legs and metal feet.
A detailed view of the under-table storage board, emphasizing its removable design for flexible space use and showing various tools neatly organized on it.
Operating Instructions
Adjusting Workbench Height
The workbench features 5 levels of adjustable height, ranging from 31.5 inches to 39.5 inches. To adjust the height:
- Remove any heavy items from the tabletop and under-table shelf.
- Locate the locking pins on each leg.
- Press the pin and slide the inner leg section up or down to the desired height. Ensure the pin clicks securely into one of the pre-drilled holes.
- Repeat for all four legs, ensuring they are set to the same height for stability.
This image visually explains the workbench's adjustable height mechanism, showing how the table can be set to 5 different levels, ranging from 31.5 inches to 39.5 inches, to suit various tasks and user heights.
Using the Under-Table Shelf
The under-table shelf provides additional storage for tools and materials, with a load capacity of 500 lbs. It can be removed for flexible space use if needed.
Utilizing Built-in Power Outlets
The workbench includes a built-in power strip with AC outlets, switch buttons, and wire wrap hooks for convenient access to power tools. Ensure the power strip is plugged into a suitable wall outlet before use.
This image showcases the workbench's built-in ETL certified power outlets, including AC outlets, switch buttons, and wire wrap hooks, providing convenient power access for electric tools.
Maintenance
- Cleaning: Wipe the rubberwood tabletop with a damp cloth and mild detergent. Avoid harsh chemicals that may damage the varnish. Clean steel components with a damp cloth.
- Inspection: Periodically inspect all bolts and screws for tightness. Re-tighten as needed to maintain stability.
- Wood Care: The rubberwood tabletop is treated with a safety varnish. To prolong its life, avoid prolonged exposure to moisture or extreme temperatures.
- Power Strip: Ensure the power strip is kept clean and dry. Do not overload the outlets.
This image highlights the key features of the 1.2-inch thick solid rubberwood tabletop, including its durability, safety varnish, and heat-resistant properties.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Workbench is wobbly | Uneven floor; Loose fasteners; Legs not set to same height. | Adjust metal feet to level the bench; Tighten all screws; Ensure all legs are at the same height setting. |
| Difficulty adjusting height | Obstruction; Pin not fully disengaged. | Clear any obstructions; Ensure the locking pin is fully pressed before attempting to slide the leg. |
| Power outlets not working | Power strip not plugged in; Switch off; Overload. | Check if the power strip is plugged into a live outlet; Ensure the power switch on the strip is ON; Reduce the number of devices plugged in. |
Specifications
- Model: EN0101-PLUS
- Product Dimensions: 48"D x 20"W x (31.5"-39.5")H
- Tabletop Material: 1.2" Solid Rubberwood
- Frame Material: Alloy Steel
- Tabletop Load Capacity: 2500 lbs
- Under-Table Shelf Load Capacity: 500 lbs
- Adjustable Height Range: 31.5" to 39.5" (5 levels)
- Power Strip: AC 125V/60Hz, 12A, ETL Certified
- Assembly Required: Yes
Warranty and Support
ENJOYWOOD products are manufactured to high-quality standards. For warranty information or technical support, please refer to the documentation included with your purchase or contact ENJOYWOOD customer service directly. Please retain your proof of purchase for any warranty claims.
