BOVZA Wooden Twin Size DayBed Frame Instruction Manual

1. Product Overview

This BOVZA Twin Size DayBed is designed for functionality and style, crafted from pine wood material. It features a double-layer shelf for convenient storage, two drawers for additional organization, and a built-in USB charging station to accommodate modern electronic devices. The solid pine wood frame ensures durability and stability, while its minimalist design complements various interior styles.

Figure 1: Fully assembled BOVZA Wooden Twin Size DayBed Frame in a room setting.

Key Features:

• Elegant Design: Crafted from pine wood, suitable for various home decors.
• Integrated Charging Station: Features a built-in USB port for convenient device charging.
• Space-Saving Storage: Includes two drawers and a double-layer L-shaped storage shelf.
• Durable Construction: Made of high-quality MDF and pine wood with 10 slats for stability.
• Twin Size: Designed for twin-size mattresses.

2. Safety Information

• Read all instructions carefully before assembly and use.
• Keep all hardware and packaging materials out of reach of children.
• Assemble the daybed on a soft, clean surface to prevent scratches.
• Ensure all bolts and screws are securely tightened before use. Periodically check and re-tighten as necessary.
• Do not exceed the maximum weight capacity of 250 lbs.
• Do not allow children to climb on the shelves or drawers.
• Use only the recommended mattress thickness of 6 inches.
• If any parts are missing or damaged, do not attempt to assemble the product. Contact customer support for replacement parts.

3. Package Contents

The BOVZA Twin Size DayBed is shipped in two packages, which may arrive separately. Please ensure all components are present before beginning assembly.

Components List:

• Daybed Frame Components (Headboard, Footboard, Side Rails)
• L-Shaped Storage Shelf Components
• 2 Drawer Units
• Bed Slats (10 pieces)
• USB Charging Unit
• Hardware Pack (screws, bolts, nuts, Allen wrench)
• Assembly Instructions Manual (this document)

4. Setup and Assembly Instructions

Assembly requires two adults. Please follow these steps carefully. Tools are provided in the hardware pack.

Step 1: Prepare the Area and Identify Parts

Clear a spacious area for assembly. Unpack all components and lay them out. Compare them with the parts list in your physical manual to ensure everything is present and undamaged.

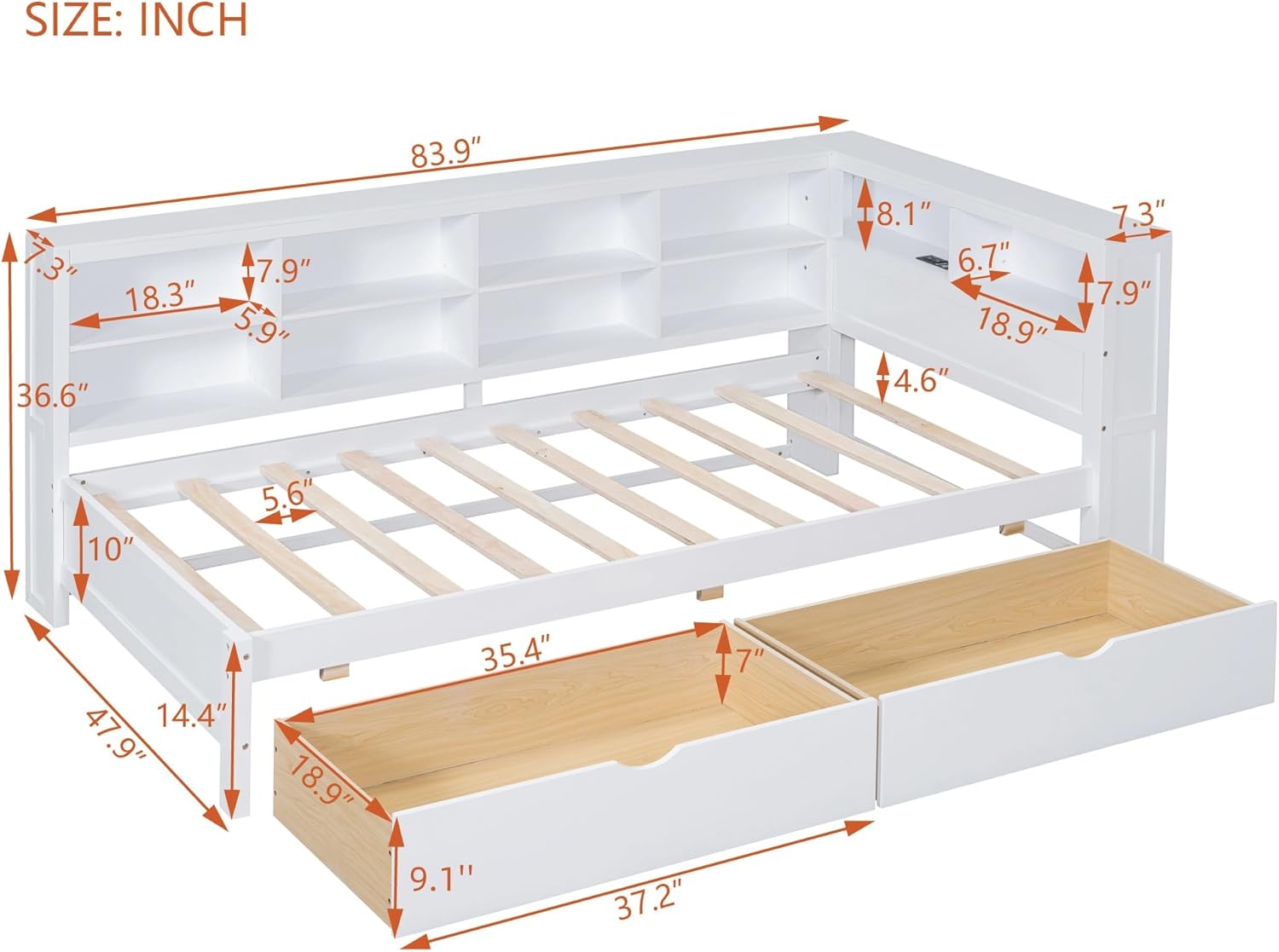

Figure 2: Front view of the daybed frame with key dimensions. Overall dimensions: 83.9"L x 47.9"W x 36.6"H.

Step 2: Assemble the Main Frame

Attach the side rails to the headboard and footboard using the provided bolts and an Allen wrench. Do not fully tighten bolts until the entire frame is assembled.

Figure 3: View of the daybed frame showing the slat support structure and drawer openings.

Step 3: Install the L-Shaped Storage Shelf

Connect the components of the L-shaped storage shelf to the main frame as indicated in your detailed assembly diagram. Ensure all connections are secure.

Figure 4: Angled view of the daybed frame, highlighting the L-shaped storage shelf and bed slats.

Step 4: Place the Bed Slats

Evenly space and secure the 10 bed slats across the frame. Use the provided screws to attach them to the side rails. This provides support for your mattress.

Step 5: Assemble and Insert Drawers

Assemble the two drawer units according to the instructions. Once assembled, slide them into the designated openings beneath the daybed frame.

Figure 5: Detailed view of one of the storage drawers, showing its construction and handle cutout.

Step 6: Install the USB Charging Unit

Locate the cutout in the L-shaped storage shelf. Insert the USB charging unit into this opening and secure it. Connect the power cable to a wall outlet.

Figure 6: Close-up view of the integrated USB charging port located within the storage shelf.

Step 7: Final Tightening

Once all components are in place, go back and fully tighten all bolts and screws. Do not overtighten.

5. Operating Instructions

Using the Storage Drawers:

The two integrated drawers are designed for easy access and storage. Simply pull the cutout handle to open and push to close. Avoid overloading the drawers to ensure smooth operation and prevent damage.

Using the USB Charging Ports:

Ensure the daybed's power cable is securely plugged into a functional wall outlet. Connect your electronic devices (e.g., smartphones, tablets) to the USB ports using their respective charging cables. The ports provide power for charging.

Using the L-Shaped Storage Shelf:

The double-layer L-shaped shelf provides open storage for books, decorative items, or other personal belongings. Distribute weight evenly across the shelves.

6. Maintenance

• Cleaning: Wipe the daybed frame with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the finish.
• Hardware Check: Periodically (every 3-6 months) check all bolts, screws, and connections to ensure they remain tight. Re-tighten as needed to maintain stability.
• Drawer Care: Keep drawer tracks clean and free of debris for smooth operation.
• USB Port: Ensure the USB port area remains dry and free of dust. Do not attempt to disassemble the charging unit.

7. Troubleshooting

Issue: Daybed feels unstable or wobbly.

Solution: Check all assembly bolts and screws. Ensure they are fully tightened. If the issue persists, disassemble and reassemble, ensuring all parts are correctly aligned.

Issue: Drawers are difficult to open or close.

Solution: Ensure drawers are not overloaded. Check for any obstructions in the drawer tracks. Verify that the drawer slides are correctly installed and aligned.

Issue: USB charging ports are not working.

Solution: Confirm that the daybed's power cable is securely plugged into a live wall outlet. Test the outlet with another device. Ensure your device's charging cable is functional. If the problem persists, contact customer support.

8. Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the specific warranty card included with your product or contact BOVZA customer service directly. Please have your model number (Corner Twin Bed with 2 Drawers) and purchase date available when contacting support.

For missing parts or assembly assistance, please reach out to the retailer or manufacturer's support channel.
