Soozier Stationary Exercise Bike A90-154V01 User Manual

1. Introduction

Thank you for choosing the Soozier Stationary Exercise Bike, Model A90-154V01. This manual provides essential information for the safe assembly, operation, and maintenance of your exercise bike. Please read this manual thoroughly before initial use and retain it for future reference.

Image 1.1: Overview of the Soozier Stationary Exercise Bike A90-154V01.

2. Safety Information

Before using this exercise bike, please observe the following safety precautions:

• Consult a physician before starting any new exercise program.
• Ensure all parts are correctly assembled and tightened before each use.
• Place the exercise bike on a flat, stable surface.
• Keep children and pets away from the equipment during operation.
• Wear appropriate exercise attire and footwear.
• The maximum user weight capacity is 265 lbs (120 kg). Do not exceed this limit.
• Use the emergency brake to stop the flywheel quickly if needed.
• Stop exercising immediately if you feel faint, dizzy, or experience pain.

3. Package Contents

Verify that all components are present and undamaged. If any parts are missing or damaged, contact customer support.

• Main Frame
• Front Stabilizer
• Rear Stabilizer
• Seat Post and Seat
• Handlebar Post and Handlebars
• Pedals (Left and Right)
• LCD Monitor
• Hardware Kit (bolts, washers, nuts, tools)

4. Assembly Instructions

Follow these steps to assemble your Soozier Stationary Exercise Bike. It is recommended to have two people for assembly.

1. Attach Stabilizers: Secure the front and rear stabilizers to the main frame using the provided bolts and washers. Ensure they are tightly fastened.
2. Install Pedals: Identify the left (L) and right (R) pedals. The left pedal screws counter-clockwise, and the right pedal screws clockwise. Tighten securely.
3. Mount Seat Post and Seat: Insert the seat post into the main frame and secure it at the desired height. Attach the seat to the seat post.
4. Install Handlebar Post and Handlebars: Insert the handlebar post into the main frame. Attach the handlebars to the post. Connect any pulse sensor wires if applicable.
5. Connect LCD Monitor: Attach the LCD monitor to the handlebar assembly. Connect the sensor wires from the main frame and pulse sensors to the monitor.
6. Final Check: Verify all bolts and nuts are tightened. Ensure the bike is stable.

Image 4.1: Key components and thoughtful details for assembly, including anti-slip handle, tablet holder, ergonomic seat, foot pedals with toe cages, and front wheels for moving.

5. Operation

5.1 Adjusting Seat and Handlebars

For optimal comfort and exercise efficiency, adjust the seat and handlebars to your body size.

• Seat Adjustment: Loosen the adjustment knob below the seat. Slide the seat post up or down, and forward or backward, until your leg has a slight bend at the knee when the pedal is at its lowest point. Tighten the knob securely.
• Handlebar Adjustment: Loosen the adjustment knob on the handlebar post. Raise or lower the handlebars to a comfortable height that allows for a relaxed upper body posture. Tighten the knob securely.

Image 5.1: Illustration of adjustable seat and handlebar positions, showing height ranges for different body sizes.

Image 5.2: Close-up view of the ergonomic seat designed for comfort during extended workouts.

5.2 Adjusting Resistance

The exercise bike features adjustable resistance to customize your workout intensity.

• Increase Resistance: Turn the resistance knob clockwise to increase the pedaling difficulty.
• Decrease Resistance: Turn the resistance knob counter-clockwise to decrease the pedaling difficulty.
• Emergency Brake: Push down the resistance knob firmly to engage the emergency brake and stop the flywheel immediately.

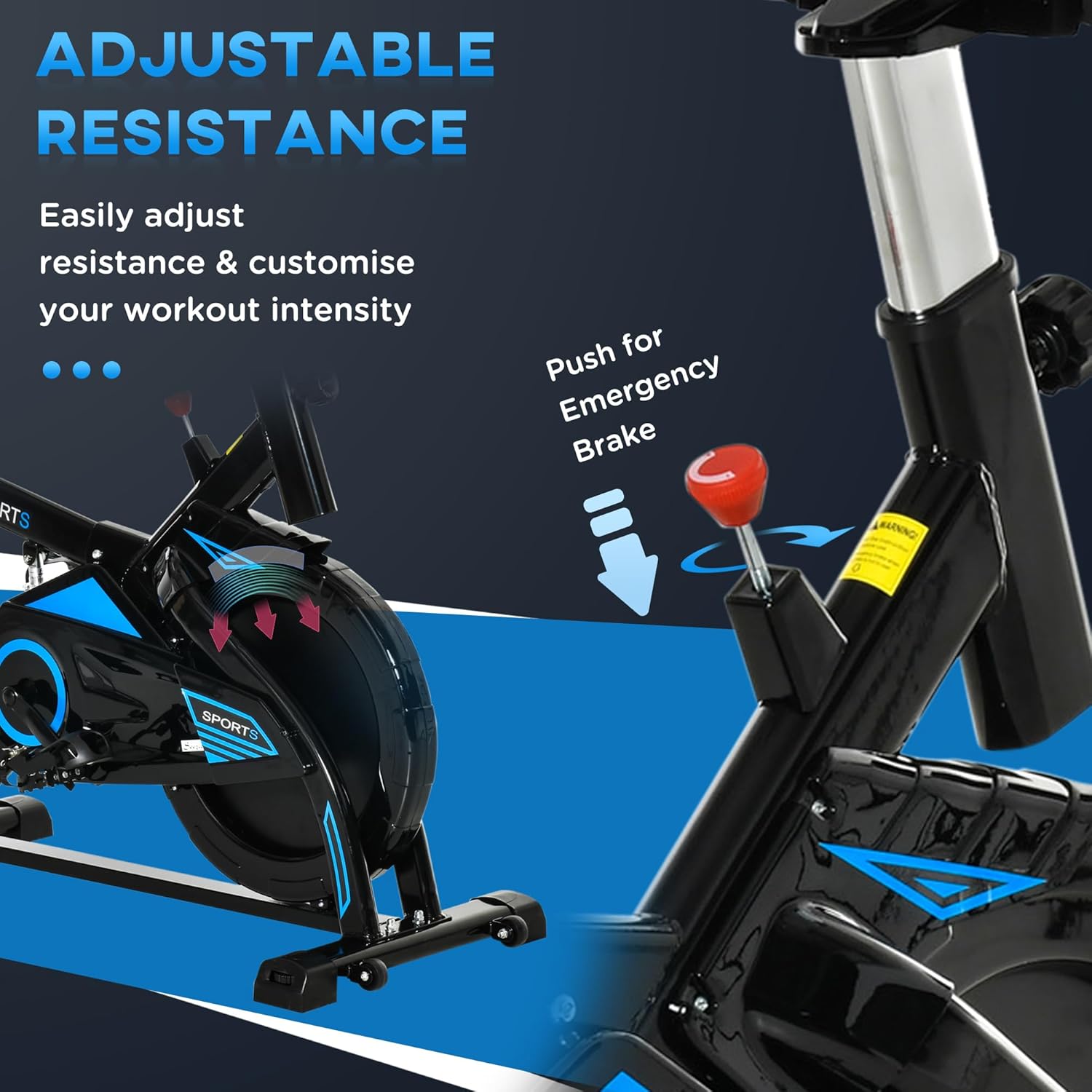

Image 5.3: Detail of the adjustable resistance knob and the emergency brake function.

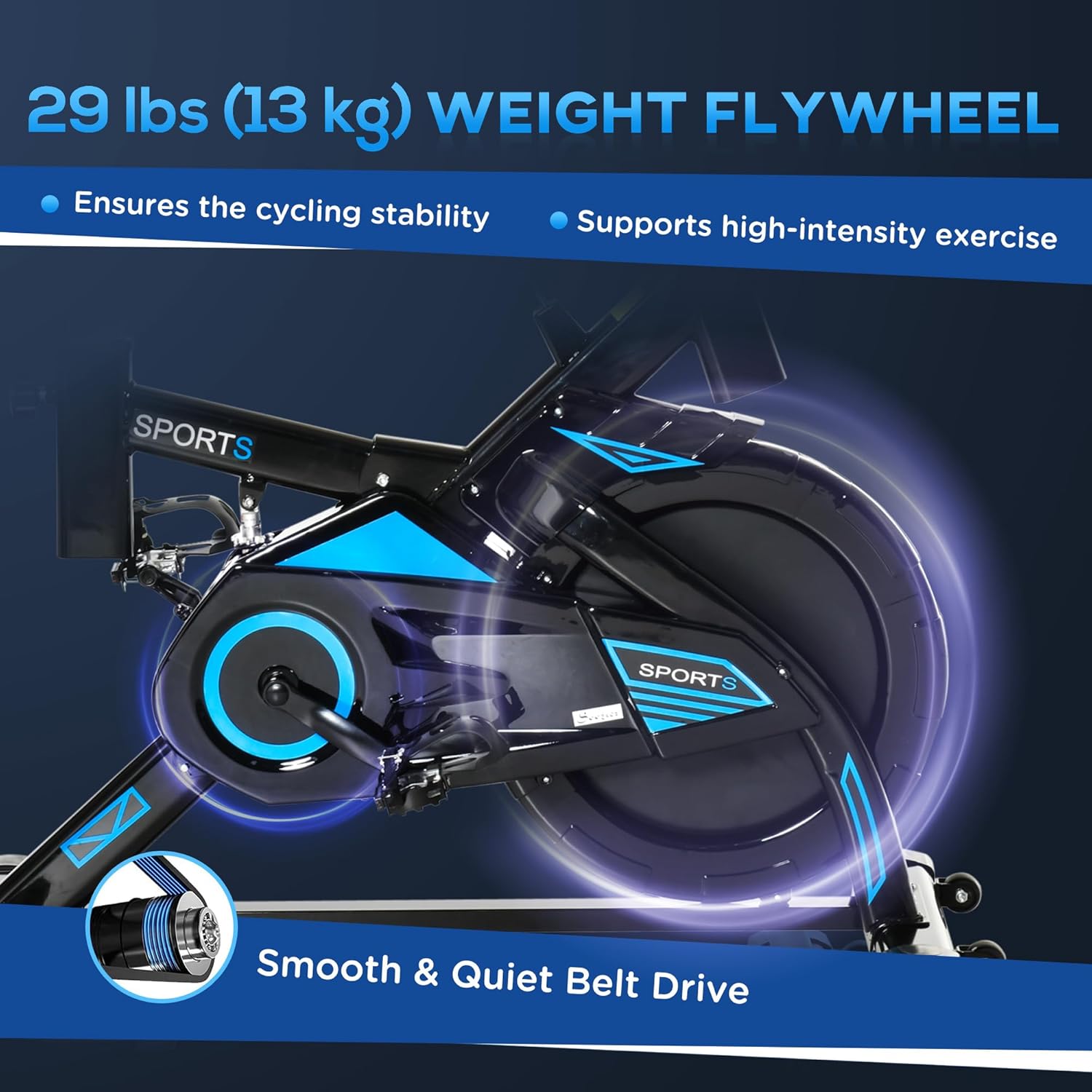

Image 5.4: The 29 lbs (13 kg) flywheel and smooth belt drive system, which provides consistent resistance.

5.3 Using the LCD Monitor

The LCD monitor tracks your workout data. Insert batteries (not included) into the monitor before use.

• Functions: The monitor displays Time, Speed, Distance, Heart Rate (Pulse), Odometer (ODO), and Calories burned.
• Heart Rate Monitoring: Grip the pulse sensors on the handlebars to display your heart rate.
• Mode Button: Press the MODE button to cycle through different display functions or to reset values.

Image 5.5: The LCD monitor displaying various workout metrics such as time, speed, distance, heart rate, and calories.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your exercise bike.

• Cleaning: Wipe down the bike with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners.
• Inspection: Periodically check all bolts, nuts, and moving parts for tightness and wear. Tighten any loose fasteners.
• Lubrication: The belt drive system is generally maintenance-free. Do not lubricate the resistance pad unless specified by customer support.
• Storage: Store the bike in a dry, cool place away from direct sunlight and moisture.

7. Troubleshooting

Refer to this section for common issues and their solutions.

8. Specifications

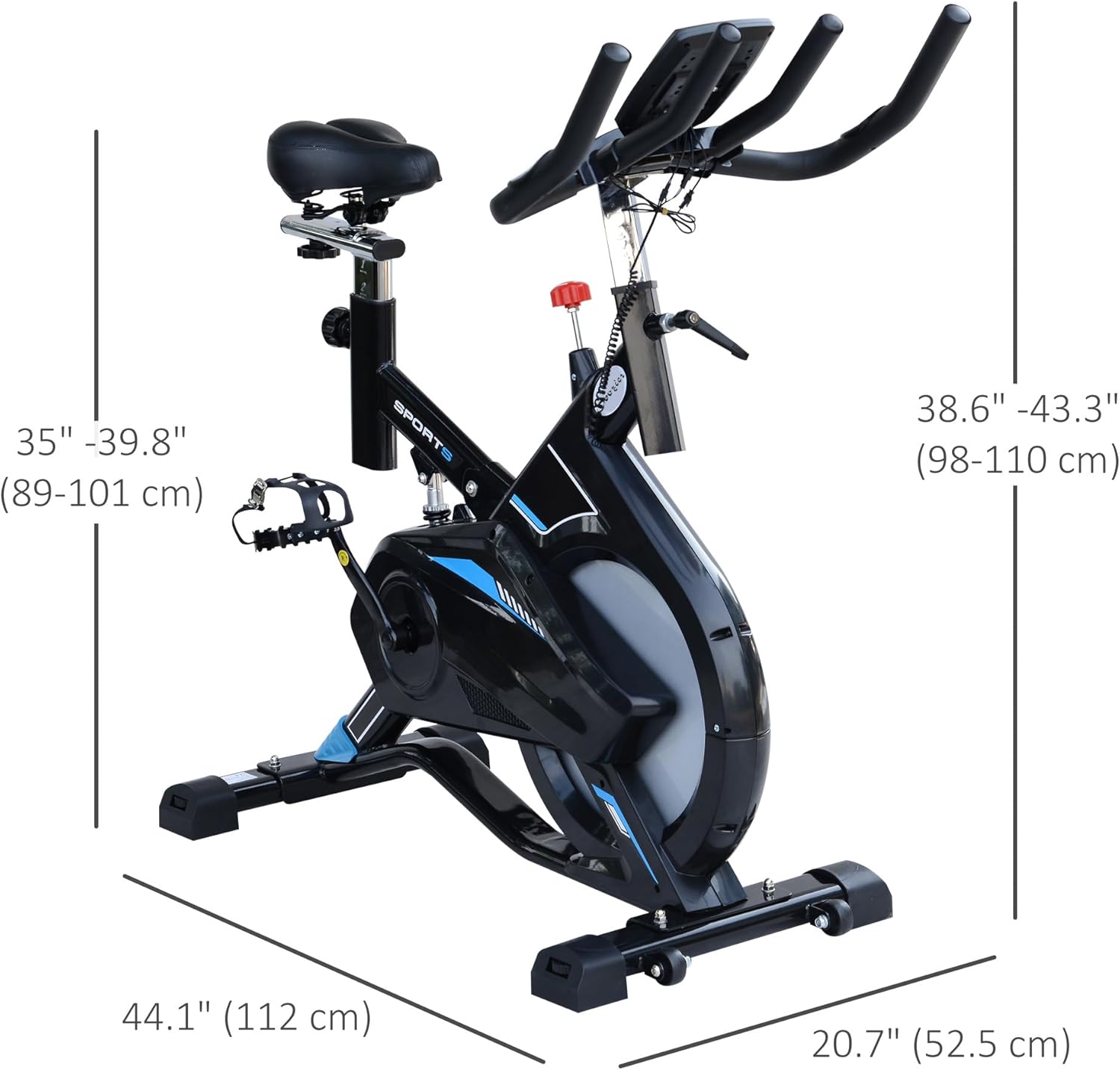

Image 8.1: Dimensional overview of the exercise bike, showing height, width, and depth measurements.

9. Warranty and Support

For warranty information, technical assistance, or to order replacement parts, please contact Soozier customer support.

• Manufacturer: Aosom Canada
• Contact Information: Markham, Ontario, CA Tel. 1-416-792-6088
• Please have your model number (A90-154V01) and purchase details ready when contacting support.
