jovant Cordless Pressure Washer and Handheld Vacuum Instruction Manual

Introduction

This manual provides essential information for the safe and efficient operation of your jovant Cordless Pressure Washer and Handheld Vacuum. Please read all instructions carefully before use and retain this manual for future reference.

Safety Information

Always wear appropriate personal protective equipment (PPE) such as safety glasses and gloves when operating the pressure washer. Ensure the work area is clear of obstructions and other individuals. Do not point the spray nozzle at people or animals. Keep the device away from children. Disconnect the battery before performing any maintenance or cleaning. Use only the provided battery and charger.

Package Contents

Verify that all items listed below are included in your package:

• 1x Cordless Pressure Washer
• 1x Handheld Vacuum (cordless)
• 1x 4A Lithium-ion Battery
• 1x 2.4A Charger
• 1x Hose Quick Connector
• 1x Faucet Quick Connector
• 1x 16ft 1/2in Inlet Water Hose
• 1x Foam Pot
• 1x Mesh Filter
• 1x 3-in-1 Retractable Cleaning Brush
• 1x Quick Dry Towel
• 1x 13L Folding Bucket
• 1x Long Hose
• 1x Long Nozzle
• 1x Brush Nozzle
• 1x Washable Filter (for vacuum)
• 1x Power Line (for vacuum charger)

Setup

1. Attach Quick Connectors: Securely attach the hose quick connectors to both ends of the 16ft inlet water hose.
2. Install Filter: Connect the mesh filter to one end of the inlet water hose. This end will be submerged in your water source.
3. Connect to Pressure Washer: Attach the other end of the inlet water hose (with quick connector) to the pressure washer's inlet port.
4. Attach Nozzle: Select your desired nozzle (long nozzle, brush nozzle, or foam pot) and attach it to the pressure washer.
5. Insert Battery: Fully charge the 4A Lithium-ion battery using the provided 2.4A charger. Once charged, insert the battery into the pressure washer.

Operating Instructions

Cordless Pressure Washer

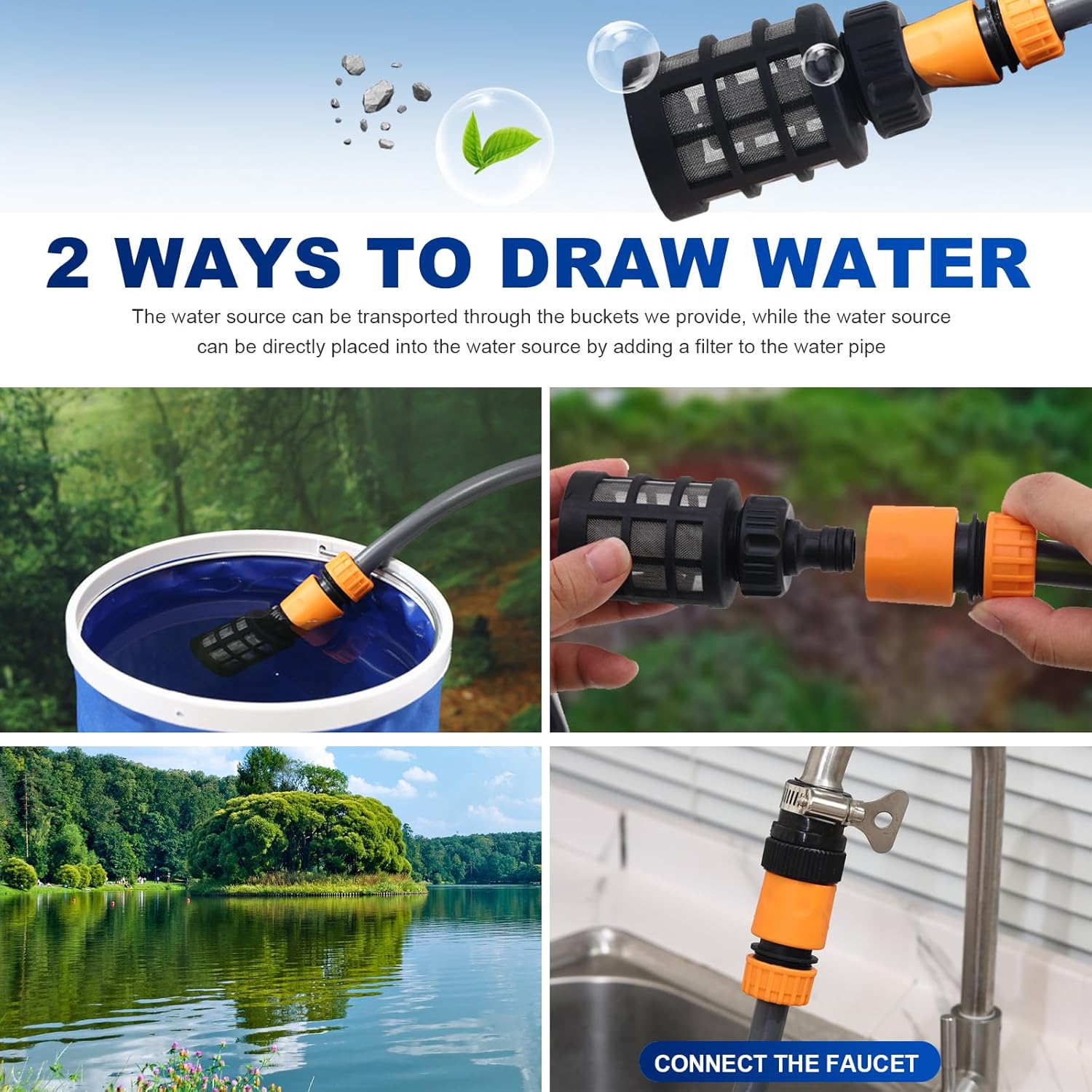

1. Prepare Water Source: Submerge the filtered end of the inlet hose into a bucket of water (e.g., the 13L folding bucket) or connect the faucet quick connector to a garden faucet.
2. Select Nozzle: Choose the appropriate nozzle for your cleaning task. The 2-in-1 nozzle provides various spray patterns. For applying soap, attach the foam pot filled with detergent.
3. Power On: Press and hold the power button on the pressure washer to begin operation.
4. Adjust Pressure/Spray: The 2-in-1 nozzle allows for adjustment of spray patterns. The pressure washer delivers 350 PSI with a maximum jet speed of 3.3 liters per minute.
5. Cleaning Applications: Ideal for cleaning cars, homes, boats, gardens, and windows.

Handheld Vacuum

1. Power On: Press and hold the on/off button for 1 second to activate the low-speed suction mode.
2. Adjust Suction: Press and hold the button for 2 seconds to switch to high-speed mode for stronger suction (12000Pa).
3. Power Off: Press and hold the button for 3 seconds to turn off the device.
4. Cleaning Applications: Effectively cleans stubborn dust, food residue, particles, and pet hair inside cars, on sofas, beds, and carpets.

Maintenance

Battery Charging

• Use the provided 2.4A charger to charge the 4A Lithium-ion battery.
• Ensure the battery is fully charged before extended use for optimal performance.

Filter Cleaning

• The handheld vacuum includes a washable filter. Regularly remove and clean the filter to maintain optimal suction power.
• The pressure washer's inlet hose has a mesh filter. Periodically check and clean this filter to prevent debris from entering the pump.

Troubleshooting

• Low Pressure/Suction: Check if the battery is fully charged. Ensure all hose connections are secure and there are no kinks in the hose. Clean the mesh filter on the pressure washer inlet or the washable filter in the vacuum.
• No Power: Verify the battery is correctly inserted and fully charged. Ensure the power button is pressed correctly.
• Water Leakage: Check all quick connectors and ensure they are tightly secured. Inspect O-rings for damage.
