1. Setup
1.1 Unpacking and Contents
Carefully unpack all components from the packaging. Verify that all items listed below are present and undamaged. If any items are missing or damaged, contact customer support.
- 8-inch chain saw (main unit) x 1
- Telescoping pole (extends from 3.5FT to 8.2FT) x 1
- 20V-6Ah battery x 1
- 2.4A fast charger x 1
- 8-inch guide cover x 1
- Storage bag x 1
- User manual x 1
Figure 1: Included components of the JOVANT pole saw kit.
1.2 Battery Charging and Installation
Before first use, fully charge the 20V-6Ah Lithium-Ion battery using the provided 2.4A fast charger. Insert the battery into the charger and plug the charger into a standard electrical outlet. The indicator light on the charger will show the charging status. Once fully charged, remove the battery from the charger.
To install the battery, align it with the battery slot on the saw unit or the pole handle and slide it in until it clicks securely into place. Ensure the battery is firmly seated before operation.
1.3 Saw Head and Pole Assembly
The JOVANT pole saw is a 2-in-1 tool, allowing use as a handheld mini chainsaw or attached to an extension pole. To assemble the pole saw:
- Ensure the mini chainsaw unit is powered off and the battery is removed.
- Locate the attachment point on the mini chainsaw unit and the corresponding end of the telescoping pole.
- Align and connect the chainsaw unit to the pole. Secure it using the locking mechanism (typically a button or lever) until it is firmly attached.
- To extend the pole, release the locking clamps on the pole sections, extend to the desired length (up to 8.2 feet), and securely fasten the clamps.
Figure 2: Assembled pole saw ready for use.
1.4 Chain Installation and Oiling
The saw features an automatic tension holding system, simplifying chain maintenance. However, ensure the chain is correctly installed and tensioned before use. Refer to the detailed instructions in the manual for specific steps on chain installation and adjustment if needed.
The saw is equipped with an auto-oiling system. Before each use, check the oil reservoir and fill it with appropriate bar and chain oil. Proper lubrication is crucial for chain longevity and efficient cutting performance.
Figure 3: Filling the oil reservoir for automatic chain lubrication.
Figure 4: Steps for chain replacement.
2. Operation
2.1 Safety Guidelines
- Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and hearing protection.
- Ensure a stable footing and clear work area before operating the saw.
- Keep bystanders, especially children and pets, away from the work area.
- Do not operate the saw in wet conditions or near flammable liquids or gases.
- The saw features a security lock. To start the saw, you must press both the security lock and the trigger simultaneously.
- The rotatable protective baffle automatically resets with the cut, preventing wood chips and fine twigs from splashing.
2.2 Using the Pole Saw
For trimming high branches, attach the mini chainsaw to the telescoping pole. Extend the pole to the required length, ensuring all clamps are securely tightened. Maintain a firm grip on the pole and position the saw head against the branch to be cut. Start the saw and allow the chain to reach full speed before engaging the wood. Use a steady, controlled motion to cut through the branch. Avoid overreaching or cutting branches thicker than the saw's capacity.
Figure 5: Operating the pole saw for high branch trimming.
Video 1: Demonstration of the JOVANT 8-inch electric pole saw in use, showing assembly and cutting.
2.3 Using the Mini Chainsaw
For cutting smaller logs or branches at ground level, detach the mini chainsaw from the pole. Hold the saw firmly with both hands, ensuring a secure grip on the comfort grip handle. Position the saw against the wood, activate the security lock and trigger, and allow the chain to reach full speed. Apply gentle, consistent pressure to cut through the wood. Avoid forcing the saw, as this can lead to kickback or damage.

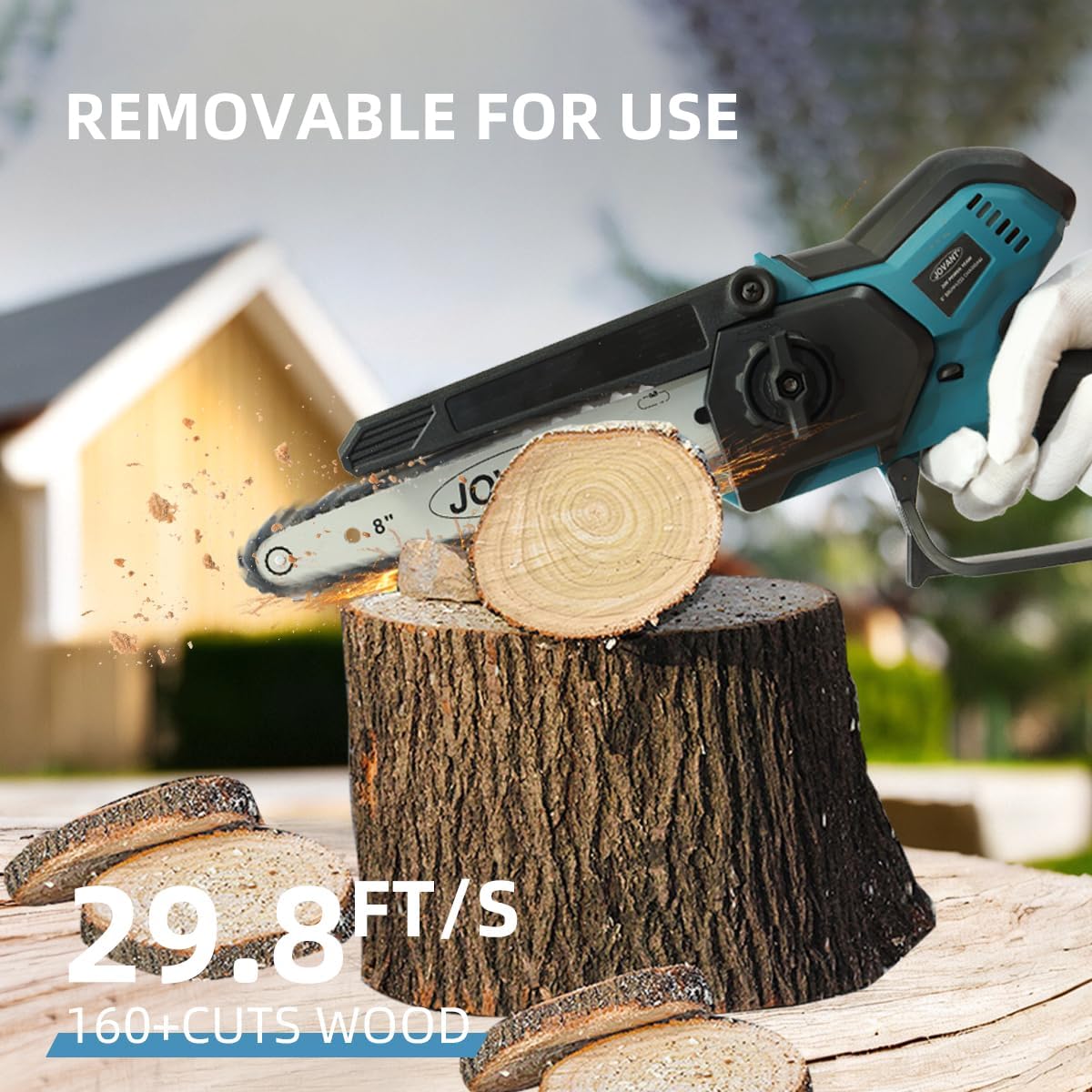

Figure 6: Operating the mini chainsaw for wood cutting.
3. Maintenance
3.1 Chain Lubrication and Care
Regularly check the oil level in the automatic lubrication system reservoir. Refill with quality bar and chain oil as needed. A well-lubricated chain reduces friction, prevents overheating, and extends the life of both the chain and the bar. Inspect the chain for sharpness and damage. A dull chain will cut slowly and can cause excessive wear on the motor. Sharpen or replace the chain as necessary.
3.2 Cleaning and Storage
After each use, disconnect the battery and thoroughly clean the saw. Remove any sawdust, debris, and resin from the chain, guide bar, and motor housing. Use a brush or compressed air for hard-to-reach areas. Store the saw in a dry, secure location, away from children and extreme temperatures. Use the provided guide cover to protect the chain during storage.
3.3 Battery Care
Store the battery in a cool, dry place. Avoid fully discharging the battery before recharging, as this can reduce its lifespan. If storing for extended periods, charge the battery to approximately 50% capacity.
4. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Saw does not start | Battery not installed correctly or discharged; Security lock not engaged; Faulty switch. | Ensure battery is fully charged and properly inserted. Press the security lock button before pulling the trigger. If problem persists, contact support. |
| Chain not cutting effectively | Dull chain; Incorrect chain tension; Insufficient lubrication. | Sharpen or replace the chain. Adjust chain tension according to manual. Check and refill bar and chain oil reservoir. |
| Saw overheats | Overuse; Dull chain; Insufficient lubrication. | Allow the saw to cool down. Sharpen or replace the chain. Ensure adequate chain lubrication. Avoid forcing the saw through thick material. |
| Pole attachment is loose | Locking mechanism not fully engaged. | Ensure the chainsaw unit is securely clicked into the pole attachment point and all pole clamps are tightened. |
5. Specifications
| Feature | Detail |
|---|---|
| Brand | JOVANT |
| Model Number | PTJ-COMB-8inch-02-USA |
| Blade Material | Alloy Steel |
| Power Source | Battery Powered (20V Lithium Ion) |
| Special Feature | Brushless Motor |
| Included Components | Battery Charger, 20V-6Ah Battery |
| Product Dimensions | 51.6"L x 10.2"W x 5.1"H (approximate, likely for packaged unit) |
| Item Weight | 13.3 Pounds |
| Wattage | 1000 watts |
| Horsepower | 550 Watts |
| Pole Extension Length | 3.5FT to 8.2FT (actual pole length) |
6. Warranty Information
The JOVANT 8-Inch Cordless Electric Pole Saw (Model: PTJ-COMB-8inch-02-USA) comes with a 3-year limited warranty covering both the tool and the battery. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the warranty card included with your product or contact JOVANT customer support.
7. Customer Support
For any questions, technical assistance, or warranty claims regarding your JOVANT 8-Inch Cordless Electric Pole Saw, please contact JOVANT customer support. Contact information can typically be found on the product packaging, the JOVANT official website, or through your retailer.
