SWAREY Car Battery Jump Starter (Model PD-JA2) User Manual

1. Introduction

Thank you for choosing the SWAREY Car Battery Jump Starter, Model PD-JA2. This device is designed to provide a quick and reliable solution for starting vehicles with a dead battery. It also functions as a portable power bank for charging electronic devices and includes an integrated LED flashlight. Please read this manual thoroughly before operating the device to ensure safe and efficient use.

2. Safety Instructions

WARNING: Failure to follow these safety instructions may result in electric shock, fire, or serious injury.

• Always wear safety glasses and protective gloves when operating the jump starter.
• Do not allow the positive and negative clamps to touch each other or connect to the same metal object, as this may cause a short circuit.
• Keep the jump starter away from children.
• Do not expose the device to rain or extreme temperatures. Store in a cool, dry place.
• Do not attempt to jump start a frozen battery.
• Ensure proper ventilation during use.
• If the battery clamps are connected incorrectly, the device may emit an alarm. Disconnect immediately and reconnect correctly.
• Do not disassemble the unit. Refer all servicing to qualified personnel.

3. Package Contents

Please check the package for the following items:

• Car Battery Jump Starter x 1
• Smart Jumper Cables x 1
• USB-C Charging Cable x 1
• User Manual x 1

4. Product Overview

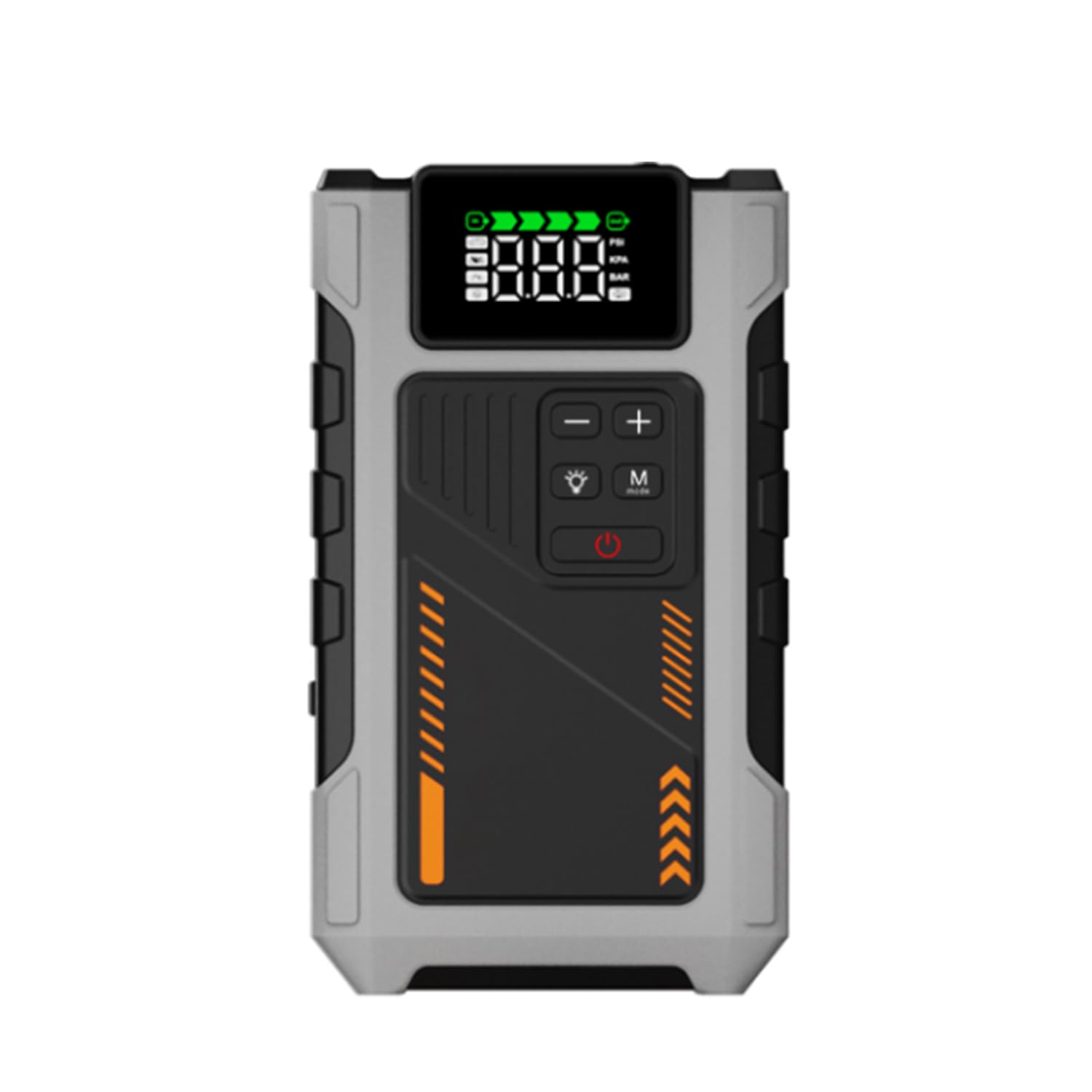

Image 1: SWAREY Car Battery Jump Starter, Model PD-JA2. This image shows the compact design of the jump starter with its various ports and indicators.

The SWAREY Car Battery Jump Starter features a robust design for emergency situations. Key components typically include:

• Jump Start Port: For connecting the smart jumper cables.
• USB Output Ports: For charging mobile phones, tablets, and other USB-powered devices.
• USB-C Input Port: For recharging the jump starter itself.
• LED Display: Shows battery level, charging status, and operational indicators.
• Power Button: To turn the device on/off and activate the flashlight.
• LED Flashlight: Provides illumination with various modes (e.g., steady, strobe, SOS).

Note: No additional product images or videos were provided in the source data to illustrate specific components.

5. Setup

Before first use, fully charge the SWAREY Car Battery Jump Starter.

1. Connect the provided USB-C charging cable to the jump starter's USB-C input port.
2. Connect the other end of the USB-C cable to a suitable USB wall adapter (not included) or a car charger.
3. The LED display will indicate the charging status. Charge until the display shows 100% or a full battery indicator.
4. Disconnect the charging cable once fully charged.

It is recommended to fully charge the jump starter every 3-6 months to maintain battery health, even if not in use.

6. Operating Instructions

6.1. Jump Starting a Vehicle

Follow these steps carefully to jump start your vehicle:

1. Prepare the Vehicle: Ensure the vehicle's ignition is off and the parking brake is engaged.
2. Connect Jumper Cables to Jump Starter: Insert the blue plug of the smart jumper cables firmly into the jump start port on the SWAREY device. Ensure a secure connection.
3. Connect Clamps to Car Battery:
   • Connect the RED (+) clamp to the positive (+) terminal of the car battery.
   • Connect the BLACK (-) clamp to the negative (-) terminal of the car battery.

   Note: If the clamps are connected incorrectly, the smart jumper cables will typically emit an audible warning or show an error indicator. Disconnect immediately and correct the connection.

4. Start the Vehicle: Once the clamps are correctly connected and the smart cable indicator is green (if applicable), start your vehicle's engine.
5. Disconnect Clamps: As soon as the engine starts, immediately remove the jumper cables from the car battery, first the BLACK (-) clamp, then the RED (+) clamp. Then, disconnect the smart jumper cables from the SWAREY jump starter.
6. Drive the Vehicle: Allow the vehicle's engine to run for at least 15-20 minutes to recharge its battery.

6.2. Using as a Power Bank

To charge your electronic devices:

1. Connect your device's USB charging cable to one of the USB output ports on the SWAREY jump starter.
2. Press the power button on the jump starter to begin charging.
3. The LED display will show the remaining battery level of the jump starter.

6.3. Using the LED Flashlight

The integrated LED flashlight has multiple modes:

• Steady Light: Press and hold the power button for a few seconds to turn on the flashlight.
• Strobe Light: With the flashlight on, short press the power button to switch to strobe mode.
• SOS Signal: Short press the power button again to switch to SOS mode.
• Turn Off: Short press the power button once more to turn off the flashlight, or press and hold the power button.

7. Maintenance

Proper maintenance ensures the longevity and performance of your jump starter:

• Charging: Recharge the jump starter every 3-6 months, even if not in use, to prevent deep discharge and extend battery life.
• Cleaning: Wipe the device with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Storage: Store the jump starter in a cool, dry place, away from direct sunlight, moisture, and flammable materials. Keep it out of reach of children.
• Cable Care: Inspect the jumper cables and clamps for any damage before each use. Replace if frayed or damaged.

8. Troubleshooting

If you encounter issues with your SWAREY Car Battery Jump Starter, refer to the following common problems and solutions:

9. Specifications

10. Warranty and Support

SWAREY products are designed for reliability and performance. For warranty information, technical support, or customer service inquiries, please refer to the contact details provided with your purchase documentation or visit the official SWAREY website. Please retain your proof of purchase for warranty claims.
