EMOKO Kids Electric Scooter User Manual
Model: ES-A43-Blue
1. Introduction
Thank you for choosing the EMOKO Kids Electric Scooter. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new scooter. Please read this manual thoroughly before first use to ensure proper function and to prevent injury.
This lightweight and foldable electric kick scooter is designed for children aged 6-12, featuring a powerful motor, colorful LED lights, and a maximum speed of 11 MPH, offering up to 80 minutes of riding time.
2. Safety Information
General Safety Guidelines:
- Always wear a helmet and appropriate safety gear (knee pads, elbow pads) when riding.
- Ensure all screws and quick releases are securely fastened before each ride.
- Do not ride in wet conditions, on uneven surfaces, or in heavy traffic.
- Adult supervision is recommended for young riders.
- Do not exceed the maximum weight limit of 154 pounds.
- Keep fingers and other body parts away from moving parts.
- The scooter is UL 2272 certified. Only charge with the original charger to prevent damage to the battery and electronic components.
Braking:
The scooter features both front and rear braking systems. Familiarize yourself with the brake levers and practice braking at low speeds before riding at higher speeds. Apply brakes smoothly to avoid sudden stops.
3. Package Contents
Please check the box for the following items:
- EMOKO Kids Electric Scooter (Blue)
- Charger
- Assemble Tool
- User Manual (this document)
4. Product Overview
Familiarize yourself with the different parts of your EMOKO Kids Electric Scooter.
Figure 4.1: Overall view of the EMOKO Kids Electric Scooter.
Figure 4.2: Handlebar controls and digital display. This display shows current speed, battery level, and power status. The left lever is the brake, and the right lever is the throttle.

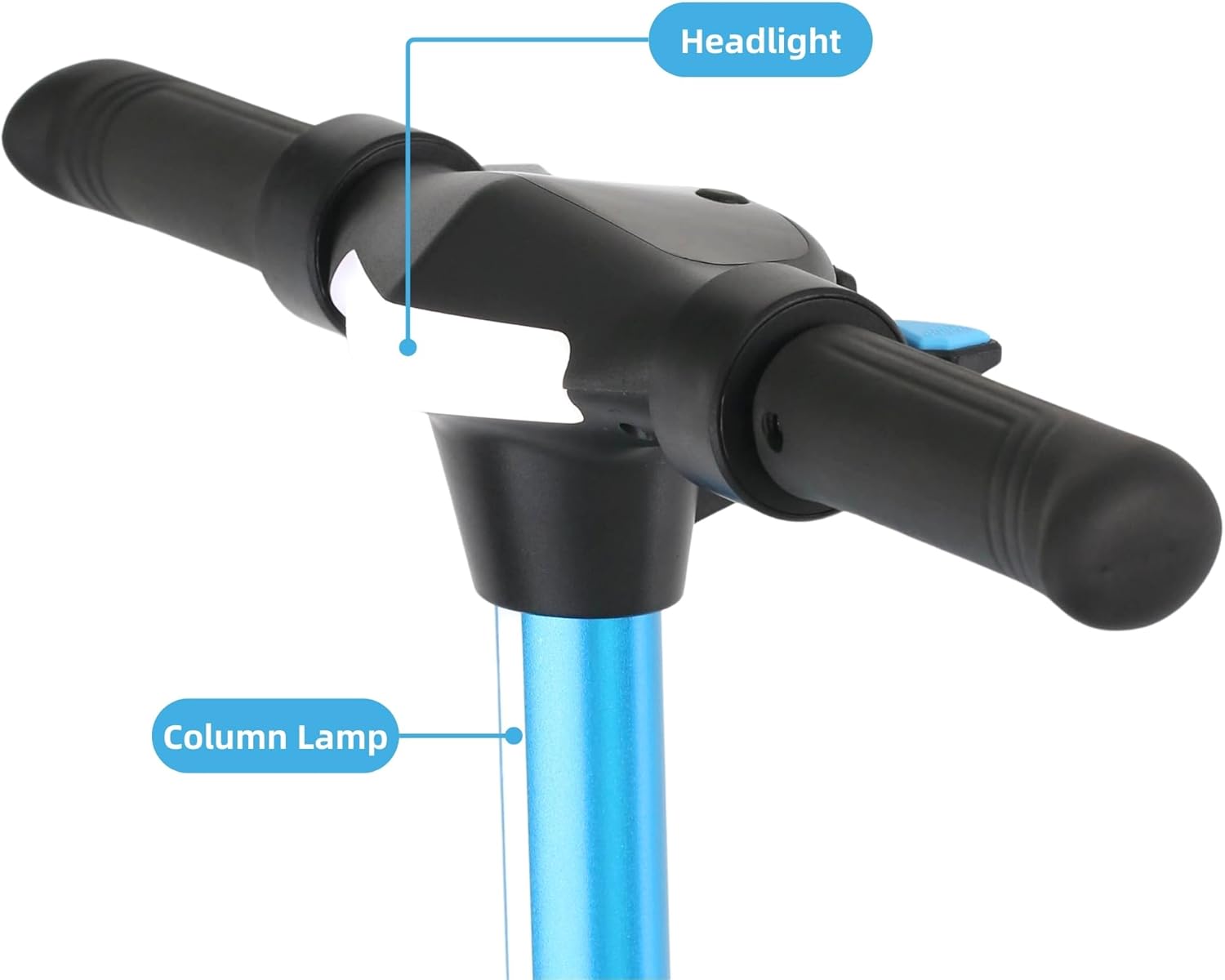

Figure 4.3: Headlight and Column Lamp location. The headlight provides illumination for riding in low-light conditions, and the column lamp adds to visibility and style.
Figure 4.4: Frosted Pedal. The pedal surface is designed for enhanced grip and measures approximately 14 inches in length and 5 inches in width.
Figure 4.5: Key features including the folding mechanism, integrated LED light strip along the deck, and the kickstand for upright parking.

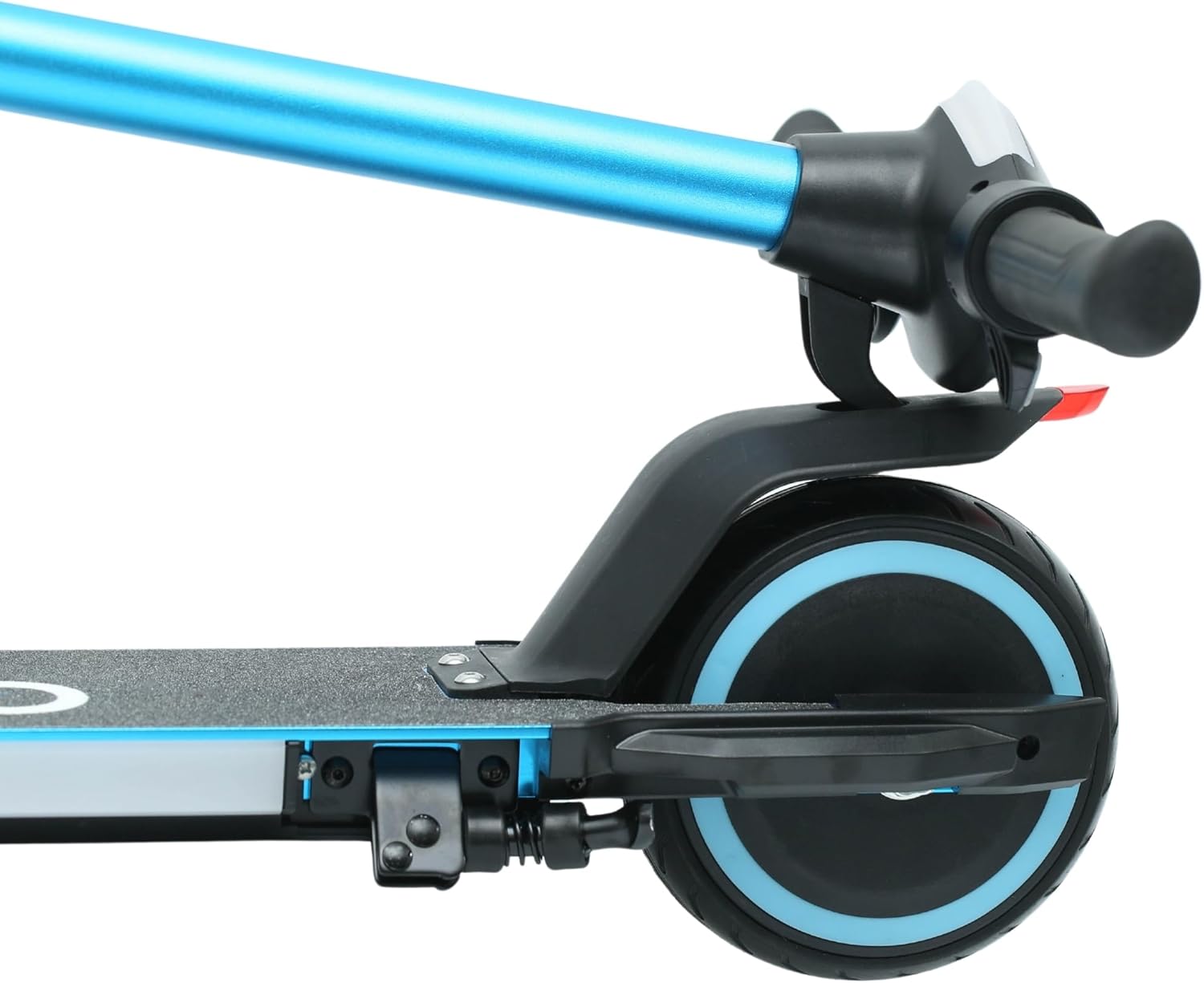

Figure 4.6: Rear wheel and brake system. The rear motor wheel brake provides effective stopping power.
5. Assembly & Setup
The EMOKO Kids Electric Scooter comes mostly pre-assembled. Follow these steps for final setup:
- Unfold the Scooter: Carefully lift the handlebar stem until it locks into the upright position. Ensure the folding mechanism is securely latched.
- Attach Handlebars: Insert the handlebar into the stem and ensure it clicks into place. Tighten any securing clamps or screws using the provided assembly tool.
- Check Connections: Verify all cables and connections are secure and not pinched.
- Initial Charge: Before first use, fully charge the scooter's battery as described in Section 7.
Figure 5.1: Scooter dimensions in unfolded and folded states. The scooter is designed for easy folding and compact storage.
Figure 5.2: The scooter in its folded position, ready for transport or storage.
6. Operating Instructions
Starting the Scooter:
- Power On: Press the power button on the handlebar display to turn on the scooter. The display will light up.
- Kick Start: Place one foot on the deck and use the other foot to push off the ground to gain some initial momentum.
- Engage Throttle: Once moving, gently press the throttle lever on the right handlebar to engage the motor. Increase pressure on the throttle for more speed.
Riding:
- Maintain a balanced stance with both feet on the deck.
- Steer by gently leaning and turning the handlebars.
- Be aware of your surroundings and potential obstacles.
Braking:
- To slow down or stop, release the throttle and gently squeeze the brake lever on the left handlebar.
- For emergency stops, apply both front and rear brakes simultaneously and firmly.
Turning Off:
- Press and hold the power button until the display turns off.
7. Charging
To ensure optimal battery life and performance, follow these charging instructions:
- Locate the charging port on the scooter.
- Ensure the scooter is turned off before charging.
- Connect the charger to the charging port, then plug the charger into a standard wall outlet.
- The charging indicator light on the charger will typically show red during charging and turn green when fully charged.
- Charging time is approximately 3 hours for a full charge.
- Do not overcharge the battery. Disconnect the charger once the battery is full.
- Only use the original charger provided with the scooter.
8. Maintenance
Cleaning:
- Wipe the scooter with a damp cloth after each use. Do not use harsh chemicals or abrasive cleaners.
- Avoid spraying water directly onto electrical components.
Storage:
- Store the scooter in a cool, dry place away from direct sunlight and extreme temperatures.
- If storing for an extended period, charge the battery to approximately 50-70% every 30-60 days to maintain battery health.
- Utilize the foldable design for compact storage.
Tires:
- The scooter is equipped with solid rubber tires, eliminating the need for inflation and reducing the risk of flats. Regularly inspect tires for wear and tear.
9. Troubleshooting
If you encounter issues with your scooter, refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not turn on | Low battery; Loose connection; Power button malfunction | Charge the battery; Check all cable connections; Contact support if issue persists |
| Scooter not moving when throttle engaged | Not kick-started; Throttle malfunction; Motor issue | Ensure you kick-start to gain initial momentum; Check throttle connection; Contact support |
| Reduced speed or range | Low battery; Overload; Riding uphill; Tire wear | Fully charge battery; Ensure rider weight is within limits; Ride on flat surfaces; Inspect tires |
| Brakes not effective | Brake cable loose; Brake pads worn | Check and tighten brake cable; Inspect brake pads for wear and replace if necessary; Contact support |
| LED lights not working | Loose connection; Light malfunction | Check connections to LED lights; Contact support |
If the problem persists after attempting these solutions, please contact customer support.
10. Specifications
Detailed technical specifications for the EMOKO Kids Electric Scooter.
Figure 10.1: Key performance metrics of the scooter.
| Feature | Specification |
|---|---|
| Brand | EMOKO |
| Model Name | ES-A43-Blue |
| Color | Blue |
| Age Range (Description) | Big Kid (Ages 6-12) |
| Weight Limit | 154 Pounds |
| Product Dimensions (LxWxH) | 31" x 14" x 36" |
| Number of Wheels | 2 |
| Wheel Material | Rubber |
| Wheel Size | 6.5 Inches |
| Wheel Type | Solid |
| Handlebar Type | Fixed |
| Brake Style | Front Braking, Rear Braking |
| Charging Time | 3 Hours |
| Max Speed | 11 MPH |
| Special Features | Digital Display, Dual Braking System, Foldable, Lights, Lightweight |
| Material | Alloy Steel, Aluminum, Carbon Steel, Stainless Steel |
| Manufacturer | Shenzhen Huopingguo Technology CO., LTD |
| UPC | 769293265304 |
11. Warranty & Support
Warranty Information:
The EMOKO Kids Electric Scooter comes with a 1-year limited warranty from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
Customer Support:
For technical assistance, warranty claims, or any questions regarding your EMOKO Kids Electric Scooter, please contact EMOKO customer support. Refer to the product packaging or the EMOKO official website for contact details.
