Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your WINSTELLAR 36 x 80 5-Panel Prebuilt Interior Frosted Glass Door Slab. Please read this manual thoroughly before beginning installation to ensure proper setup and safe use. This door slab is designed for various interior applications, including prehung, pocket, French, and barn door configurations.

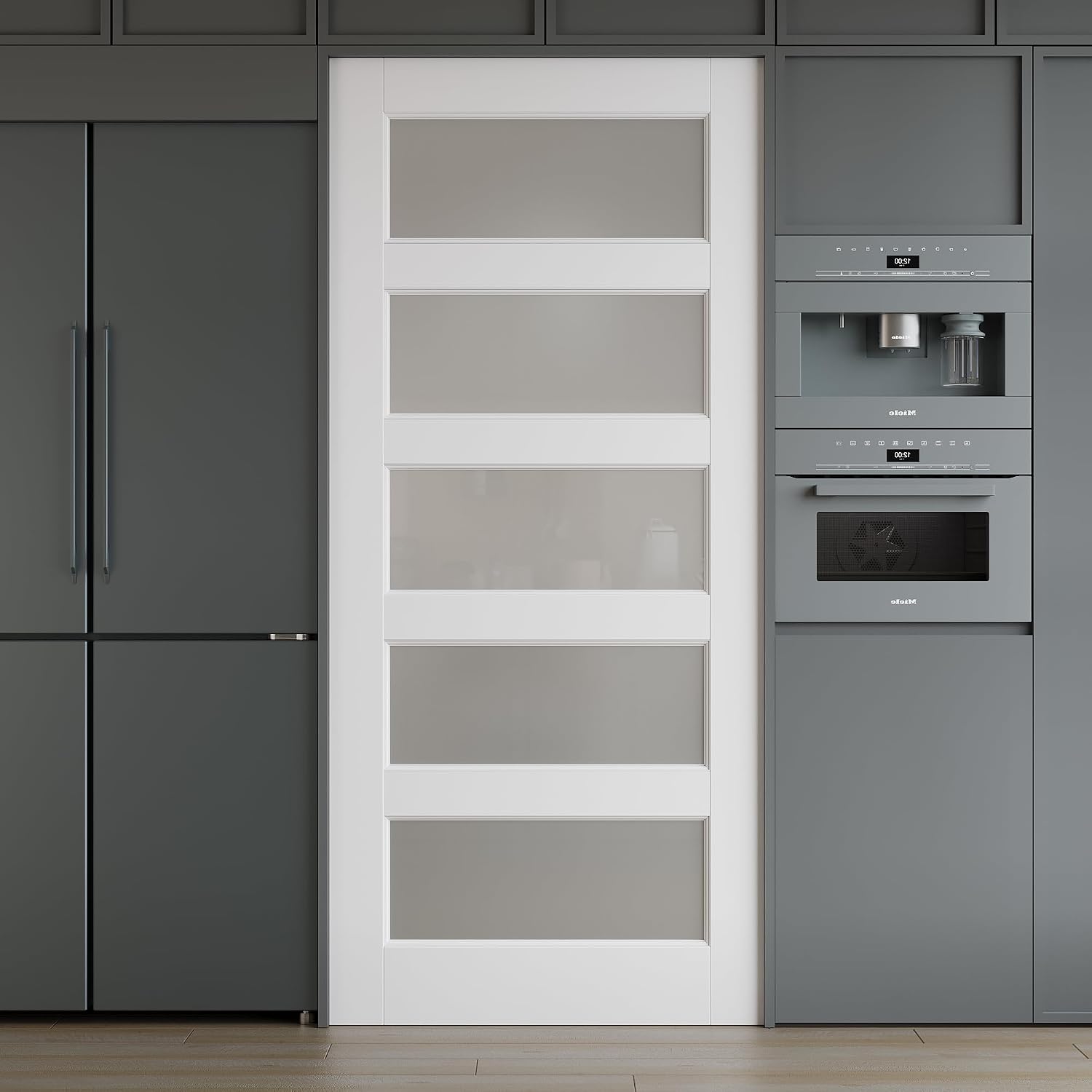

Image: The WINSTELLAR 5-Panel Frosted Glass Door Slab integrated into a modern kitchen environment, showcasing its design and application.
Safety Information
Always prioritize safety during installation and use. Failure to follow these instructions may result in injury or damage to the product.
- Wear appropriate personal protective equipment (PPE) such as safety glasses and gloves during handling and installation.
- Ensure the installation area is clear of obstructions and well-lit.
- This door slab is heavy. Use proper lifting techniques or seek assistance to prevent injury.
- Handle glass panels with care to avoid breakage. The frosted glass is tempered for increased safety, but can still break under extreme impact.
- Keep children and pets away from the work area during installation.
- Do not modify the door slab in ways not described in this manual, as this may compromise its structural integrity and safety.
Package Contents
Your package should contain the following items:
- One (1) WINSTELLAR 36 x 80 5-Panel Prebuilt Interior Frosted Glass Door Slab.
- Note: This product includes only the door panel. Hardware such as hinges, handles, or door frames (jambs) are sold separately.
Specifications
| Feature | Detail |
|---|---|
| Brand | WIN STELLAR |
| Model | 36x80 5-Panel Frosted Glass Door Slab |
| Door Panel Width | 36 inches |
| Door Panel Height | 80 inches |
| Door Panel Thickness | 1.4 inches |
| Material | Triple Primed CARB P2 Certified Solid Core MDF & SGCC Certified Tempered Frosted Glass |
| Style | Modern, 5-Lite Glass |
| Assembly Required | No (Door panel is pre-assembled) |
| Item Weight | Approximately 59.9 pounds |
| Recommended Opening (with jamb) | 36-1/4'' x 80-1/2'' |
| Recommended Rough Opening (before jamb) | 38'' x 82'' |
Note: Door opening needs to be slightly bigger than the door size for proper fit.
Image: Detailed size guide for various WINSTELLAR door slabs, showing fit opening widths and heights for different door sizes.
Setup and Installation
This WINSTELLAR door slab arrives pre-assembled and triple-primed, simplifying the installation process. It is ready for immediate installation and painting. This section outlines general steps; specific hardware (e.g., hinges, tracks, jambs) will have their own installation instructions that must be followed in conjunction with these guidelines.
Tools and Materials (Not Included):
- Measuring tape
- Level
- Drill and appropriate drill bits
- Screwdriver
- Hinges, door handle/knob, and latch mechanism (for hinged doors)
- Door frame (jamb) if not already installed
- Shims
- Safety glasses and gloves
General Installation Steps:
- Prepare the Opening: Ensure your door opening (with jamb installed) measures approximately 36-1/4 inches wide by 80-1/2 inches high for this 36x80 door slab. The rough opening (before jamb installation) should be approximately 38 inches wide by 82 inches high. Verify the opening is plumb, level, and square.
- Inspect the Door Slab: Before installation, carefully inspect the door slab for any damage. The door is securely packaged with a reinforced outside frame to prevent transit damage.
- Determine Door Type: This door slab is versatile and can be used for prehung, pocket, French, or barn door applications. The specific hardware and frame required will vary based on your chosen application. Refer to the instructions provided with your chosen hardware kit.
- Hardware Installation (e.g., Hinges, Handle):
- For hinged doors, mark and mortise hinge locations on both the door slab and the door jamb according to your hinge manufacturer's instructions.
- Drill holes for the door handle/knob and latch mechanism. Exercise caution when drilling to avoid damaging the door's surface.
- Attach hinges to the door slab first, then to the jamb.
- Hang the Door: Carefully lift the door slab into the prepared opening. Secure it to the jamb using the appropriate hardware. Use shims to ensure the door is plumb and operates smoothly without binding.
- Adjust and Test: After hanging, open and close the door several times to check for smooth operation. Make any necessary adjustments to the hinges or shims.
- Install Remaining Hardware: Install the door handle/knob, strike plate, and any other necessary hardware.
Image: A worker handling a pre-assembled door panel, illustrating the ready-to-install nature of the product.
Image: Visual comparison highlighting the solid core construction of the WINSTELLAR door for enhanced sound dampening and durability, contrasted with hollow core alternatives.
Operation
Once installed, your WINSTELLAR door slab operates like any standard interior door, depending on the hardware chosen (hinged, sliding, etc.).
- Opening and Closing: Use the installed door handle or pull to open and close the door. Ensure it moves freely within its frame or track.
- Privacy: The frosted glass panels provide privacy while allowing light to pass through.
- Painting: The door slab is triple-primed and ready for painting. You can apply your preferred color to match your interior décor. No sanding or additional priming is typically required before painting.
Maintenance
Regular maintenance will help preserve the appearance and functionality of your door slab.
- Cleaning the Door Surface: Wipe the door frame with a soft, damp cloth and mild soap. Avoid abrasive cleaners or harsh chemicals that could damage the painted or primed surface.
- Cleaning the Frosted Glass: The SGCC certified tempered frosted glass is designed to be easy to clean and resistant to fingerprints and scratches. Use a glass cleaner and a soft, lint-free cloth. Do not use abrasive pads or cleaners that could scratch the glass.
- Hardware Maintenance: Periodically check all installed hardware (hinges, handles, tracks) for tightness. Tighten any loose screws. Lubricate moving parts of sliding or pocket door hardware as recommended by their manufacturers.
- Paint Touch-ups: If the painted surface gets chipped or scratched, clean the area and apply a matching paint for touch-ups.
Image: Comparison showing the easy-to-clean surface of the WINSTELLAR frosted tempered glass, resistant to fingerprints and scratches.
Image: Diagram explaining the benefits of frosted and tempered glass, including 8x stronger than regular glass and privacy with light transmission.
Troubleshooting
Refer to this section for solutions to common issues.
| Problem | Possible Cause | Solution |
|---|---|---|
| Door binds or rubs against the frame. | Improper installation, frame not square, loose hinges. | Check if the frame is square and plumb. Adjust shims or tighten hinge screws. For sliding doors, check track alignment. |
| Door does not close properly. | Strike plate misalignment, warped frame, loose hinges. | Adjust the strike plate. Verify frame squareness. Tighten hinges. |
| Door handle/knob is loose. | Screws are loose. | Tighten the mounting screws for the handle/knob. |
| Cracked or chipped paint. | Impact damage, improper handling during hardware installation. | Clean the affected area and apply matching paint for touch-up. |
Warranty and Support
For warranty information or technical support, please contact WIN STELLAR customer service. Refer to your purchase documentation for specific warranty terms and contact details.
You can also visit the WIN STELLAR Store on Amazon for additional product information and support resources.
