1. Introduction
This manual provides essential information for the proper installation and use of your MONTERAL Washing Machine Transport Bolts. These bolts are designed to secure the washing machine drum during transport, preventing damage from movement and impacts.
1.1. Product Overview
The MONTERAL transport bolt set includes four pieces, essential for safely moving your washing machine. They are specifically designed to match original codes 00636948 and 636948.
This image displays the MONTERAL washing machine transport bolts as a set of four, packaged with clear labeling of their original codes 00636948 and 636948, and indicating their European origin.
1.2. Compatibility
This set of 4 transport bolts is compatible with washing machines from Bosch and Siemens that require original part codes 00636948 or 636948.
This visual confirms the compatibility of the transport bolts with Siemens and Bosch washing machines, highlighting the original part numbers 636948 and 00636948, and showing a set of four bolts.
1.3. What's Included
- 4 x Washing Machine Transport Bolts
2. Important Safety Notes
- Transport bolts must be installed before moving the washing machine to prevent internal damage.
- Transport bolts must be removed before operating the washing machine for the first time in its new location. Failure to do so can cause severe damage to the appliance and void its warranty.
- Always refer to your washing machine's original manual for specific instructions on transport bolt installation and removal, as procedures may vary by model.
3. Installation (Setup)
Follow these steps to properly install the transport bolts before moving your washing machine:
- Locate the Holes: Identify the designated holes on the rear panel of your washing machine where the transport bolts are to be inserted. These are typically four holes.
- Insert the Bolts: Carefully insert each transport bolt into its corresponding hole.
- Tighten Securely: Screw the bolts in until they are firmly seated. Ensure the washing machine drum is securely fixed and cannot move freely within the appliance housing.

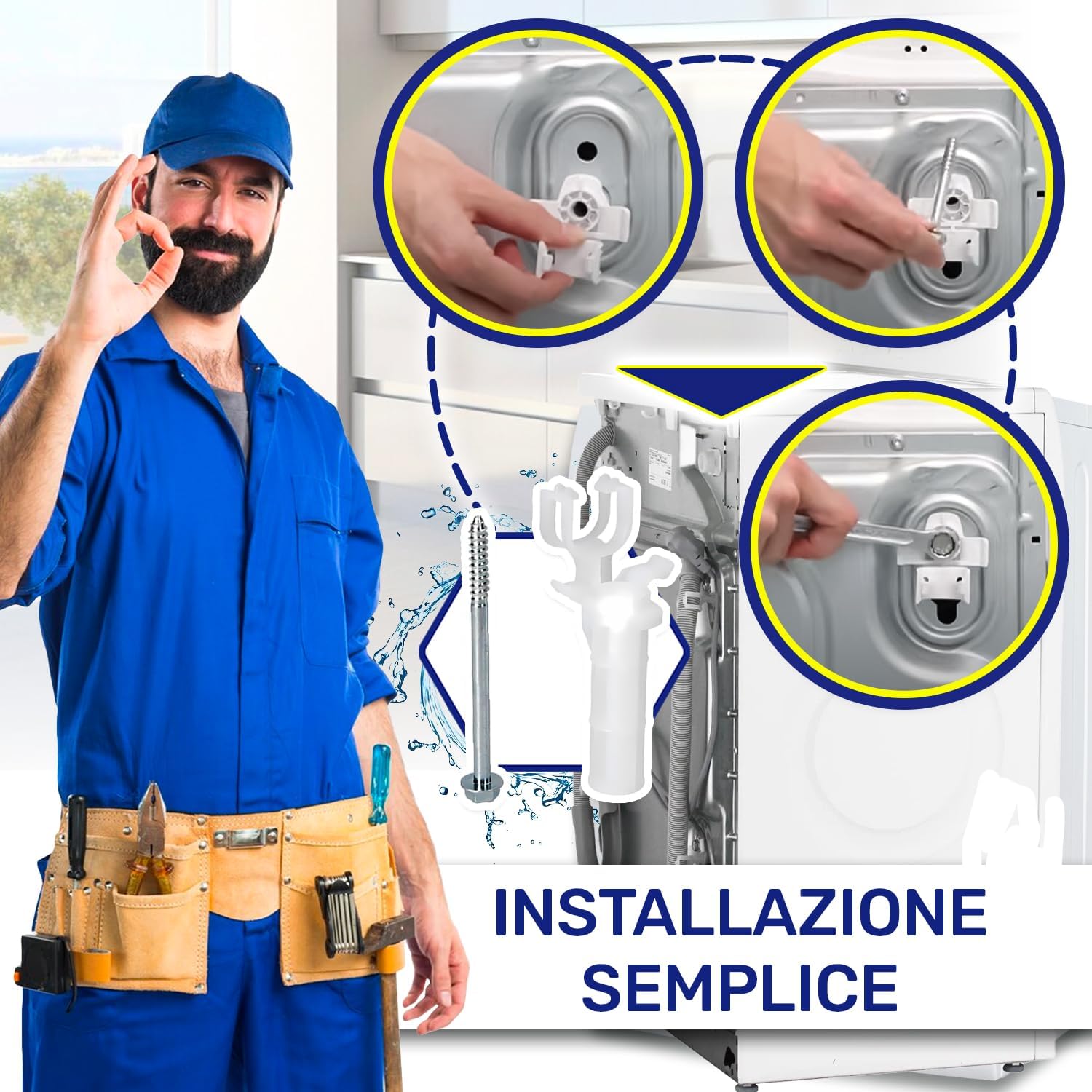

A series of illustrations guiding the user through the straightforward installation of the transport bolts, showing how to locate the holes, insert the bolt, and secure it.
4. Function and Removal
4.1. Function
The primary function of these transport bolts is to prevent the washing machine drum from moving inside the appliance housing. This protection is crucial during transportation, safeguarding the drum from impacts and potential damage.
This image conveys the benefit of reliable protection and secure fixing provided by the transport bolts, ensuring the washing machine's drum is safe during relocation.
4.2. Removal
Before using your washing machine at its new location, you must remove all transport bolts. Store them safely for future use if you need to transport the machine again. Refer to your washing machine's manual for specific removal instructions.
5. Maintenance
These transport bolts require no specific maintenance. Keep them clean and dry when not in use. Inspect them for any signs of damage before each use to ensure they can securely fix the drum.
6. Troubleshooting
If you encounter issues during installation, ensure you are using the correct bolts for your washing machine model by verifying the original part codes (00636948, 636948). If the bolts do not fit or the drum remains loose after installation, consult your washing machine's specific manual or contact a qualified technician.
7. Specifications
| Feature | Detail |
|---|---|
| Product Name | Washing Machine Transport Bolts |
| Brand | MONTERAL |
| Original Codes | 00636948, 636948 |
| Compatibility | Bosch, Siemens washing machines |
| Quantity | 4 pieces |
| Support Length | 128 mm |
| Screw Length | 122 mm |
| Bolt Head Diameter | 13 mm |
| Material | Robust Metal |
| Product Dimensions (overall) | 12.8 x 5.6 x 5.5 cm (per piece) |
| Weight (per piece) | Approximately 10 grams |
A clear diagram illustrating the precise measurements of the transport bolts: 128 mm for the support, 122 mm for the screw, and a 13 mm diameter for the bolt head.

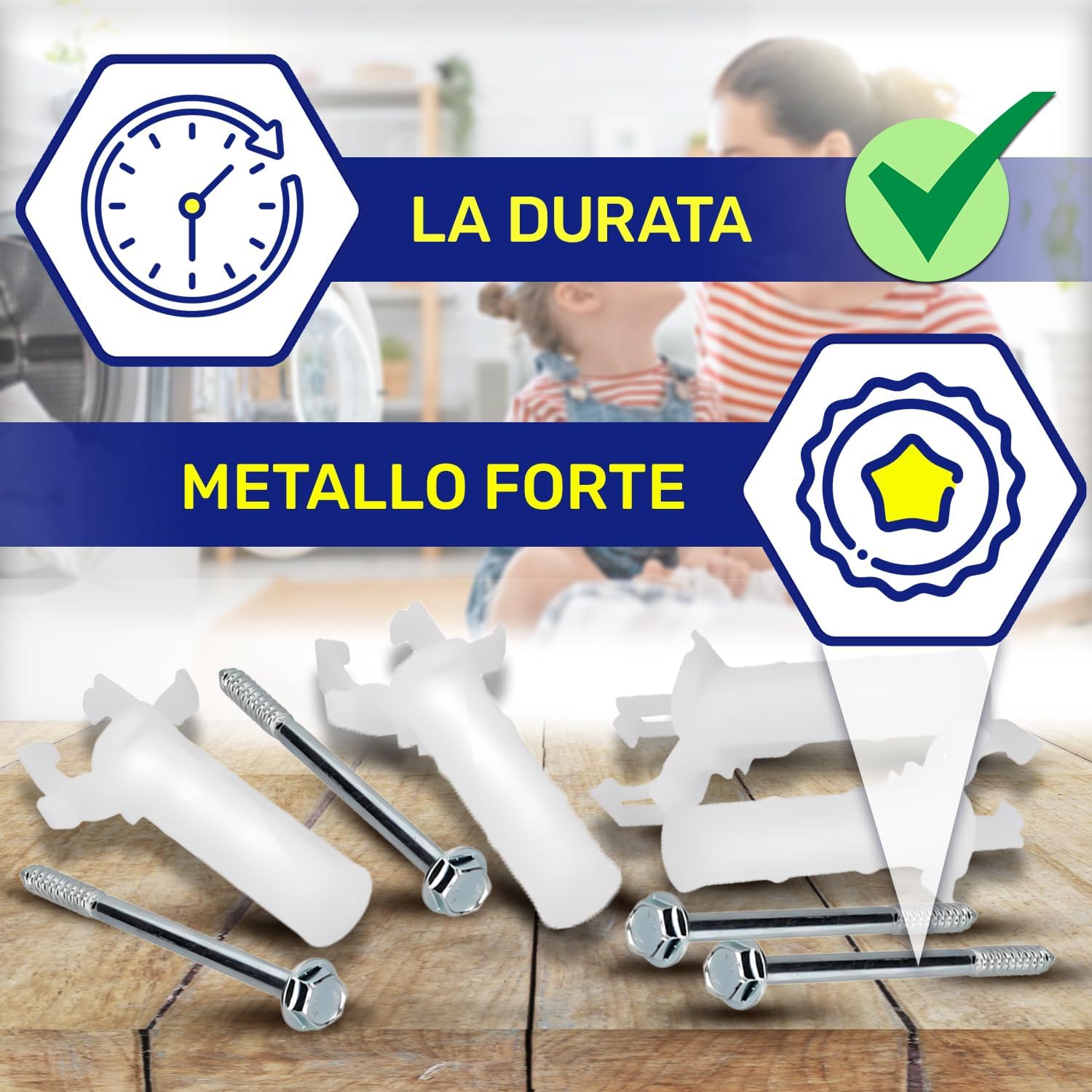

This image emphasizes the robust construction of the transport bolts, made from strong metal to ensure durability and reliable performance.
8. Return Information and Support
For information regarding returns or if you have received a defective or damaged product, please refer to the Amazon help pages. Specific return policies for products purchased on the Marketplace can also be found there.
- General Returns: Amazon Returns Policy
- Defective/Damaged Products: Amazon Help Page
- Marketplace Purchases: Amazon Marketplace Help
For further product-specific inquiries, please contact MONTERAL customer support through the retailer's platform.
