1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your YEJMKJ Nema 17 Stepper Motor 33MM. This 2-phase, 4-lead bipolar stepper motor is designed for precise motion control in various applications, including 3D printers, CNC machines, and laser engraving equipment. Please read this manual thoroughly before use to ensure optimal performance and longevity of the product.
Image 1: YEJMKJ Nema 17 Stepper Motor 33MM with connector cable.
2. Specifications
The following table details the technical specifications of the Nema 17 Stepper Motor 33MM:
| Feature | Value |
|---|---|
| Body Length | 33mm (1.3inch) |
| Step Angle | 1.8 degree |
| Phase | 2 |
| Rated Voltage | 3V |
| Rated Current | 1.5A |
| Phase Resistance | 2Ω |
| Phase Inductance | 3.4mH |
| Holding Torque | 29N.cm (41.06oz.in) |
| Detent Torque | 1.2N.cm (1.7oz.in) |
| Weight | 220g |
| Motor Dimensions | 42x42x33mm (1.66x1.66x1.3inch) |
| Shaft Diameter | Φ 5mm (D Shaft Φ 4.5mm) |
| Shaft Length | 22mm |
| Leads | 4 |
| Cable Length | 1m (39.37inch) |
| Material | Alloy Steel |
Image 2: Detailed specifications and dimensions of the Nema 17 Stepper Motor.
Image 3: Product size diagram showing motor body length, shaft length, and diameter.
3. Setup and Installation
Follow these steps for proper installation of your stepper motor:
- Mounting: Securely mount the Nema 17 stepper motor to your equipment (e.g., 3D printer, CNC machine) using appropriate screws and mounting holes. Ensure the motor is firmly attached to prevent vibrations and misalignment during operation.
- Wiring Connection: Connect the provided 4-pin cable to the motor's connector. The other end of the cable should be connected to your stepper motor driver or control board.
- Verify Wiring: Before powering on, always verify the wiring configuration. Incorrect wiring can damage the motor or driver. For Creality printers, the center two wires may need to be crossed. Check the resistance across pins 1 & 4 and then 3 & 6 on the motor to confirm the correct wiring sequence. If pins 1&3 and 4&6 show resistance, the wiring should be straight. If you hear a buzzing sound during homing, the wiring is likely incorrect.
- Power Supply: Ensure your power supply meets the motor's rated voltage and current requirements (3V, 1.5A).
Image 4: The Nema 17 Stepper Motor shown with its included 1-meter 4-pin connector cable.
4. Operating Instructions
Once installed and wired correctly, the stepper motor operates under the control of your stepper motor driver and control board. Key operational aspects include:
- Motion Control: The motor provides precise angular positioning and speed control, essential for applications like 3D printing and CNC machining.
- Smooth Operation: Designed with advanced magnetic circuitry, the motor offers smooth and reliable operation with low noise levels, contributing to accurate positioning.
- Applications: This motor is suitable for a wide range of automation systems, including 3D printers, CNC machines, laser engraving equipment, and medical devices.

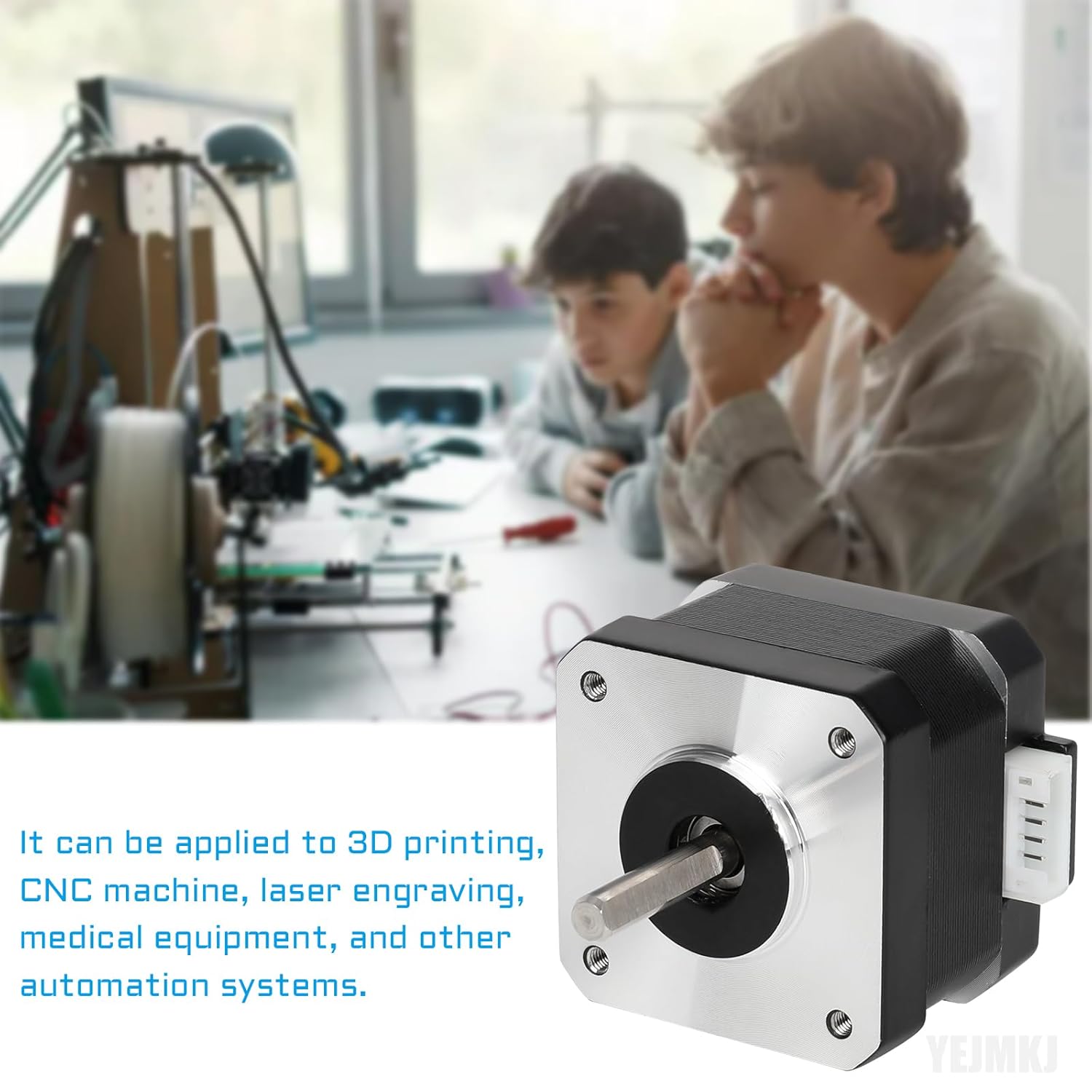

Image 5: The Nema 17 Stepper Motor integrated into a system, demonstrating its application in precision machinery.
Image 6: Close-up of the Nema 17 Stepper Motor, emphasizing its high torque and low noise characteristics.
Video 1: Official YEJMKJ video demonstrating the Nema 17 Stepper Motor. This video provides a visual overview of the product.
5. Maintenance
To ensure the longevity and optimal performance of your stepper motor, consider the following maintenance guidelines:
- Keep Clean: Regularly clean the motor's exterior to prevent dust and debris accumulation, which can affect heat dissipation.
- Check Connections: Periodically inspect all wiring connections to ensure they are secure and free from damage. Loose connections can lead to intermittent operation or motor failure.
- Environmental Conditions: Operate the motor within its specified temperature and humidity ranges. Avoid exposure to excessive moisture or corrosive environments.
- Shaft Inspection: Ensure the motor shaft is free from obstructions and rotates smoothly. Avoid applying excessive force to the shaft.
6. Troubleshooting
If you encounter issues with your Nema 17 Stepper Motor, refer to the following common problems and solutions:
- Motor Not Moving or Buzzing:
- Check all wiring connections. Ensure the 4-pin cable is securely connected to both the motor and the driver.
- Verify the wiring sequence. As noted in the setup section, some control boards (e.g., Creality) may require the center two wires to be crossed. Incorrect wiring often results in a buzzing sound without rotation.
- Confirm the power supply voltage and current are sufficient and stable.
- Ensure the motor driver is correctly configured and receiving step/direction signals.
- Motor Overheating:
- Check the motor driver's current setting. Excessive current can cause overheating.
- Ensure adequate ventilation around the motor.
- Verify that the motor is not overloaded or experiencing excessive mechanical resistance.
- Inaccurate Positioning or Missed Steps:
- Check for mechanical binding or obstructions in the system the motor is driving.
- Ensure the motor driver's current is set appropriately for the load.
- Verify that the step pulse frequency from the control board is within the motor's capabilities.
- Inspect the motor shaft and coupling for any slippage or damage.
- Excessive Noise During Operation:
- While the motor is designed for low noise, unusual or excessive noise can indicate a problem. Re-check wiring as incorrect wiring can cause buzzing.
- Ensure the motor is securely mounted and not vibrating against other components.
- Consider micro-stepping settings on your driver, as higher micro-stepping can reduce noise.
7. Warranty and Support
YEJMKJ is committed to providing high-quality products and customer satisfaction. If you have any questions or concerns regarding your Nema 17 Stepper Motor, please contact us. We aim to reply within 24 hours and provide a satisfactory solution.
For support, please refer to the contact information provided with your purchase or visit the official YEJMKJ store on Amazon: YEJMKJ Store.
