1. Introduction
Thank you for choosing the WELLFOR 12-Inch Wall Mounted Rain Shower Faucet System. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new shower system. Please read this manual thoroughly before installation and retain it for future reference.
This shower system is designed to provide a luxurious and functional showering experience, featuring a large rain shower head and a versatile handheld spray, controlled by a single handle and a 2-way diverter.
2. Safety Information
- Ensure all local plumbing and building codes are followed during installation.
- Turn off the main water supply before beginning any installation or maintenance.
- Wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, during installation.
- If you are unsure about any part of the installation process, consult a qualified plumber.
- Do not use abrasive cleaners or harsh chemicals on the product's finish, as this may damage the surface.
3. Package Contents
Verify that all components are present and undamaged before beginning installation.
Figure 3.1: Overview of all included components.
- 12-Inch Rain Shower Head (304 Stainless Steel)
- Shower Arm (304 Stainless Steel)
- Pressure-balanced Diverter Valve (Solid Brass with 40mm CUPC-certified cartridge)
- Handheld Shower Spray (304 Stainless Steel)
- 59-Inch Shower Hose (Stainless Steel)
- Shower Bracket Holder (Adjustable)
- Installation Manual
- Mounting Hardware and Accessories
4. Product Overview
The WELLFOR shower system is constructed from premium materials for durability and performance. Key components include:
- 12-Inch Rain Shower Head: Made of 304 stainless steel, featuring air injection technology for enhanced water flow and easy-to-clean silicone nozzles. It offers a 15-degree tilt for optimal coverage.
- Handheld Shower Spray: Also 304 stainless steel, providing a powerful flow rate of 2.5 GPM at 80 psi, with 48 silicone touch-clean nozzles. The holder allows for 360-degree rotation.
- Pressure-balanced Valve: A solid brass diverter valve with a CUPC-certified cartridge ensures consistent water pressure and temperature control.
Figure 4.1: Complete WELLFOR Shower System components.
Figure 4.2: The ultra-thin design of the shower head, measuring 1.87mm.
Figure 4.3: The handheld shower and its 360-degree rotating holder.
5. Setup and Installation
The WELLFOR shower system is designed for straightforward installation. All shower bracket holders, shower arms, and mixer valves use standard 1/2" NPT threads, matching U.S. plumbing sizes. Professional installation is recommended.
5.1 Installation Steps (General Guide)
- Prepare the Area: Ensure the main water supply is turned off. Clear the installation area and gather all necessary tools.
- Install the Valve Body: Secure the solid brass pressure balance diverter valve within the wall, ensuring proper alignment and secure connections for hot and cold water lines (1/2" NPT).
- Install Shower Arm: Connect the shower arm to the appropriate outlet on the valve body and secure it to the wall.
- Attach Rain Shower Head: Screw the 12-inch rain shower head onto the shower arm. Ensure a tight seal.
- Install Handheld Shower Bracket: Mount the adjustable handheld shower bracket to the wall at a convenient height.
- Connect Handheld Shower: Attach the shower hose to the valve body's handheld outlet and then to the handheld shower spray. Place the handheld spray in its bracket.
- Install Trim Plate and Handle: Secure the decorative trim plate over the valve body. Install the single control handle and the diverter knob.
- Test for Leaks: Slowly turn on the main water supply and check all connections for leaks. Operate the shower system to ensure proper function.

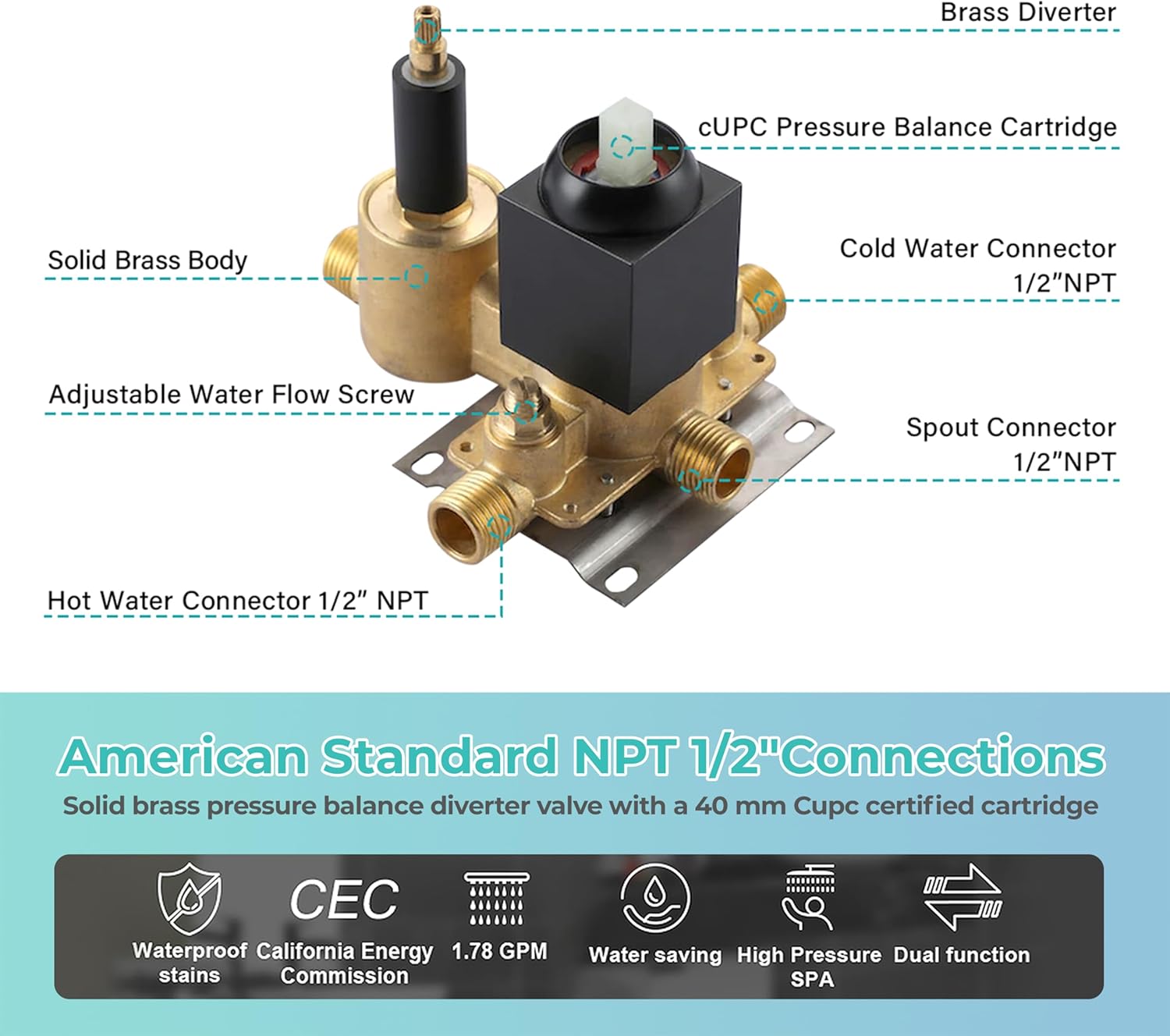

Figure 5.1: Internal view of the solid brass pressure balance diverter valve with NPT 1/2" connections.
Video 5.1: Unboxing and overview of the WELLFOR 12-inch shower faucet components, demonstrating the quality of the materials.
6. Operating Instructions
This 2-function shower wall system provides easy control over water temperature and flow.
6.1 Water Temperature and Flow Control
- The single handle controls both water temperature and flow.
- To turn on the water and adjust flow, lift the handle.
- Rotate the handle to the left for hotter water and to the right for colder water.
6.2 Function Diverter
The 2-way diverter knob allows you to switch between the overhead rainfall shower and the handheld spray.
- Turn the diverter knob to select either the rain shower or the handheld spray.
- The system is designed to allow both functions to operate simultaneously, depending on water pressure.
Figure 6.1: Operation of the single handle and 2-way diverter.
7. Maintenance
Regular cleaning and proper care will ensure the longevity and optimal performance of your WELLFOR shower system.
- Cleaning the Finish: Use a soft, damp cloth and mild soap to clean the matte black finish. Rinse thoroughly with water and dry with a soft cloth to prevent water spots. Avoid abrasive cleaners, ammonia-based products, or harsh chemicals, as these can damage the finish.
- Cleaning Silicone Nozzles: The rain shower head and handheld spray feature easy-to-clean silicone nozzles. To remove mineral buildup, simply rub your finger across the nozzles. For stubborn deposits, a mixture of white vinegar and water can be used.
- Regular Inspection: Periodically check all connections for any signs of leaks or wear. Tighten connections as needed.
8. Troubleshooting
If you encounter issues with your shower system, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Pressure | Mineral buildup in shower head/handheld nozzles; partially closed shut-off valve; low household water pressure. | Clean silicone nozzles by rubbing them; ensure shut-off valves are fully open; consult a plumber for household water pressure issues. |
| Water Leaks from Connections | Loose connections; worn O-rings or seals; improper thread sealant. | Tighten connections; replace O-rings/seals if damaged; reapply plumber's tape or thread sealant. |
| Inconsistent Water Temperature | Pressure balance cartridge issue; hot/cold water supply imbalance. | Check water heater settings; if problem persists, the pressure balance cartridge may need inspection or replacement by a professional. |
| Unusual Noise from Shower Head | Air in the lines; water pressure too high; internal component vibration. | Run water for a few minutes to clear air; check household water pressure; if noise persists, contact customer support. |
If the issue persists after attempting these solutions, please contact WELLFOR customer support for assistance.
9. Specifications
| Feature | Specification |
|---|---|
| Brand | WELLFOR |
| Model Number | DTG-803S12 |
| Color | Matte Black |
| Material | Stainless Steel (Shower Head, Arm, Handheld), Brass (Valve, Handle) |
| Finish Type | Matte |
| Number of Handles | 1 |
| Mounting Type | Wall Mount |
| Flow Rate | 2.5 GPM at 80 psi |
| Product Dimensions | 12 x 12 x 12 inches (approximate overall installed dimensions) |
| Item Weight | 13.01 Pounds |
| Connections | Standard 1/2" NPT |
| Certifications | CUPC Certified Cartridge |
10. Warranty and Support
WELLFOR is committed to providing high-quality products and excellent customer service. If you have any questions, concerns, or require assistance with your shower faucet set, please do not hesitate to contact us. Our support team is dedicated to helping you resolve any issues you may encounter.
For support, please refer to the contact information provided with your purchase or visit the official WELLFOR website.
