1. Introduction

This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your Cuteam 25.4cc Gas Chainsaw, Model 3526639 - SON. Please read and understand all instructions before using the chainsaw. Retain this manual for future reference.

The Cuteam 25.4cc Gas Chainsaw is a portable, high-power logging saw designed for tasks such as forest cutting, family logging, trimming branches, and cutting bamboo. It features a 2-stroke engine, a 12-inch guide bar, and an ergonomic design for comfortable handling.

2. Safety Instructions

WARNING: Chainsaws can be dangerous if not used properly. Always follow these safety guidelines to prevent serious injury or death.

2.1 Personal Protective Equipment (PPE)

• Head Protection: Wear a safety helmet.
• Eye Protection: Wear safety glasses or a face shield.
• Ear Protection: Wear earplugs or earmuffs.
• Hand Protection: Wear heavy-duty work gloves.
• Leg Protection: Wear chainsaw protective chaps.
• Foot Protection: Wear steel-toed safety boots with non-slip soles.
• Clothing: Wear snug-fitting clothing; avoid loose garments that can get caught.

2.2 General Safety Precautions

• Operate the chainsaw only when well-rested and alert.
• Do not operate the chainsaw under the influence of alcohol, drugs, or medication.
• Keep children, bystanders, and animals at a safe distance (at least 50 feet/15 meters) from the work area.
• Inspect the chainsaw before each use for loose parts, damage, or fuel leaks.
• Ensure the chain brake is functional.
• Never start the chainsaw with the chain brake engaged.
• Always hold the chainsaw firmly with both hands.
• Be aware of kickback and how to avoid it.
• Do not overreach or cut above shoulder height.
• Turn off the engine before moving more than 10 feet, refueling, or performing any maintenance.
• Transport the chainsaw with the engine off, the guide bar covered, and the chain brake engaged.

2.3 Fuel Handling Safety

• Mix fuel outdoors or in a well-ventilated area.
• Use a 25:1 fuel mix ratio (92 octane gasoline to 2-cycle engine oil).
• Do not smoke while mixing or handling fuel.
• Store fuel in approved containers, away from ignition sources.
• Wipe up any spilled fuel immediately.
• Never refuel a hot engine. Allow it to cool down.

3. Components and Features

Familiarize yourself with the parts of your chainsaw:

Image Description: An annotated diagram of the Cuteam 25.4cc Gas Chainsaw, highlighting key components such as the Fuel Tank, Primer Bulb, Trigger, Trigger Lockout, Air Filter Cover, Saw Chain, Guide Bar, Bumper Spike, Chain Oil Tank, Starter Cover, and Starter Handle.

• Fuel Tank: Holds the gasoline and 2-cycle oil mixture.
• Primer Bulb: Used to prime the carburetor with fuel for easier starting.
• Trigger: Activates the engine and chain movement.
• Trigger Lockout: A safety mechanism that must be pressed before the trigger can be engaged.
• Air Filter Cover: Protects the air filter.
• Saw Chain: The cutting component of the chainsaw.
• Guide Bar: Supports and guides the saw chain.
• Bumper Spike: Provides leverage when cutting.
• Chain Oil Tank: Holds chain lubricant for automatic oiling.
• Starter Cover: Houses the starter rope mechanism.
• Starter Handle: Used to pull the starter rope and start the engine.
• Front Baffle: Protects the user from flying debris during operation.
• Wrap-around Handle: Designed for comfortable grip and reduced user fatigue.

4. Setup and Assembly

4.1 Unpacking and Inspection

Carefully remove all components from the packaging. The package includes:

• 1 x Gas Chainsaw unit
• 1 x Guide Plate
• 1 x Chain
• 1 x Installation Kit (tools)
• 1 x User Manual (this document)
• 1 x Protective Case

Inspect all parts for any damage. If any components are missing or damaged, do not proceed with assembly or operation. Contact customer support.

4.2 Guide Bar and Chain Installation

1. Ensure the engine is off and the chain brake is disengaged.
2. Remove the chain cover (usually held by two nuts).
3. Place the chain around the clutch drum, ensuring the cutting edges face forward on the top of the guide bar.
4. Fit the guide bar onto the studs, aligning the chain with the groove in the guide bar.
5. Ensure the chain tensioner pin engages with the hole in the guide bar.
6. Replace the chain cover, but do not fully tighten the nuts yet.
7. Adjust chain tension: Use the tensioning screw to adjust the chain until it is snug against the guide bar but can still be pulled freely by hand. There should be no slack on the underside of the guide bar, and the chain should not sag.
8. Once tension is correct, fully tighten the chain cover nuts.

4.3 Fueling the Chainsaw

WARNING: Always handle fuel in a well-ventilated area, away from open flames or sparks. Do not smoke.

1. Prepare the fuel mixture: Use a ratio of 25 parts 92 octane gasoline to 1 part 2-cycle engine oil. Mix thoroughly in an approved fuel container.
2. Unscrew the fuel tank cap.
3. Carefully pour the mixed fuel into the fuel tank (capacity: 260ml). Avoid overfilling.
4. Securely replace the fuel tank cap.

4.4 Filling the Chain Oil Tank

The chainsaw features an automatic oiler system to lubricate the chain and guide bar during operation.

1. Unscrew the chain oil tank cap.
2. Fill the tank with high-quality bar and chain oil.
3. Securely replace the chain oil tank cap.
4. Check the oil level regularly during operation and refill as needed.

5. Operating Instructions

5.1 Starting the Chainsaw

WARNING: Ensure the chain brake is engaged before starting. Keep the guide bar clear of any objects.

1. Place the chainsaw on a firm, flat surface.
2. Engage the chain brake by pushing the front hand guard forward.
3. Press the primer bulb several times until fuel is visible in the bulb.
4. Set the choke lever to the "FULL CHOKE" position (if applicable).
5. Press the safety start switch lock, then hold the start button.
6. Pull the starter handle firmly and steadily until the engine fires (usually a few pulls). Do not pull the rope to its full extension.
7. Once the engine fires, move the choke lever to the "HALF CHOKE" or "RUN" position.
8. Pull the starter handle again until the engine starts and runs smoothly.
9. Once the engine is running, briefly blip the throttle to disengage the choke.
10. Disengage the chain brake by pulling the front hand guard back towards the handle. The chain should not move at idle.

Image Description: A person demonstrating the use of the Cuteam 25.4cc Gas Chainsaw to cut through a log, showcasing the chainsaw in action during a typical cutting task.

5.2 Cutting Techniques

WARNING: Always maintain a firm grip with both hands. Be aware of potential kickback.

• Stance: Stand with your feet shoulder-width apart, maintaining good balance.
• Grip: Hold the chainsaw firmly with both hands, thumbs and fingers wrapped around the handles.
• Kickback Avoidance: Avoid cutting with the tip of the guide bar. Be aware of the kickback zone (upper quadrant of the guide bar tip).
• Cutting: Let the chain do the work. Do not force the saw. Apply steady, even pressure.
• Felling Trees: Requires advanced training. Do not attempt without proper instruction and experience.
• Limbing: Cut small branches first. Work from the bottom up on larger branches to avoid pinching the bar.
• Bucking: When cutting logs on the ground, be aware of tension and compression in the wood to prevent pinching.

Image Description: A user operating the Cuteam 25.4cc Gas Chainsaw to cut a tree branch, highlighting the ergonomic design and comfortable grip of the handle.

5.3 Stopping the Chainsaw

1. Release the throttle trigger.
2. Engage the chain brake by pushing the front hand guard forward.
3. Press the engine stop switch (usually a red button or switch).
4. Ensure the engine has completely stopped before setting the chainsaw down.

6. Maintenance

WARNING: Always ensure the engine is off, cool, and the spark plug cap is disconnected before performing any maintenance.

6.1 Daily Maintenance

• Chain Tension: Check and adjust chain tension before each use.
• Chain Sharpening: Keep the chain sharp. A dull chain increases effort and kickback risk. Refer to the chain manufacturer's guidelines for proper sharpening angles and file sizes.
• Chain Lubrication: Ensure the chain oil tank is filled. Check for proper oil flow from the automatic oiler.
• Air Filter: Clean the air filter regularly, especially in dusty conditions. Remove the air filter cover and clean with compressed air or wash with warm, soapy water, then dry thoroughly.
• Guide Bar: Clean the guide bar groove and oil holes. Flip the guide bar periodically to ensure even wear.

6.2 Periodic Maintenance

• Spark Plug: Inspect and clean the spark plug every 25 hours of operation. Replace if electrodes are worn or fouled.
• Fuel Filter: Inspect and replace the fuel filter annually or if fuel delivery issues occur.
• Cooling Fins: Keep the engine cooling fins clean to prevent overheating.

7. Troubleshooting

If you encounter problems not listed here or if solutions do not resolve the issue, please contact Cuteam customer support or a qualified service technician.

8. Specifications

Image Description: An image displaying the dimensions of the Cuteam 25.4cc Gas Chainsaw (50cm L x 28cm H) and illustrating its various applications such as forest logging, family firewood, trimming branches, and cutting bamboo.

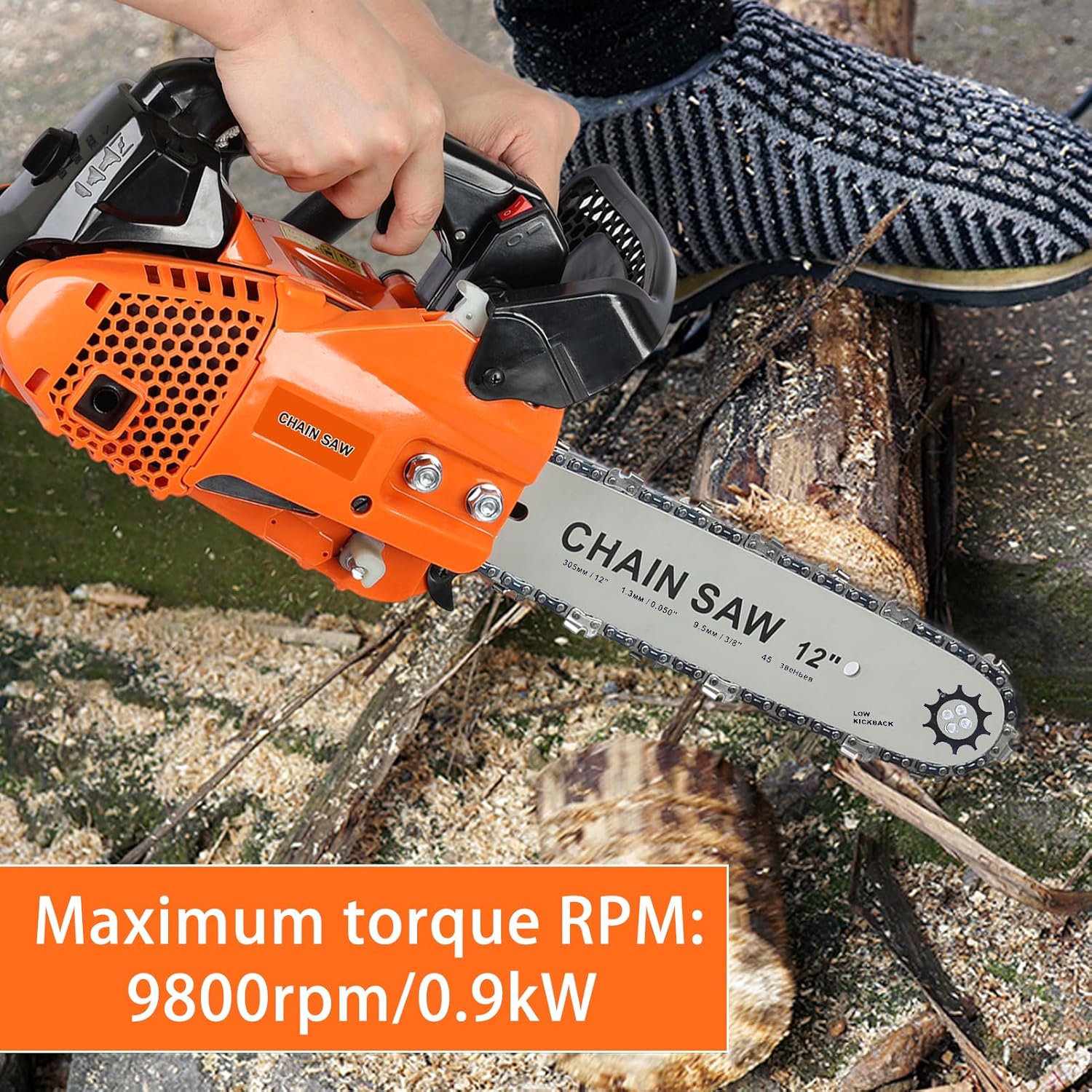

Image Description: A close-up view of the Cuteam 25.4cc Gas Chainsaw in operation, with text overlay indicating its maximum torque RPM of 9800 rpm / 0.9 kW.

9. Warranty and Support

For warranty information, please refer to the warranty card included with your product or visit the official Cuteam website. Keep your purchase receipt as proof of purchase.

For technical support, replacement parts, or service inquiries, please contact Cuteam customer service through the contact information provided in your product packaging or on the manufacturer's website.

When contacting support, please have your product model number (3526639 - SON) and purchase date readily available.
