Purell CS4 Manual Soap Dispenser (Model 5130-01) Instruction Manual

Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Purell CS4 Manual Soap Dispenser, Model 5130-01. Designed for high-traffic environments, this reliable, push-style dispenser ensures effective hand hygiene. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.

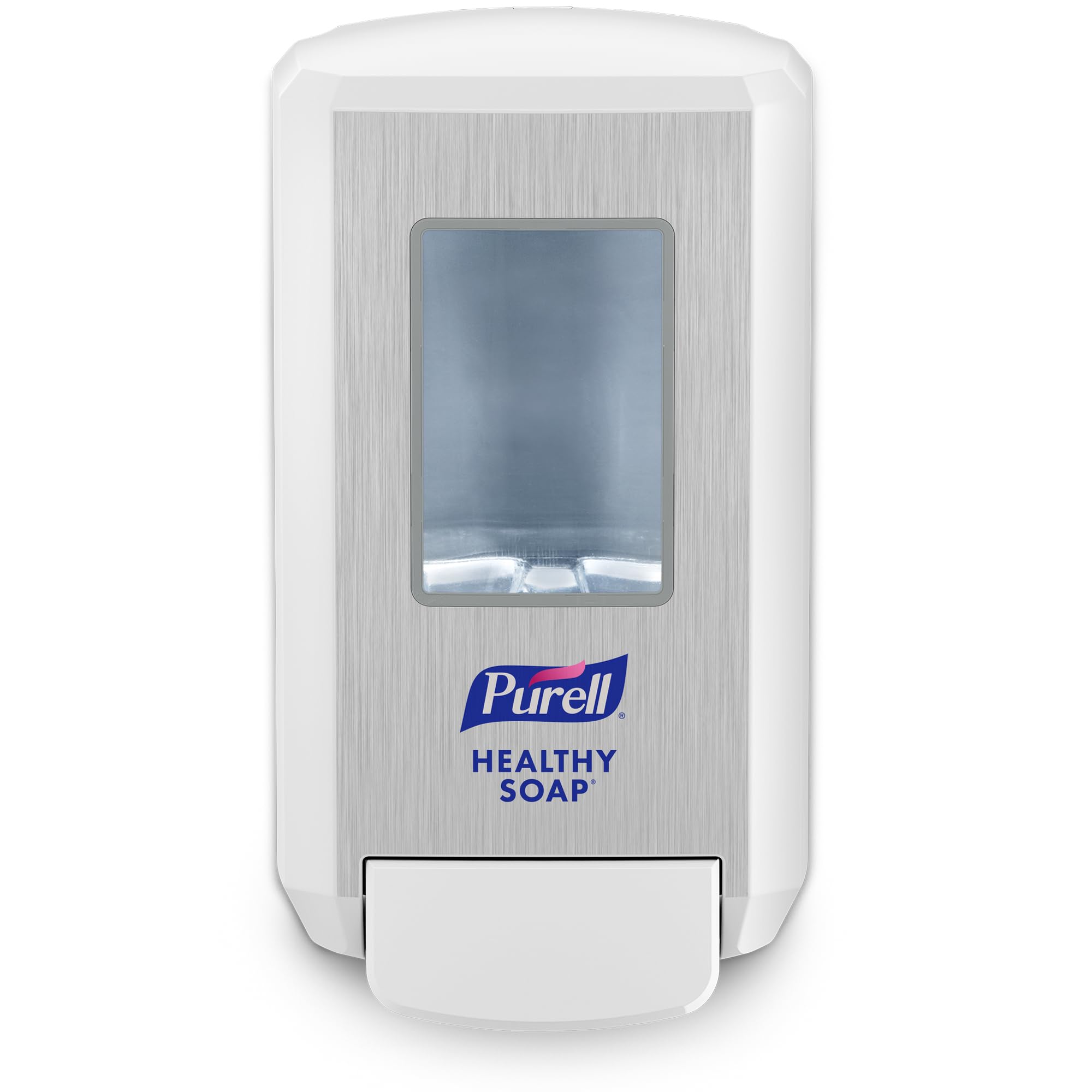

Image: Front view of the Purell CS4 Manual Soap Dispenser in white.

Safety Information

• Ensure the dispenser is securely mounted to prevent accidental falls.
• Use only Purell CS4 1250 mL HEALTHY SOAP Refills with this dispenser. Using incompatible refills may damage the unit or impair functionality.
• Keep soap out of reach of children. In case of eye contact, rinse thoroughly with water.
• Do not attempt to modify or disassemble the dispenser beyond the instructions provided in this manual.

Package Contents

Verify that all components are present before beginning installation:

• 1 x Purell CS4 Manual Hand Soap Dispenser (White)
• Adhesive mounting tape (pre-applied or included separately)
• 1 x LOCK-OR-NOT key (for optional locking mechanism)

Note: Purell CS4 1250 mL HEALTHY SOAP Refills are sold separately.

Image: The Purell CS4 dispenser shown alongside a Purell CS4 1250 mL soap refill, indicating refills are sold separately.

Setup and Installation

1. Choose Mounting Location

Select a suitable wall location for the dispenser. Ensure the surface is clean, dry, and smooth for optimal adhesive tape adhesion. Consider accessibility for users and ease of refilling.

2. Mounting the Dispenser

The dispenser can be mounted using either the included adhesive tape or optional mounting screws (not included).

• Adhesive Mounting: Peel the backing from the adhesive tape on the back of the dispenser. Press the dispenser firmly against the chosen wall surface for at least 30 seconds. Allow 24 hours for the adhesive to fully cure before adding a refill.
• Screw Mounting: Open the dispenser cover. Use the multiple hole pattern on the backplate as a template to mark drilling locations on the wall. Drill pilot holes if necessary, then secure the dispenser to the wall using appropriate screws (not included).

Image: Two panels showing the adhesive tape application and screw mounting process for the dispenser.

3. Installing the Refill

1. Open the dispenser cover.
2. Ensure the refill type matches the dispenser. The CS4 dispenser is designed for Purell CS4 1250 mL HEALTHY SOAP Refills.
3. Insert the new refill bottle into the dispenser, ensuring it clicks securely into place.
4. Close the dispenser cover.

Image: A visual guide demonstrating how to match the refill type (SOAP CS4) to the dispenser for correct installation.

4. Optional Locking Mechanism

The dispenser features LOCK-OR-NOT™ technology, allowing you to convert it into a locking system using the provided key for added security.

Image: The dispenser with the LOCK-OR-NOT key, illustrating its use for securing the unit.

Operating Instructions

Dispensing Soap

Place your hand under the dispenser nozzle and firmly push the lever upwards. A measured amount of soap will be dispensed into your hand.

Checking Refill Levels

The dispenser features a large sight window on the front, allowing for easy visual inspection of the soap level within the refill bottle. This helps maintenance teams determine when a refill is needed.

Image: The dispenser with a hand receiving soap, highlighting the transparent window for monitoring refill levels.

Maintenance

Cleaning the Dispenser

Wipe the exterior of the dispenser regularly with a soft, damp cloth and mild soap. Avoid abrasive cleaners or solvents that could damage the finish. Ensure no water enters the internal mechanism.

Replacing Refills

When the soap level in the sight window indicates the refill is low or empty, replace it by following the 'Installing the Refill' steps in the Setup section.

Troubleshooting

• No soap dispenses:
  • Check if the refill bottle is empty and replace if necessary.
  • Ensure the refill bottle is correctly seated and clicked into place within the dispenser.
  • Verify that the dispenser lever is being pushed firmly and completely.
• Dispenser is loose on the wall:
  • If using adhesive mounting, ensure the wall surface was clean and dry during installation and allow sufficient curing time. Re-mount if necessary.
  • If screw mounted, check that screws are tightened securely.
• Soap leakage:
  • Ensure the correct Purell CS4 refill is being used and that it is properly installed.
  • Check for any visible damage to the refill bottle or dispenser mechanism.

Specifications

Image: Diagram showing the key dimensions (width, height, depth) of the Purell CS4 Manual Soap Dispenser.

Warranty and Support

Manufacturer Warranty

The Purell CS4 Manual Soap Dispenser is backed by a manufacturer's guarantee of reliability. For specific warranty terms and conditions, please refer to the official Purell website or contact customer support.

Image: A seal indicating the dispenser's proven durability and reliability guarantee.

Customer Support

For further assistance, product information, or to purchase compatible refills, please visit the official Purell store or contact Purell customer service.

Official Purell Store: Purell Store on Amazon
