1. Important Safety Information
Please read all instructions carefully before using this appliance. Retain this manual for future reference.
- This appliance is intended for household use only. Do not use outdoors or on wet surfaces.
- Do not allow children to operate the vacuum cleaner. Close supervision is necessary when used near children.
- Do not pick up flammable or combustible materials (lighter fluid, gasoline, kerosene, etc.) or use in areas where they may be present.
- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
- Do not use without the dust cup and/or filters in place.
- Turn off all controls before unplugging.
- Use only as described in this manual. Use only manufacturer's recommended attachments.
- If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
- Do not handle plug or appliance with wet hands.
- Exercise extra care when cleaning on stairs.
- The battery pack must be removed from the appliance before it is scrapped.
- The battery pack is to be disposed of safely.
2. Product Overview
The Yanhama H3 Cordless Vacuum Cleaner is designed for efficient and versatile home cleaning. It features powerful suction, a long-lasting battery, and a multi-stage filtration system.
2.1 Components
Image Description: An exploded view of the Yanhama H3 Cordless Vacuum Cleaner, showing the main motor unit, flexible extension tube, floor brush with green LED lights, removable battery, wall-mounted charging dock, and various attachments including a crevice tool, 2-in-1 brush, and cleaning brush. Also visible are spare filters.
Image Description: The Yanhama H3 Cordless Vacuum Cleaner being used in a modern living room. Key features like 45KPa suction, 550W power, 60-minute runtime, 7-stage filtration, 1.5L dust cup, 180° flexible tube, and LED light are highlighted with icons.
- Main Motor Unit: Contains the motor, dustbin, and control panel.
- Flexible Extension Tube: Allows for cleaning under furniture without bending.
- Motorized Floor Brush: Equipped with green LED lights for illuminating dust.
- Removable Battery Pack: 21.6V, 3000mAh Li-ion battery.
- Wall-Mounted Charging Dock: For convenient storage and charging.
- Crevice Tool: For narrow spaces and corners.
- 2-in-1 Brush: Versatile tool for upholstery and delicate surfaces.
- Cleaning Brush: For maintaining filters and attachments.
- HEPA Filters: Part of the multi-stage filtration system.
2.2 Key Features
- Powerful Suction: 45KPa suction power with a 550W brushless motor for deep cleaning.
- Extended Runtime: Up to 60 minutes of continuous cleaning on a single charge.
- Advanced Filtration: 7-stage filtration system captures up to 99.99% of fine particles, including allergens.
- Flexible Tube: 180° foldable tube for easy access under low furniture.
- LED Headlights: Green LED lights on the floor brush illuminate hidden dust.
- Large Dustbin: 1.5L dustbin capacity with one-touch emptying.
- Multiple Modes: 4 cleaning programs (Low, Mid, High, Auto) for various cleaning needs.
3. Setup and Assembly
Follow these steps to assemble and prepare your Yanhama H3 Cordless Vacuum Cleaner for first use.
3.1 Initial Assembly
- Attach the Extension Tube: Insert the flexible extension tube into the main motor unit until it clicks securely into place.
- Connect the Floor Brush: Attach the motorized floor brush to the other end of the extension tube, ensuring it locks firmly.
- Insert the Battery: Slide the removable battery pack into the designated slot on the main motor unit until it clicks.
3.2 Charging the Battery
Before first use, fully charge the battery. A full charge takes approximately 4 hours.
Image Description: An illustration showing the internal components of the Yanhama H3 battery pack and its charging status, indicating a 60-minute maximum runtime and 4.5 hours for a full charge.
- Connect the original adapter to the charging port on the battery or the wall-mounted charging dock.
- Plug the adapter into a power outlet.
- The battery indicator lights will show charging progress. All lights will be solid when fully charged.
3.3 Wall Mount Installation
The vacuum comes with a self-charging wall mount for convenient storage and charging.
Image Description: The Yanhama H3 Cordless Vacuum Cleaner mounted on its wall-mounted charging dock, plugged into a power outlet, demonstrating its self-charging capability while stored.
- Choose a suitable location near a power outlet.
- Secure the wall mount to the wall using the provided screws and anchors.
- Hang the vacuum cleaner on the mount. Ensure the charging contacts align.
4. Operating Instructions
Learn how to effectively use your Yanhama H3 Cordless Vacuum Cleaner for various cleaning tasks.
4.1 Powering On/Off and Mode Selection
Image Description: A close-up view of the Yanhama H3 vacuum cleaner's control panel, showing the power button and mode selection buttons (HI, LOW, AUTO) with indicator lights.
- Press the power button to turn the vacuum cleaner on or off.
- Use the mode selection buttons (Low, Mid, High, Auto) to adjust suction power according to your cleaning needs.
- The Auto mode intelligently adjusts suction based on floor type and debris level.
4.2 Using the Flexible Tube and LED Lights
The flexible tube and integrated LED lights enhance cleaning efficiency, especially in hard-to-reach areas.

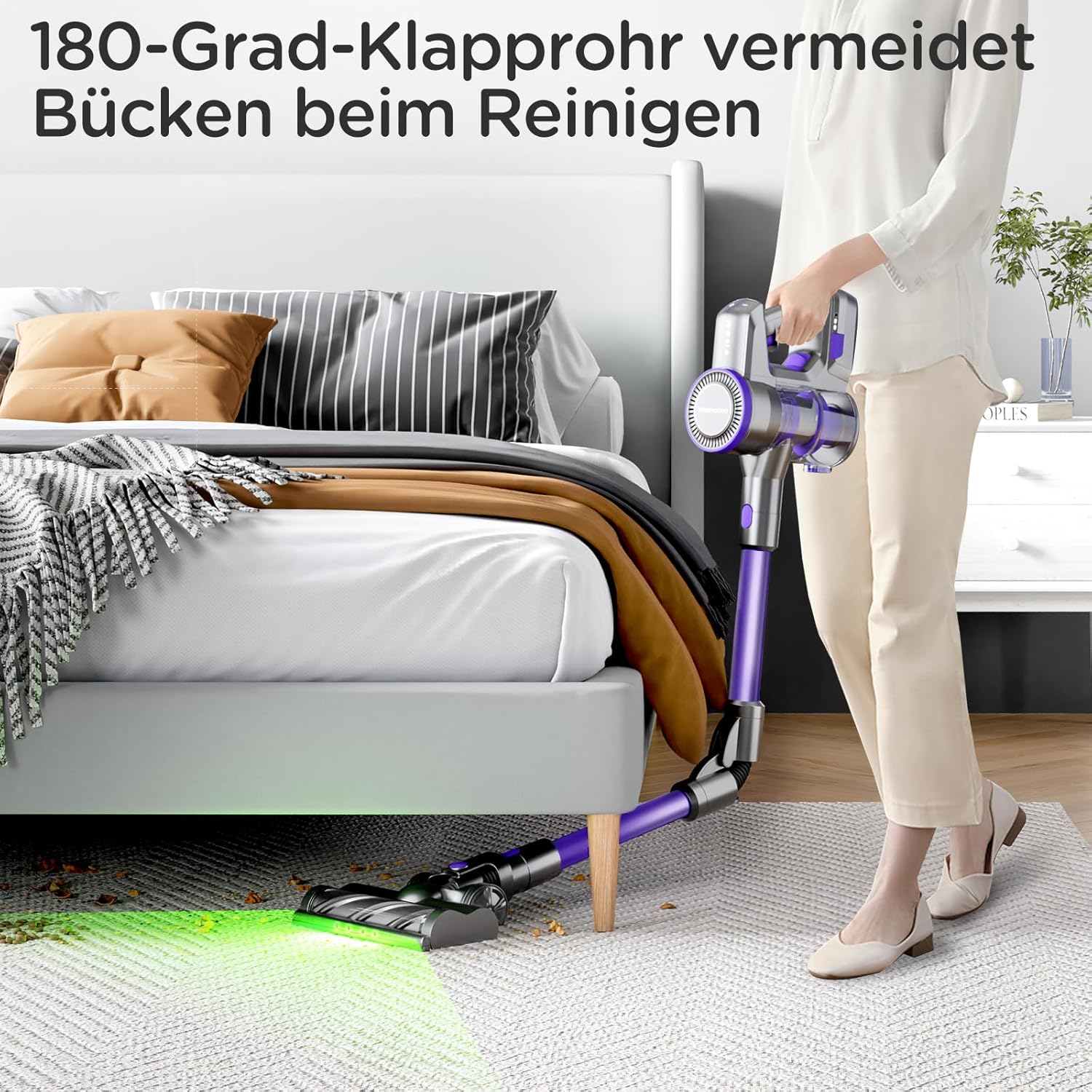

Image Description: A person using the Yanhama H3 vacuum cleaner with its 180-degree foldable tube to clean under a bed, demonstrating how the flexible design eliminates the need to bend down.
Image Description: A close-up of the Yanhama H3 vacuum cleaner's floor brush, showing the green LED lights illuminating dust particles on the floor, making invisible dust visible for thorough cleaning.
- To activate the flexible tube, press the hinge release button on the tube and bend it to the desired angle. This allows cleaning under furniture without stooping.
- The green LED lights on the floor brush automatically activate when the vacuum is in use, highlighting dust and debris on the floor.
4.3 Using Accessories
The Yanhama H3 comes with various accessories for specialized cleaning.
Image Description: A collage showing the Yanhama H3 vacuum cleaner being used with different attachments: as a handheld vacuum for tabletop crumbs, with the 2-in-1 brush for sofa cleaning, and as a stick vacuum for floor cleaning. Another image shows it used for high-reach cleaning.
- Crevice Tool: Ideal for cleaning tight spaces, corners, and along edges.
- 2-in-1 Brush: Use the brush mode for delicate surfaces like keyboards or curtains, and the nozzle mode for upholstery or car interiors.
- To attach an accessory, remove the extension tube or floor brush and directly connect the desired tool to the main motor unit.
5. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.
5.1 Emptying the Dustbin
Empty the 1.5L dustbin regularly to maintain strong suction.
Image Description: A hand holding the Yanhama H3 vacuum cleaner's main unit over a trash can, demonstrating the one-touch dustbin emptying mechanism, with debris falling out.
- Hold the main motor unit over a trash can.
- Press the dustbin release button to open the bottom flap and empty the contents.
- Close the flap securely after emptying.
5.2 Cleaning Filters
The 7-stage filtration system requires periodic cleaning to prevent clogging and maintain air quality.
Image Description: A detailed diagram illustrating the 7-stage filtration system of the Yanhama H3 vacuum cleaner, showing the various filter components and how they capture particles down to 0.1 micrometers.
- Twist and pull to remove the dustbin from the main unit.
- Remove the internal filter components (HEPA filter, sponge filter, stainless steel filter).
- Tap off loose dust. Rinse washable parts under cold running water.
- Allow all filter components to air dry completely for at least 24 hours before reassembling. Do not use heat to dry.
- Reassemble the filters and dustbin, ensuring all parts are securely in place.
5.3 Cleaning the Brush Roll
Periodically check the brush roll for tangled hair or debris.
- Turn off the vacuum cleaner and detach the floor brush.
- Locate the brush roll access cover on the bottom of the floor brush.
- Open the cover and remove the brush roll.
- Use scissors or the provided cleaning tool to cut and remove any tangled hair or fibers.
- Reinsert the brush roll and close the access cover securely.
6. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum does not turn on. | Battery is not charged or not properly inserted. | Ensure battery is fully charged and securely inserted. |
| Low suction power. | Dustbin is full, filters are clogged, or brush roll is obstructed. | Empty dustbin. Clean or replace filters. Remove any obstructions from the brush roll or air pathways. |
| Brush roll not spinning. | Hair or debris tangled in brush roll, or floor brush is not properly attached. | Clean the brush roll. Ensure the floor brush is securely connected to the extension tube. |
| Unusual noise during operation. | Obstruction in the air path, or a foreign object caught in the brush roll. | Check for and remove any blockages in the tube, dustbin, or brush roll. |
| Battery runtime is shorter than expected. | Battery not fully charged, or operating in High/Max power mode constantly. | Ensure battery is fully charged. Use lower power modes for longer runtime. Battery life naturally degrades over time. |
7. Specifications
Detailed technical specifications for the Yanhama H3 Cordless Vacuum Cleaner.
- Model Number: 18Y-PP02-1
- Color: Violet
- Power: 550W
- Suction Power: 45KPa
- Battery: 21.6V, 3000mAh Li-ion (Removable)
- Runtime: Up to 60 minutes (depending on mode)
- Charging Time: Approximately 4 hours
- Dustbin Capacity: 1.5 Liters
- Filtration System: 7-layer filtration, including HEPA filter
- Noise Level: 65 dB
- Special Features: 180° foldable tube, Green LED headlights, 4 speed modes, Wall-mounted charging
- Product Weight: 4.21 kg
- Dimensions (Package): 42.79 x 32.2 x 22.8 cm
8. Warranty and Support
Yanhama products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the warranty card included with your purchase or contact Yanhama customer service through the retailer where the product was purchased.
Please have your model number (18Y-PP02-1) and purchase date ready when contacting support.
