WOOX Indoor Smart Camera 3MP R4208 User Manual

1. Introduction

Thank you for choosing the WOOX Indoor Smart Camera 3MP R4208. This camera is designed to provide reliable indoor surveillance with advanced features such as 3-megapixel resolution, night vision, two-way audio communication, and compatibility with smart home ecosystems like Amazon Alexa and Google Home. This manual provides essential information for setting up, operating, and maintaining your device to ensure optimal performance and security.

2. Package Contents

Please check the box for the following items:

• WOOX Indoor Smart Camera 3MP R4208
• USB Power Cable
• Power Adapter
• Mounting Kit (screws, wall anchors)
• User Manual

3. Product Overview

Familiarize yourself with the components of your WOOX Indoor Smart Camera.

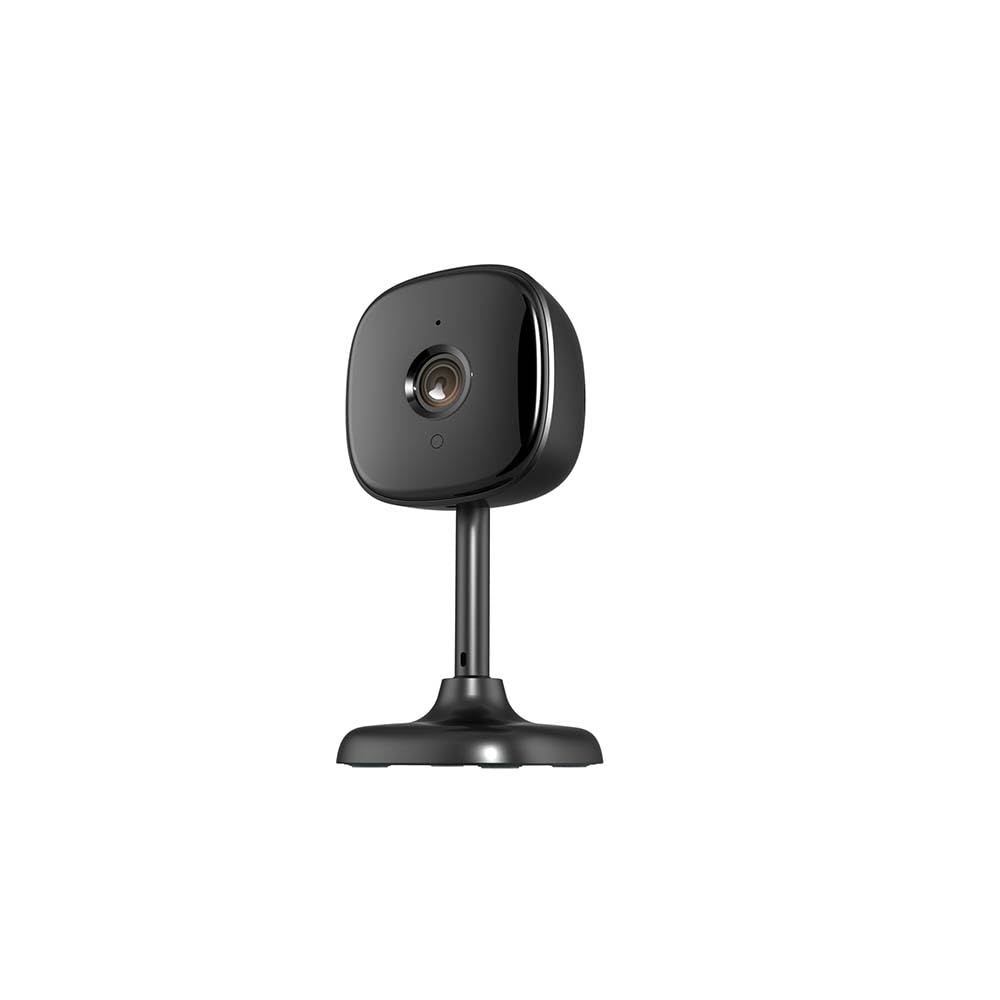

Image: Front view of the WOOX Indoor Smart Camera R4208, showing the lens and base.

• Camera Lens: Captures video footage.
• Infrared LEDs: For automatic night vision.
• Microphone: For audio input and two-way communication.
• Speaker: For audio output and two-way communication.
• Status Indicator Light: Indicates camera status (e.g., pairing mode, connected).
• Micro USB Port: For power connection.
• Reset Button: Used to reset the camera to factory settings.
• MicroSD Card Slot: For local video storage (MicroSD card not included).

4. Setup

4.1 Powering On

1. Connect the USB power cable to the camera's Micro USB port.
2. Plug the other end of the USB cable into the provided power adapter.
3. Plug the power adapter into a wall outlet. The camera will power on, and the status indicator light will begin to flash.

4.2 App Installation

1. Download the WOOX Home app from the Apple App Store (for iOS devices) or Google Play Store (for Android devices).
2. Alternatively, scan the QR code provided in the quick start guide or on the product packaging to download the app.

4.3 Account Creation and Device Pairing

1. Open the WOOX Home app and register for a new account or log in if you already have one.
2. Ensure your mobile device is connected to a 2.4GHz Wi-Fi network. The camera does not support 5GHz Wi-Fi.
3. In the app, tap the "+" icon or "Add Device" to add a new device.
4. Select "Security & Video Surveillance" and then choose "Smart Camera (Wi-Fi)".
5. Follow the on-screen instructions to connect the camera. This typically involves resetting the camera (if the indicator light is not flashing rapidly), entering your Wi-Fi password, and scanning a QR code generated by the app with the camera's lens.
6. Once connected, the camera's status indicator light will turn solid blue.

4.4 Camera Placement

Place the camera on a flat surface or mount it to a wall or ceiling using the provided mounting kit. Ensure the camera has a clear line of sight to the area you wish to monitor. Avoid placing it near heat sources or in direct sunlight.

Image: The WOOX Indoor Smart Camera R4208 positioned on a flat surface, demonstrating typical placement.

5. Operating Instructions

5.1 Live View

Open the WOOX Home app and tap on your camera's name to access the live video feed. You can view the stream in real-time, switch to full-screen mode, and take snapshots or record video manually.

5.2 Two-Way Audio

While in live view, tap the microphone icon to speak through the camera's speaker. Tap it again to end communication. The speaker icon allows you to listen to audio from the camera's location.

5.3 Motion and Sound Detection

Navigate to the camera settings in the WOOX Home app. Here you can enable motion detection and sound detection. Adjust sensitivity levels and set up notification schedules to receive alerts on your mobile device when activity is detected.

5.4 Night Vision

The camera is equipped with infrared LEDs that automatically activate in low-light conditions, providing clear black-and-white video footage at night.

5.5 Video Recording and Playback

If a MicroSD card (not included) is inserted, the camera can record video continuously or upon motion/sound detection. Access recorded footage through the "Playback" option in the camera's interface within the WOOX Home app. Cloud storage options may also be available through the app.

5.6 Smart Assistant Integration

The WOOX R4208 camera is compatible with Amazon Alexa and Google Home. To integrate:

• For Alexa: Enable the "WOOX Home" skill in the Alexa app, then link your WOOX Home account. Discover devices. You can then use voice commands like "Alexa, show me the living room camera."
• For Google Home: Link the "WOOX Home" service in the Google Home app. You can then use voice commands like "Hey Google, show me the baby room camera on my Nest Hub."

6. Maintenance

6.1 Cleaning

To clean the camera, gently wipe the lens and body with a soft, dry cloth. Do not use liquid cleaners or abrasive materials, as they may damage the device.

6.2 Firmware Updates

Periodically check the WOOX Home app for available firmware updates. Keeping your camera's firmware up-to-date ensures optimal performance, security, and access to new features. Follow the in-app instructions to perform updates.

6.3 Storage Management

If using a MicroSD card, regularly check its storage capacity through the app. You may need to format the card periodically or replace it if it becomes full or corrupted. Back up important recordings before formatting.

7. Troubleshooting

• Camera is offline:
  Ensure the camera is powered on and the power adapter is securely plugged in. Check your Wi-Fi router and internet connection. Try restarting the camera by unplugging and replugging it. If the issue persists, try resetting the camera and re-pairing it with the app.
• Cannot connect to Wi-Fi:
  Verify that your Wi-Fi network is 2.4GHz. Ensure your Wi-Fi password is correct. Move the camera closer to your Wi-Fi router. Reset the camera and try the pairing process again.
• Poor video quality:
  Check your internet connection speed. Ensure the camera lens is clean and free from obstructions. Adjust the camera's position to improve lighting conditions.
• No audio or two-way audio not working:
  Check the volume settings on your mobile device and within the WOOX Home app. Ensure the microphone and speaker on the camera are not obstructed.
• Motion/Sound detection not working:
  Verify that motion/sound detection is enabled in the app settings and that sensitivity levels are appropriately set. Check notification settings on your phone to ensure the WOOX Home app is allowed to send notifications.

8. Specifications

9. Warranty and Support

Your WOOX Indoor Smart Camera 3MP R4208 comes with a standard manufacturer's warranty. For detailed warranty information, please refer to the warranty card included in your package or visit the official WOOX website. For technical support, troubleshooting assistance, or any product-related inquiries, please contact WOOX customer service through their official website or the contact information provided in the WOOX Home app.
