Foscam FI9911W Outdoor WiFi Bullet Camera Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Foscam FI9911W Outdoor WiFi Bullet Camera. Please read this manual thoroughly before using the product to ensure proper setup and functionality. The Foscam FI9911W is designed for outdoor surveillance, offering high-quality video monitoring and robust features for enhanced security.

2. Product Overview

2.1 Key Features

• 3MP Resolution: Delivers clear and detailed video footage.
• 94° Wide View Angle: Provides extensive coverage of the monitored area.
• WiFi Connectivity: Enables flexible placement and wireless data transmission.
• Infrared Night Vision: Offers visibility up to 20 meters in low-light or no-light conditions.
• IP66 Weatherproof Rating: Certified for outdoor use, resistant to dust and powerful water jets.
• H.264+ Video Compression: Optimizes storage space and bandwidth usage while maintaining video quality.
• Motion Detection: Configurable motion detection with instant alerts via SMS or email, including recorded images.
• Remote Control: Access and manage the camera remotely via a dedicated application on PC or smartphone.
• WiFi Relay Function: Can extend the WiFi signal for other devices in your surveillance system.
• NVR Compatibility: Fully compatible with Foscam NVRs, such as the FN8108W, for expanded surveillance systems.

2.2 Camera Components

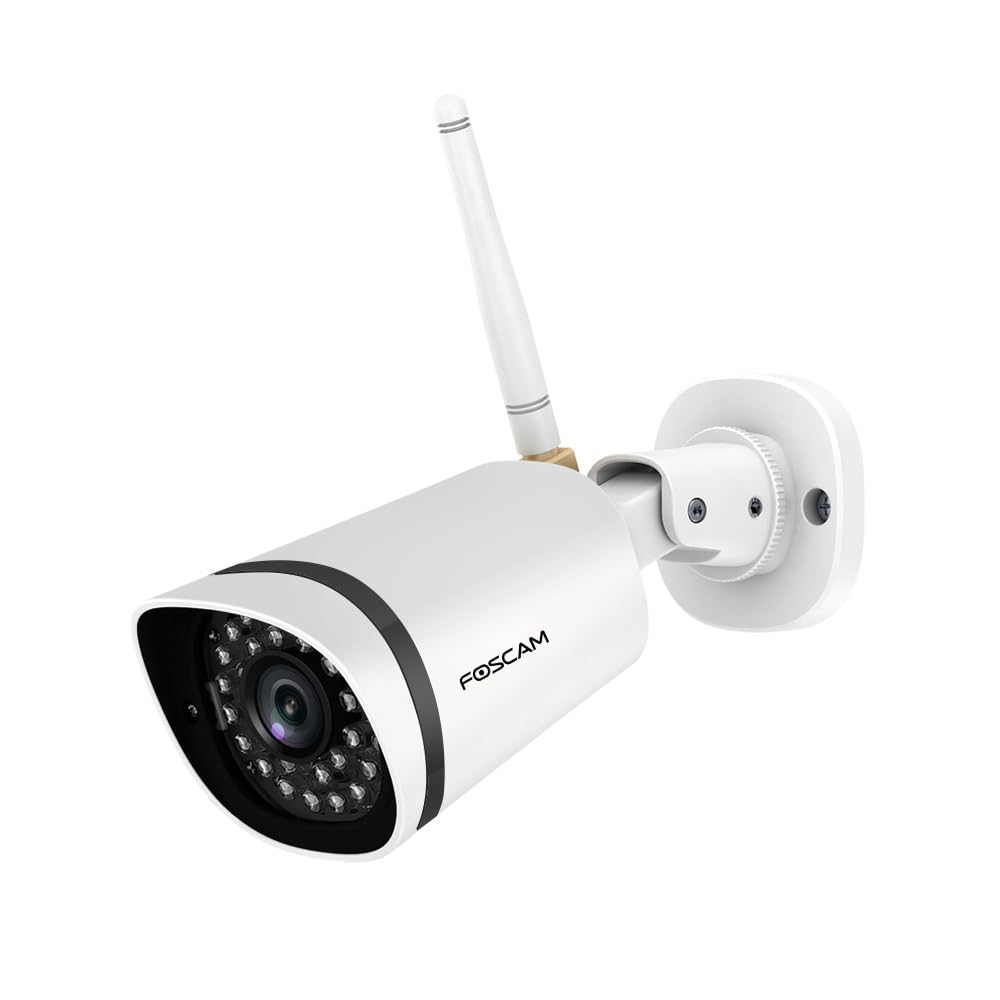

Figure 1: Foscam FI9911W Outdoor WiFi Bullet Camera. This image displays the white bullet-style camera with its lens and infrared LEDs at the front, the Foscam logo on the side, a WiFi antenna extending upwards, and the adjustable mounting bracket at the rear.

The Foscam FI9911W camera consists of a durable, weatherproof housing designed for outdoor installation. Key visible components include the camera lens surrounded by infrared LEDs for night vision, a detachable WiFi antenna for wireless connectivity, and an adjustable mounting bracket for secure positioning. The camera also features internal components for video processing, network communication, and power input.

3. Setup

Follow these steps to set up your Foscam FI9911W camera:

1. Unpack the Camera: Carefully remove all components from the packaging. Verify that all accessories are present.
2. Mount the Antenna: Screw the WiFi antenna securely onto the designated port on the camera body.
3. Power Connection: Connect the power adapter to the camera's power input port and then plug it into a power outlet. The camera will power on and initiate its startup sequence.
4. Network Connection (Initial Setup):
   • Wired Connection (Recommended for initial setup): For the first-time setup, it is recommended to connect the camera to your router using an Ethernet cable.
   • Wireless Connection: After initial setup via wired connection, you can configure the camera to connect to your WiFi network wirelessly through the Foscam app or web interface.
5. Download Foscam App: Download the official Foscam app from your smartphone's app store (iOS App Store or Google Play Store).
6. Add Camera to App: Open the Foscam app, create an account if you don't have one, and follow the in-app instructions to add your FI9911W camera. This typically involves scanning a QR code on the camera or manually entering its ID.
7. Configure WiFi (if applicable): If you initially connected via Ethernet, use the app to configure the camera's WiFi settings to connect to your home network. Once configured, you can disconnect the Ethernet cable.
8. Physical Installation: Choose a suitable outdoor location for mounting. Ensure the area provides a clear view and is within range of your WiFi signal. Use the provided mounting screws and template to securely attach the camera to a wall or ceiling. Adjust the camera's angle using the mounting bracket for optimal coverage.
9. NVR Integration (Optional): If you are integrating the camera with a Foscam NVR (e.g., FN8108W), refer to your NVR's manual for instructions on adding IP cameras to the system. The FI9911W can be added as an additional camera to expand your surveillance coverage.

4. Operating Instructions

4.1 Live View and Remote Access

Access live video feeds and recorded footage from your Foscam FI9911W camera using the Foscam app on your smartphone or through the web interface on a PC. Ensure your device has an active internet connection.

• Smartphone App: Open the Foscam app, select your camera from the device list, and tap to view the live stream. You can also access playback of recorded events.
• PC Web Interface: Enter the camera's IP address or Foscam DDNS address into a web browser on your computer. Log in with your credentials to access the camera's full settings and live view.

4.2 Motion Detection Configuration

The camera's intelligent motion detection feature can alert you to activity in monitored areas.

1. Access Settings: Navigate to the camera settings within the Foscam app or web interface.
2. Motion Detection Area: Define specific areas within the camera's view where motion detection should be active. This helps reduce false alarms from irrelevant areas.
3. Sensitivity Adjustment: Adjust the motion detection sensitivity level to suit your environment. Higher sensitivity detects smaller movements but may lead to more false alarms.
4. Alert Methods: Configure how you wish to receive alerts. Options typically include push notifications to your smartphone, email alerts with snapshots, or uploading recorded video to an FTP server.
5. Recording Schedule: Set a schedule for when motion detection should be active and when recordings should occur.

4.3 Night Vision

The FI9911W automatically switches to infrared night vision mode in low-light conditions, providing clear black and white video up to 20 meters. Ensure the camera's view is not obstructed by reflective surfaces that could interfere with IR illumination.

4.4 WiFi Relay Function

The camera can function as a WiFi relay, extending the wireless network coverage for other Foscam cameras or devices within your surveillance system. This feature can be configured through the camera's network settings in the Foscam app or web interface.

5. Maintenance

Regular maintenance ensures optimal performance and longevity of your Foscam FI9911W camera.

• Cleaning: Periodically clean the camera lens and housing with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the surface. Ensure the IR LEDs are free from dust or cobwebs.
• Cable Inspection: Regularly check all cables (power, Ethernet if used) for any signs of wear, damage, or loose connections.
• Firmware Updates: Check for and install available firmware updates through the Foscam app or web interface. Firmware updates often include performance improvements, bug fixes, and security enhancements.
• Network Connectivity: Ensure a stable WiFi connection. If the signal is weak, consider repositioning the camera or using a WiFi extender.
• Mounting Security: Periodically check that the camera is securely mounted and that the mounting bracket is tight.

6. Troubleshooting

This section addresses common issues you might encounter with your Foscam FI9911W camera.

7. Specifications

8. Warranty and Support

For detailed information regarding warranty coverage, technical support, and customer service for your Foscam FI9911W camera, please refer to the official Foscam website or contact their customer support directly. Keep your purchase receipt as proof of purchase for warranty claims.

Foscam Official Website: www.foscam.com
