PEPE Mobility P10030 Kids Self-Propelled Wheelchair Instruction Manual

1. Introduction

Thank you for choosing the PEPE Mobility P10030 Kids Self-Propelled Wheelchair. This manual provides essential information for the safe and effective use, assembly, maintenance, and troubleshooting of your new wheelchair. Please read this manual thoroughly before initial use and keep it for future reference.

2. Safety Information

• Always ensure the user is properly secured with the safety belt before operating the wheelchair.
• Engage the locking brake system when the wheelchair is stationary to prevent unintended movement.
• Do not exceed the maximum user weight of 250 lbs (113 kg).
• Regularly inspect all components for wear, damage, or loose parts. Do not use the wheelchair if any part is damaged.
• Use caution when navigating uneven terrain or inclines. Utilize the step lift lever on the rear wheels to safely overcome obstacles.
• Ensure all adjustable parts, such as footrests and armrests, are securely locked in place before use.

3. Product Overview & Features

The PEPE Mobility P10030 is a self-propelled pediatric wheelchair designed for comfort, safety, and ease of transport. Its sturdy steel structure and thoughtful design make it suitable for independent users or assisted mobility.

Key Features:

• Self-Propelled Design: Large rear wheels allow for independent movement.
• Sturdy Construction: Durable steel frame with solid polyurethane front wheels.
• Foldable & Portable: Quick folding system, flip-up armrests, and removable footrests for compact storage and easy transport.
• Comfort: Padded armrests and an 18.5-inch seat height.
• Safety: Locking brake system and integrated safety belt.
• Convenience: Small rear pocket for storing personal belongings and a step lift lever for overcoming obstacles.

Image: A child seated in the PEPE Mobility P10030 Kids Self-Propelled Wheelchair, demonstrating its comfortable design and self-propulsion capability.

4. Setup and Assembly

The PEPE Mobility P10030 wheelchair is designed for straightforward assembly. Follow these steps to prepare your wheelchair for use:

4.1 Unfolding the Wheelchair

1. Place the folded wheelchair on a flat, stable surface.
2. Gently pull the armrests outwards to begin unfolding the frame.
3. Push down firmly on the seat rails until the wheelchair is fully open and the seat locks into place.

4.2 Attaching and Adjusting Footrests

1. Align the footrest hangers with the attachment points on the wheelchair frame.
2. Push the footrests inwards until they click securely into place.
3. To adjust the height, press the release button on the footrest tube and slide it up or down to the desired position. Ensure it locks into one of the pre-set holes.
4. The footrests are also removable for easier transfers or compact storage.

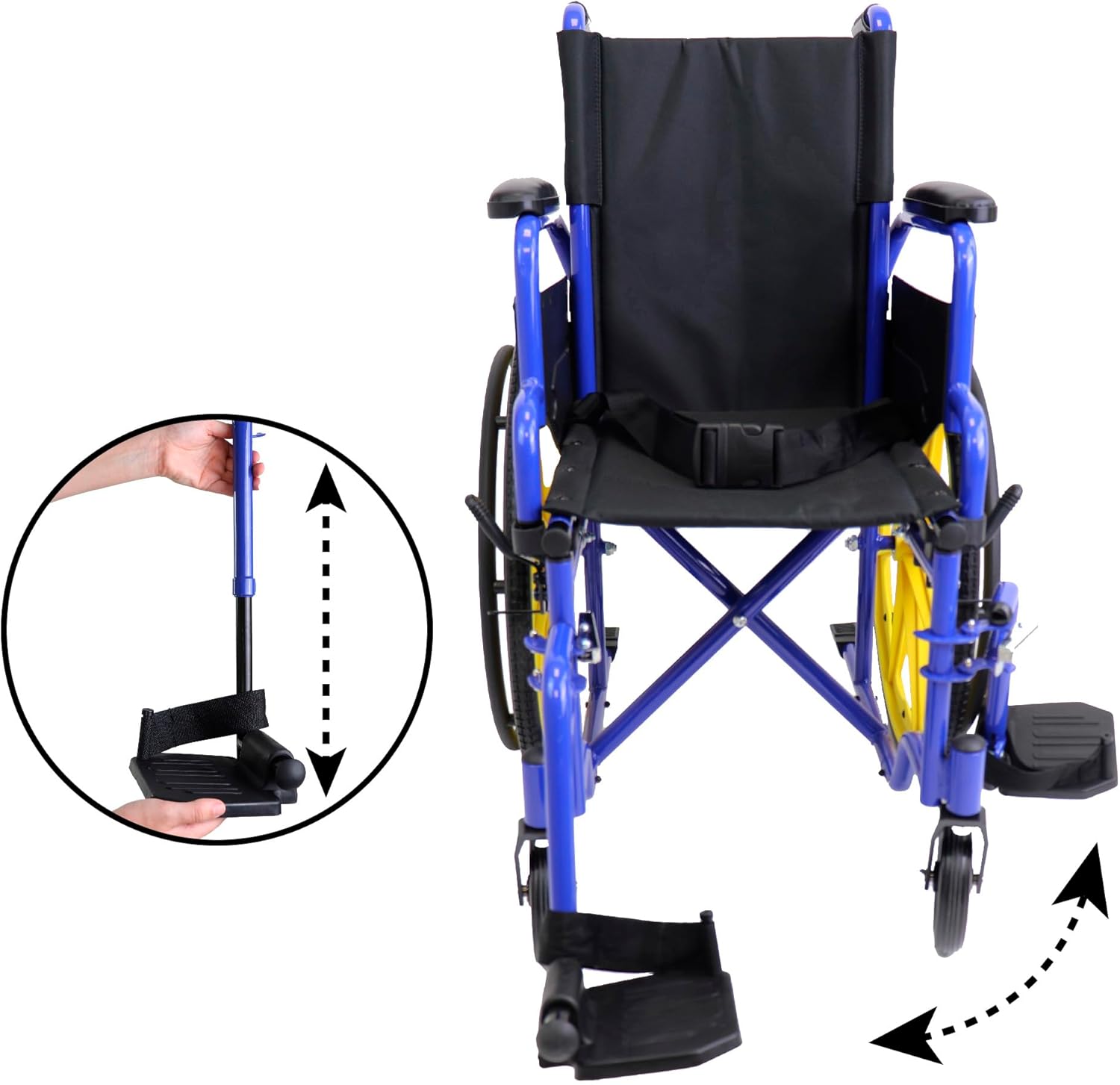

Image: Close-up of a hand adjusting the height of the removable footrest, highlighting the adjustable feature for user comfort.

4.3 Assembly Video

5. Operating Instructions

5.1 Self-Propulsion

For independent users, grasp the handrims on the large rear wheels and push forward to move. Use both hands to steer and control direction.

5.2 Assisted Pushing

For assisted mobility, the caregiver should use the push handles located at the top of the backrest. Ensure the user is safely seated and secured.

5.3 Using the Brakes

The wheelchair features a locking brake system. To engage the brakes, fully push the front lever located near the rear wheels downwards until the wheel is immobilized. To release, pull the lever upwards.

5.4 Using the Safety Belt

Always secure the user with the integrated safety belt. Fasten the buckle across the user's lap and adjust the straps for a snug, comfortable fit.

Image: A close-up view of hands fastening the safety belt, emphasizing the importance of securing the user.

5.5 Folding for Transport

To fold the wheelchair for transport or storage:

1. Engage the brakes.
2. Remove the footrests (if desired).
3. Lift the center of the seat fabric upwards. The frame will begin to collapse inwards.
4. Continue lifting until the wheelchair is fully folded into its compact dimensions.

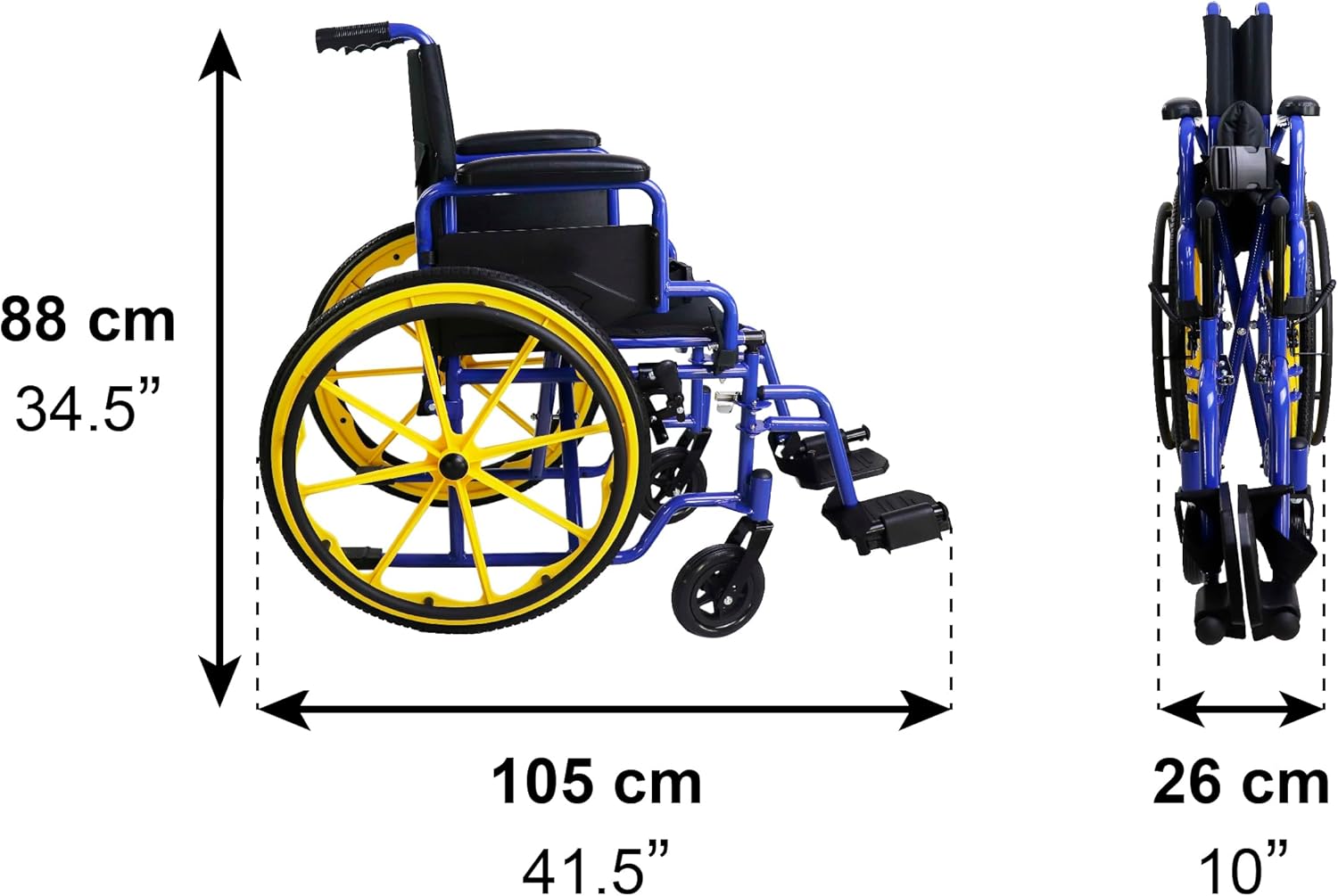

Image: The PEPE Mobility P10030 wheelchair displayed both unfolded and folded, highlighting its compact dimensions for storage and travel.

5.6 Usage Video

6. Maintenance

6.1 Cleaning

The wheelchair's fabric is easy to clean. Wipe down the frame and fabric surfaces with a damp cloth and mild soap. Avoid abrasive cleaners.

6.2 Wheel Maintenance

Periodically check the front wheels. If they become loose with use, use the integrated spanner provided with the chair to retighten them. Ensure rear wheels are free of debris for optimal grip.

6.3 General Inspection

Regularly inspect all nuts, bolts, and moving parts to ensure they are secure. Check the brake system for proper function. If any part is worn or damaged, contact customer support for replacement parts.

7. Troubleshooting

• Brakes not engaging properly: Check for any obstructions around the brake mechanism. Ensure the brake levers are fully pushed down. If the issue persists, the brake cables may need adjustment or replacement.
• Wheels feel loose or wobbly: Use the integrated spanner to tighten the bolts on the front wheels. For rear wheels, ensure the quick-release axles are fully engaged.
• Difficulty folding/unfolding: Ensure no items are obstructing the folding mechanism. Lubricate moving parts if necessary.

8. Specifications

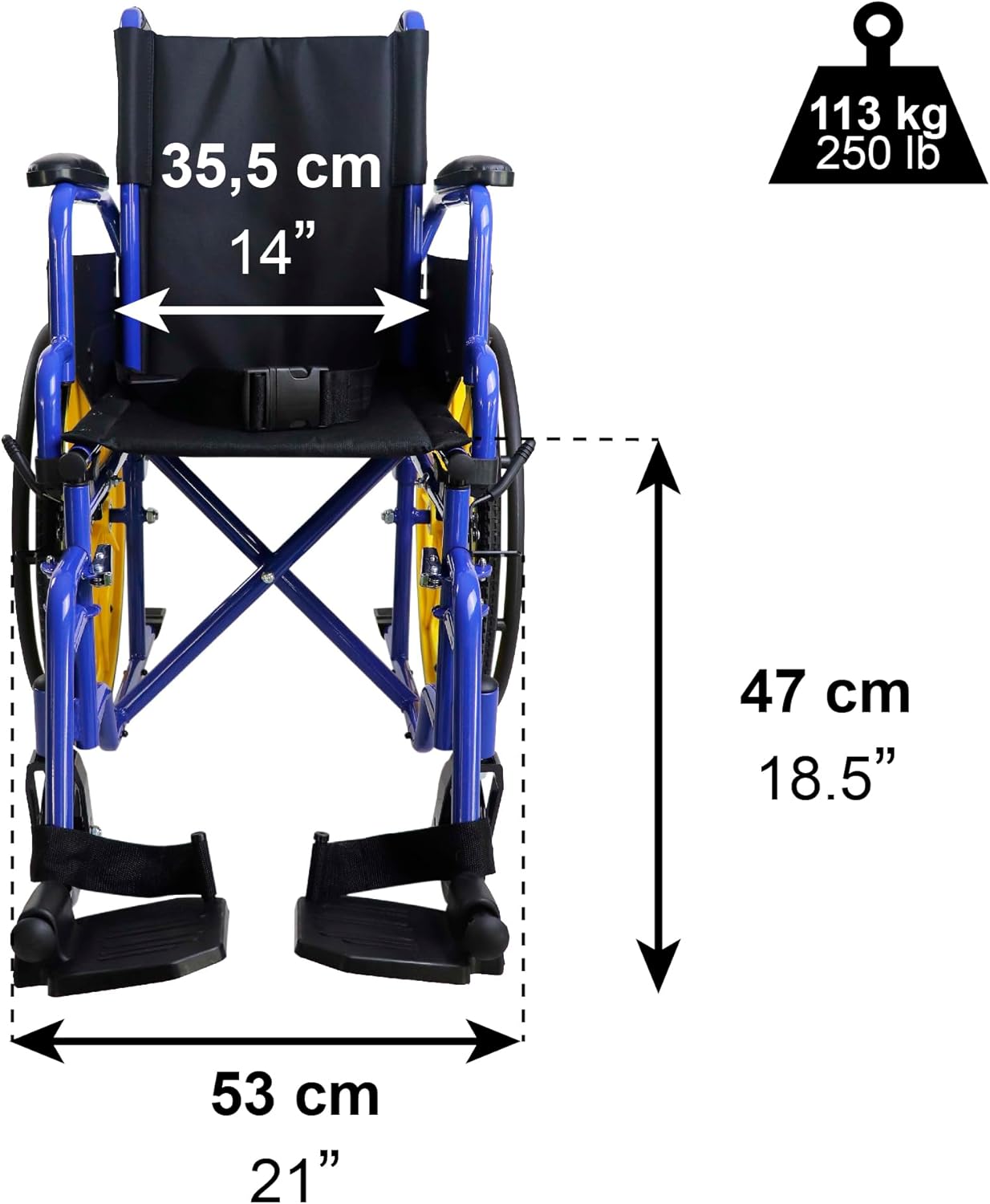

Image: A diagram illustrating the key dimensions of the wheelchair, including seat width (14 inches) and seat height (18.5 inches).

9. Warranty and Support

For warranty information, replacement parts, or any support inquiries, please contact PEPE Mobility customer service directly. Refer to your purchase documentation for specific contact details.
