1. Introduction
Welcome to the user manual for your MAIDeSITe EL2 Pro Art Adjustable Height Desk Frame. This manual provides essential information for the safe assembly, operation, and maintenance of your desk frame. Please read it thoroughly before use and retain it for future reference.
Key Features
- Oval Leg Design: Unique elliptical leg construction for enhanced aesthetics and stability.
- Powerful Dual-Motor System: Ensures stable and durable operation with a lifting speed of 35 mm/s.
- High Load Capacity: Supports up to 180 kg.
- Quiet Operation: Noise level below 45 decibels for a peaceful work environment.
- Adjustable Height: Range from 72 cm to 120 cm to suit various user preferences.
- Extensible Width: Accommodates tabletops from 100 cm to 220 cm in length and 60 cm to 100 cm in width.
- Smart Control Panel: Features 4 memory presets, a sit-stand reminder, child safety lock, and a convenient USB charging port.
- Anti-Collision System: Built-in sensor detects obstacles and stops movement to prevent damage.
- Customized Accessories: Includes 4 lockable universal wheels and metal cable management supports.
The MAIDeSITe EL2 Pro Art Adjustable Height Desk Frame, showcasing its modern design and functionality in a bright office environment.
2. Important Safety Instructions
To ensure safe operation and prevent injury or damage, please observe the following safety guidelines:
- Read all instructions carefully before assembly and use.
- Keep children and pets away from the desk during operation.
- Ensure there are no obstacles in the desk's path during height adjustment.
- Do not overload the desk. Adhere to the maximum load capacity of 180 kg.
- Do not sit or stand on the desk frame.
- Keep all electrical components dry and away from liquids.
- Regularly check all screws and connections to ensure they are tight.
- Utilize the built-in anti-collision system and child safety lock features for added security.
- Only use the provided power adapter and components.
3. Package Contents
Please check the package contents against the list below. If any items are missing or damaged, contact customer support.
- Desk Leg Columns (x2)
- Crossbar/Frame Support
- Feet (x2)
- Control Box
- Smart Control Panel
- Power Adapter and Cable
- Cable Management Compartment
- Cable Ties
- Lockable Universal Wheels (Casters) (x4)
- Assembly Hardware (screws, bolts, etc.)
- User Manual
4. Setup & Assembly
Assembly of the MAIDeSITe EL2 Pro Art desk frame is designed to be straightforward. A screwdriver is the primary tool required (not included). It is recommended that one person performs the assembly, which typically takes about 1 hour.
Assembly Steps:
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface.
- Attach Feet to Leg Columns: Securely fasten the feet to the bottom of each leg column using the provided hardware.
- Assemble Crossbar: Connect the crossbar sections to form the main frame.
- Mount Leg Columns to Crossbar: Attach the leg columns to the assembled crossbar.
- Install Control Box and Motors: Mount the control box and connect the motor cables to the respective leg columns and the control box.
- Attach Control Panel: Secure the smart control panel to the underside of your chosen desktop (desktop not included).
- Mount Desktop: Carefully place your desktop onto the assembled frame and secure it using appropriate screws (ensure screw length is suitable for your desktop to avoid piercing through).
- Install Cable Management: Attach the cable management compartment and use cable ties to organize wires.
- Install Casters (Optional): If desired, replace the standard leveling feet with the provided lockable universal wheels.
- Connect Power: Plug the power adapter into the control box and then into a power outlet.
This diagram illustrates the main components of the desk frame, highlighting the ease of assembly. It shows the two leg columns, the crossbar, and the control unit, indicating that assembly can be completed efficiently.
5. Operation
The MAIDeSITe EL2 Pro Art desk frame features an intuitive smart control panel for easy height adjustment and personalized settings.
Control Panel Functions

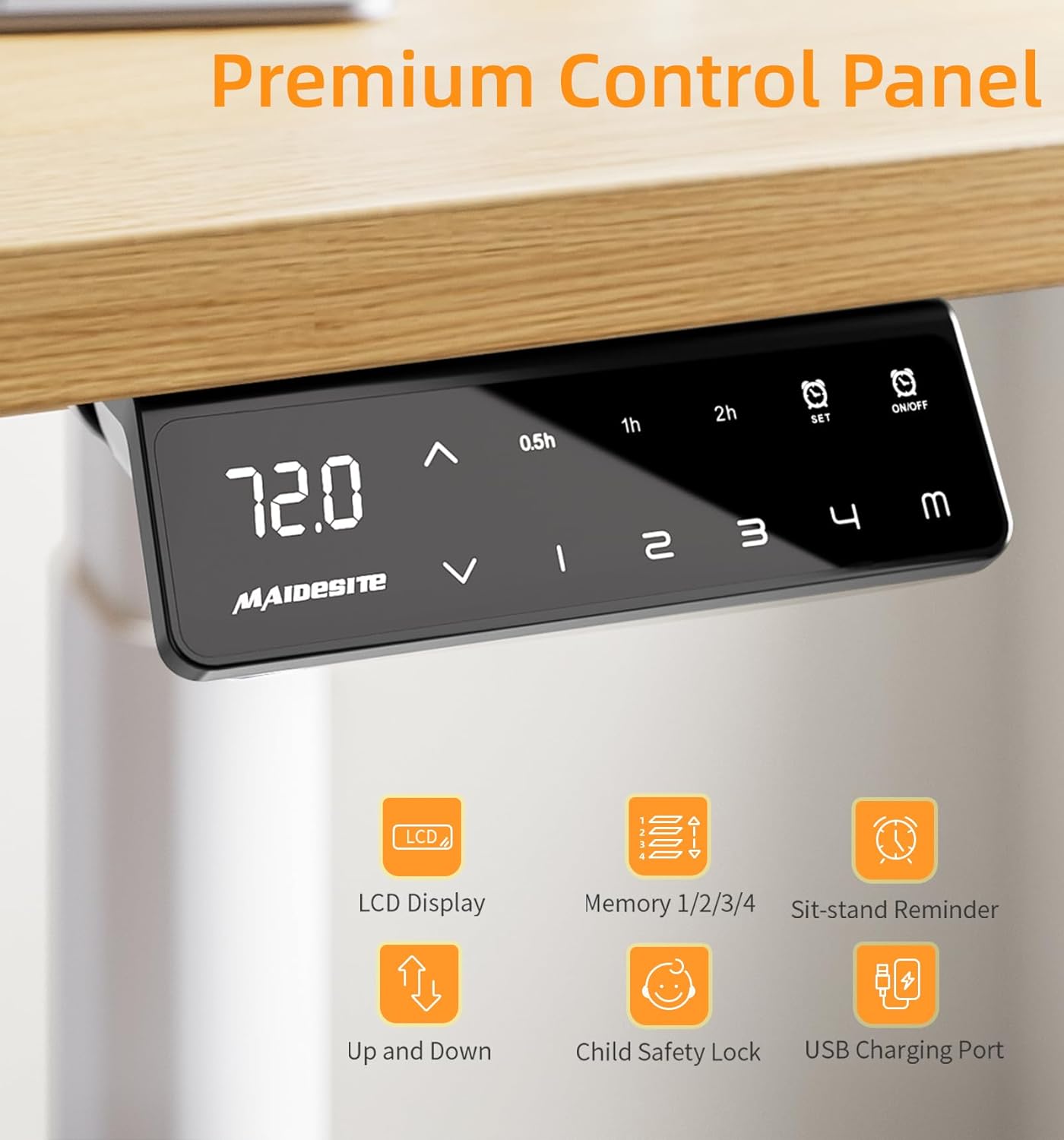

The smart control panel features an LCD display showing the current height. It includes up/down arrows for adjustment, four memory preset buttons (1, 2, 3, 4), a 'SET' button, a timer for sit-stand reminders (0.5h, 1h, 2h), and an On/Off button. A USB charging port is also integrated.
- Height Adjustment: Use the Up (▲) and Down (▼) arrows to smoothly raise or lower the desk to your desired height. The current height is displayed on the LCD screen.
- Memory Presets (1, 2, 3, 4):
To save a height: Adjust the desk to your preferred height, then press the SET button followed by one of the number buttons (1, 2, 3, or 4). The height is now saved.
To recall a height: Simply press the corresponding number button (1, 2, 3, or 4), and the desk will automatically move to the saved position. - Sit-Stand Reminder (0.5h, 1h, 2h): Press the timer button to activate a reminder to change your working position after 0.5, 1, or 2 hours. This promotes healthier work habits.
- Child Safety Lock: Activate this feature to prevent accidental adjustments, ensuring safety in environments with children. Consult the full manual for specific activation/deactivation steps.
- USB Charging Port: A convenient USB port is integrated into the control panel for charging your electronic devices.
Anti-Collision System
The desk frame is equipped with a built-in anti-collision system. This sensor detects obstacles in the desk's path during height adjustment and automatically stops or reverses movement to prevent damage to the desk or objects, and to ensure user safety.
This image demonstrates the anti-collision feature. As the desk lowers, it detects an object (a plant pot) and automatically reverses direction to avoid impact, safeguarding items and users.
6. Care and Maintenance
Proper care and maintenance will extend the life of your MAIDeSITe EL2 Pro Art desk frame.
- Cleaning: Wipe down the desk frame surfaces with a soft, damp cloth. Avoid using abrasive cleaners, harsh chemicals, or solvents, as these can damage the finish.
- Inspections: Periodically check all screws, bolts, and connections to ensure they are secure. Tighten any loose fasteners.
- Electrical Components: Keep the control box, motors, and power adapter dry. Do not expose them to water or excessive moisture.
- Cable Management: Regularly check and organize cables to prevent tangling or damage, especially during height adjustments.
7. Troubleshooting Guide
If you encounter any issues with your desk frame, refer to the following common problems and their solutions. For persistent issues, please contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Desk does not move or respond to controls. | No power, loose connection, child safety lock active. | Check if the power cable is securely plugged into the wall outlet and the control box. Ensure the child safety lock is deactivated. Try unplugging and replugging the power for a system reset. |
| Desk moves unevenly or makes unusual noises. | Overload, loose components, obstruction. | Reduce the weight on the desk to below 180 kg. Check all assembly screws for tightness. Ensure there are no obstructions in the lifting mechanism. |
| Error code displayed on control panel. | System malfunction, sensor issue. | Note the error code and refer to the comprehensive manual (if available) or contact customer support for specific guidance. Often, a power cycle (unplugging for 30 seconds and replugging) can resolve temporary errors. |
| Anti-collision system triggers too frequently. | Sensitivity setting, minor obstructions. | Ensure the area around the desk is clear. Some control panels allow adjustment of anti-collision sensitivity; consult the full manual for instructions. |
8. Technical Specifications
Below are the detailed technical specifications for the MAIDeSITe EL2 Pro Art Adjustable Height Desk Frame:
| Feature | Value |
|---|---|
| Model Number | EL2 Pro Art |
| Brand | MAIDeSITe |
| Minimum Height | 72 cm |
| Maximum Height | 120 cm |
| Extendable Width | 100 cm - 180 cm |
| Compatible Tabletop Length | 100 cm - 220 cm |
| Compatible Tabletop Width | 60 cm - 100 cm |
| Lifting Mechanism | Electric, Dual Motor |
| Lifting Speed | 35 mm/s |
| Noise Level | <45 dB |
| Maximum Load Capacity | 180 kg |
| Product Dimensions (L x W x H) | 60 x 180 x 120 cm (at max extension) |
| Product Weight | 26 kg |
| Special Features | Height adjustable, dual motor, oval leg design, 4 memory controls, anti-collision system, USB port, cable management, casters |
| Recommended Assembly Persons | 1 |
| Recommended Tools for Assembly | Screwdriver (not included) |
This image visually represents the robust capabilities of the desk frame, emphasizing its 180kg weight capacity, long service life, and incredible stability.

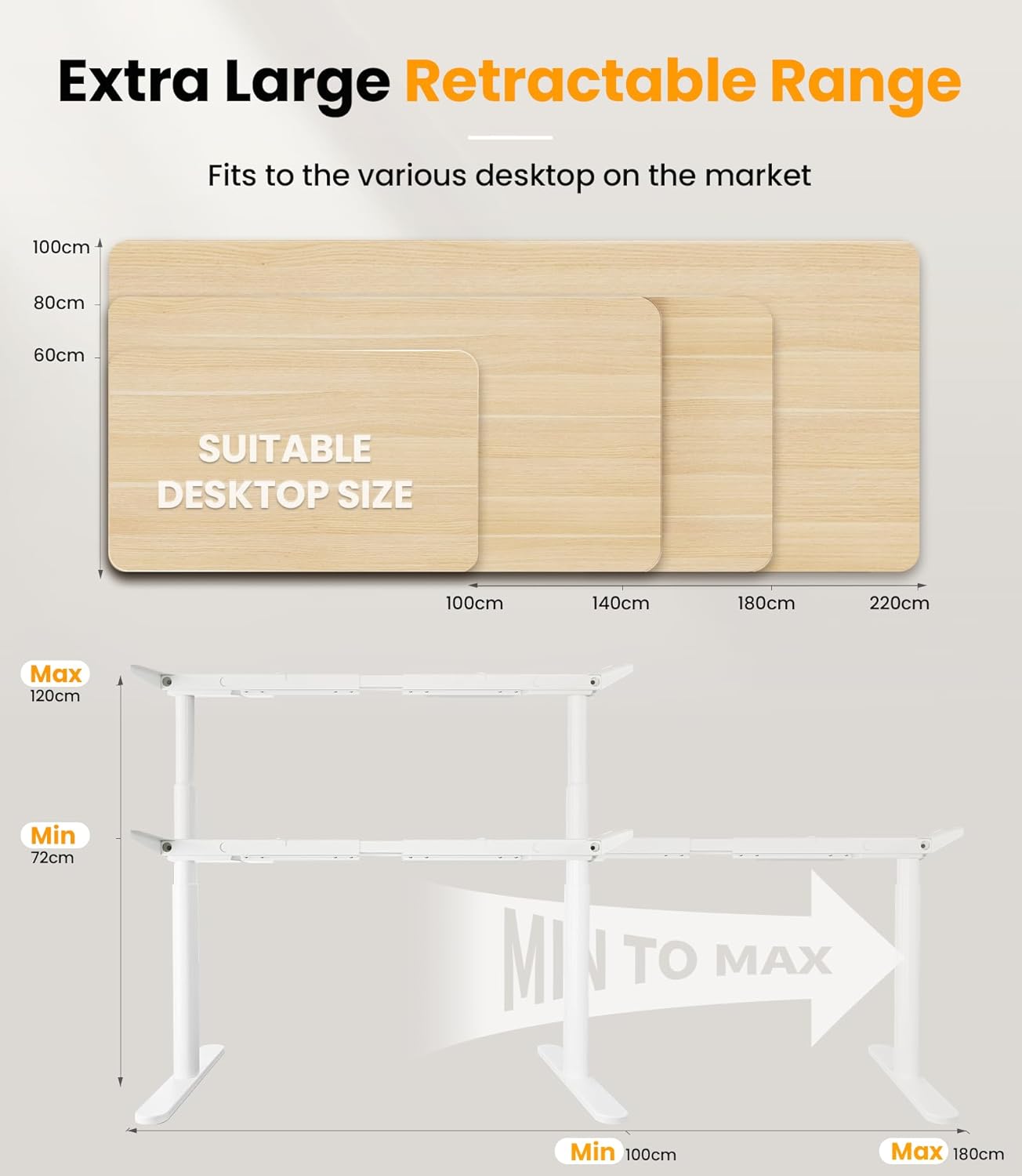

This diagram shows the desk frame's height adjustability from a minimum of 72cm to a maximum of 120cm. It also illustrates the extensible width from 100cm to 180cm, accommodating various desktop sizes.

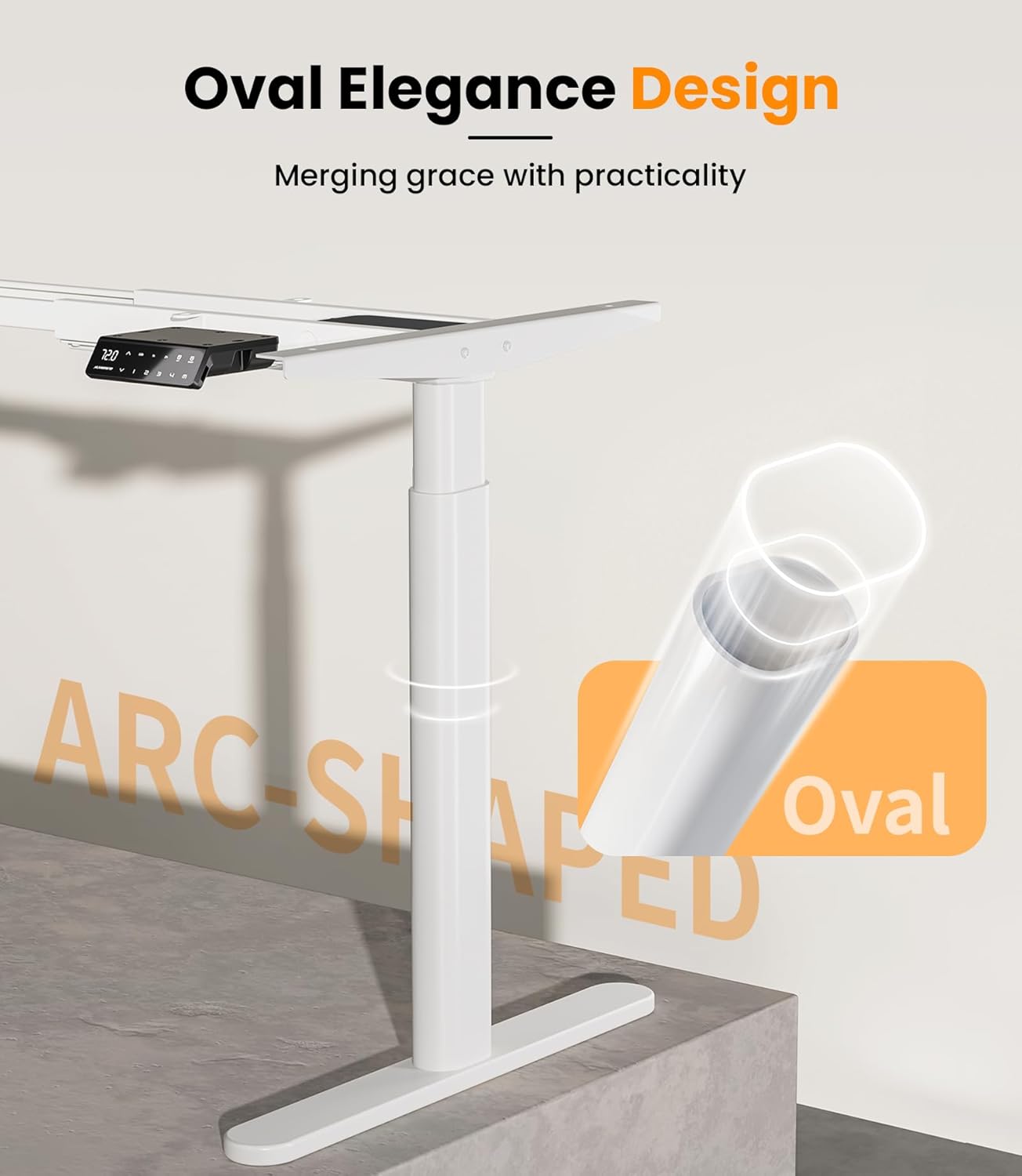

This image highlights the unique oval elegance design of the desk frame's legs, combining aesthetic appeal with practical stability.
This graphic shows the dual-motor mechanism, emphasizing its fast lifting speed of 35mm/s and quiet operation at less than 45dB.
9. Warranty & Customer Support
The MAIDeSITe EL2 Pro Art Adjustable Height Desk Frame comes with a 5-year limited warranty, ensuring quality and reliability.
For technical assistance, warranty claims, or any questions regarding your product, please contact MAIDeSITe customer support. Please have your model number (EL2 Pro Art) and purchase information ready when contacting support.
For the most up-to-date support information and contact details, please visit the official MAIDeSITe website.
