Ariete 4636 Air Fryer with Steam and Grill Function User Manual

1. Introduction

Thank you for choosing the Ariete 4636 Air Fryer with Steam and Grill function. This versatile appliance combines air frying, steaming, and grilling capabilities to offer a wide range of cooking options. Please read this manual carefully before first use to ensure safe and optimal operation. Keep this manual for future reference.

The Ariete 4636 features a 7-liter capacity, 1700W power, and an intuitive touchscreen interface. It includes 10 preset cooking programs and a transparent basket with an interior light for easy monitoring of your food.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact customer service for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the water tank is correctly filled and positioned when using steam functions.
• The appliance is equipped with an automatic shut-off feature for safety.

3. Product Components

Familiarize yourself with the parts of your Ariete 4636 Air Fryer:

• Main Unit with Control Panel
• Removable Cooking Basket (7 Liters capacity)
• Grill Plate
• Water Tank (1.55 Liters capacity)
• Power Cord

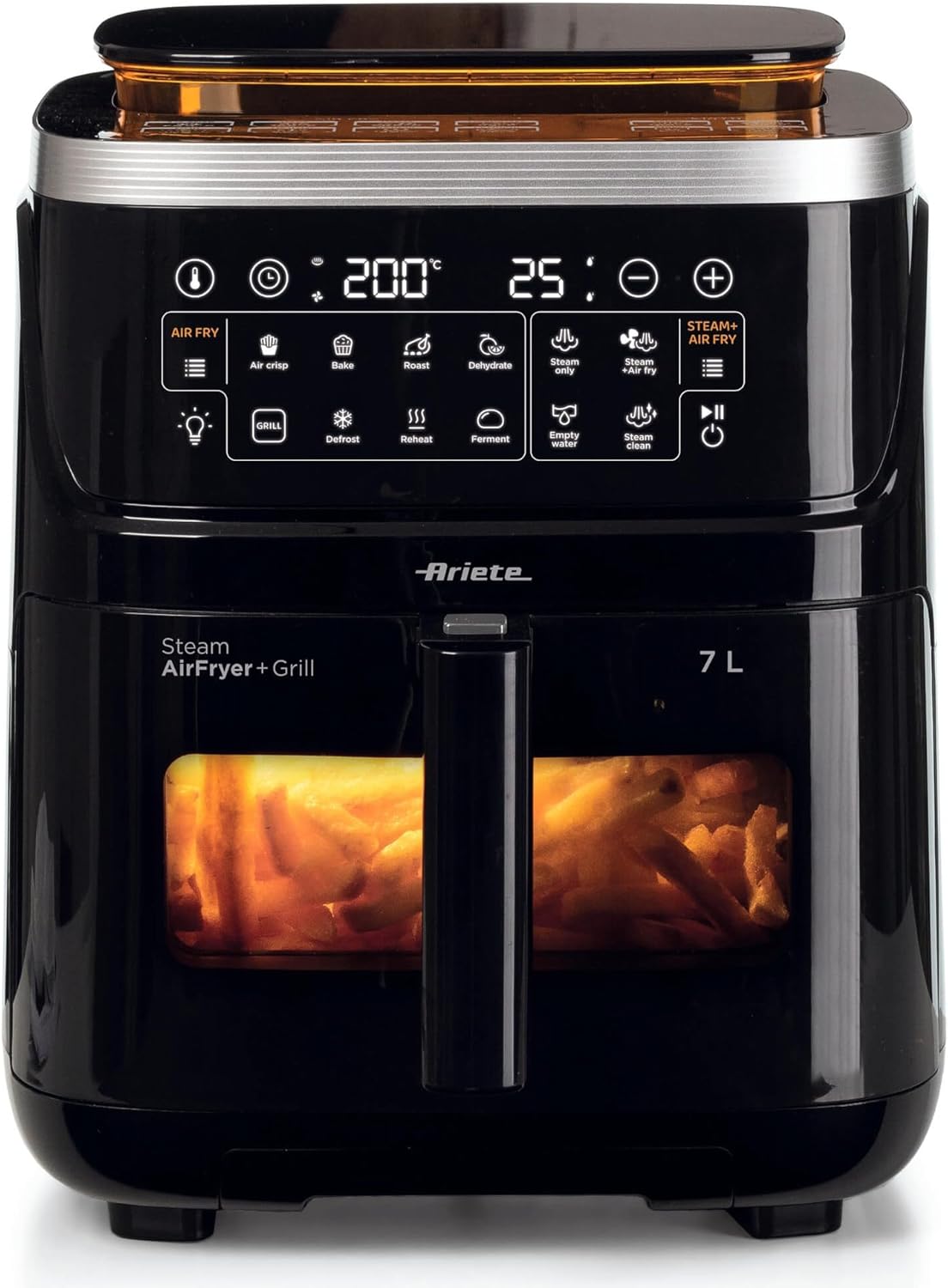

Image: Front view of the Ariete 4636 Air Fryer, highlighting the digital control panel and the transparent cooking basket.

Image: Detailed view of the touchscreen control panel, displaying various cooking functions like Air Crisp, Bake, Roast, Dehydrate, Steam Only, Steam+Air Fry, Grill, Defrost, Reheat, and Ferment.

4. Setup

1. Unpacking: Carefully remove all packaging materials and stickers. Ensure all components are present.
2. Initial Cleaning: Before first use, clean the cooking basket, grill plate, and water tank with warm soapy water. Wipe the main unit with a damp cloth. Dry all parts thoroughly.
3. Placement: Place the appliance on a stable, heat-resistant, and level surface. Ensure there is adequate space around the unit for proper ventilation. Do not place it directly against a wall or under cabinets.
4. Power Connection: Plug the power cord into a grounded electrical outlet.
5. Filling the Water Tank (for Steam functions): If you plan to use steam functions, remove the water tank from the top of the unit and fill it with distilled or filtered water up to the maximum fill line. Reinsert the water tank securely.

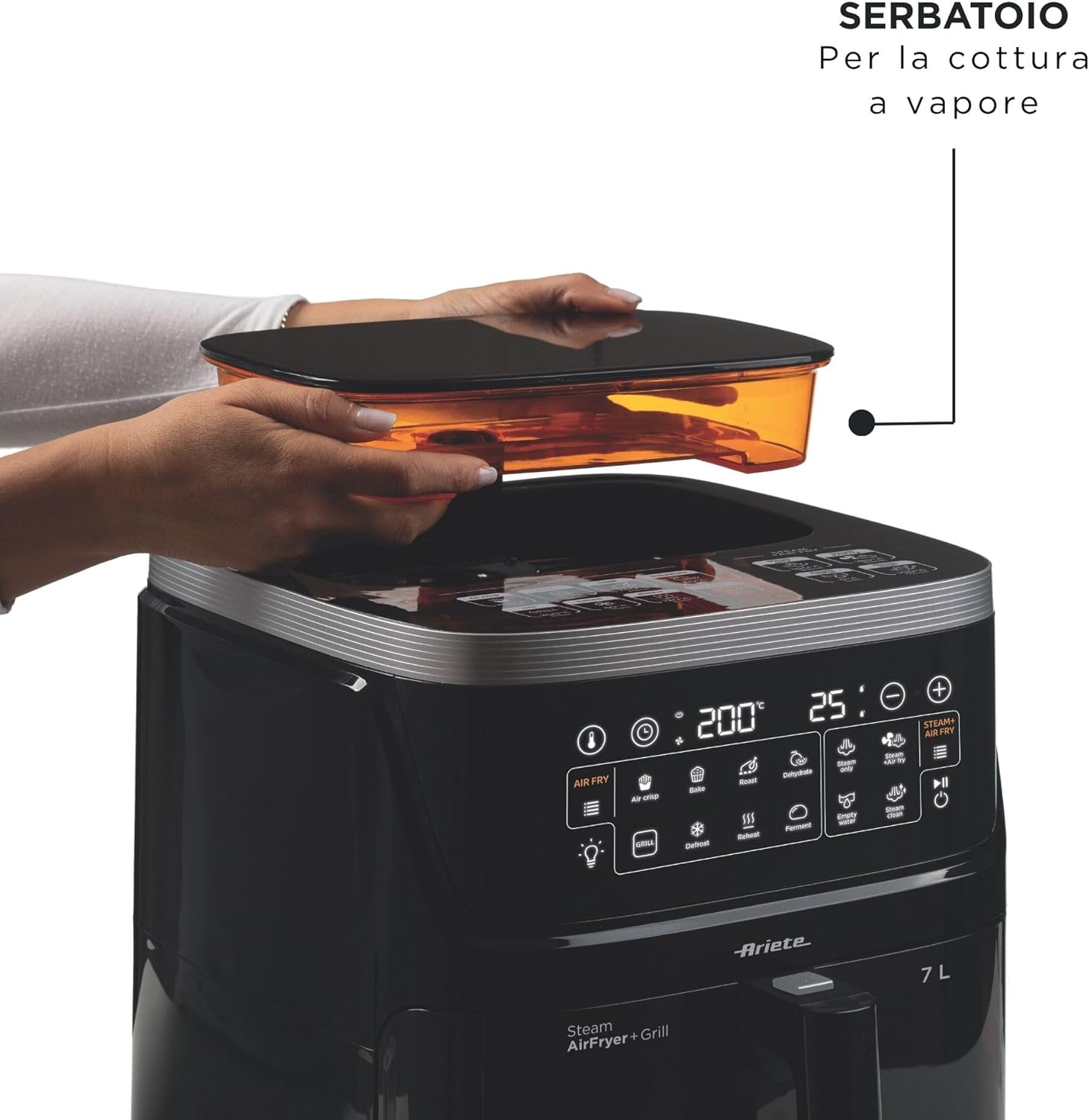

Image: Demonstrates how to correctly place the water reservoir on top of the appliance for steam cooking functions.

5. Operating Instructions

The Ariete 4636 offers 10 preset cooking functions accessible via the intuitive touchscreen. Always ensure the cooking basket is properly inserted before starting any program.

General Operation:

1. Power On: Press the power button on the control panel.
2. Select Function: Tap the icon for your desired cooking function (e.g., Air Crisp, Steam Only, Grill).
3. Adjust Settings: Use the temperature and time controls (usually '+' and '-' buttons) to adjust settings as needed. The temperature can be set up to 200°C.
4. Start Cooking: Press the start/pause button to begin the cooking process.
5. Monitor Food: Use the transparent basket and interior light to check cooking progress without opening the basket.
6. Automatic Shut-off: The appliance will automatically turn off when the timer reaches zero.

Specific Cooking Functions:

• Air Fry (Air Crisp): Uses 360° hot air circulation for crispy, golden results without excessive oil. Ideal for fries, chicken nuggets, and other fried foods.
• Steam Only: Cooks food at 100°C using pure steam from the water tank. This method helps preserve vitamins, minerals, texture, and natural flavors. Suitable for vegetables, fish, and dumplings.
• Steam + Air Fry (Combi): Combines air frying with intermittent steam bursts. This results in food that is crispy on the outside, yet moist and juicy on the inside.
• Grill: For uniform grilling and roasting of meats, fish, and vegetables.
• Bake/Roast: Functions similar to a traditional oven for baking cakes, roasting meats, etc.
• Dehydrate: Low-temperature cooking for drying fruits, vegetables, or making jerky.
• Defrost: Gently thaws frozen foods.
• Reheat: Warms up previously cooked food.
• Ferment: Provides a controlled warm environment for dough proofing or making yogurt.

Image: The Ariete 4636 Air Fryer showcasing its versatility by presenting a variety of dishes prepared using its different functions.

6. Care and Maintenance

Proper cleaning and maintenance will extend the life of your appliance.

Cleaning:

1. Unplug: Always unplug the appliance and allow it to cool completely before cleaning.
2. Removable Parts: The cooking basket, grill plate, and water tank can be washed with warm soapy water. For stubborn food residue, soak them before cleaning. Rinse thoroughly and dry completely. These parts are generally dishwasher safe, but hand washing is recommended for longevity.
3. Main Unit: Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water or any other liquid.
4. Interior: For the interior of the cooking chamber, wipe with a damp cloth and mild detergent if necessary. Ensure no water enters the electrical components.

Self-Cleaning and Sterilizing Function:

The Ariete 4636 includes a self-cleaning and sterilizing function for thorough hygiene. Refer to the control panel for the specific icon (e.g., "Steam Clean" or similar) and follow the on-screen instructions. Ensure the water tank is filled before initiating this cycle.

Storage:

Store the appliance in a cool, dry place when not in use. Ensure all parts are clean and dry before storage.

7. Troubleshooting

If you encounter any issues with your Ariete 4636, please refer to the following common problems and solutions:

8. Specifications

Image: Dimensional diagram of the Ariete 4636 Air Fryer, indicating its physical size.

9. Warranty and Support

Ariete products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your purchase or visit the official Ariete website. For technical support, spare parts, or service inquiries, please contact Ariete customer service.

Please note that information regarding spare parts availability was not provided at the time of this manual's creation.
