MAIDeSITe EL2 Pro Art Adjustable Height Desk Frame

Important Safety Information

Please read this manual carefully before assembly and operation. Keep these instructions for future reference.

Safety Warning: Always use the anti-collision system to prevent damage or injury. Engage the child lock feature to prevent accidental height adjustments.

Product Overview

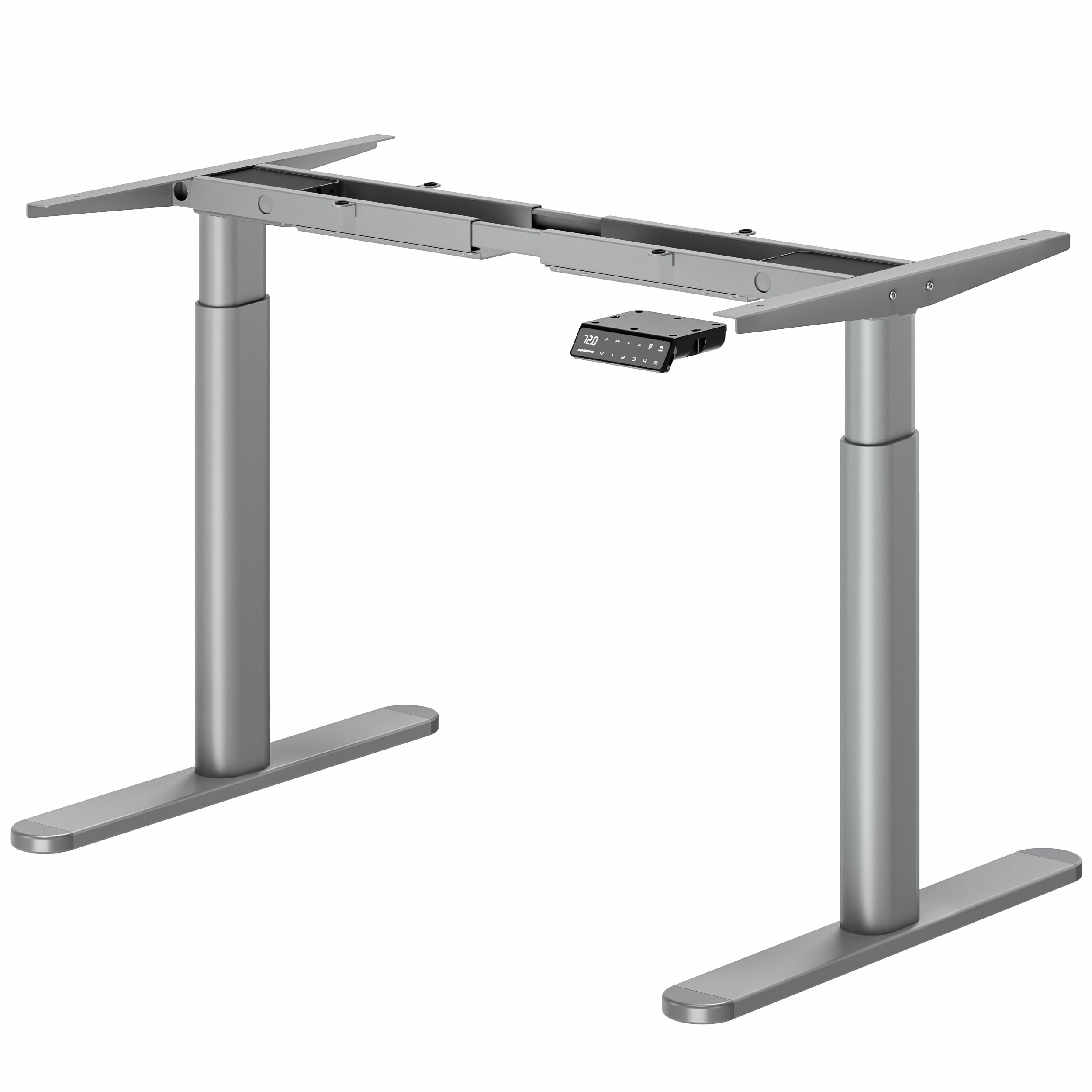

The MAIDeSITe EL2 Pro Art is an electric adjustable height desk frame featuring a unique oval leg design and dual motors for smooth and stable operation. It is designed to support various desktop sizes and promote a healthier work environment.

Image: The MAIDeSITe EL2 Pro Art adjustable height desk frame with a wooden desktop in a modern office setting.

Setup and Assembly

Assembly instructions are provided in multiple languages for clarity. Two people are recommended for assembly to ensure safety and ease of installation. A screwdriver is required for assembly; however, it is not included with the product.

Assembly Steps:

1. Unpack all components and verify against the parts list in the included manual.
2. Attach the lifting columns to the foot supports.
3. Connect the crossbar sections and secure them to the lifting columns.
4. Mount the control box and control panel.
5. Connect all motor and control cables to the control box.
6. Carefully place your desktop onto the assembled frame and secure it using the provided screws.

Image: Exploded view diagram illustrating the main components of the desk frame and the ease of assembly, indicating tools, time, and support availability.

Operating Instructions

The EL2 Pro Art desk frame features an intuitive control panel for adjusting height and accessing smart functions.

Control Panel Functions:

• LCD Display: Shows current desk height.
• Up/Down Buttons: Adjust the desk height manually.
• Memory Presets (1, 2, 3, 4): Save and recall up to four preferred height settings. To save a height, adjust the desk to the desired level, then press 'SET' followed by the desired memory button (1-4).
• Sit-Stand Reminder: Set reminders for 0.5, 1, or 2 hours to prompt changes in working posture.
• Child Safety Lock: Activate to prevent unintended height adjustments.
• Anti-collision System: Built-in sensors detect obstacles during movement and stop the desk to prevent collisions.
• USB Charging Port: Conveniently charge your devices directly from the control panel.

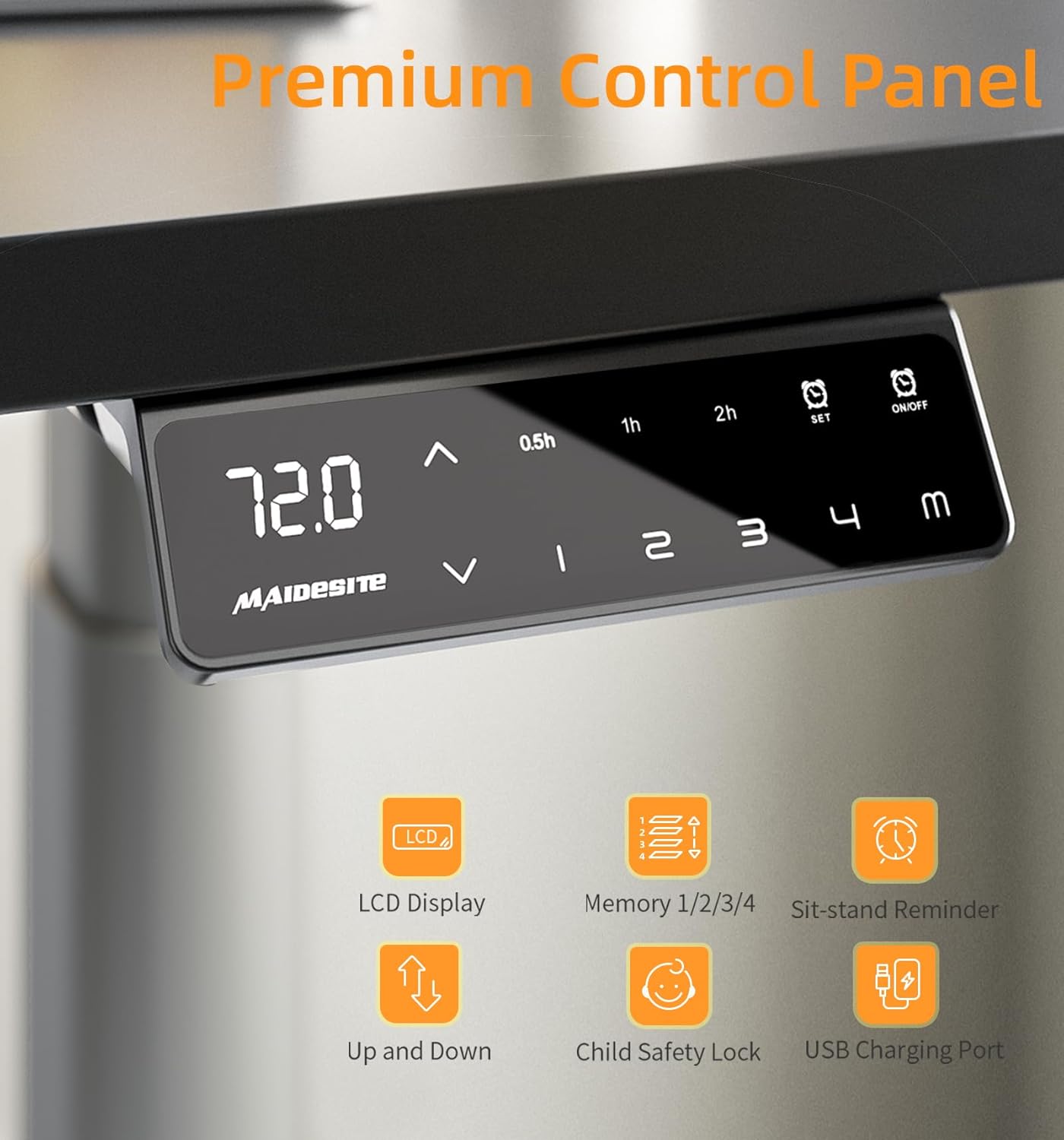

Image: Detailed view of the desk's control panel, highlighting its LCD display, memory functions, sit-stand reminder, child safety lock, and USB charging port.

Image: Illustration of the anti-collision system in action, showing the desk stopping its downward movement upon detecting an obstacle.

Maintenance

To ensure the longevity and optimal performance of your MAIDeSITe EL2 Pro Art desk frame, follow these simple maintenance guidelines:

• Regularly wipe down the frame with a soft, damp cloth to remove dust and dirt. Avoid abrasive cleaners.
• Check all screws and connections periodically to ensure they remain tight. Retighten if necessary.
• Keep the area around the desk legs clear of obstructions to allow for smooth height adjustments and proper functioning of the anti-collision system.
• Do not overload the desk beyond its maximum weight capacity.

Troubleshooting

If you encounter any issues with your desk frame, please refer to the following common solutions:

• Desk not moving: Check all cable connections, especially between the control panel, motors, and control box. Ensure the power cord is securely plugged into a working outlet.
• Uneven movement: Perform a reset procedure (refer to the full manual for specific steps, usually involves holding down a button until the desk reaches its lowest point and slightly rises).
• Error codes on display: Consult the detailed troubleshooting section in the complete manual for specific error code interpretations and solutions.
• Anti-collision system too sensitive/not working: Ensure no objects are interfering with the desk's movement path. The sensitivity can often be adjusted via the control panel settings (refer to the full manual).

If problems persist after attempting these solutions, please contact MAIDeSITe customer support for assistance.

Specifications

Image: The desk frame demonstrating its robust load capacity of 180 kg, emphasizing its stability and long service life.

Warranty and Support

MAIDeSITe is committed to providing quality products and excellent customer service. Your EL2 Pro Art desk frame comes with a comprehensive warranty.

• Warranty Period: Up to 5 years of support. Please refer to your purchase documentation for specific warranty terms and conditions.
• Customer Support: For any questions, technical assistance, or warranty claims, please contact MAIDeSITe customer service. Contact information can be found on our official website or your purchase receipt.

Image: A visual representation of the 5-year warranty offered by MAIDeSITe.
