WELLFOR 48 x 36 Inch LED Bathroom Vanity Mirror Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your WELLFOR 48 x 36 Inch Wall-Mounted Framed LED Bathroom Vanity Mirror. Please read these instructions thoroughly before installation and retain them for future reference.

The mirror features integrated LED lighting with dimming and color temperature control, an anti-fog function, and a durable, waterproof design suitable for bathroom environments. It can be installed either horizontally or vertically.

2. Safety Information

• Ensure power is disconnected at the circuit breaker before installation or maintenance.
• This product is designed for indoor use only in damp locations. Do not install in areas with direct water spray.
• The mirror is ETL-listed for the US and Canada, conforming to UL Std. 962 and certified to CSA Std. C22.2 No. 250.0, ensuring safety and quality standards are met.
• The anodized aluminum frame offers superior waterproof properties with an IP54 rating.
• Handle the mirror with care to prevent damage to the glass or frame.
• Installation should be performed by a qualified electrician if hardwiring is required.

3. Package Contents

Verify that all components are present and undamaged before proceeding with installation.

• WELLFOR LED Bathroom Vanity Mirror (1 unit)
• Mounting Hardware (Z-bars, screws, anchors)
• Instruction Manual

4. Setup and Installation

The LED bathroom mirror can be easily mounted on walls using the provided horizontal or vertical Z-bars. Ensure the mounting surface is structurally sound to support the mirror's weight (58.7 pounds).

1. Preparation: Choose your desired orientation (horizontal or vertical). Mark the desired location on the wall, ensuring it is level.
2. Mounting Z-bars: Secure the Z-bars to the wall using appropriate screws and anchors for your wall type. Ensure the Z-bars are level and spaced correctly to align with the mirror's mounting points.
3. Electrical Connection: Connect the mirror's electrical wiring to your household electrical system. This typically involves hardwiring to a junction box. If you are unsure, consult a qualified electrician. The mirror supports wall switch control for the light and defogger.
4. Mounting the Mirror: Carefully lift the mirror and align its back channels with the installed Z-bars. Gently lower the mirror until it securely rests on the Z-bars.

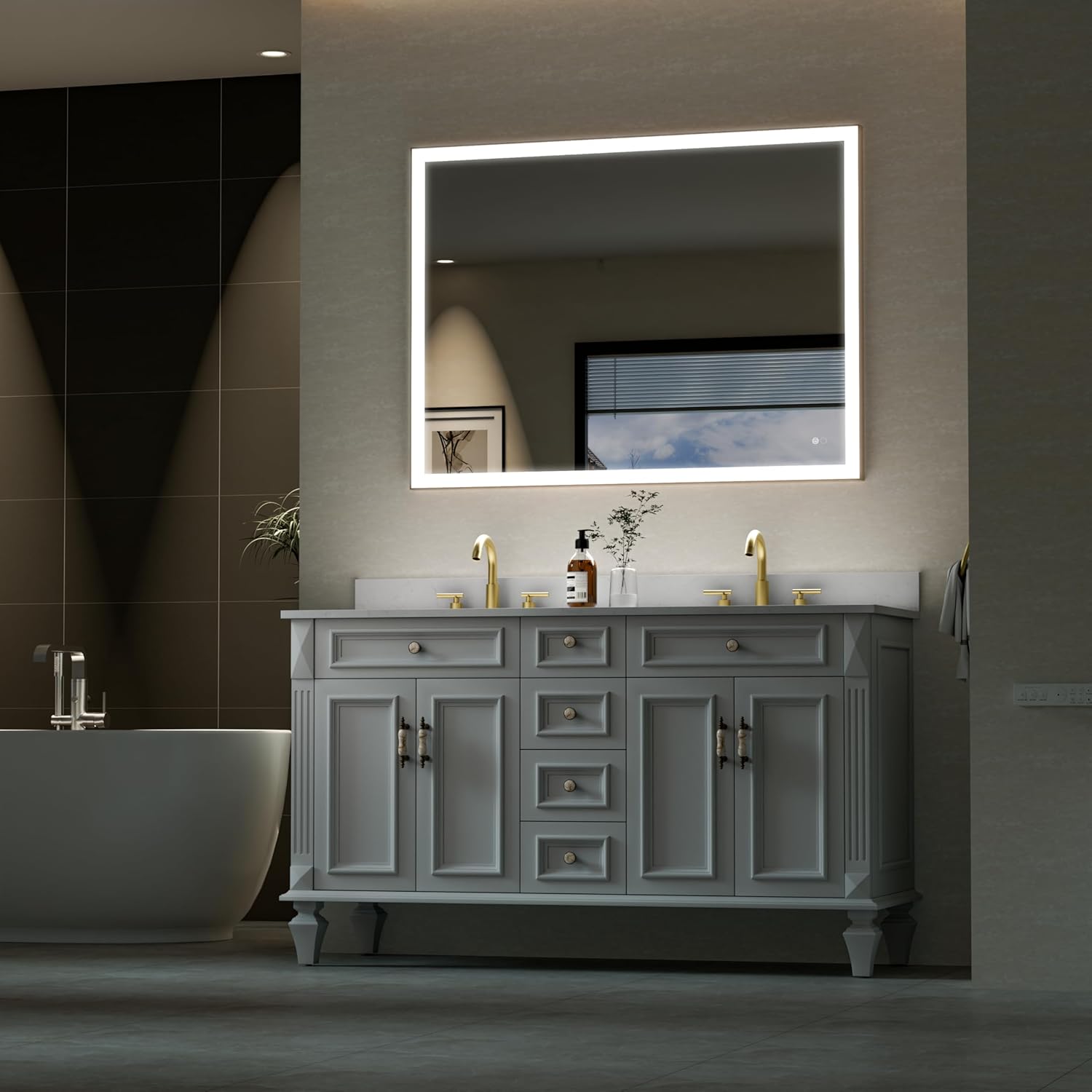

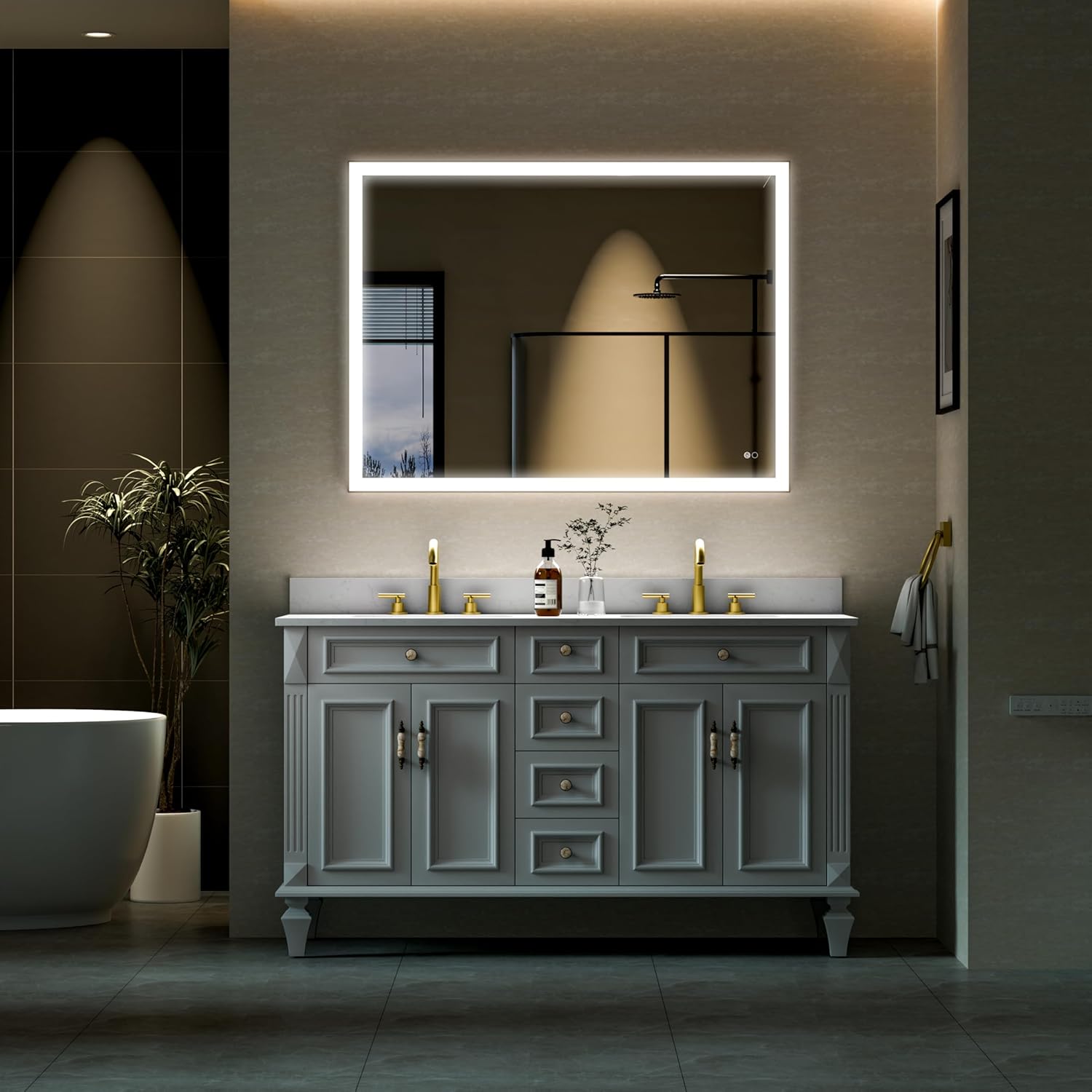

Image: The WELLFOR LED mirror installed horizontally, demonstrating wall switch compatibility and overall aesthetic.

Image: Rear view of the mirror, highlighting the fully enclosed back for enhanced safety and the Z-bar installation method for horizontal or vertical hanging.

5. Operating Instructions

Your WELLFOR LED mirror features intuitive touch controls for lighting and defogging functions.

• Power On/Off: Tap the power button icon on the mirror surface to turn the LED lights on or off.
• Brightness Adjustment (Dimming): With the lights on, touch and hold the power button icon to adjust the brightness from 10% to 100%. The mirror has a memory function that retains your last brightness setting.
• Color Temperature Control: Tap the color temperature button icon to cycle through three color temperatures: 3000K (Warm White), 4000K (Neutral White), and 6000K (Cool White).
• Defogger Function: Tap the defogger button icon to activate the anti-fog pad. The defogger will automatically shut off after 60 minutes to conserve energy.
• Wall Switch Control: The mirror can also be controlled by an external wall switch, allowing you to turn both the light and defogger on/off simultaneously.

Image: Touch controls for adjusting the lighting color temperature between 3000K (Warm), 4000K (Neutral), and 6000K (White).

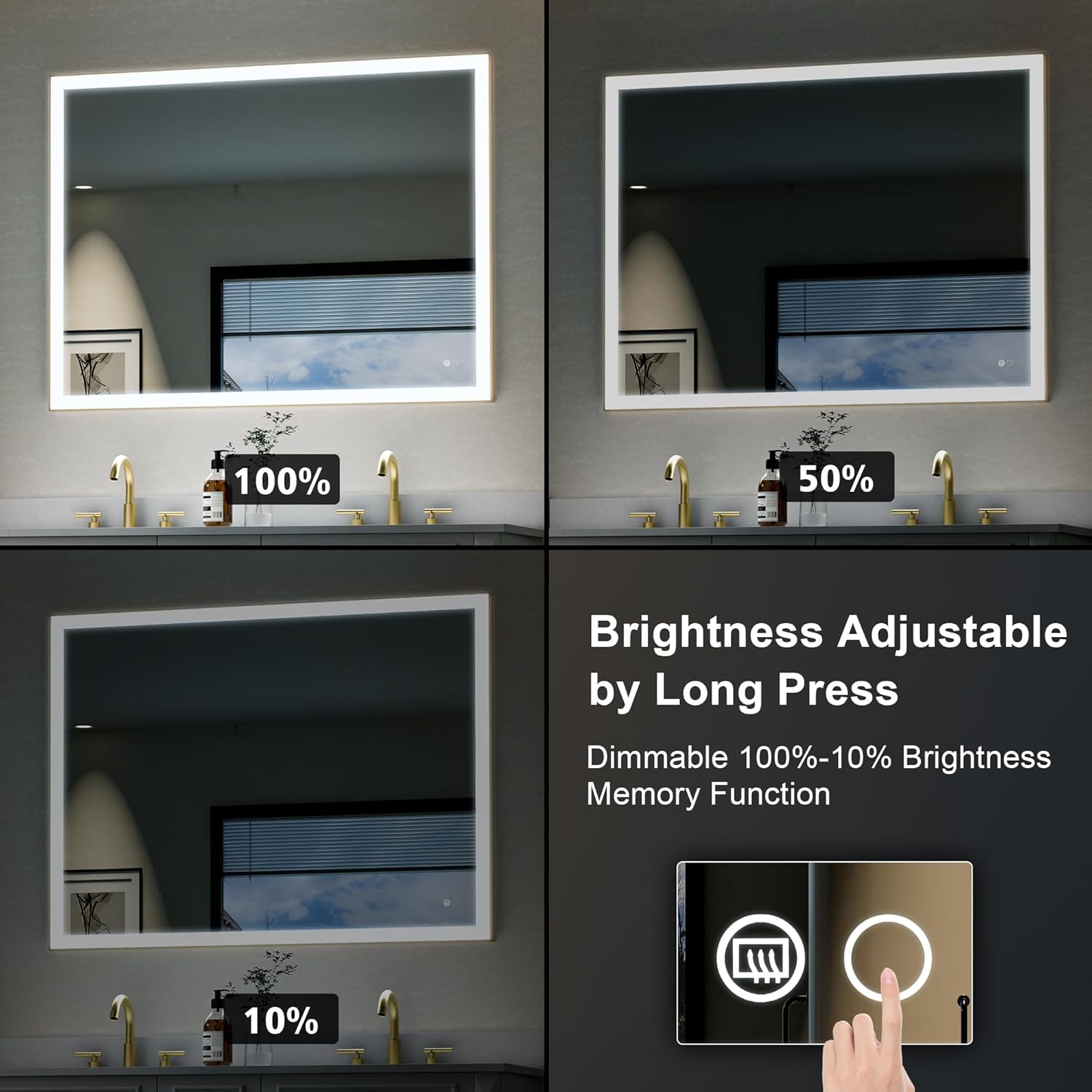

Image: Brightness adjustment feature, showing the mirror's illumination at 100%, 50%, and 10% brightness, controlled by a long press on the touch button.

Image: Demonstration of the defogger function, showing a fogged mirror before activation and a clear mirror after, controlled by a separate touch button with a 60-minute auto-off feature.

6. Maintenance

• Cleaning: Use a soft, damp cloth and a mild glass cleaner to clean the mirror surface. Avoid abrasive cleaners or harsh chemicals that could damage the mirror or frame.
• Frame Care: The anodized aluminum frame is designed for durability. Wipe it with a soft, dry cloth to remove dust or moisture.
• LED Longevity: The integrated LED bulbs are designed for 50,000 hours of consistent performance, requiring no routine replacement.

7. Troubleshooting

If you encounter issues with your WELLFOR LED mirror, please refer to the following common solutions:

• Lights not turning on:
  • Check the power connection and ensure the circuit breaker is on.
  • Verify that the wall switch (if installed) is in the ON position.
  • Ensure the touch sensor is clean and unobstructed.
• Defogger not working:
  • Ensure the defogger function is activated via the touch button or wall switch.
  • Allow a few minutes for the defogger to heat up and clear the mirror surface.
• Inconsistent brightness or color:
  • Ensure you are using the correct touch controls for dimming and color temperature adjustment.
  • If the issue persists, try resetting the power to the mirror by turning off and on the circuit breaker.

For further assistance, please contact WELLFOR customer support.

8. Specifications

9. Warranty and Support

For warranty information, technical support, or any inquiries regarding your WELLFOR LED Bathroom Vanity Mirror, please contact WELLFOR customer service through their official channels. Please have your model number (W5FM4836GD) and purchase details ready when contacting support.
