PRV AUDIO Carbon Fiber 8" Midrange Speaker

1. Introduction

The PRV AUDIO 8MR500CF-NDY-4 speaker is engineered for demanding powersports applications, featuring a robust water-resistant design to ensure optimal performance in outdoor environments. This midrange speaker sets a new standard for vocal reproduction in marine, UTV, 4-wheeler, and motorcycle audio systems. Constructed with high-quality materials, including a carbon fiber cone, high-temperature voice coil, and a powerful neodymium magnet, this driver delivers natural sound with exceptionally low distortion.

Its design prioritizes durability and acoustic clarity, making it an ideal choice for enthusiasts seeking to upgrade their vehicle's sound system for loud and clear audio performance even in challenging conditions.

2. What's in the Box

Upon opening your PRV AUDIO 8MR500CF-NDY-4 package, please verify that all components are present and in good condition:

• Two (2) Carbon Fiber 8" Midrange Speakers
• Speaker Grills (included for protection and aesthetic integration)
• Mounting Screws (for secure installation)

Image: Contents of the PRV AUDIO 8MR500CF-NDY-4 package, showing two speakers, grills, and screws.

3. Key Features

The PRV AUDIO 8MR500CF-NDY-4 speakers are designed with advanced features for superior audio performance and durability:

• Water Resistant Design: Specifically engineered for marine, UTV, 4-wheeler, and motorcycle applications, ensuring reliable performance in wet conditions.
• 8" Carbon Fiber Cone: Features a lightweight carbon fiber cone that effectively reduces moving mass and minimizes unwanted resonances, crucial for marine and outdoor speaker setups.
• Powerful Neodymium Magnet Structure: Incorporates a large neodymium magnet with distortion-canceling fixtures, providing robust power and precise sound reproduction.
• High Sensitivity (96 dB): Delivers excellent off-axis and transient response, contributing to a wide sound stage and realistic sound reproduction.
• High Power Handling: Capable of handling up to 500 Watts of maximum output power, ensuring loud and clear audio.
• 4 Ohm Impedance: Optimized for compatibility with a wide range of audio amplifiers.
• Durable Construction: Built with a bumped back plate, vented magnet system, vented pole piece, and high-temperature voice coil for enhanced durability and protection against extreme transient power peaks.

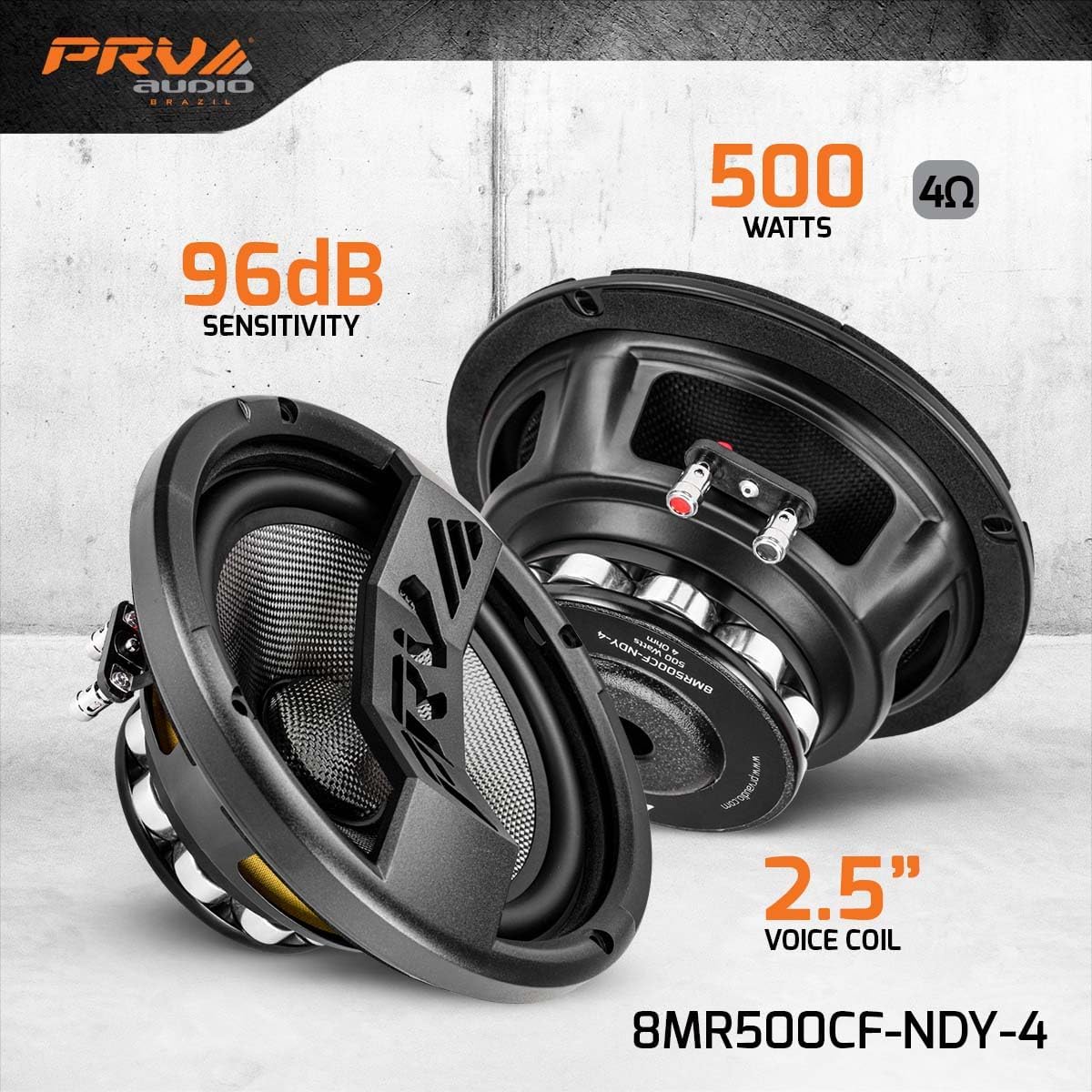

Image: Key specifications of the 8MR500CF-NDY-4 speaker, including power handling, sensitivity, and voice coil size.

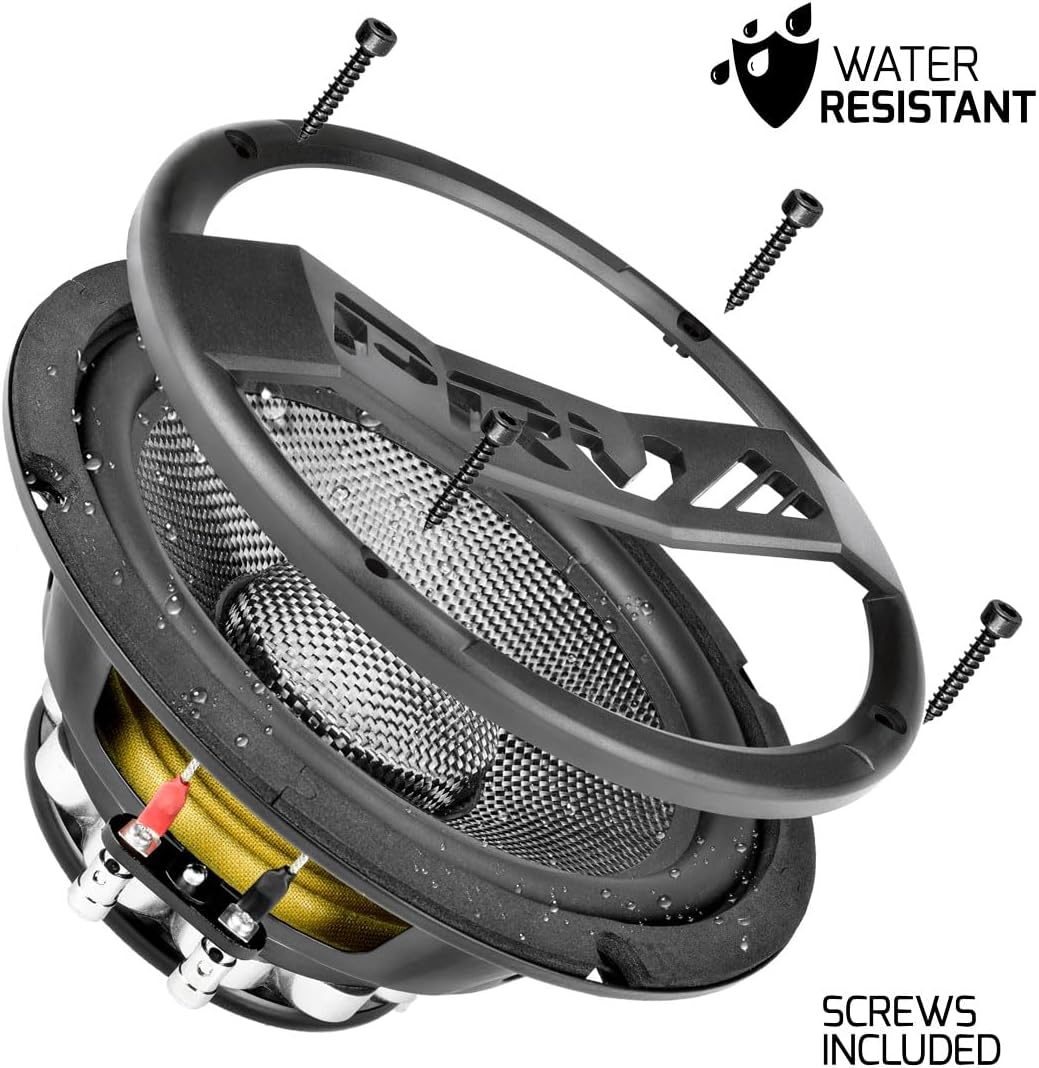

Image: Detail showing the water-resistant nature of the speaker and the included mounting screws.

4. Setup and Installation

Proper installation is crucial for optimal performance and longevity of your PRV AUDIO speakers. It is recommended that installation be performed by a qualified professional.

4.1 Mounting Considerations

• Location: Choose a mounting location that is structurally sound and provides adequate clearance for the speaker's dimensions. Ensure the location is suitable for outdoor use, leveraging the speaker's water-resistant properties.
• Dimensions: Refer to the specifications for precise measurements. The speaker has an overall diameter of 8.27 inches and a mounting depth of 3.34 inches. The front mount baffle cutout should be 7.18 inches.
• Secure Mounting: Use the provided mounting screws to firmly secure the speaker. Avoid over-tightening, which can damage the speaker frame.

Image: Detailed dimensions for mounting the 8MR500CF-NDY-4 speaker.

4.2 Wiring

• Impedance: These speakers have a 4 Ohm impedance. Ensure your amplifier is stable at this impedance.
• Power Matching: Connect the speakers to an amplifier capable of delivering sufficient power (up to 500 Watts maximum output) without exceeding the speaker's rated power handling.
• Polarity: Observe correct polarity when connecting the speaker wires to your amplifier. The positive (+) terminal on the speaker (typically marked red) should connect to the positive output of the amplifier, and the negative (-) terminal (typically marked black) to the negative output. Incorrect polarity can lead to reduced bass response and poor sound quality.
• Cable Quality: Use high-quality, appropriately gauged speaker wire to minimize signal loss and ensure optimal power transfer.

Image: Rear view of the speaker, showing the positive (red) and negative (black) terminals for wiring connections.

5. Operating Your Speakers

Once properly installed and connected, your PRV AUDIO 8MR500CF-NDY-4 speakers are ready for use. These speakers are designed to deliver loud, clear vocal performance, making them ideal for motorsports applications where high efficiency and dynamic sound are desired.

• Audio Source: Connect your audio source (MP3 player, smartphone, tablet, or head unit) to your amplifier.
• Volume Control: Start with a low volume level on your amplifier and gradually increase it to your desired listening level. Avoid pushing the speakers beyond their comfortable limits to prevent distortion and potential damage.
• Equalization: Adjust your amplifier's or head unit's equalization settings to fine-tune the sound to your preference. These speakers excel in midrange frequencies, providing clear vocals.
• Break-in Period: Like many high-performance speakers, a short break-in period (typically a few hours of normal listening) may be beneficial for the speaker's suspension to loosen up and achieve optimal sound characteristics.

Image: Close-up view of the carbon fiber cone, responsible for the speaker's clear and natural sound.

6. Care and Maintenance

To ensure the longevity and continued performance of your PRV AUDIO 8MR500CF-NDY-4 speakers, follow these simple maintenance guidelines:

• Cleaning: Regularly wipe down the speaker grills and frames with a soft, damp cloth to remove dust, dirt, and debris. For stubborn grime, a mild soap solution can be used, followed by a rinse with clean water. Avoid harsh chemicals or abrasive cleaners.
• Water Exposure: While water-resistant, avoid prolonged submersion or direct high-pressure water sprays. If exposed to saltwater, rinse with fresh water to prevent salt buildup.
• Inspection: Periodically inspect the speaker cone, surround, and terminals for any signs of damage, corrosion, or loose connections. Address any issues promptly.
• Storage: If storing the speakers for an extended period, ensure they are clean and dry, and store them in a cool, dry place away from direct sunlight and extreme temperatures.

7. Troubleshooting

If you encounter issues with your PRV AUDIO 8MR500CF-NDY-4 speakers, refer to the following common problems and solutions:

If troubleshooting steps do not resolve the issue, please contact PRV AUDIO customer support for further assistance.

8. Technical Specifications

Detailed specifications for the PRV AUDIO 8MR500CF-NDY-4 Carbon Fiber 8" Midrange Speaker:

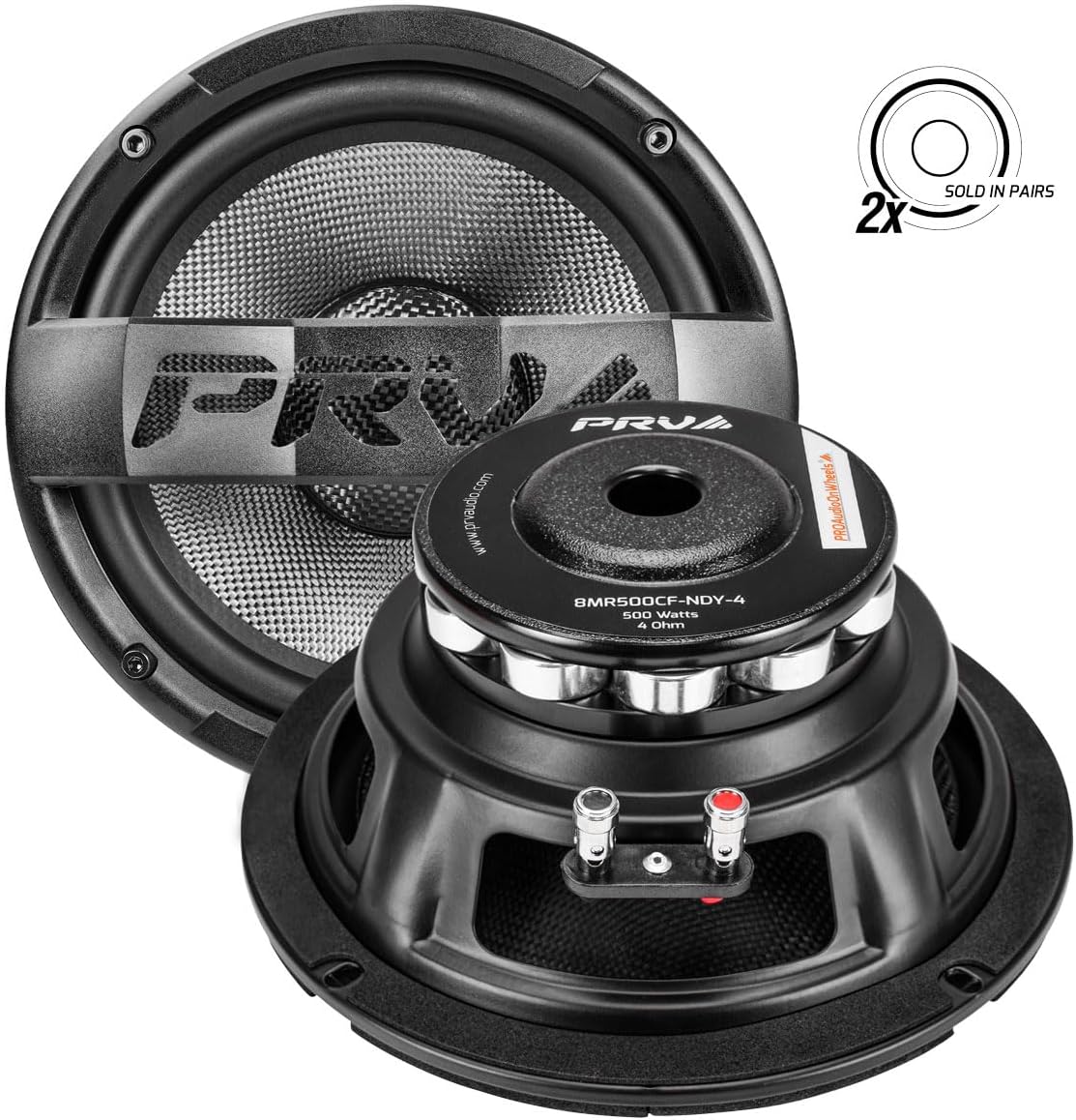

Image: The PRV AUDIO 8MR500CF-NDY-4 speakers are sold as a pair.

9. Warranty Information

The PRV AUDIO 8MR500CF-NDY-4 speakers come with a Limited Warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the official PRV AUDIO website or contact their customer support directly. Keep your proof of purchase for warranty claims.

10. Customer Support

For technical assistance, warranty inquiries, or any other questions regarding your PRV AUDIO 8MR500CF-NDY-4 speakers, please contact PRV AUDIO customer support.

• Manufacturer: PRV AUDIO
• Online Store: Visit the official PRV AUDIO Store on Amazon for product information and updates.
• Website: Refer to the official PRV AUDIO website for contact information, FAQs, and additional resources.
