1. Introduction
This manual provides essential information for setting up, operating, maintaining, and troubleshooting your SHARP 55FJ2E 4K UHD Smart TV. Please read these instructions carefully before using your television to ensure proper functionality and safety.
2. What's Included
Verify that all components are present in the packaging:
- SHARP 55FJ2E 4K UHD Smart TV
- Remote Control
- 2 x AAA Batteries
- TV Stand Installation Kit
- Quick Guide
3. Setup
3.1 Attaching the TV Stand
Carefully place the TV screen-down on a soft, clean surface to prevent damage. Attach the included stand components to the bottom of the TV using the provided screws. Ensure the stand is securely fastened before placing the TV upright.
Alternatively, the TV supports VESA wall mounting (400 x 300 mm) for compatible wall brackets (sold separately).
3.2 Connecting External Devices
Connect your external devices such as cable boxes, gaming consoles, or media players to the appropriate ports on the TV.
- HDMI Ports (3x HDMI 4K @ 60 Hz (2.1)): For high-definition audio and video devices.
- USB Ports (2x): For connecting USB storage devices or other peripherals.
- Antenna Input: For connecting a terrestrial antenna.
- Satellite Input: For connecting a satellite dish.
- Headphone Jack: For private listening.
- Digital Optical Audio Output: For connecting to external audio systems.
- LAN (RJ45): For a wired internet connection.
Image: Side view of the TV displaying connectivity ports.
Image: Rear view of the TV with port layout.
3.3 Initial Power On and Roku TV Setup
After connecting all necessary cables, plug the TV into a power outlet. Press the power button on the remote control or the TV. Follow the on-screen instructions to complete the initial Roku TV setup, including network connection (Wi-Fi or LAN) and channel scanning.

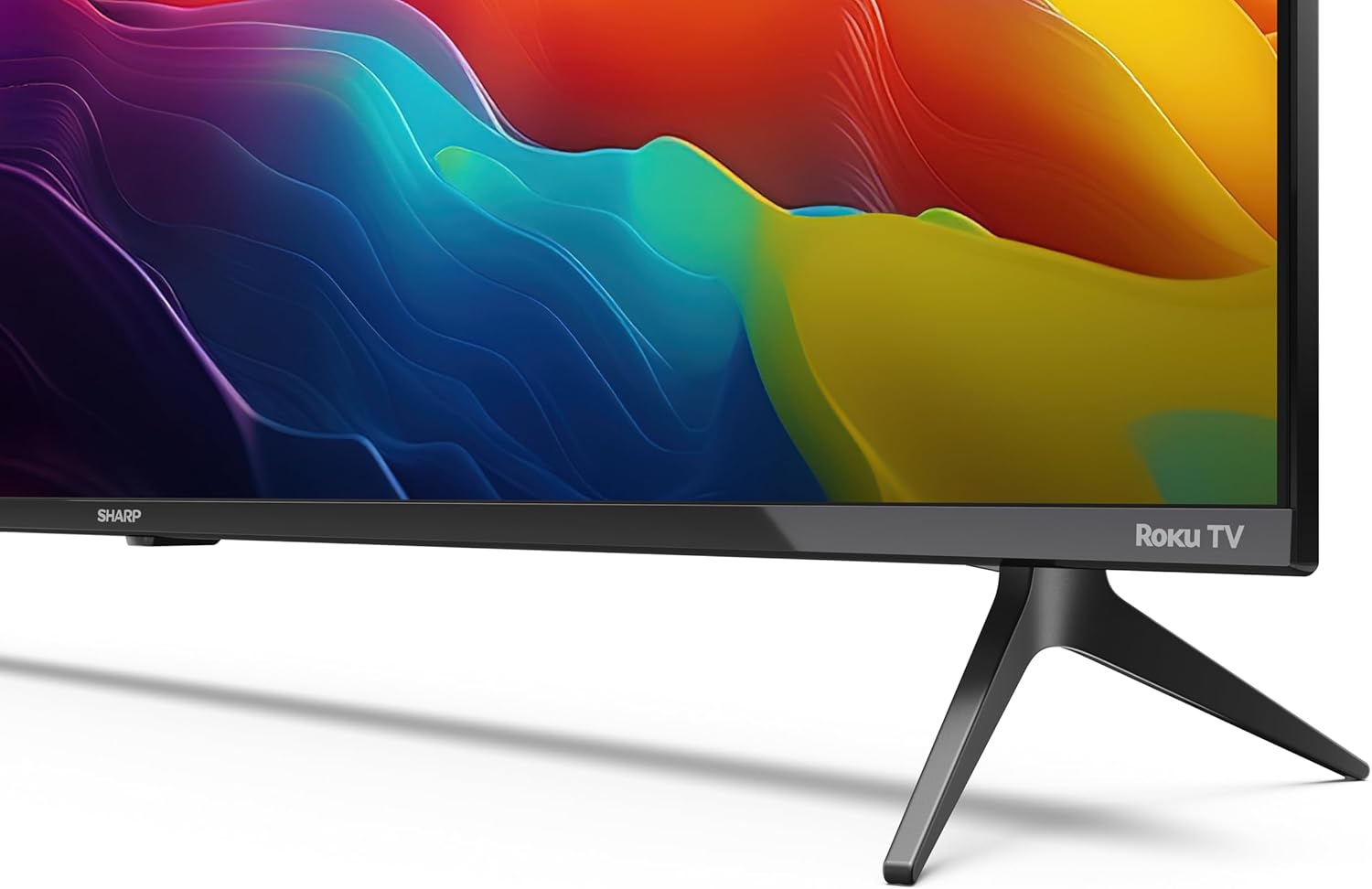

Image: Front view of the Sharp 55FJ2E TV.
4. Operating the TV
4.1 Remote Control Functions
The included remote control allows you to navigate the Roku TV interface and control your television. Insert the 2 AAA batteries into the remote control before use.
Image: Sharp Roku TV Remote Control.
- Power Button: Turns the TV on or off.
- Guide: Accesses the program guide.
- Navigation Pad (Up/Down/Left/Right): Moves through menus and options.
- OK Button: Confirms selections.
- Volume Up/Down: Adjusts the sound level.
- Mute: Silences the TV sound.
- Playback Controls: Play, Pause, Fast Forward, Rewind.
- Home Button: Returns to the Roku TV home screen.
- Number Buttons: For direct channel input.
- Exit/Back: Returns to the previous screen or exits a menu.
4.2 Roku TV Interface Navigation
The Roku TV home screen provides access to streaming channels, input sources, and settings. Use the navigation pad and OK button on your remote to browse.
Image: Roku TV Home Screen Interface.
- Streaming Channels: Access pre-installed apps like YouTube, Netflix, Prime Video, Disney+, and Apple TV.
- Live TV: Access broadcast channels via antenna or satellite.
- Inputs: Select connected devices (e.g., HDMI 1, USB).
- Settings: Adjust picture, sound, network, and system settings.
4.3 Roku Mobile App
You can also control your SHARP Roku TV using the free Roku Mobile App on your smartphone or tablet. The app offers remote control functionality, voice search, and private listening via headphones.

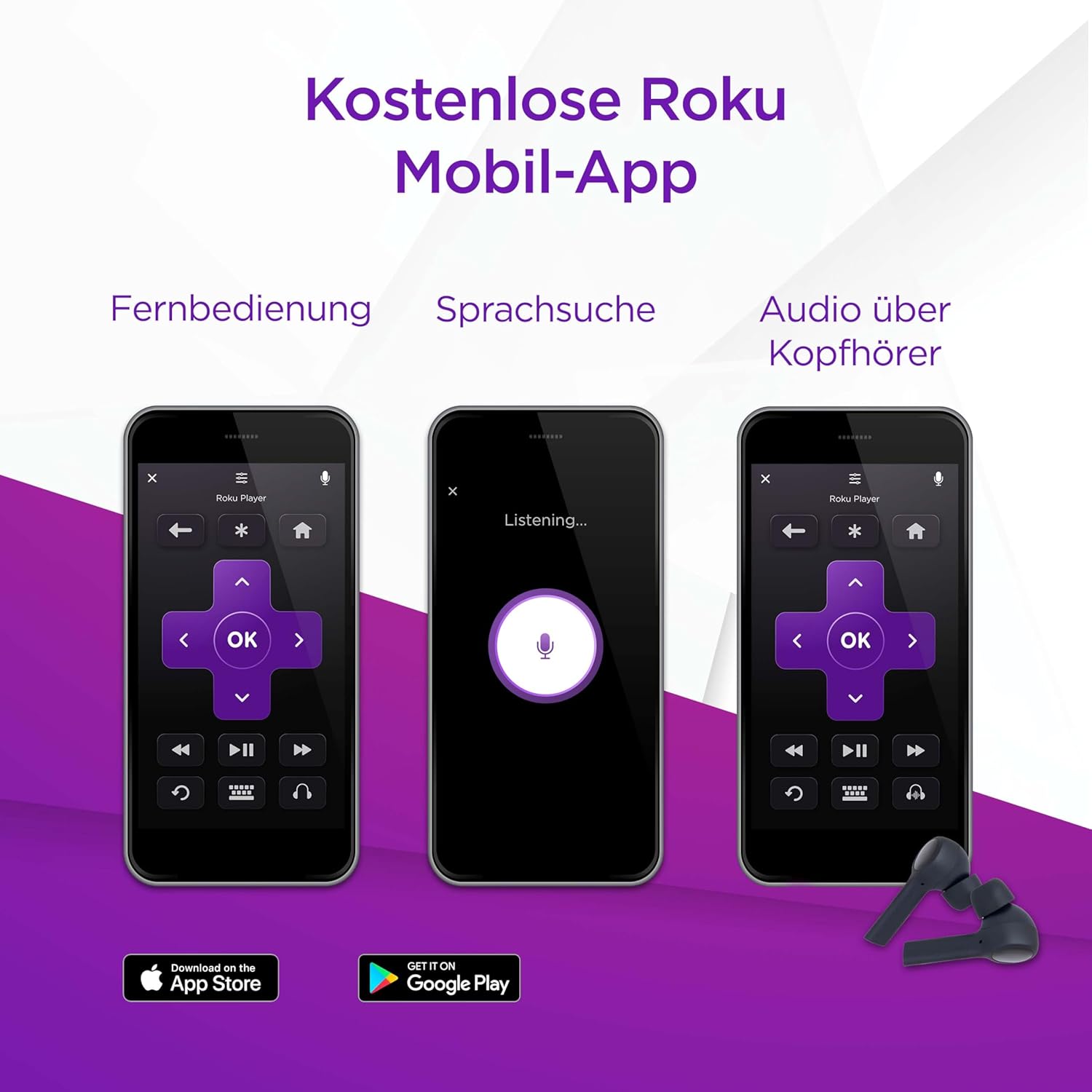

Image: Roku Mobile App features.
5. Maintenance
5.1 Cleaning the TV
- Screen: Gently wipe the screen with a soft, lint-free cloth. For stubborn marks, use a screen cleaning solution specifically designed for TVs, applied to the cloth, not directly to the screen.
- Cabinet: Wipe the TV cabinet with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
5.2 Software Updates
Your Roku TV automatically receives software updates to improve performance and add new features. Ensure your TV is connected to the internet for these updates to download and install.
6. Troubleshooting
If you encounter issues with your TV, refer to the following common solutions:
- No Power: Check if the power cord is securely plugged into both the TV and the wall outlet. Try a different outlet.
- No Picture, But Sound: Ensure the correct input source is selected. Check cable connections to external devices.
- No Sound, But Picture: Check the volume level and mute status. Verify audio cable connections to external sound systems.
- Remote Control Not Working: Replace the AAA batteries. Ensure there are no obstructions between the remote and the TV's IR sensor.
- Network Connection Issues: Restart your router and modem. Re-enter your Wi-Fi password in the TV's network settings. For wired connections, ensure the Ethernet cable is properly connected.
- Parental Controls: If content is blocked, check parental control settings. These are typically protected by a PIN.
For further assistance, consult the online support resources for Roku TV or contact Sharp customer support.
7. Specifications
| Feature | Specification |
|---|---|
| Model Number | 55FJ2E |
| Screen Size | 55 Inches (139 cm) |
| Display Technology | LED |
| Resolution | 4K UHD (3840 x 2160 px) |
| Refresh Rate | 60 Hz |
| HDR Support | HDR10 |
| Motion Enhancement Technology | Active Motion 400 |
| Operating System | Roku OS |
| Audio Output Mode | Dolby Digital, Dolby Digital Plus |
| Speaker System | Front silk tweeter (10W), Down-firing woofer (10W) |
| HDMI Ports | 3 (4K @ 60 Hz, 2.1) |
| USB Ports | 2 |
| Connectivity | Wi-Fi, LAN (RJ45), Antenna, Satellite, Headphone, Digital Optical Audio Out |
| Tuner Type | UHD DVB-T/T2/C/S/S2 (MPEG4 + 10 bits HEVC/H.265) |
| VESA Mount Standard | 400 x 300 mm |
| Product Dimensions (D x W x H) | 9.1 x 123.1 x 71.8 cm (without stand) |
| Power Consumption (SDR) | 67.0 W |
| Power Consumption (HDR) | 114 W |
| Standby Power Consumption | 0.5 W |

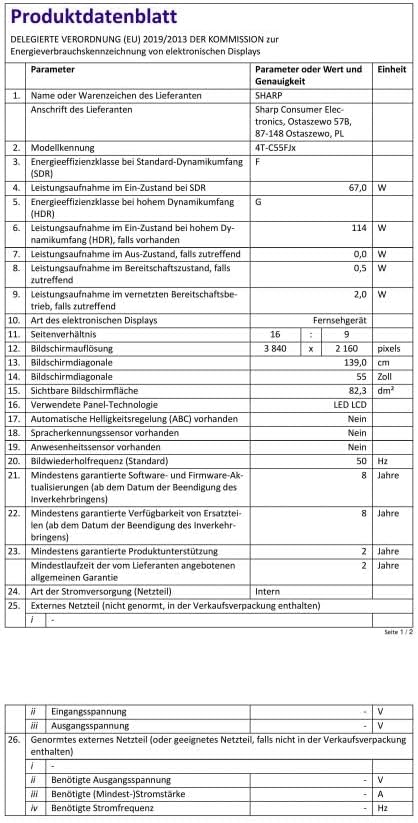

Image: Product Data Sheet (German).
8. Warranty and Support
8.1 Warranty Information
Warranty details for your SHARP 55FJ2E TV are typically provided with the product packaging or available on the official Sharp website. Please retain your proof of purchase for warranty claims.
8.2 Customer Support
For technical support, service, or further inquiries, please visit the official Sharp website or contact their customer service department. Contact information can usually be found in the quick guide or on the manufacturer's website.
