XTOOL IP900S Bidirectional Scan Tool User Manual

1. Introduction

The XTOOL IP900S is an advanced automotive diagnostic scan tool designed for comprehensive vehicle system analysis, maintenance, and repair. It features ECU Coding, Bidirectional Control, Topology Mapping, and over 41 special service functions, providing professional-grade diagnostics for a wide range of vehicles.

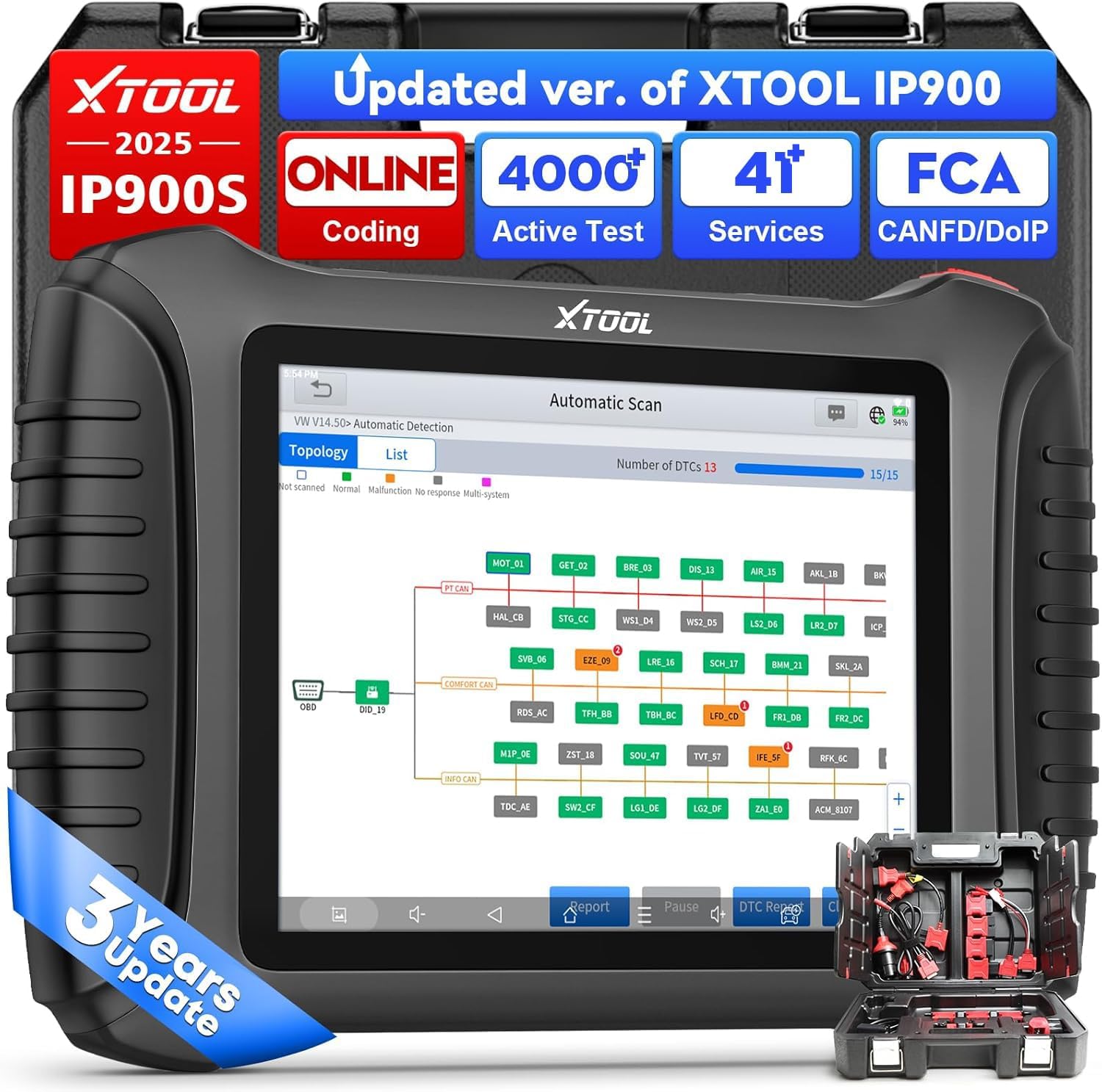

Figure 1.1: XTOOL IP900S Diagnostic Scan Tool

Video 1.1: Overview of the XTOOL IP900S Diagnostic Tool's features and capabilities.

2. Setup

2.1 Package Contents

Before starting, verify all components are present in the package:

Figure 2.1: Included accessories and adapters with the IP900S.

• IP900S Diagnostic Scan Tool
• Tool Case
• Charger Adapters (US, UK, EU)
• Type C to Type C Charger Cable
• Type C to Type A Adapter
• OBD II -16 Connector
• Vehicle-specific connectors: for Honda-3, for Hyundai/for KIA-10, for KIA-20, for BMW-20, for Toyota -17, for Mazda-17, for Nissan-14, for GM/for Daewoo-12, for SUZUKI-3, for FIAT-3, for MITSUBISHI-12+16, for BENZ-38, for Audi-4, for UNIVERSAL-3, for BD15 M to VAG

2.2 Initial Power On and Connection

To begin using the IP900S, ensure the device is adequately charged using the provided Type-C cable and charger. Connect the appropriate OBDII or vehicle-specific adapter to the DB15 port on the scan tool, then connect the other end to the vehicle's diagnostic port (OBDII port, typically located under the dashboard).

2.3 Software Updates

The IP900S comes with 3 years of free software updates. It is recommended to regularly update the software to ensure access to the latest vehicle models, diagnostic functions, and performance improvements. Connect the device to a stable Wi-Fi network and navigate to the 'Update' section on the main menu to check for and install available updates.

2.4 FCA AutoAuth Access

For Chrysler, Jeep, Dodge (2018+), and Fiat (2017+) vehicles, FCA AutoAuth access is required to perform certain diagnostic and service functions. Follow these steps to enable access:

1. Register an AutoAuth account.
2. An annual subscription is required.
3. Register your shop and technicians with AutoAuth.
4. Once registered, full diagnostic capabilities for supported FCA vehicles will be available.

Figure 2.2: Steps for gaining FCA AutoAuth access.

3. Operating Instructions

3.1 OE-Level All Systems Diagnostic

The IP900S performs comprehensive diagnostics across all available vehicle systems, including Engine, Transmission, ABS, SRS, TPMS, BCM, and more. The Fast AutoScan 2.0 feature allows for quick identification of most malfunctions within approximately 10 seconds.

Figure 3.1: Comprehensive OE-Level All Systems Diagnostic capability.

3.2 Fault Code Management

Easily read and clear Diagnostic Trouble Codes (DTCs) from all accessible modules. This function helps in quickly identifying and resolving vehicle issues.

3.3 Live Data Visualization

Monitor real-time data streams from various sensors and components. The IP900S supports up to 8 PIDs graphing simultaneously, allowing for detailed analysis and identification of intermittent issues. Data can be recorded, played back, and reports can be shared or printed.

Figure 3.2: Live Data Visualization for real-time monitoring and analysis.

3.4 Bidirectional Control (Active Tests)

Perform active tests to command vehicle components directly from the scan tool. This feature helps in quickly pinpointing faulty actuators or components without extensive disassembly. Examples include testing fuel pumps, wipers, windows, doors, sunroofs, and headlamps.

Figure 3.3: Bidirectional control for active component testing.

3.5 ECU Coding & Customization

The IP900S supports advanced ECU Coding and customization functions for specific vehicle brands (e.g., VW, Audi, Skoda, BENZ, Mitsubishi). This includes:

• Reflash Hidden Functions: Activate or deactivate hidden features.
• PMI Function (Programmable Module Installation): For Ford, Lincoln, Mazda.
• Manually Input Values: Adjust specific parameters.
• Personalization Function: Customize vehicle settings.
• Components Matching: Match new components to the vehicle's ECU.
• Stop Annoying Features: Disable unwanted functionalities.
• Improve Car Performance: Optimize certain vehicle aspects.
• V.A.G Guided Functions: Step-by-step instructions for complex procedures.
• ADAS Calibration: Calibrate Advanced Driver-Assistance Systems.

Figure 3.4: Advanced ECU Coding and customization capabilities.

3.6 41+ Special Functions

The IP900S provides over 41 hot reset and service functions to address common vehicle maintenance needs. These include, but are not limited to:

Figure 3.5: Selection of 41+ special service functions.

• Oil Light Reset
• EPB (Electronic Parking Brake) Reset
• SAS (Steering Angle Sensor) Adjustment
• BMS (Battery Management System) Reset
• Throttle Relearn
• TPMS (Tire Pressure Monitoring System) Reset
• ABS Bleeding
• Injector Coding
• Gearbox Match
• Suspension Calibration
• Headlight Adjustment
• Airbag Repair
• Start/Stop Reset
• EEPROM
• And many more.

3.7 Pre & Post Scan with Report V2.0

Perform pre-scan diagnostics to identify existing issues before repairs, and post-scan diagnostics to confirm successful repairs. The Report V2.0 feature allows for branding diagnostic reports with your logo and adding repair photos, enhancing professionalism and customer trust.

Figure 3.6: Pre & Post Scan reports for comprehensive repair validation.

3.8 Topology Mapping Function

The Topology Mapping function provides a clear, visual representation of the vehicle's communication network, simplifying complex system diagnostics. It helps in quickly identifying the status and relationships between different control modules.

Figure 3.7: Topology Mapping for intuitive system diagnosis.

3.9 Wide Vehicle Compatibility & Language Support

The IP900S supports over 10,000 vehicle models manufactured after 1996, including those with CAN FD and DoIP protocols. It also supports 23+ languages, with English and Spanish pre-installed and switchable directly.

Figure 3.8: Extensive vehicle coverage for global use.

Figure 3.9: Multi-language support for diverse users.

4. Maintenance

To ensure the longevity and optimal performance of your XTOOL IP900S, follow these maintenance guidelines:

• Keep the device clean and free from dust and moisture. Use a soft, dry cloth for cleaning.
• Store the device in its protective case when not in use to prevent damage.
• Regularly perform software updates to ensure the latest features and vehicle compatibility.
• Avoid exposing the device to extreme temperatures or direct sunlight for prolonged periods.
• Use only the provided charger and cables to prevent damage to the device's battery and internal components.

5. Troubleshooting

If you encounter any issues with your XTOOL IP900S, consider the following common troubleshooting steps:

• Device not powering on: Ensure the device is fully charged. Check the power button for proper function.
• Connection issues: Verify that the OBDII cable is securely connected to both the vehicle and the scan tool. Ensure the vehicle's ignition is on.
• Software freezing/crashing: Restart the device. Ensure the software is up to date. If the issue persists, contact technical support.
• Function not working for a specific vehicle: Verify vehicle compatibility for the specific function. Ensure FCA AutoAuth is properly set up if required for Chrysler/Jeep/Dodge/Fiat vehicles.

For persistent issues or advanced technical support, please refer to Section 7: Warranty and Support.

6. Specifications

7. Warranty and Support

The XTOOL IP900S includes 3 years of free software updates from the date of purchase, ensuring your device remains current with the latest vehicle technologies and diagnostic capabilities.

For technical assistance, product inquiries, or troubleshooting support, please contact XTOOL InPlus Direct technical support. Contact information is typically provided in the product packaging or on the manufacturer's official website.
