Hetoy Licensed Land Rover Electric Ride-On Car (Model YU2088) User Manual

Introduction

Thank you for choosing the Hetoy Licensed Land Rover Electric Ride-On Car, Model YU2088. This electric ride-on car is designed to provide an engaging and safe driving experience for children aged 3 to 8 years. It features both manual operation for the child and a parent remote control for added safety and guidance. This manual provides essential information for proper assembly, operation, maintenance, and troubleshooting to ensure long-lasting enjoyment and safe use of the product.

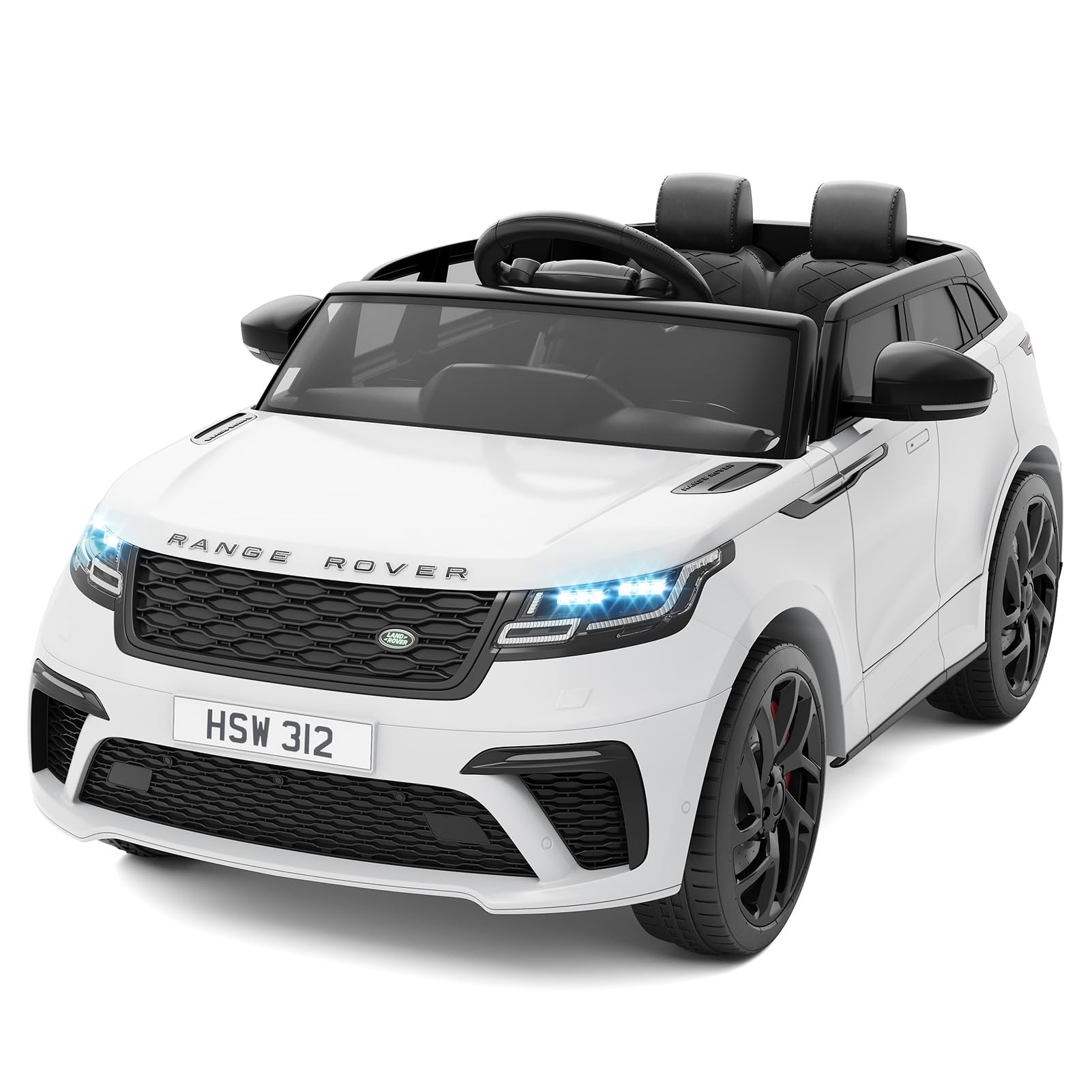

The Hetoy Licensed Land Rover Electric Ride-On Car, Model YU2088.

Setup and Assembly

Before first use, ensure all components are present and undamaged. Assembly is required. Please follow the detailed instructions provided in the separate assembly guide included in your package. Once assembled, the vehicle requires an initial charge.

Initial Charging

• Connect the charger to the charging port, typically located on the dashboard or under the seat.
• Plug the charger into a standard wall outlet.
• Allow the battery to charge for the recommended duration (refer to the separate charging instructions for exact times, usually 8-12 hours for the first charge).
• Do not overcharge the battery. Disconnect the charger once charging is complete.

Remote Control Pairing

The 2.4G remote control allows parents to operate the vehicle. To pair the remote control:

1. Ensure the vehicle is turned off.
2. Insert batteries into the remote control.
3. Press and hold the pairing button on the remote control (refer to remote control diagram in the assembly guide).
4. While holding the pairing button, turn on the vehicle.
5. The indicator light on the remote control should stop flashing and remain solid, indicating successful pairing.

Image showing the dimensions and maximum user weight/height for the ride-on car.

Operating Instructions

The Hetoy Land Rover offers two modes of operation: manual driving by the child and remote control by an adult.

Manual Mode (Child Operation)

• Ensure the vehicle is turned on using the power switch.
• The child can use the steering wheel to control direction and the foot pedal for acceleration.
• The gear button allows selection between forward and reverse.
• Always ensure the child is wearing the safety belt.

Detailed view of the control panel, including power, gear, and music functions.

Parent Remote Control Mode

• The remote control has priority over manual operation, allowing parents to override child input for safety.
• Use the directional buttons on the remote to steer the vehicle (left/right) and control movement (forward/reverse).
• The remote also allows for speed selection (low/high).
• This mode is ideal for younger children or for guiding the vehicle in crowded areas.

Key features: 2.4G Remote Control, 2 Speeds, and 1-2 Hours Running per charge.

Music Player and Auxiliary Features

• The vehicle includes a built-in music player with pre-loaded tunes.
• Connect external devices via the USB connector or auxiliary input.
• Bluetooth connectivity allows for wireless streaming of music from a smartphone or other compatible device.
• Working LED headlights and horn provide a realistic driving experience.

The ride-on car features multiple music player options including a music button, USB connector, and FM radio.

Maintenance

Regular maintenance ensures the longevity and safe operation of your electric ride-on car.

Battery Care

• Charge the battery fully after each use, even if only used for a short period.
• If storing the vehicle for an extended period, charge the battery at least once a month to prevent deep discharge.
• Do not store the battery in extreme temperatures.
• Replace the battery if it no longer holds a charge effectively. Use only approved replacement batteries.

Cleaning and Storage

• Wipe the vehicle with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Keep the vehicle dry and store it in a cool, dry place away from direct sunlight and moisture.
• Protect the vehicle from rain and other adverse weather conditions.

Troubleshooting

If you encounter issues with your ride-on car, refer to the following common problems and solutions:

Specifications

• Model Number: YU2088
• Brand: Hetoy
• Material: Plastic
• Item Weight: 33.1 Pounds
• Item Dimensions (L x W x H): 42.52" x 25.98" x 20.47"
• Max User Weight: 61 Lbs
• Max User Height: 43 Inches
• Recommended Age: 37-96 Months (approx. 3-8 years)
• Battery: 12V 4.5AH
• Motors: 2*35W
• Speeds: 1.86-3.12 MPH (2 Speeds)
• Included Components: Remote Control
• Features: Rocking function, Portable Handle, Bluetooth remote control, Four-wheel shock absorbers, MP3 Player, USB, Bluetooth, LED Headlights, Horn, Starting Sounds, Safety belts, Soft start design.

Highlights of the realistic driving experience, including detailed steering wheel and LED lights.

Safety Guidelines

Adherence to these safety guidelines is crucial for preventing accidents and ensuring a safe play environment.

• Always ensure the seat belt is fastened when the child is using the vehicle.
• Adult supervision is required at all times during operation.
• Keep the vehicle away from traffic roads, moving vehicles, swimming pools, and steep inclines.
• Operate the vehicle on flat, dry surfaces. Avoid wet conditions, sand, gravel, or loose dirt.
• Do not allow more than one child to ride the vehicle at a time, even if the seat appears to accommodate two. The vehicle is designed for a single user.
• Ensure the child's hands and feet are kept clear of moving parts.
• The soft start design helps prevent sudden acceleration, but children should still be instructed on proper use.

Important safety features: spacious seating with safety harness, LED headlights for visibility, and lockable doors.

Warranty and Support

For warranty information, technical support, or to order replacement parts, please refer to the contact details provided in your original purchase documentation or visit the official Hetoy website. Keep your proof of purchase for warranty claims.
