1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Hisense HGO602BS Gas Built-in Oven. Please read these instructions thoroughly before using the appliance and retain them for future reference.
2. Important Safety Instructions
- Read all instructions carefully before installation and use.
- Ensure the oven is installed by a qualified professional in accordance with local regulations and gas/electrical codes.
- Do not store flammable materials in or near the oven.
- Always supervise children when the oven is in use.
- The oven surfaces become hot during operation. Use oven mitts to prevent burns.
- Do not use abrasive cleaners or sharp metal scrapers to clean the oven door glass, as they can scratch the surface, potentially leading to shattering.
- Ensure adequate ventilation during operation.
3. Product Overview
The Hisense HGO602BS is a 67-liter gas built-in oven designed for efficient and precise cooking. It features multiple cooking functions and user-friendly controls.
Key Features:
- 67L Capacity: Provides ample space for cooking multiple dishes or larger items.
- Multi-air Flow: Ensures even heat distribution throughout the oven cavity for consistent cooking results.
- Gas Grill: Offers precise heat control for grilling and browning.
- Precise Temperature Control: Maintains stable temperatures for optimal cooking performance.
- Easy-Clean Removable Door: Facilitates thorough cleaning of the oven door and interior.
- Cooling System: Helps keep the oven's exterior cool during operation.
- Timer Function: Allows for accurate control of cooking durations.

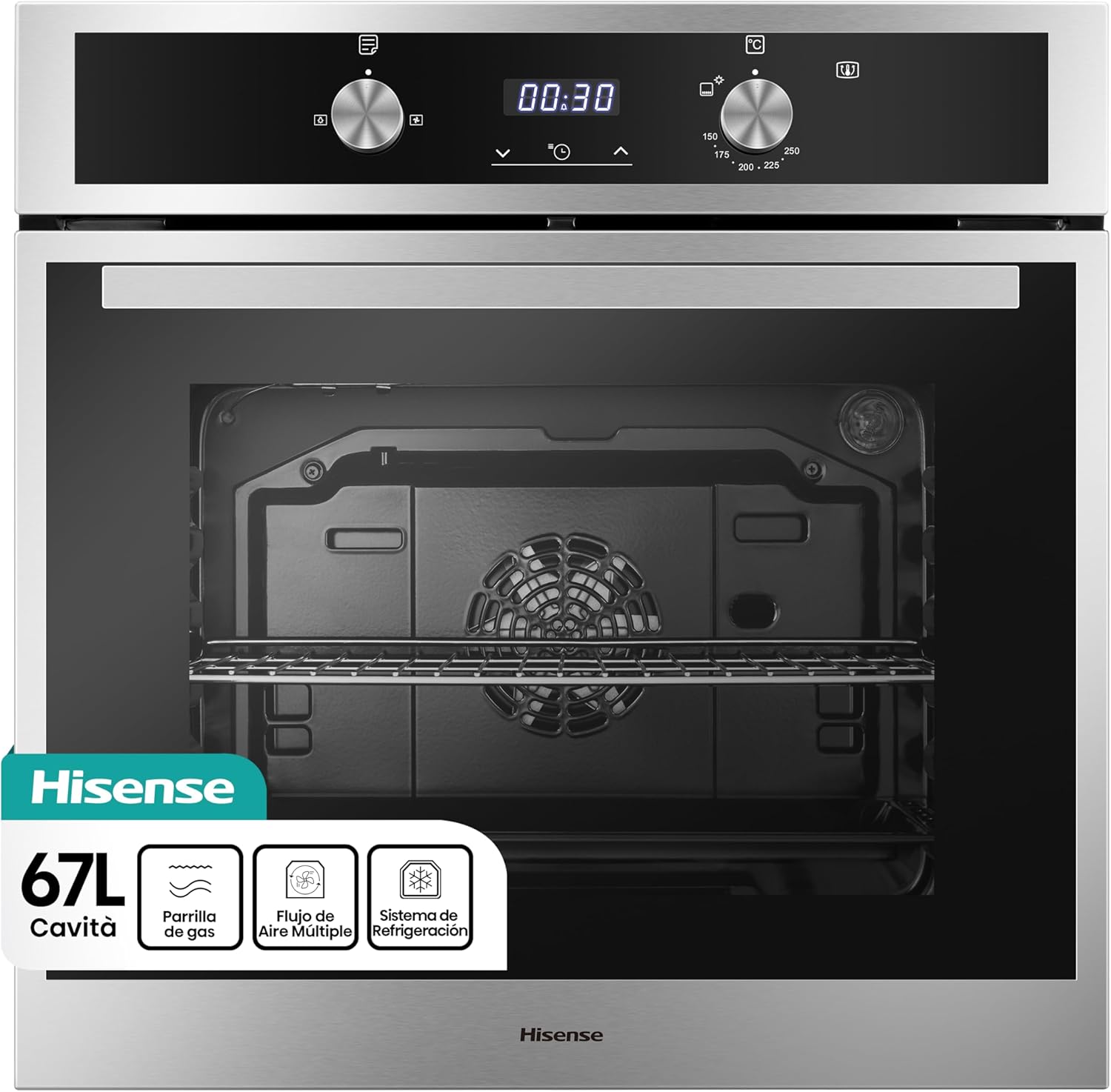

Front view of the Hisense HGO602BS Gas Built-in Oven, showcasing its sleek design and control panel.
A detailed view of the Hisense HGO602BS oven's interior, showing the fan and rack, along with a close-up of the control panel.
4. Setup and Installation
4.1 Unpacking
Carefully remove all packaging materials from the oven. Inspect the appliance for any signs of damage. Retain packaging for potential future transport or service.
4.2 Installation Requirements
The Hisense HGO602BS oven must be installed into a suitable kitchen cabinet. Ensure the cabinet dimensions meet the required cutout specifications for a secure fit and proper ventilation. This appliance requires both electrical and gas connections. Installation must be performed by a qualified technician in compliance with all local and national electrical and gas safety standards.

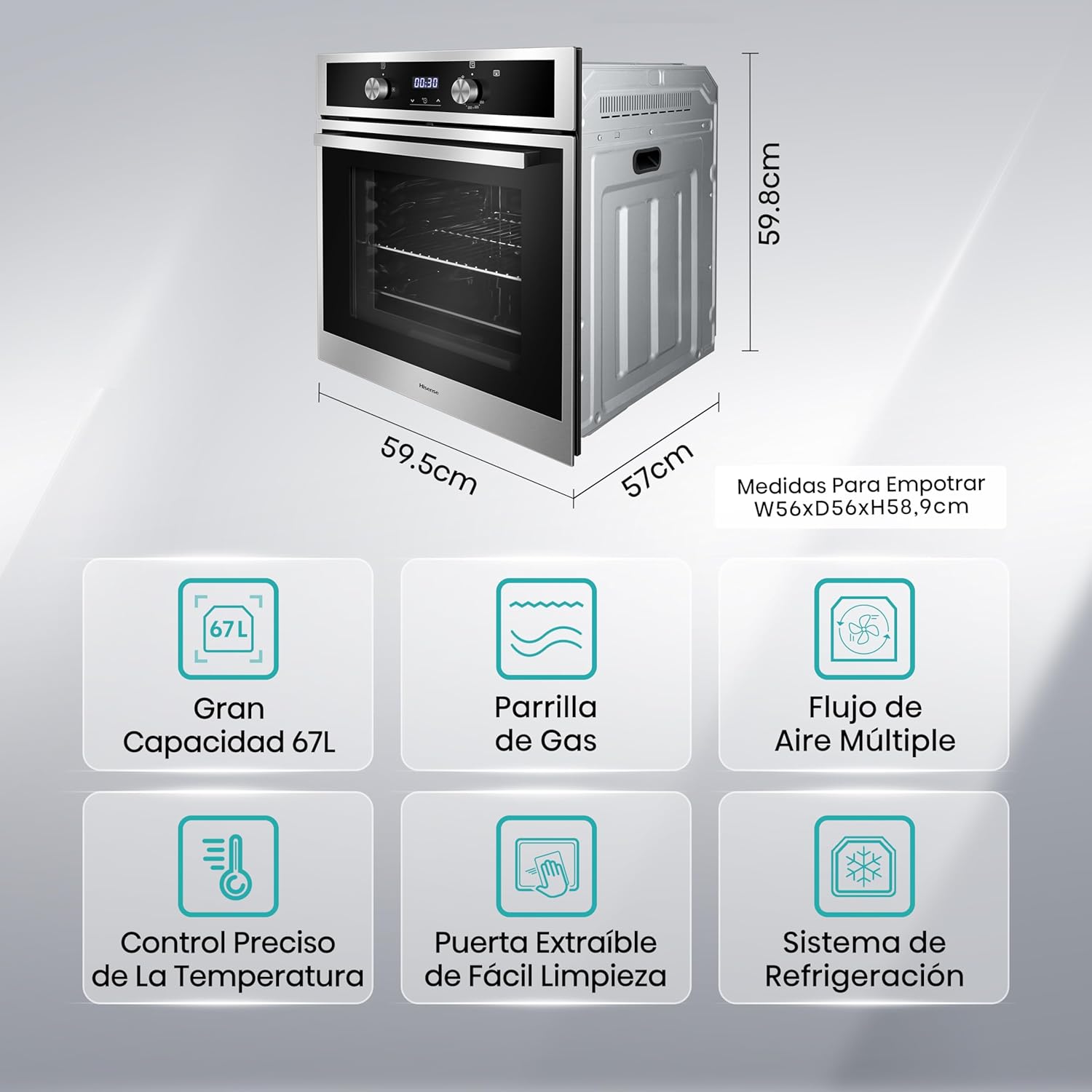

This image shows the Hisense HGO602BS built-in gas oven with its dimensions: 59.5 cm width, 57 cm depth, and 59.8 cm height. It also indicates the cutout dimensions for installation: W56 x D56 x H58.9 cm.
5. Operating Instructions
5.1 Control Panel Overview
The oven features a user-friendly control panel with two rotary knobs for function and temperature selection, and a digital display for time and various settings.
A close-up view of the Hisense HGO602BS oven's control panel, featuring two rotary knobs for function and temperature selection, and a digital display for time and settings.
5.2 Initial Use
Before first use, operate the oven empty at maximum temperature for approximately 30 minutes to burn off any manufacturing residues. Ensure the kitchen is well-ventilated during this process.
5.3 Setting the Time and Timer
Use the digital display and control buttons to set the current time and to activate the cooking timer. The timer provides an audible alert when the set time has elapsed, helping you manage cooking durations effectively.

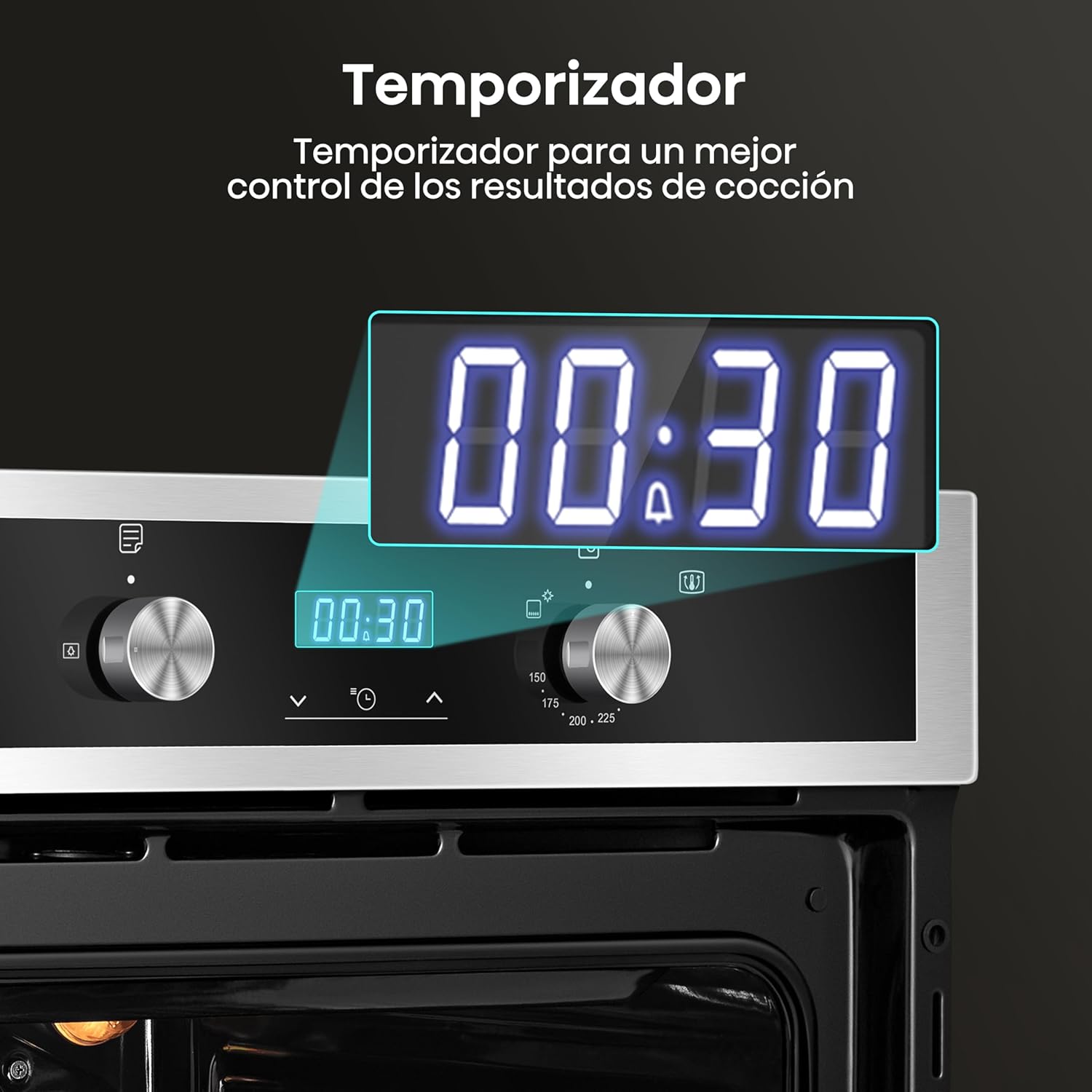

The digital display of the Hisense HGO602BS oven showing '00:30', indicating the timer function in operation.
5.4 Oven Functions
- Multi-air Flow: The convection fan located at the rear circulates hot air evenly throughout the oven cavity. This ensures consistent temperatures, leading to faster cooking times and uniform results for baking and roasting.
- Gas Grill: The oven features an open flame gas grill for direct heat cooking. This function is highly sensitive and allows for precise heat adjustment, ideal for grilling and browning dishes.
- Precise Temperature Control: This feature ensures consistent and accurate temperatures within the oven, eliminating uneven cooking and burnt edges. It guarantees excellent results for all your culinary preparations.

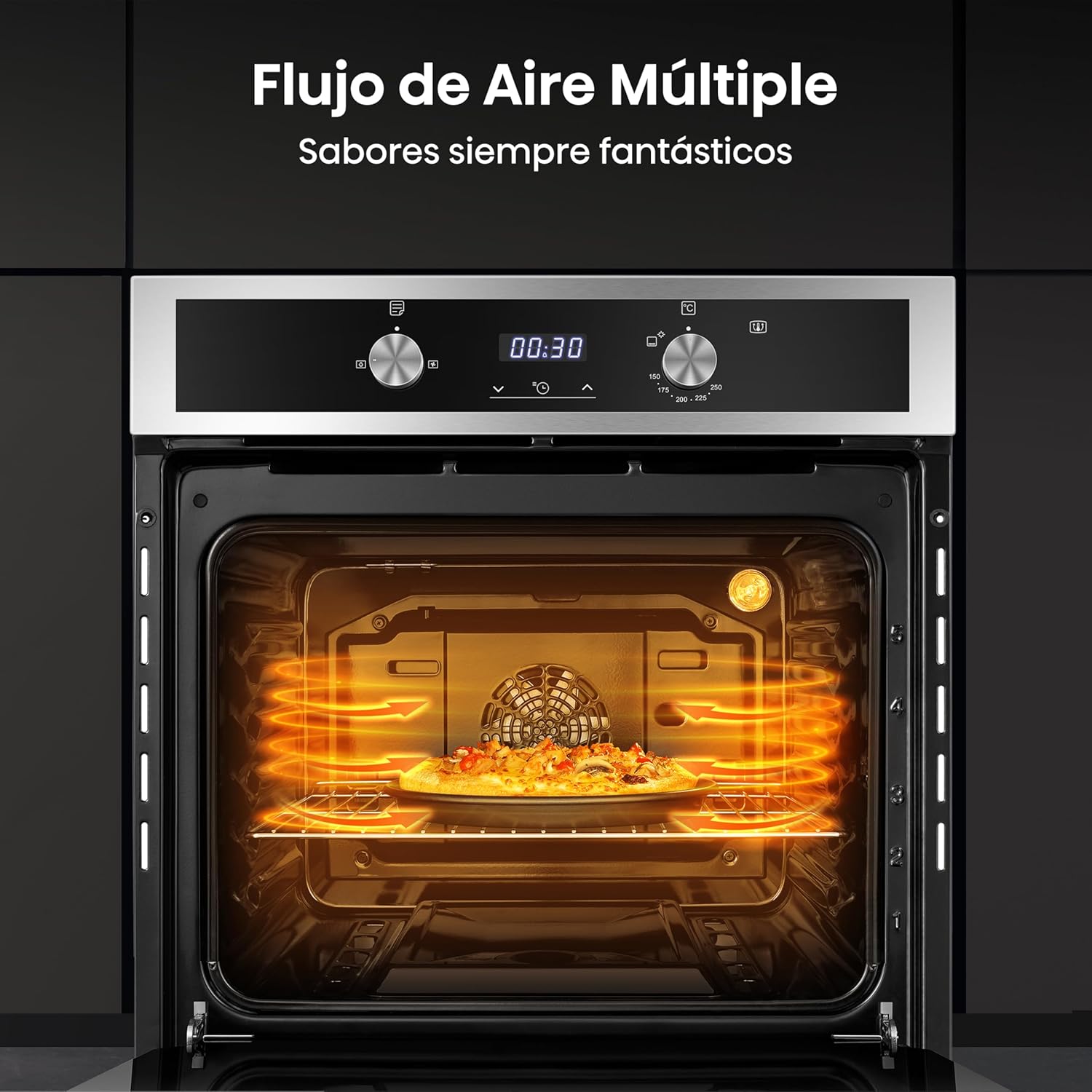

The interior of the Hisense HGO602BS oven, highlighting the multi-air flow system with arrows indicating heat distribution around a pizza on the rack.

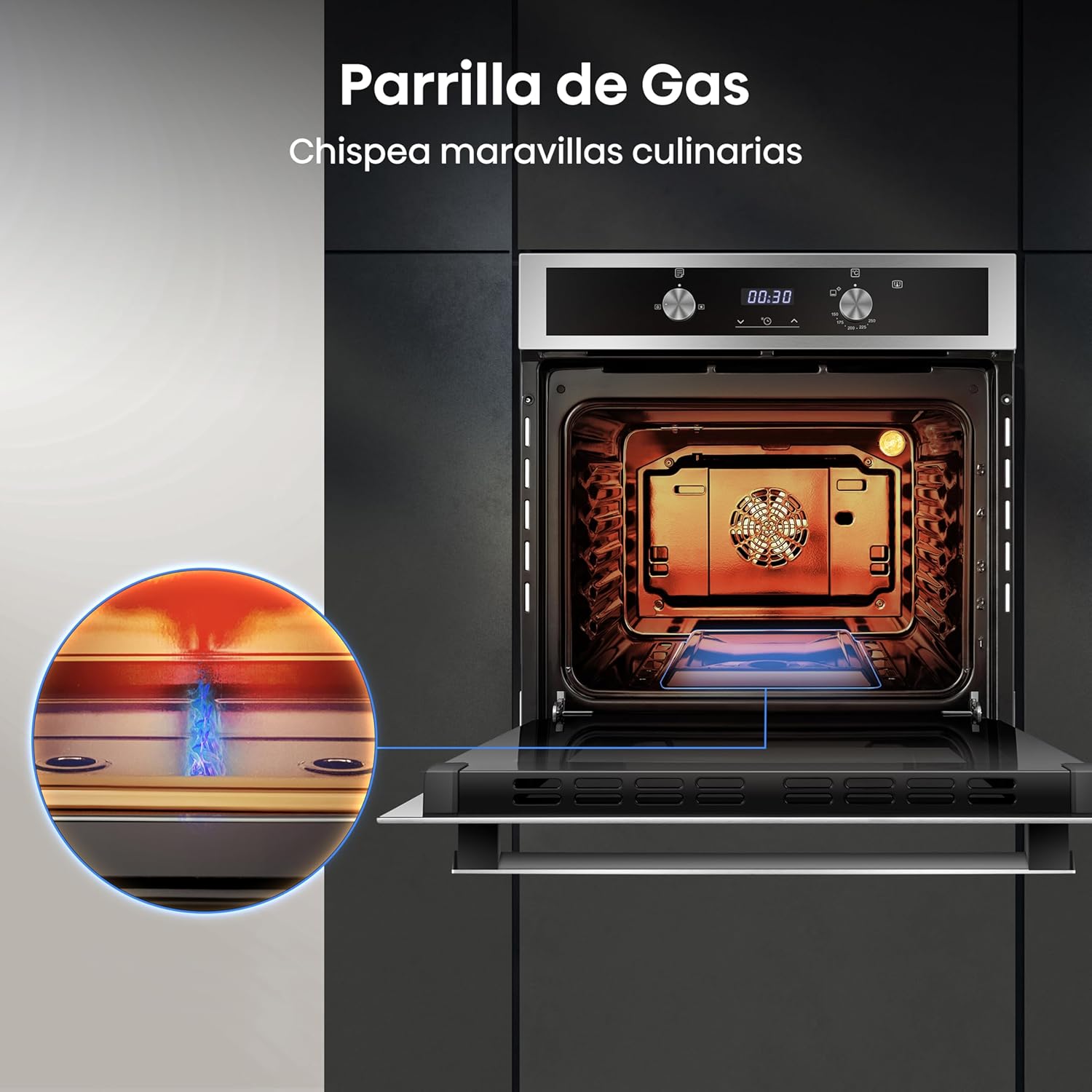

A detailed view of the Hisense HGO602BS oven's gas grill, showing the open flame heating element for precise grilling.
An image illustrating the precise temperature control feature of the Hisense HGO602BS oven, with a graph showing stable temperature curves and a perfectly roasted turkey.
6. Maintenance and Cleaning
6.1 General Cleaning
Regularly clean the oven interior and exterior with a soft cloth and mild detergent. Avoid abrasive cleaners or harsh chemicals that can damage surfaces. For stubborn stains, use oven-specific cleaning products as directed.
6.2 Easy-Clean Removable Door
For optimal cleaning, the oven door can be easily removed. Follow these steps:
- Open the oven door fully.
- Locate the hinge locks on both sides and flip them open.
- Partially close the door to an angle of approximately 45 degrees.
- Gently lift the door upwards and outwards to detach it from the oven frame.
- Clean the door glass and frame using appropriate cleaning agents.
- To reattach, align the hinges with the slots and push down until secure, then close the hinge locks.
The Hisense HGO602BS oven with its door partially removed, demonstrating the easy-clean removable door feature for thorough cleaning.
6.3 Cooling System
The oven is equipped with a powerful cooling system that helps maintain a lower external temperature during operation, reducing the risk of burns. In some models, the cooling fan may continue to operate for a period after the oven is turned off until the internal temperature drops to a safe level (e.g., 60°C).
A diagram showing the Hisense HGO602BS oven with its external cooling system highlighted in blue, indicating how it keeps the exterior cool.
7. Troubleshooting
Before contacting customer service, please refer to the following table for common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Oven not heating | No power supply; Gas supply off; Incorrect settings. | Check power connection; Ensure gas valve is open; Verify function and temperature settings. |
| Uneven cooking | Improper rack position; Overcrowding the oven; Door not fully closed. | Use recommended rack positions; Avoid overcrowding; Ensure door is sealed properly. |
| Digital display not working | Power interruption; Faulty connection. | Check power supply; If problem persists, contact service. |
| Excessive smoke during cooking | Food spills; Excessive fat/grease; First-time use residue. | Clean oven interior; Use appropriate cooking methods; Ensure proper ventilation during initial burn-off. |
8. Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Hisense |
| Model Number | HGO602BS |
| Capacity | 67 Liters |
| Product Dimensions (W x D x H) | 59.5 x 57 x 59.8 cm |
| Weight | 29.2 kg |
| Voltage | 120 Volts |
| Annual Energy Consumption | 7000 Kilowatt Hours |
| Material | Metal |
| Heating Method | Convection |
| Special Features | Cooling System, Gas Ovens, Interior Lights, Multi Air Flow, Timer |
9. Warranty and Support
For warranty information, please refer to the documentation provided with your purchase or visit the official Hisense website. For technical support, service requests, or to purchase replacement parts, please contact Hisense customer service through the channels listed on their official website or your purchase receipt.
