LUVODI Smart LED Bathroom Mirror (Model XM183-B96) User Manual

1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your LUVODI Smart LED Bathroom Mirror, Model XM183-B96. Please read this manual thoroughly before installation and use to ensure safe and optimal performance.

2. Important Safety Information

CAUTION: This mirror is heavy and has sharp edges. Always use caution when handling. For safe installation, consult a professional electrician. Keep the mirror away from water sources to prevent electrical hazards. Do not use the mirror if the glass is cracked or damaged.

• Always disconnect power before installation or servicing.
• Ensure the mounting surface is structurally sound and can support the mirror's weight.
• Do not attempt to repair or modify the mirror yourself. Contact qualified service personnel.
• Avoid using abrasive cleaners or sharp objects on the mirror surface.

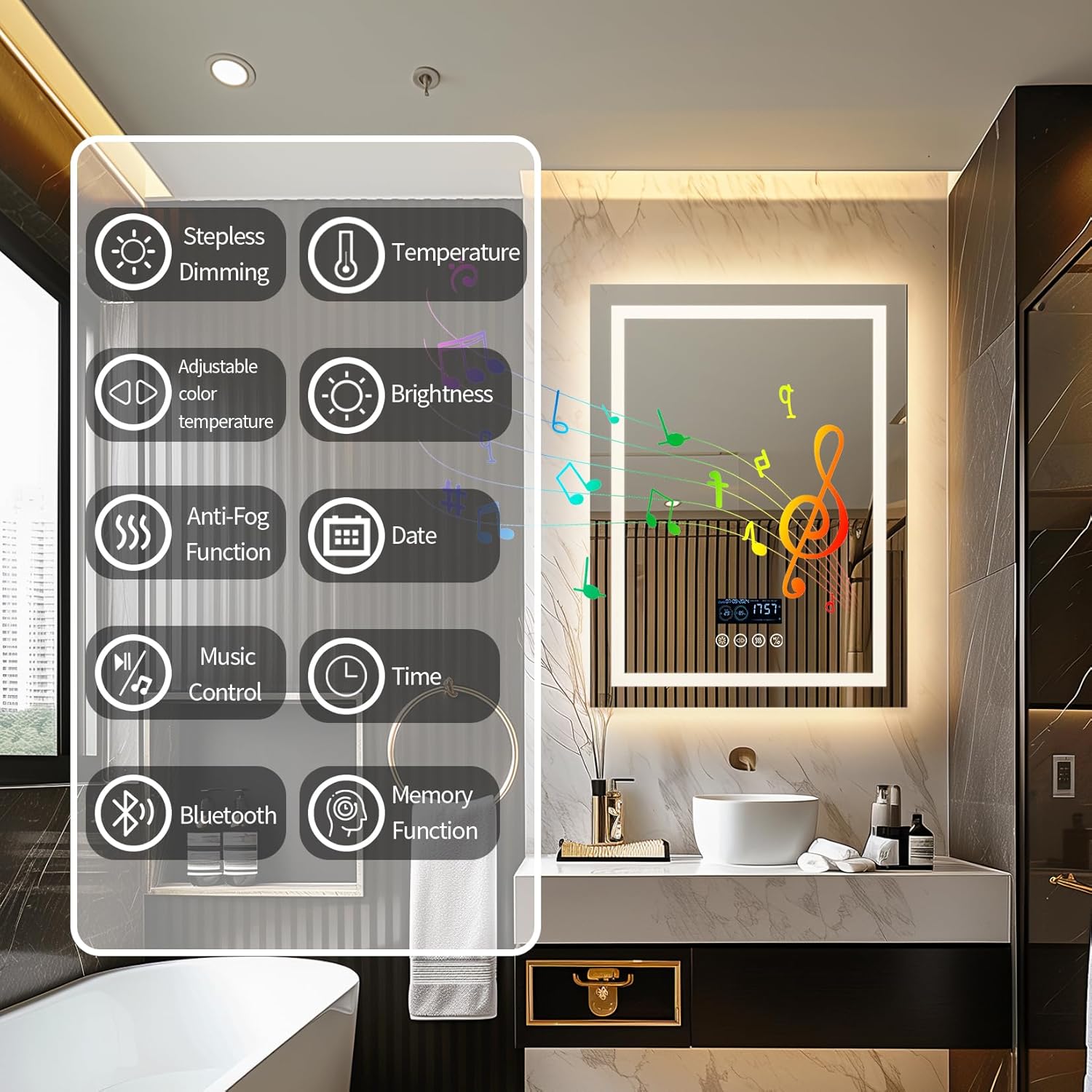

3. Product Features

The LUVODI Smart LED Bathroom Mirror offers a range of advanced features for enhanced convenience and functionality:

• Bluetooth Speaker: Integrated speakers provide 360° surround sound for audio playback. Control music via mirror touch buttons or connected device.
• Digital Display: Shows real-time date, time, temperature, and humidity.
• HD Mirror: 5mm thick, copper-free, antioxidant, shatter-proof glass with CRI>95 for accurate reflection.
• Dual Dimmable Lighting: Features both front light and backlit illumination, brighter than single backlit mirrors. Full range dimming and 3 color temperatures (3000K, 4500K, 6000K).
• Anti-Fog Function: Built-in demister pads clear steam within 3-4 minutes, ensuring a fog-free mirror surface.
• Memory Function: Retains previous lighting and settings upon power cycle.
• IP56 Rated: Light strips are covered by silicone tube, and inner components are protected by the back panel for water resistance.
• Horizontal Mount: Designed for horizontal wall mounting.

4. Specifications

5. Installation

5.1 Unpacking

• Carefully remove the mirror from its packaging. Inspect for any damage.
• Retain all packaging materials until you are satisfied with the product.

5.2 Mounting Instructions

The LUVODI LED bathroom mirror is designed for horizontal wall mounting. It can be hardwired or plugged into an outlet.

1. Choose a suitable location on a structurally sound wall.
2. Mark the desired position for the mounting holes using the provided template (if applicable) or by measuring the keyhole slots on the back of the mirror.
3. Drill pilot holes and insert wall anchors suitable for your wall type.
4. Secure the mounting screws, leaving a small gap for the mirror to hang.
5. Carefully lift the mirror and align the keyhole slots with the screws. Slide the mirror down to secure it.
6. For hardwiring, consult a professional electrician to connect the mirror's wiring to your electrical system. Ensure power is off during this process.
7. Alternatively, plug the mirror into a grounded electrical outlet.

6. Operation

6.1 Touch Controls

The mirror features intuitive touch controls located on the front surface. These controls are responsive even with wet hands.

• Power Button (ON/OFF): Tap to turn the mirror lights on or off.
• Light Color Button: Tap to cycle through 3 color temperatures (3000K Warm White, 4500K Natural White, 6000K Cool White). Long press to adjust brightness.
• Anti-Fog Button: Tap to activate or deactivate the defogging function.
• Bluetooth Control Button: Tap to control music playback (play/pause, skip tracks).

6.2 Bluetooth Speaker Pairing

1. Ensure Bluetooth is enabled on your mobile device.
2. On your device, search for available Bluetooth devices.
3. Select "LUVODI Mirror" (or similar name) from the list to pair.
4. Once paired, audio from your device will play through the mirror's speakers.
5. Use the Bluetooth control button on the mirror or your device to manage music playback.

6.3 Anti-Fog Function

Activate the anti-fog function approximately 3-4 minutes before showering to ensure the mirror remains clear. The demister pad will heat the mirror surface to prevent condensation.

6.4 Memory Function

The mirror will automatically recall the last used lighting settings (brightness and color temperature) when powered on, thanks to its integrated memory function.

7. Maintenance

• Cleaning: Use a soft, damp cloth and a mild glass cleaner to wipe the mirror surface. Avoid abrasive cleaners, ammonia-based products, or sharp objects that could scratch the glass or frame.
• Electrical Components: Do not attempt to clean or service internal electrical components.
• Inspection: Periodically inspect the mirror for any signs of damage or wear. If any issues are found, discontinue use and contact customer support.

8. Troubleshooting

9. Warranty and Support

For warranty information, technical support, or to report a broken or defective product, please contact LUVODI customer service. Refer to your purchase documentation for specific warranty terms and contact details.

You can also visit the official LUVODI store for more information: LUVODI Store on Amazon
