1. Introduction

This manual provides comprehensive instructions for the safe and efficient use of your Motorola MOTOTRBO XPR 3500e UHF Intrinsically Safe Wi-Fi Radio. Please read this manual thoroughly before operating the device to ensure optimal performance and safety.

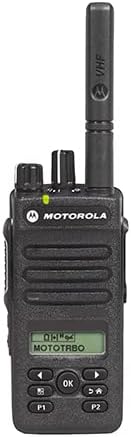

Figure 1: Front view of the Motorola MOTOTRBO XPR 3500e radio, showing its display, keypad, and antenna.

Key Features

• Digital and Analog Transmissions
• 128 Channel Capacity
• Display and Limited Keypad for intuitive control
• UHF Bands for enhanced communication
• 4 Watts (UHF) Power Output
• Battery Life: Up to 19 hours (standard) and 26 hours (high-capacity battery)
• Integrated Bluetooth 4.0 (up to 33 feet range)
• UL Approved Intrinsically Safe design
• IP67 Waterproof and Dust-proof rating
• 4 Programmable Buttons for customized functions
• Integrated Wi-Fi for advanced features

2. Setup

2.1 Unpacking

Carefully remove all components from the packaging. Ensure the following items are present:

• Motorola MOTOTRBO XPR 3500e Radio
• Battery
• Antenna
• Charger
• Belt Clip (if included)
• Documentation (this manual)

2.2 Battery Installation

To install the battery:

1. Align the battery with the battery compartment on the back of the radio.
2. Slide the battery into place until it clicks securely.
3. Ensure the battery latch is fully engaged to prevent accidental detachment.

2.3 Antenna Attachment

Screw the antenna clockwise into the connector on the top of the radio until it is finger-tight. Do not overtighten.

2.4 Charging the Battery

Place the radio with the installed battery into the charging tray. Ensure the charging contacts on the radio align with those on the charger. The charging indicator light will illuminate to confirm charging is in progress. A full charge typically takes several hours.

3. Operation

3.1 Basic Controls

Familiarize yourself with the radio's controls:

• Power/Volume Knob: Located on the top, turn clockwise to power on and increase volume, counter-clockwise to decrease volume and power off.
• Channel Selector Knob: Located on the top, rotate to select desired communication channels.
• Push-to-Talk (PTT) Button: Located on the side, press and hold to transmit, release to listen.
• Programmable Buttons (P1, P2): Located on the front, these can be customized for various functions via programming software.
• Navigation Buttons: Used to navigate menus on the display.

3.2 Powering On/Off

To power on the radio, rotate the Power/Volume knob clockwise until you hear a click. To power off, rotate it counter-clockwise until it clicks.

3.3 Channel Selection

Rotate the Channel Selector knob to choose from the available 128 channels. The selected channel number will be shown on the radio's display. Some Motorola radios feature voice announcements for battery level and channel selection, which can be helpful in low-light conditions or when the display is not easily visible.

3.4 Volume Adjustment

Adjust the volume by rotating the Power/Volume knob. Turn clockwise to increase volume and counter-clockwise to decrease it.

3.5 Transmitting and Receiving

To transmit, press and hold the PTT button, speak clearly into the microphone, and then release the button to listen for a response. Ensure the channel is clear before transmitting.

3.6 Programmable Buttons

The P1 and P2 buttons can be programmed for quick access to frequently used functions such as scan, monitor, or emergency alerts. Refer to the radio's programming software for customization options.

3.7 Wi-Fi and Bluetooth Connectivity

The XPR 3500e features integrated Wi-Fi and Bluetooth 4.0 for enhanced connectivity. Wi-Fi can be used for firmware updates and data applications, while Bluetooth allows for wireless accessories like headsets. Consult the radio's programming guide for detailed setup of these features.

3.8 NOAA Weather Alert

The radio supports NOAA Weather Alerts, providing automatic notifications for severe weather conditions. This feature helps ensure preparedness for unexpected weather events. This functionality is typically available in US models with a channel selector knob.

4. Maintenance

4.1 Cleaning

Clean the radio's exterior with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure all ports and covers are sealed before cleaning to maintain its IP67 rating.

4.2 Battery Care and Storage

To prolong battery life, avoid fully discharging the battery frequently. Store the battery in a cool, dry place when not in use. Do not expose the battery to extreme temperatures or direct sunlight.

5. Troubleshooting

• Radio not powering on: Ensure the battery is correctly installed and charged. Check the power/volume knob position.
• Cannot transmit or receive: Verify that the radio is on the correct channel and within range of other radios. Check antenna connection.
• Poor audio quality: Adjust the volume. Ensure the microphone and speaker are not obstructed. Check for interference.
• Battery not charging: Ensure the charger is properly connected to a power source and the radio is correctly seated in the charging tray.

For further assistance, refer to the support section or contact Motorola Solutions customer service.

6. Specifications

7. Warranty Information

This product comes with a 1-year manufacturer's warranty. For detailed terms and conditions, please refer to the warranty card included with your product or visit the official Motorola Solutions website.

8. Support

For additional support, frequently asked questions, or to purchase accessories, please visit the official Motorola Solutions Store:

Visit the Motorola Solutions Store
