Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your EMTOP EDBRH1301 1300W SDS HEX Demolition Breaker. Please read these instructions carefully before using the tool and keep them for future reference. Proper use and maintenance will ensure optimal performance and extend the lifespan of your equipment.
Product Overview and Included Components
The EMTOP EDBRH1301 is a powerful 1300W demolition breaker designed for heavy-duty tasks. It features an SDS HEX chuck system for secure bit retention and an anti-vibration system for user comfort.

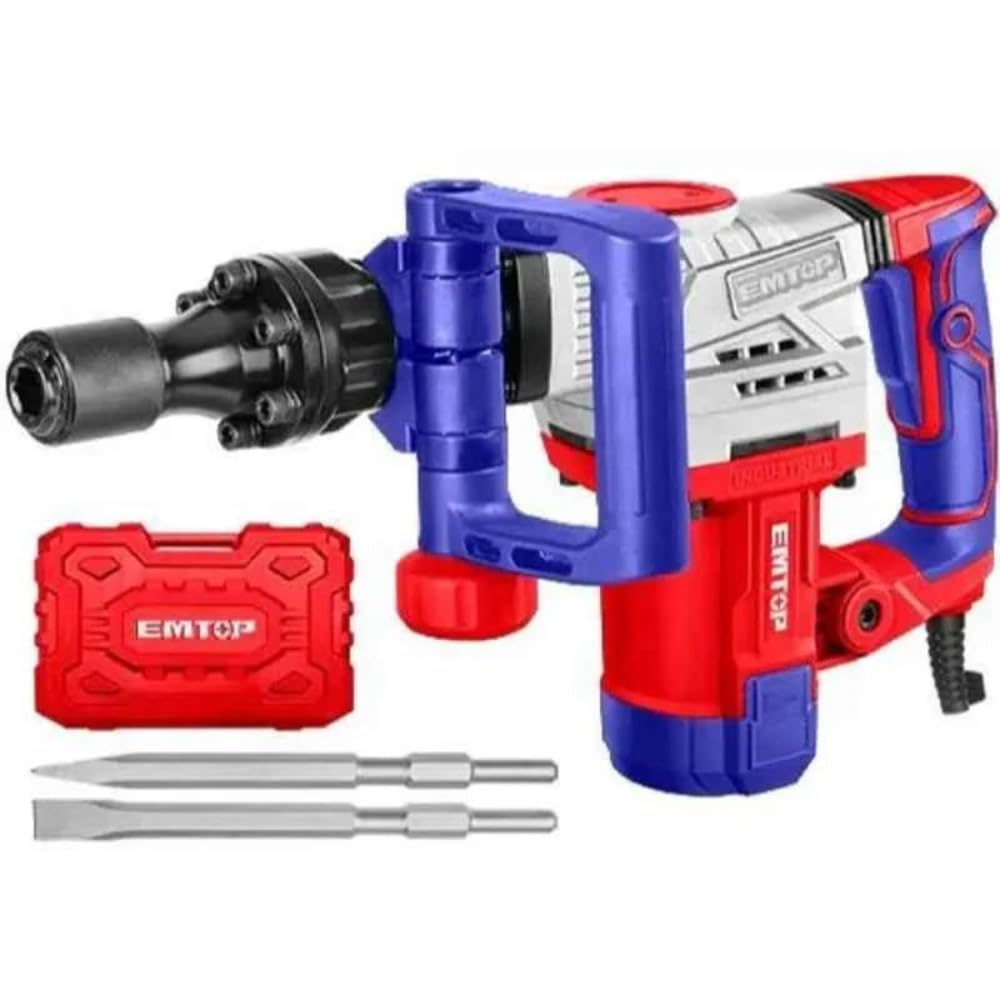

Image 1: The EMTOP EDBRH1301 Demolition Breaker, shown with its two included chisels and the sturdy BMC carrying case.
Included Components:
- EMTOP EDBRH1301 Demolition Breaker
- 2 x Chisels
- Set of spare carbon brushes
- BMC Carrying Case
Important Safety Instructions
Always observe the following safety precautions to reduce the risk of electric shock, fire, and serious injury.
- Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the power tool. Keep cord away from heat, oil, sharp edges, or moving parts.
- Personal Safety: Always wear eye protection. Use hearing protection when operating the tool for extended periods. Wear appropriate dust masks if working in dusty conditions. Do not overreach; keep proper footing and balance at all times.
- Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
- Vibration: The tool features an anti-vibration system. However, prolonged exposure to vibration can cause injury. Take regular breaks and use appropriate gloves.
Setup and Assembly
Before starting any work, ensure the tool is unplugged from the power source.
- Chisel Installation (SDS HEX System):
Clean the shank of the chisel before insertion. Pull back the chuck collar, insert the chisel into the chuck until it clicks into place. Release the collar. Pull on the chisel to ensure it is securely locked. The SDS HEX system allows for slight movement of the chisel once installed; this is normal and necessary for the impact mechanism.
- Power Connection:
Connect the power cord to a suitable 220-240V~50/60Hz power outlet. Ensure the outlet is properly grounded.
Operating the Demolition Breaker
The EMTOP EDBRH1301 is designed for breaking concrete, brick, and other masonry materials. Always ensure you have a firm grip on the tool and maintain balance.
- Starting the Tool: Press the ON/OFF switch to start the tool.
- Stopping the Tool: Release the ON/OFF switch to stop the tool.
- Working Technique: Apply steady, firm pressure to the tool. Allow the tool's impact mechanism to do the work. Do not lean excessively or apply excessive force, as this can reduce efficiency and increase user fatigue.
- Anti-Vibration System: The integrated anti-vibration system helps to reduce user fatigue during extended operation. Hold the tool firmly but comfortably.
- Overheating: If the tool becomes excessively hot, stop operation and allow it to cool down before continuing.
Maintenance
Regular maintenance ensures the longevity and safe operation of your demolition breaker.
- Cleaning: After each use, clean the tool's exterior with a damp cloth. Remove any dust or debris from ventilation openings. Do not use harsh chemicals or abrasive cleaners.
- Chisel Care: Keep chisels sharp and free from damage. Replace worn or damaged chisels to maintain optimal performance. Lightly grease the chisel shank before insertion into the chuck.
- Carbon Brush Replacement: The tool is supplied with spare carbon brushes. When the motor performance decreases or sparks become excessive, the carbon brushes may need replacement. This procedure should ideally be performed by a qualified technician. Refer to the service diagram for location.
- Storage: Store the tool in its BMC carrying case in a dry, secure location, out of reach of children.
- Inspection: Periodically inspect the power cord for damage. If damaged, have it repaired by a qualified service center.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool does not start | No power supply; Faulty switch; Worn carbon brushes | Check power connection and outlet; Have switch inspected; Replace carbon brushes (professional service recommended) |
| Reduced impact force | Worn chisel; Internal mechanism issue; Insufficient pressure | Replace chisel; Contact service center; Apply steady, firm pressure |
| Excessive sparking from motor | Worn carbon brushes; Dirty commutator | Replace carbon brushes; Have commutator cleaned (professional service recommended) |
| Tool overheating | Prolonged heavy use; Blocked ventilation slots | Allow tool to cool down; Clean ventilation slots |
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | EMTOP |
| Model | EDBRH1301 |
| Power Source | Corded Electric |
| Motor Power | 1300W |
| Impact Rate | 3800 BPM (Blows Per Minute) |
| Impact Force | 20 Joules |
| Chuck System | SDS HEX |
| Voltage | 220-240V~50/60Hz (AC) |
| Amperage | 16 Amps |
| Item Weight | 9.46 Kilograms |
| Product Dimensions | 50L x 34W x 14H Centimeters |
Warranty and Support
EMTOP products are manufactured to high-quality standards. For information regarding warranty coverage, service, or technical support, please refer to the warranty card included with your product or contact EMTOP customer service directly. Keep your purchase receipt as proof of purchase.
For further assistance, please visit the official EMTOP website or contact your local authorized service center.
