Introduction
This instruction manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your MechMaxx 48'' inch PTO Powered 3 Point Standard Duty Flail Mower, Model EFS48. Please read this manual thoroughly before operating the equipment to ensure proper use and to prevent injury or damage.
The MechMaxx EFS48 flail mower is designed for effective mulching of various materials up to 0.75 inches in diameter, making it suitable for maintaining fields, pastures, and other overgrown areas. Its robust construction and efficient power transmission ensure reliable performance.
Safety Information
WARNING:
- Always read and understand the entire manual before operating the flail mower.
- Ensure all safety guards and shields are in place and properly secured before operation.
- Keep hands, feet, and clothing away from moving parts.
- Maintain a safe distance from the mower during operation. The manufacturer recommends staying back at least 150 feet.
- Wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, and sturdy footwear.
- Never allow children or untrained individuals to operate the equipment.
- Disconnect the PTO shaft and turn off the tractor engine before performing any maintenance or adjustments.
- Oils and lubricants contain hazardous materials; limit exposures and dispose of them properly.
Product Overview
The MechMaxx EFS48 flail mower is a robust attachment designed for efficient land clearing and maintenance. It features a 48-inch working width and is equipped with 20 flail hammers for effective mulching.
Key design elements include front safety chains to contain debris, sealed tapered roller bearings for durability, and a convenient kickstand for stable storage when not in use.
Setup and Assembly
1. Attaching to Tractor
The MechMaxx EFS48 flail mower is designed for easy connection to Category 1, 3-point hitch tractors with 15-35HP. The PTO shaft RPM should be 540 RPM.
- Align the mower's 3-point hitch with the tractor's lower links.
- Secure the lower links with appropriate pins.
- Connect the top link to the mower and secure it.

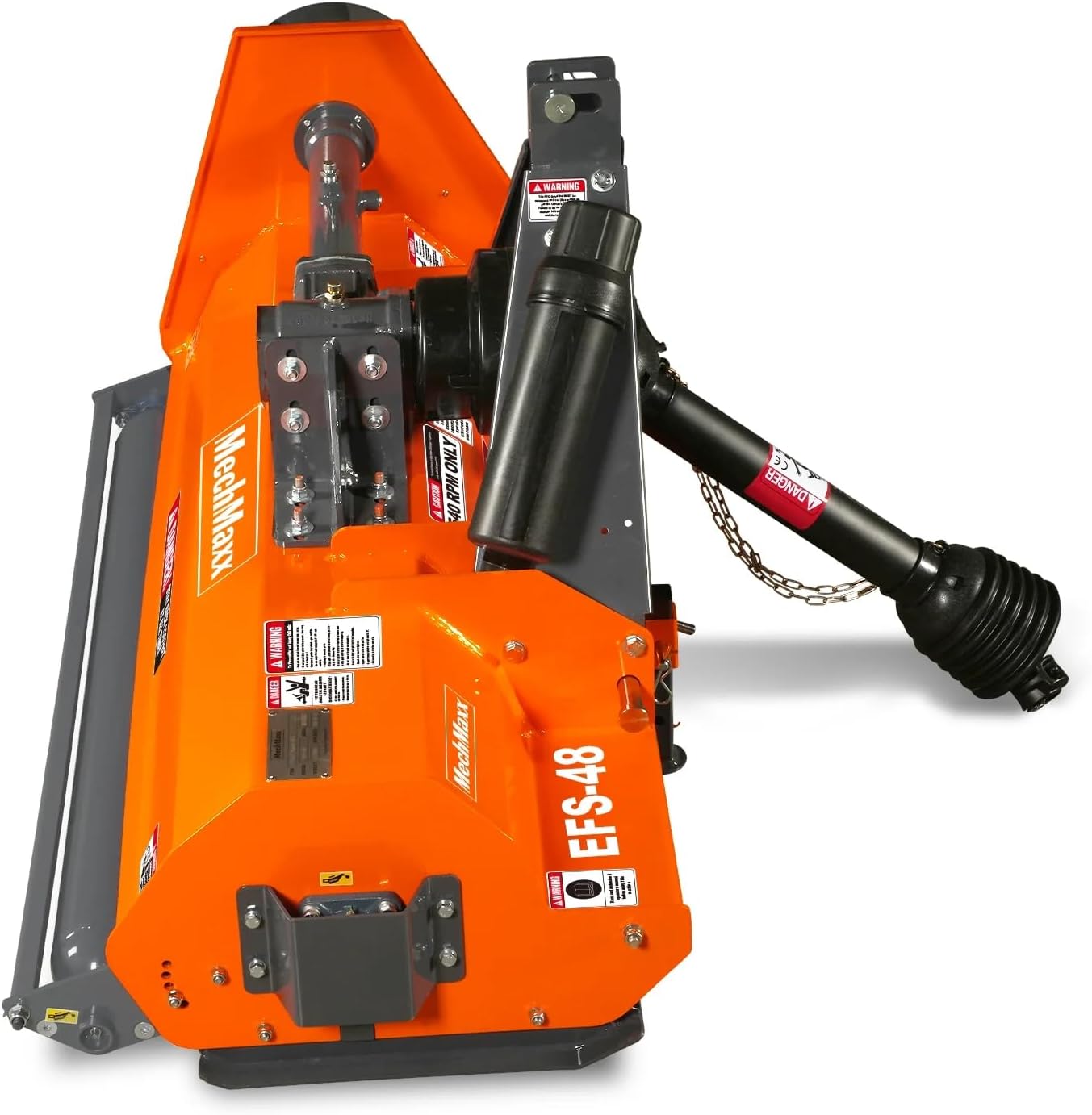

- Attach the PTO drive shaft to the tractor's PTO spline and the mower's input shaft. Ensure it is securely latched.
- Verify that the PTO shaft is properly lubricated and that the safety shields are in place.
Operating Instructions
1. Pre-Operation Checklist
- Ensure all bolts and fasteners are tight.
- Check gearbox oil levels (refer to Maintenance section).
- Inspect flail hammers for wear or damage.
- Verify that the PTO shaft is correctly attached and shielded.
- Clear the work area of any large obstacles that could damage the mower.
2. Mowing Operation
The EFS48 flail mower has a 48-inch working width and can mulch material up to 0.75 inches in diameter. The mowing height can be adjusted between 0.6 and 1.8 inches above ground.
- Start the tractor and engage the PTO at the recommended 540 RPM.
- Lower the flail mower to the desired cutting height using the tractor's hydraulic controls.
- Begin mowing at a slow, steady pace. Adjust ground speed based on the density and type of material being mulched.
- Avoid sudden turns or excessive speed, which can strain the equipment.
- Monitor the mower's performance and listen for unusual noises.
3. Post-Operation
- Disengage the PTO and turn off the tractor engine.
- Allow the mower to cool down before cleaning or inspection.
- Clean off any accumulated debris from the mower deck and flail hammers.
- Store the mower on its kickstand in a dry, secure location.
Maintenance
Regular maintenance is crucial for the longevity and optimal performance of your MechMaxx flail mower.
1. Gearbox Oil Maintenance
IMPORTANT: The product does not come pre-filled with oil. You MUST add oil before first use.
The gearbox requires SAE 90W Gear Lube. Approximately 1.20L (1.27 quart) of gearbox oil is required. Refer to the owner's manual for precise oil quantity and type.
Watch the official MechMaxx video for a step-by-step guide on adding gear oil:
- Remove Top Vent Plug: Use an appropriate wrench to carefully remove the top vent plug from the gearbox.
- Remove Side Plug: Locate and remove the side plug from the gearbox. This plug often serves as a level indicator.
- Pour in Oil: Slowly pour the recommended SAE 90W Gear Lube into the top vent plug opening until it begins to seep out of the side plug opening.
- Replace Plugs: Once the oil level is correct, replace both the side plug and the top vent plug, ensuring they are securely tightened.
- Repeat for Second Gearbox (if applicable): If your model has a second gearbox, repeat the process for that unit.
2. Belt Transmission
The belt transmission system ensures efficient power transfer. Regularly inspect the belts for wear, cracks, or proper tension. Adjust tension as needed according to the manufacturer's guidelines.
3. Rotor Bearing
The mower features an outside rotor bearing for enhanced durability. Periodically check the bearing for any signs of wear, excessive play, or unusual noise. Lubricate as recommended in the full owner's manual.
4. General Inspection
- Inspect all moving parts for wear or damage.
- Check for loose bolts or nuts and tighten as necessary.
- Clean the mower thoroughly after each use to prevent buildup of debris.
- Store the mower in a dry, protected area to prevent rust and corrosion.
Troubleshooting
This section provides solutions to common issues you might encounter with your MechMaxx flail mower.
| Problem | Possible Cause | Solution |
|---|---|---|
| Mower not engaging PTO | PTO shaft not fully connected; Tractor PTO not engaged; PTO shaft damaged. | Ensure PTO shaft is securely latched; Engage tractor PTO; Inspect and replace damaged PTO shaft. |
| Poor cutting performance | Worn or dull flail hammers; Incorrect cutting height; Excessive ground speed. | Replace worn flail hammers; Adjust cutting height; Reduce tractor ground speed. |
| Excessive vibration or noise | Unbalanced rotor (due to missing/damaged hammers); Loose bolts; Worn bearings. | Inspect and replace damaged flail hammers; Tighten all fasteners; Check and replace worn bearings. |
| Overheating gearbox | Low gearbox oil level; Incorrect oil type; Excessive load. | Check and add gearbox oil (SAE 90W Gear Lube); Ensure correct oil type is used; Reduce load or operating speed. |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact MechMaxx customer support for assistance.
Specifications
| Feature | Detail |
|---|---|
| Brand | MechMaxx |
| Model Number | EFS48 |
| Power Source | Tractor PTO |
| Compatible Tractor HP | 15-35 HP |
| PTO Shaft RPM | 540 RPM |
| Hitch Type | Category 1, 3 Point Hitch |
| Cutting Width | 48 Inches |
| Max. Cutting Diameter | 0.75 Inches |
| Adjustable Cutting Height | 0.6 - 1.8 Inches |
| Number of Hammers | 20 |
| Item Weight | 379 Pounds |
| Product Dimensions (D x W x H) | 26"D x 56"W x 29"H |
| Color | Orange |
| Country of Origin | China |
