1. Introduction
Thank you for choosing the Cooktron Double Touch Control Induction Cooktop. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.
This induction cooktop features two independent cooking zones with touch controls, offering a total power output of 3500W for rapid heating and versatile cooking.
2. Safety Instructions
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Ensure the cooktop is placed on a stable, flat, heat-resistant surface.
- Only use induction-compatible cookware.
- Keep a minimum distance of 10 cm from walls or other objects to ensure proper ventilation.
3. Product Overview
The Cooktron FYM35-S20 induction cooktop features two cooking zones with independent controls, a sleek glass surface, and a portable design.
Image: Cooktron Double Induction Cooktop with 3500W total power distribution (2000W left, 1500W right).
The cooktop provides a total power of 3500W, with the left zone capable of up to 2000W and the right zone up to 1500W, allowing for efficient and flexible cooking.
4. Setup
- Unpacking: Carefully remove the cooktop from its packaging. Retain packaging materials for future transport or storage.
- Placement: Place the induction cooktop on a dry, stable, and heat-resistant surface. Ensure there is adequate ventilation around the unit. Do not block the air vents located on the bottom and sides of the appliance.
- Power Connection: Ensure your power outlet matches the voltage and frequency requirements specified on the product label. Plug the power cord into a grounded electrical outlet. The cord length is approximately 1.2 meters.
- Initial Cleaning: Before first use, wipe the glass surface with a damp cloth.
Image: Cooktron Induction Cooktop dimensions and power cord length.
The compact and portable design makes it suitable for various kitchen setups.
5. Operating Instructions
5.1. Compatible Cookware
Induction cooktops require cookware made of ferromagnetic material. To check if your cookware is compatible, hold a magnet to the bottom of the pot or pan. If the magnet sticks, the cookware is suitable for induction cooking.
- Compatible: Cast iron, iron pot, magnetic pot, stainless steel (with magnetic bottom).
- Incompatible: Glass, ceramic, copper, aluminum (unless specifically designed for induction).
The recommended cookware diameter is between 12 cm and 26 cm.
Image: Compatible cookware types and size range for the induction cooktop.
5.2. Powering On and Basic Operation
- Place suitable cookware with contents on the desired cooking zone.
- Press the Power button (
) to turn on the cooktop. The display will show 'ON'. - Select the cooking zone you wish to use by pressing its corresponding Mode button.
- Adjust the power level or temperature using the + and - buttons. The display will show the current power level or temperature setting.
- To turn off a cooking zone, press its Power button again. To turn off the entire cooktop, press the main Power button.
Image: Detailed view of the touch control panel.
5.3. Timer Function
The cooktop includes a timer function for convenient cooking. To set the timer:
- With a cooking zone active, press the Timer button.
- Use the + and - buttons to adjust the desired cooking time (up to 3 hours).
- The timer will start counting down. Once the time expires, the cooking zone will automatically turn off.
5.4. Child Safety Lock
To prevent accidental operation, especially by children, the cooktop is equipped with a child safety lock:
- To activate: With the cooktop on or off, press and hold the Lock button for a few seconds until the lock indicator appears on the display. All controls will be disabled.
- To deactivate: Press and hold the Lock button again for a few seconds until the lock indicator disappears.
6. Maintenance and Cleaning
Regular cleaning ensures the longevity and optimal performance of your induction cooktop.
- Always unplug the cooktop from the power outlet and allow it to cool completely before cleaning.
- Glass Surface: Wipe the glass surface with a soft, damp cloth and a mild detergent. For stubborn stains, use a non-abrasive ceramic hob cleaner. Avoid abrasive sponges or harsh chemicals that could scratch the surface.
- Control Panel: Wipe the control panel with a soft, damp cloth. Ensure no liquid enters the control area.
- Vents: Periodically check and clean the air vents to ensure proper airflow and prevent overheating. Use a soft brush or vacuum cleaner to remove dust.
- Storage: If storing the cooktop for an extended period, ensure it is clean and dry. Store it in a cool, dry place.

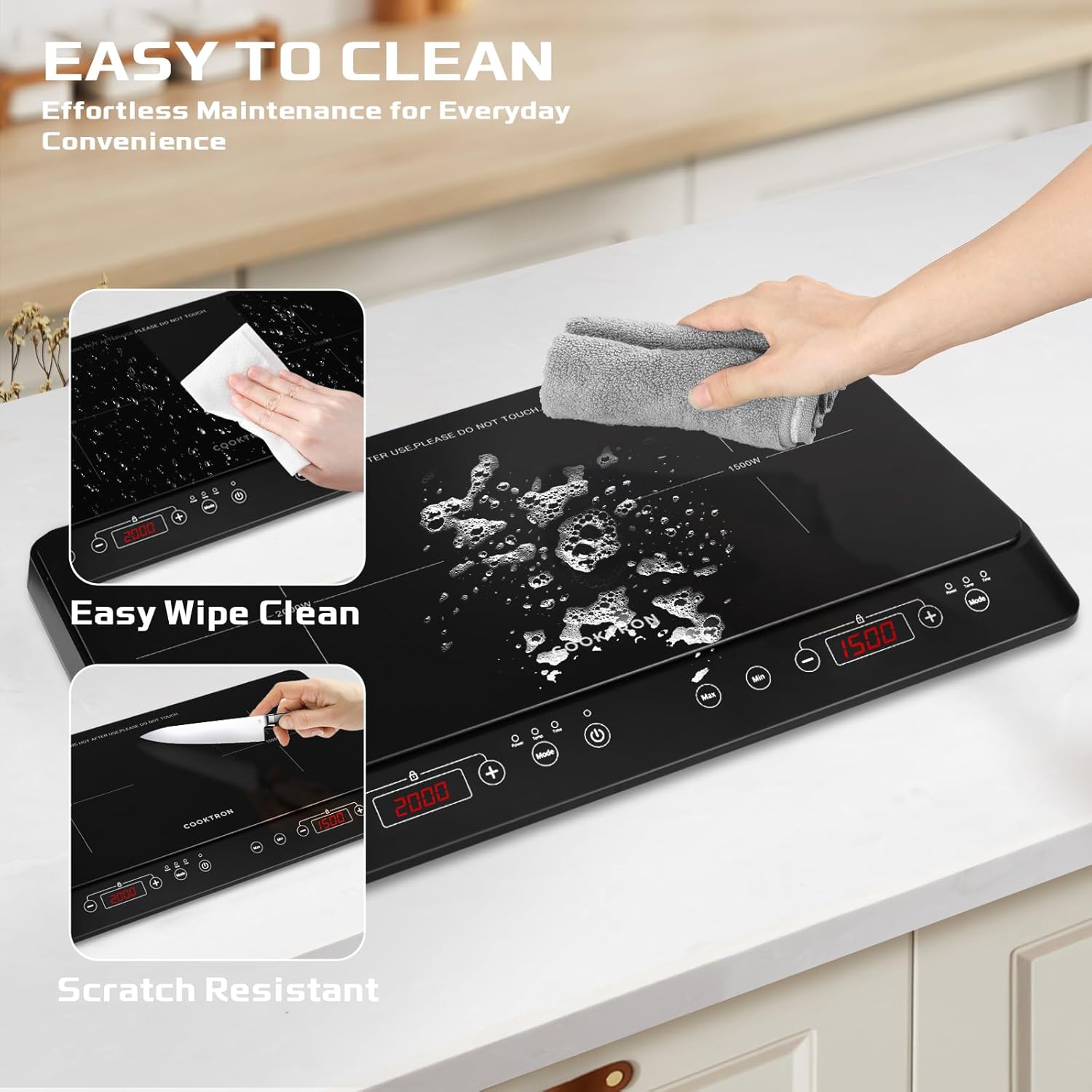

Image: Cleaning the Cooktron Induction Cooktop.
7. Troubleshooting
If you encounter issues with your cooktop, refer to the following table for common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Cooktop does not turn on. | No power supply. | Check if the power cord is securely plugged into a working outlet. Check circuit breaker. |
| Cooktop beeps and displays an error code (e.g., E0, E1). | Incompatible cookware, no cookware, or overheating. | Ensure cookware is induction-compatible and placed correctly. If overheating, turn off and let cool. |
| Cooking zone not heating. | Cookware not detected or incorrect size. | Use induction-compatible cookware with a diameter between 12-26 cm. Ensure it is centered on the zone. |
| Fan noise during operation. | Normal operation. | The cooling fan operates to dissipate heat from internal components. This is normal. |
| Controls are unresponsive. | Child safety lock is active. | Deactivate the child safety lock by pressing and holding the lock button. |
If the problem persists after trying these solutions, please contact customer support.
8. Specifications
| Feature | Specification |
|---|---|
| Model Number | FYM35-S20 |
| Brand | COOKTRON |
| Power Source | Electric |
| Total Power Output | 3500 W |
| Left Heating Element Power | Up to 2000 W |
| Right Heating Element Power | Up to 1500 W |
| Number of Heating Elements | 2 |
| Control Type | Touch |
| Burner Type | Induction |
| Material | Plastic (base), Glass (surface) |
| Product Dimensions (L x W x H) | 55 cm x 33.5 cm x 6.5 cm |
| Item Weight | 3.8 Kilograms |
| Special Feature | Portable |
| Power Cord Length | 1.2 meters (approx.) |
9. Warranty and Support
This Cooktron product is covered by a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including the warranty period and coverage details.
For technical support, troubleshooting assistance, or warranty claims, please contact the retailer where you purchased the product or visit the official Cooktron website for customer service contact information.
Please have your model number (FYM35-S20) and purchase date ready when contacting support.
