ANTSKU 10'x12' Hardtop Gazebo User Manual

Introduction

This manual provides essential information for the safe assembly, operation, and maintenance of your ANTSKU 10'x12' Hardtop Gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

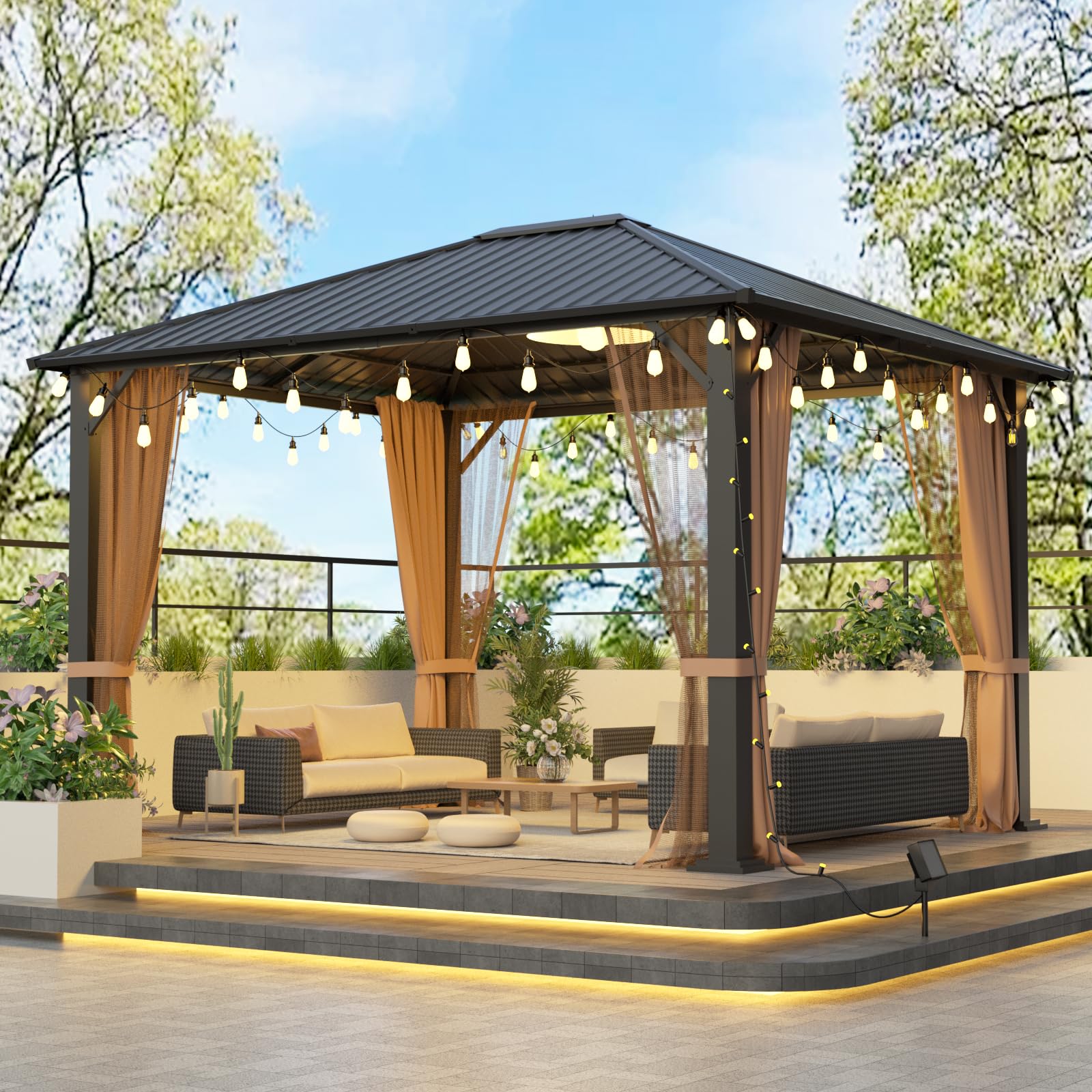

Image: The ANTSKU 10'x12' Hardtop Gazebo, showcasing its overall design and size in an outdoor setting.

Safety Information

Always follow these safety precautions to prevent injury or damage to the product:

• Ensure all components are securely fastened before and after assembly.
• Do not assemble in strong winds or adverse weather conditions.
• Keep children and pets away from the assembly area.
• Regularly inspect the gazebo for loose parts or damage.
• Clear snow accumulation from the roof to prevent structural damage, especially if snow load exceeds 1800 lbs.
• Do not hang heavy objects from the frame or roof.

Package Contents

The ANTSKU 10'x12' Hardtop Gazebo is shipped in two boxes and includes the following components:

• 1 x Hardtop Gazebo Frame (Alloy Steel)
• 1 x Galvanized Steel Single Roof Panel Set
• 1 x Set of Double-Layer Sidewalls (180G Polyester and Mesh)
• All necessary hardware for assembly
• Installation Manual

Specifications

Image: Product dimensions including roof width (142.5"), base width (130"), side depth (105.9"), eave height (81.1"), and peak height (104.7").

Setup Instructions

Assembly of the ANTSKU Hardtop Gazebo requires careful attention to detail. It is recommended that 2 to 5 people work together to complete the setup safely and efficiently. Refer to the included installation manual for step-by-step diagrams and detailed instructions.

Key Assembly Points:

• Site Preparation: Choose a level surface for installation. Ensure adequate clearance around the gazebo.
• Frame Assembly: Connect the galvanized steel posts and beams according to the manual. Ensure all bolts are tightened securely. The posts are approximately 3.15x3.15 inches thick for stability.
• Roof Installation: Carefully attach the galvanized steel roof panels. The professional roof drainage system should be correctly aligned to channel rainwater.
• Corner Reinforcement: Pay attention to the four reinforced corners during assembly, as they enhance durability and safety.

Image: Detail of a reinforced corner bracket, highlighting the sturdy connection points of the alloy steel frame.

Image: Underside view of the galvanized steel roof, showing the internal support structure and panel connections.

Operating Instructions

Roof System:

The 0.5mm thick galvanized steel roof provides 100% UV protection and is designed to withstand various weather conditions. Its integrated drainage system efficiently channels rainwater, preventing accumulation.

Sidewalls and Nettings:

The gazebo features a dual track system with double-layer sidewalls, consisting of 180G polyester privacy curtains and mesh nettings. Both layers have double-sided zippers for easy access and adjustment.

• Privacy Curtains: Use the polyester curtains for privacy and protection from sun and light rain. They can be tied back to the posts when not in use.
• Mesh Nettings: Deploy the mesh nettings to provide ventilation while keeping insects out.

Image: Visual representation of the zippered two-tier curtains, showing both the privacy curtains and the mesh sidewalls in use.

Integrated Hooks:

Built-in hooks are provided for hanging lightweight items such as fans, lights, or decorative elements. Do not exceed the weight limit specified in the full assembly manual.

Maintenance

Frame:

• Clean the galvanized steel frame with a mild soap and water solution. Rinse thoroughly and dry to prevent water spots.
• Inspect all bolts and connections periodically and tighten if necessary.
• Check for any signs of rust or corrosion, especially after prolonged exposure to moisture. Address any issues promptly with appropriate rust-inhibiting treatments.

Roof:

• Keep the galvanized steel roof free of debris, leaves, and snow.
• Clean the roof panels with a soft brush and water. Avoid abrasive cleaners that could damage the finish.
• Ensure the roof drainage system remains clear to prevent water buildup.

Image: Detail of the weather-resistant steel hardtop roof and the durable polyester fabric of the curtains, designed for UV and water resistance.

Sidewalls:

• The 180G polyester and mesh sidewalls can be spot cleaned with a mild detergent and water.
• Allow sidewalls to air dry completely before folding or storing to prevent mildew.
• Store sidewalls indoors during extreme weather conditions or off-season to prolong their lifespan.

Troubleshooting

Gazebo Instability:

• Issue: Gazebo feels wobbly or unstable after assembly.
  Solution: Recheck all frame connections and ensure all bolts are securely tightened. Verify that the gazebo is placed on a level surface. Consider anchoring the gazebo to the ground if not already done.

Water Leakage from Roof:

• Issue: Water drips from the roof during rain.
  Solution: Inspect roof panels for proper overlap and sealing. Ensure all roof panel screws are tight. Check the roof drainage system for any blockages.

Curtains/Nettings Not Moving Smoothly:

• Issue: Sidewalls or nettings get stuck when opening or closing.
  Solution: Check the dual track system for any obstructions or debris. Ensure the fabric is not caught in the zippers or tracks. Apply a silicone-based lubricant to the tracks if needed.

Warranty and Support

Warranty Information:

The ANTSKU 10'x12' Hardtop Gazebo comes with a 12-month warranty from the date of purchase, covering manufacturing defects.

Return and Replacement Policy:

A 30-day return or replacement policy is offered for eligible products. Please refer to your purchase documentation for specific terms and conditions.

Customer Support:

If you have any questions, concerns, or require assistance with your ANTSKU Hardtop Gazebo, please contact our customer support team. We aim to address all inquiries within 24 hours.

Contact Information: Please refer to your purchase receipt or the ANTSKU brand store on Amazon for the most current contact details.
