TRUPER ASP-P11X Plastic Sprinkler User Manual

Introduction

This manual provides comprehensive instructions for the safe and efficient use of your TRUPER ASP-P11X plastic sprinkler. Please read all instructions carefully before installation and operation to ensure proper function and longevity of the product. Retain this manual for future reference.

Product Features

Rotating Sprinkler Head: Equipped with a plastic pulse head for adjustable and efficient water distribution.
Durable Stake: Features an 11-inch zamak stake for secure and stable ground placement.
ABS Hose Connector: Includes a robust ABS connector for reliable attachment to standard garden hoses.
Click-Set System: Facilitates easy, fast, and automatic hose connection, enhancing user convenience.

Setup Instructions

Unpack Components: Carefully remove the sprinkler and all accessories from the packaging. Inspect for any signs of damage.
Connect Garden Hose: Attach your standard 3/4-inch garden hose to the ABS water hose connector on the sprinkler. Ensure the connection is secure and hand-tightened to prevent leaks. The Click-Set system allows for quick and easy attachment.
Position Sprinkler: Insert the 11-inch zamak stake firmly into the ground in the desired watering area. Ensure the sprinkler head is upright and the stake is stable to prevent tipping during operation.
Adjust Spray Pattern: The rotating head allows for adjustment of the spray pattern and coverage area. Manually rotate the sprinkler head to set the desired arc and distance for water distribution.

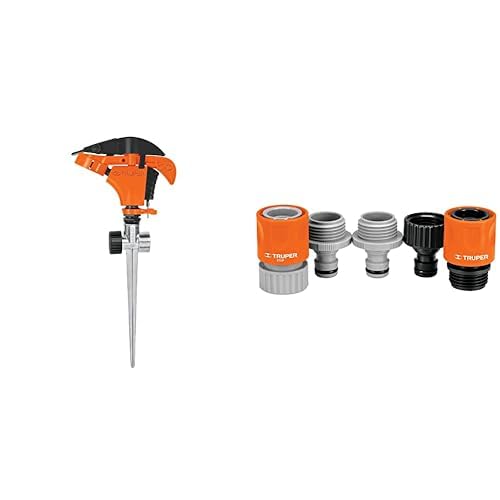

TRUPER ASP-P11X Plastic Sprinkler with 11-inch stake and quick connectors.

An image showing the TRUPER ASP-P11X plastic sprinkler, featuring its rotating head, 11-inch zamak stake, and quick-connect hose fittings.

Operating Instructions

Initiate Water Flow: Slowly turn on the water supply to your garden hose. Observe the sprinkler's operation.
Monitor Coverage: Verify that the sprinkler is covering the intended area. Make minor adjustments to the sprinkler head or position as needed to optimize water distribution.
Determine Watering Duration: Water for an appropriate duration based on the specific needs of your lawn or garden, considering soil type, plant requirements, and local climate conditions.
Conclude Operation: When watering is complete, turn off the water supply at the faucet.

Maintenance

Regular Cleaning: Periodically inspect the sprinkler head for any accumulation of debris, dirt, or mineral deposits that may obstruct the spray nozzles. Clean with a soft brush and water if necessary.
Winter Storage: During periods of freezing temperatures or extended non-use, disconnect the sprinkler from the hose. Drain any residual water from the unit to prevent freeze damage. Store the sprinkler in a dry, protected area.
Component Inspection: Regularly check the hose connector, stake, and sprinkler head for signs of wear, cracks, or damage. Replace any compromised components to maintain optimal performance and prevent leaks.

Troubleshooting

Problem	Possible Cause	Solution
Low water pressure or poor spray pattern	Kinked hose, blocked nozzle, insufficient water supply	Check hose for kinks or obstructions. Ensure water faucet is fully open. Clean sprinkler head nozzles for debris.
Water leaks at hose connection	Loose connection, damaged washer	Ensure the hose connection is tightly secured. Inspect the rubber washer inside the connector for damage and replace if necessary.
Sprinkler head not rotating	Obstruction in mechanism, insufficient water pressure	Check for any physical obstructions around the rotating mechanism. Verify that the water pressure is adequate for operation.

Specifications

Brand: TRUPER
Model: ASP-P11X
Material: Plastic (head), Zinc (stake)
Style: Rotating Pulse Sprinkler
Stake Length: 11 inches
Hose Connector Size: 3/4 inch
ASIN: B0DB6RTWF7

Warranty and Support

For detailed warranty information, product registration, or technical assistance, please visit the official TRUPER website or contact their customer service department. Keep your purchase receipt as proof of purchase for any warranty claims.

TRUPER Official Website: www.truper.com
