1. Product Overview
The BRILONER LED Ceiling Light (Model 7527416) is a modern, ultra-flat luminaire designed for indoor use, particularly suitable for damp locations like bathrooms due to its IP44 splash protection rating. It features a 22W LED plate providing 3000 lumens of neutral white light (4000K) and an integrated motion sensor for automatic illumination.
This ceiling light also incorporates an indirect backlight effect, adding a subtle ambient glow to any room.

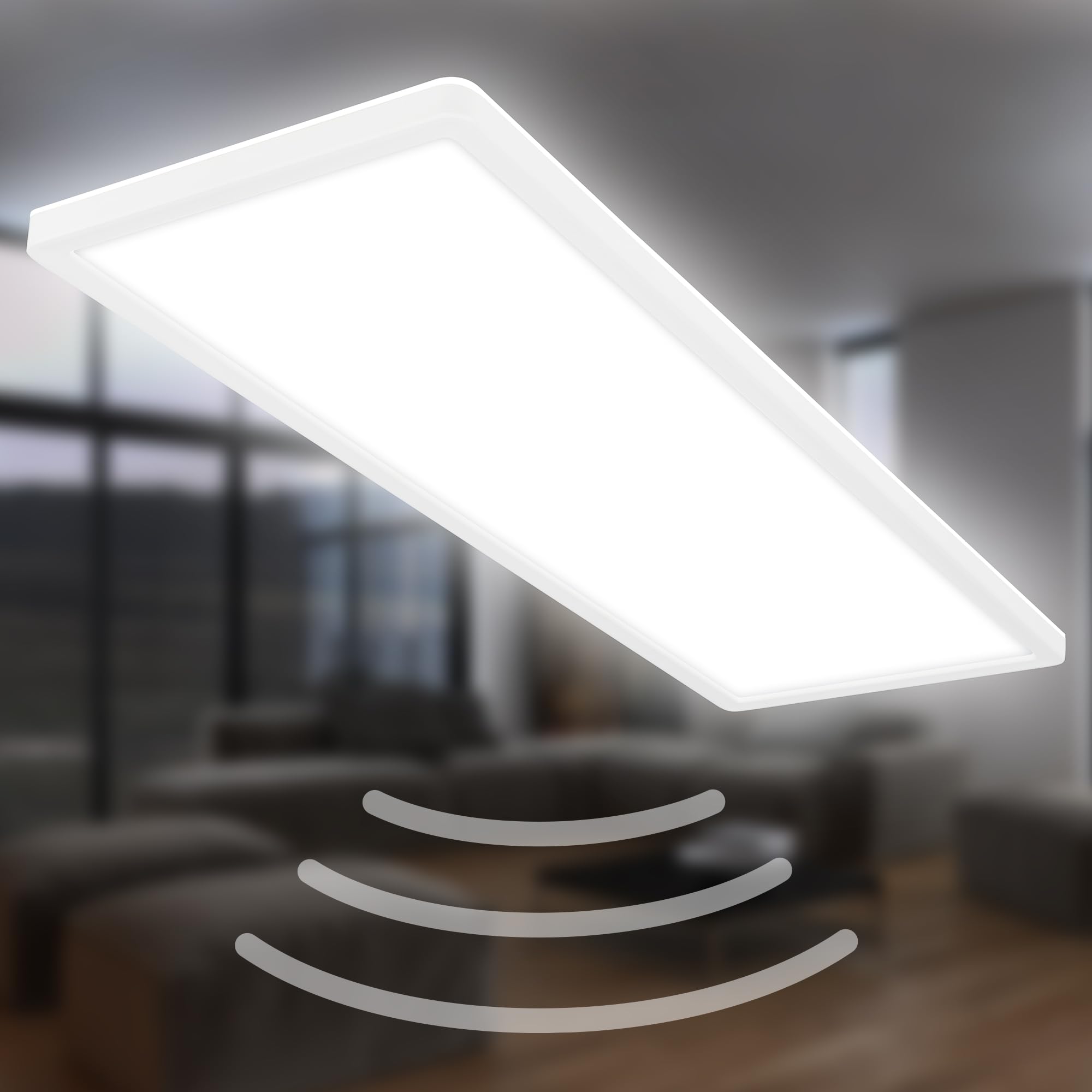

Image 1: BRILONER LED Ceiling Light highlighting its features: 4000K neutral white light, microwave sensor, IP44 rating, and backlight effect.
2. Safety Instructions
Please read these safety instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or other injuries.
- Electrical Safety: Installation must be performed by a qualified electrician in accordance with local wiring regulations. Always disconnect power at the main circuit breaker before installation, maintenance, or repair.
- Voltage: Ensure the supply voltage matches the luminaire's rating (230 Volts).
- Environment: This product is rated IP44, suitable for damp locations but not for direct water immersion. Do not install in areas with extreme temperatures or high humidity beyond its rating.
- Handling: Handle the luminaire with care to avoid damage. Do not modify the product in any way.
- Cleaning: Use a soft, dry cloth for cleaning. Do not use abrasive cleaners or solvents.
3. Package Contents
Verify that all components are present and undamaged before proceeding with installation.
- BRILONER LED Ceiling Light (Model 7527416)
- Mounting accessories (screws, wall plugs)
- Instruction Manual (this document)
4. Setup and Installation
This luminaire is designed for ceiling mounting. Follow these steps for proper installation.
- Preparation:
- Ensure the power supply to the installation area is switched off at the main circuit breaker.
- Unpack the luminaire and check for any damage.
- Identify the mounting location on the ceiling.
- Mounting the Bracket:
- Use the mounting bracket (if separate) as a template to mark the drilling points on the ceiling.
- Drill holes at the marked points and insert the appropriate wall plugs.
- Secure the mounting bracket to the ceiling using the provided screws.
- Electrical Connection:
- Connect the electrical wires from the ceiling to the luminaire's terminal block. Ensure correct polarity (Live, Neutral, Earth).
- Double-check all connections for security.
- Attaching the Luminaire:
- Carefully attach the luminaire body to the mounting bracket, ensuring it is securely fastened.
- Ensure no wires are pinched during this process.
- Final Check:
- Once installed, restore power at the main circuit breaker.
- Test the light and motion sensor functionality.
Image 2: Product dimensions for installation planning.
Image 3: Example of the ceiling light installed in a hallway.
5. Operating Instructions
The BRILONER LED Ceiling Light features an integrated motion sensor for automatic operation.
- Automatic Illumination: Once power is supplied, the light will automatically turn on when motion is detected within its range.
- Motion Sensor Range: The motion sensor has a maximum detection range of 3 meters and a detection angle of 120 degrees.
- Backlight Effect: The luminaire provides a subtle indirect backlight effect, which operates simultaneously with the main light.
Image 4: Motion sensor detection range and angle.
Image 5: The ceiling light providing illumination in a bathroom setting.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your BRILONER LED Ceiling Light.
- Cleaning: Before cleaning, ensure the power supply is disconnected. Wipe the surface of the luminaire with a soft, dry, or slightly damp cloth. Do not use harsh chemicals, abrasive cleaners, or solvents, as these can damage the finish or electronic components.
- LED Source: The LED light source is integrated and not user-replaceable. Do not attempt to open the luminaire to replace LEDs.
- Inspection: Periodically inspect the luminaire for any signs of damage or loose connections. If any issues are found, disconnect power and consult a qualified electrician.
7. Troubleshooting
If you encounter issues with your BRILONER LED Ceiling Light, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply. Faulty wiring connection. Motion sensor not detecting. | Check the circuit breaker. Verify electrical connections (consult an electrician). Ensure movement is within the sensor's range. |
| Light turns on/off too frequently. | Sensor sensitivity too high. Interference from external factors (e.g., pets, drafts). | Check if there are any adjustable settings for sensor sensitivity (refer to product packaging or manufacturer's website if not in manual). Ensure the installation area is free from constant minor movements. |
| Light remains on constantly. | Continuous motion detected. Sensor malfunction. | Ensure no continuous motion is present in the detection zone. If the issue persists, contact customer support. |
If the problem persists after attempting these solutions, please contact BRILONER customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Briloner |
| Model Number | 7527416 |
| Product Dimensions (L x W x H) | 58 x 20 x 3 cm |
| Item Weight | 1.24 Kilograms |
| Material | Polycarbonate (PC) |
| Color | White |
| Style | Modern, Flat |
| Light Source Type | Integrated LED |
| Wattage | 22 Watts |
| Luminous Flux | 3000 Lumens |
| Color Temperature | 4000 Kelvin (Neutral White) |
| Voltage | 230 Volts |
| Special Features | Integrated Motion Sensor, Indirect Backlight Effect |
| Motion Sensor Range | Max. 3 meters |
| Motion Sensor Angle | 120 degrees |
| IP Rating | IP44 (Splash-proof) |
| Installation Type | Ceiling Mount |
| Included Components | Mounting accessories |
| Batteries Required | No |
| Country of Origin | China |
9. Warranty and Support
For warranty information, please refer to the terms and conditions provided at the point of purchase or visit the official BRILONER website. Information regarding the availability of spare parts for this product is not provided.
For technical support or further assistance, please contact BRILONER customer service.
BRILONER Leuchten GmbH
www.briloner.com
