1. Introduction
Thank you for choosing the K&F Concept NP-F970 Battery and Dual Charger. This manual provides essential information for the safe and efficient use of your product. Please read it thoroughly before operation.
Package Contents:
- 2 x NP-F970 6600mAh Batteries
- 1 x Dual-Slot Battery Charger
- 1 x Micro USB Cable
- 1 x User Manual
Compatibility:
The NP-F970 batteries and charger are compatible with various devices that use Sony NP-F series batteries, including but not limited to Sony NP-F550, F570, F750, F770, F930, F950, F960, F970. This includes high-power LED lights, monitors, camcorders, and camera sliders.
Image 1.1: Wide Compatibility of NP-F970 Batteries
2. Product Features
2.1 Long-lasting Power
Each NP-F970 battery features a high capacity of 6600mAh, providing extended power for your devices. This ensures longer operational times for professional photography and videography equipment.
Image 2.1: High Capacity 6600mAh Battery
2.2 Rapid Dual Charger
The included dual-slot charger allows for simultaneous charging of two NP-F970 batteries. It features clear LED indicators to display the charging status for each battery independently.
Image 2.2: Rapid Dual Charger with LED Indicators
2.3 Safety & Reliability
The batteries and charger are designed with multiple protection features to ensure safe and reliable operation:
- Temperature Protection
- Over-voltage Protection
- Over-discharge Protection
- Over-current Protection
- Over-charge Protection
- Short-circuit Protection
Image 2.3: Built-in Safety Protections

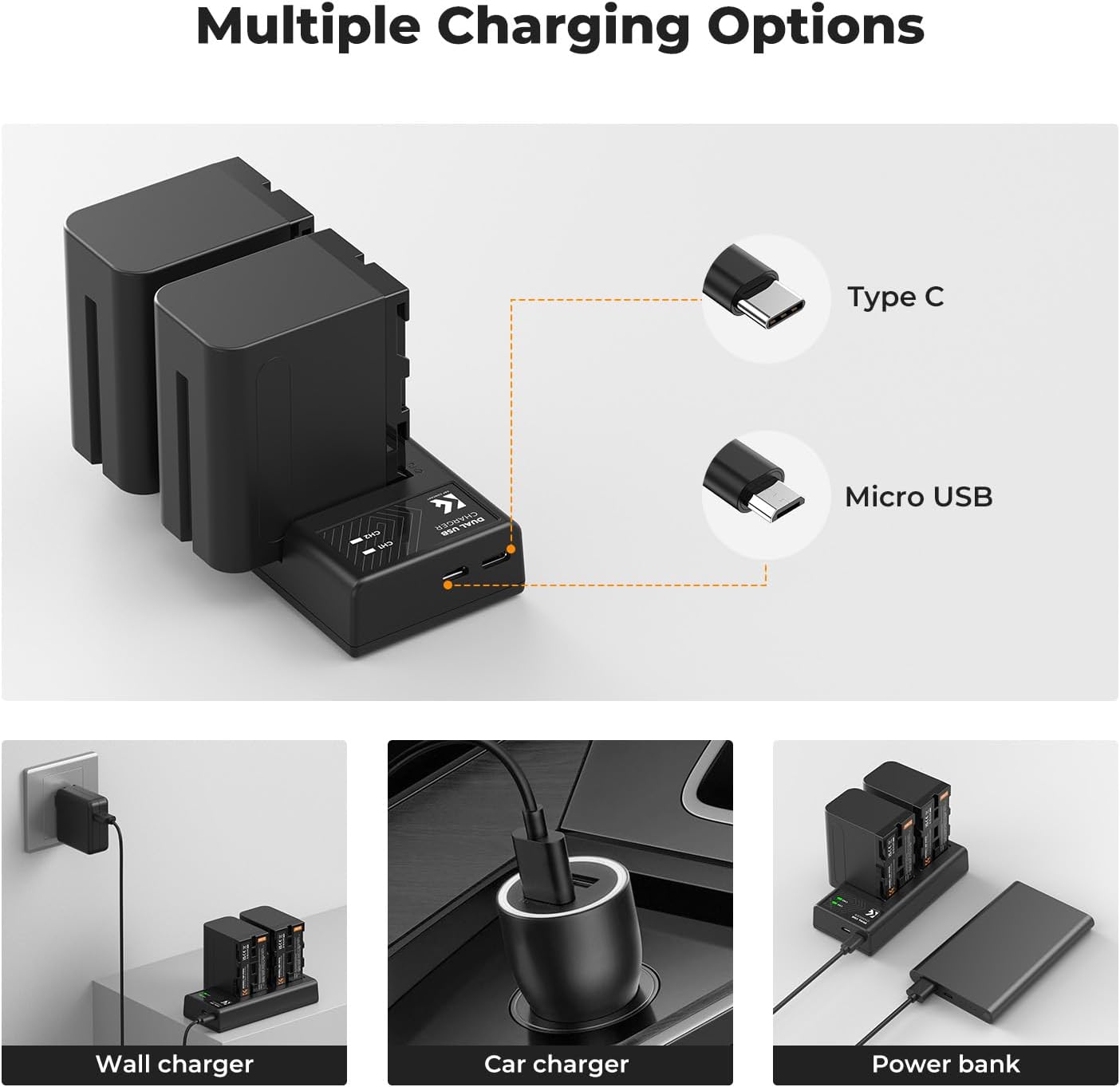

2.4 Multiple Charging Options
The dual charger offers flexible power input options, including both Type-C and Micro USB ports. This allows you to charge your batteries using various power sources such as wall chargers, car chargers, or power banks.
Image 2.4: Versatile Charging Options
3. Setup & Installation
Follow these steps to set up your K&F Concept NP-F970 battery charger:
- Insert Batteries: Align the battery contacts with the charger terminals and gently slide the NP-F970 batteries into the charging slots until they click into place.
- Connect Power: Use the provided Micro USB cable to connect the charger to a suitable USB power source (e.g., wall adapter, car charger, power bank). You can use either the Micro USB or Type-C input port on the charger.
- Verify Connection: Once connected, the LED indicators on the charger will illuminate to show the charging status.
Image 3.1: Easy Installation Steps
4. Operating Instructions
4.1 Charging Process
After correctly installing the batteries and connecting the charger to a power source, the charging process will begin automatically.
- Red LED: Indicates that the battery in that slot is currently charging.
- Green LED: Indicates that the battery in that slot is fully charged.
Once the LED indicator turns green, the battery is fully charged and ready for use. You may remove the battery from the charger. Disconnect the charger from the power source when not in use.
5. Maintenance
Proper maintenance ensures the longevity and performance of your batteries and charger.
- Storage: Store batteries in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, it is recommended to charge batteries to about 50-70% capacity.
- Cleaning: Use a soft, dry cloth to clean the battery and charger contacts. Avoid using liquids or abrasive cleaners.
- Handling: Avoid dropping or subjecting the batteries and charger to strong impacts.
- Disposal: Dispose of old or damaged batteries according to local regulations for electronic waste. Do not dispose of them in household trash.
6. Troubleshooting
If you encounter issues, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Battery not charging (LED remains off or red indefinitely) |
|
|
| Charger LEDs not illuminating |
|
|
| Battery drains quickly after charging |
|
|
7. Specifications
| Feature | Detail |
|---|---|
| Brand | K&F Concept |
| Model Number | NP-F970 |
| Battery Capacity | 6600mAh |
| Input Voltage | 5 Volts |
| Output Voltage | 5 Volts (DC) |
| Current Rating | 2.1 Amperes |
| Number of Ports | 2 (Charging Slots) |
| Product Dimensions | 18.8 x 16.5 x 4.4 cm |
| Product Weight | 780 grams |
| Color | Black |
| Manufacturer | Shenzhen Zhuoer Photograph |
8. Warranty & Support
K&F Concept products are manufactured to high-quality standards. For warranty information, technical support, or any inquiries regarding your NP-F970 battery and charger, please refer to the official K&F Concept website or contact their customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.
