LITTLE BALANCE 8734 Electronic Grill

1. Introduction

Thank you for choosing the LITTLE BALANCE 8734 Electronic Grill. This versatile appliance is designed for grilling a variety of foods, including meats, poultry, vegetables, paninis, and sandwiches. Featuring PFAS-free non-stick plates, a touch screen control, and 2000W of power, it ensures efficient and healthy cooking. Please read this manual thoroughly before first use to ensure safe and optimal operation.

Figure 1: Front view of the LITTLE BALANCE 8734 Electronic Grill.

2. Safety Instructions

• Always read all instructions before using the appliance.
• Do not touch hot surfaces. Use the cool-touch handle and oven mitts or gloves.
• To protect against electrical hazards, do not immerse the cord, plugs, or the appliance body in water or other liquids.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact customer service for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, turn any control to 'off', then remove the plug from the wall outlet.
• Do not use the appliance for other than intended use.

Figure 2: The grill features PFAS-free non-stick coating for healthy cooking.

3. Product Overview

Familiarize yourself with the components of your LITTLE BALANCE 8734 Electronic Grill:

• Main Housing: The base unit containing the heating elements and controls.
• Cool-Touch Handle: For safe opening and closing of the grill.
• Touch Screen Control Panel: Digital interface for setting temperature, time, and selecting programs.
• Removable Cooking Plates: Two XXL (29 x 23 cm) non-stick, PFAS-free plates.
• Floating Hinge System: Allows the top plate to adjust to different food thicknesses with 6 pre-set height adjustments.
• 180° Opening Mechanism: Transforms the grill into an open barbecue surface.
• Grease Collection Tray: Integrated tray to collect excess fats and liquids during cooking.
• Non-slip Base: Ensures stability during use.

Figure 3: Key features and components of the grill.

Figure 4: Product dimensions for placement and storage.

4. Setup

Before using your grill for the first time, follow these steps:

1. Unpack: Carefully remove the grill and all accessories from the packaging. Retain packaging for future storage or transport.
2. Initial Cleaning: Wash the removable cooking plates and the grease collection tray with warm, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the grill with a damp cloth.
3. Install Plates: Ensure the cooking plates are securely clicked into place on the upper and lower heating elements.
4. Positioning: Place the grill on a stable, flat, heat-resistant surface, away from walls or cabinets to allow for proper ventilation. Ensure the power cord is not obstructed.
5. Grease Tray: Insert the grease collection tray into its designated slot at the front of the grill.

Figure 5: Ensure cooking plates are correctly installed before use.

5. Operating Instructions

The LITTLE BALANCE 8734 Electronic Grill offers versatile cooking options:

5.1. Powering On and Preheating

1. Plug the power cord into a suitable electrical outlet. The touch screen will illuminate.
2. Press the power button on the touch screen to turn on the grill.
3. Select your desired cooking mode (Grill or Barbecue) and set the temperature and time using the touch controls. The grill heats up rapidly, reaching 80°C to 230°C in under 2 minutes.
4. Wait for the grill to reach the set temperature. An indicator will signal when preheating is complete.

5.2. Grill Mode (Closed Position)

Ideal for meats, poultry, fish, paninis, and sandwiches.

1. Place food on the lower cooking plate.
2. Gently lower the top plate. The floating hinge system with 6 height adjustments will adapt to the thickness of your food, ensuring even cooking.
3. Monitor cooking progress through the set time or visually. The grill features an automatic shut-off at the end of the set cooking time.

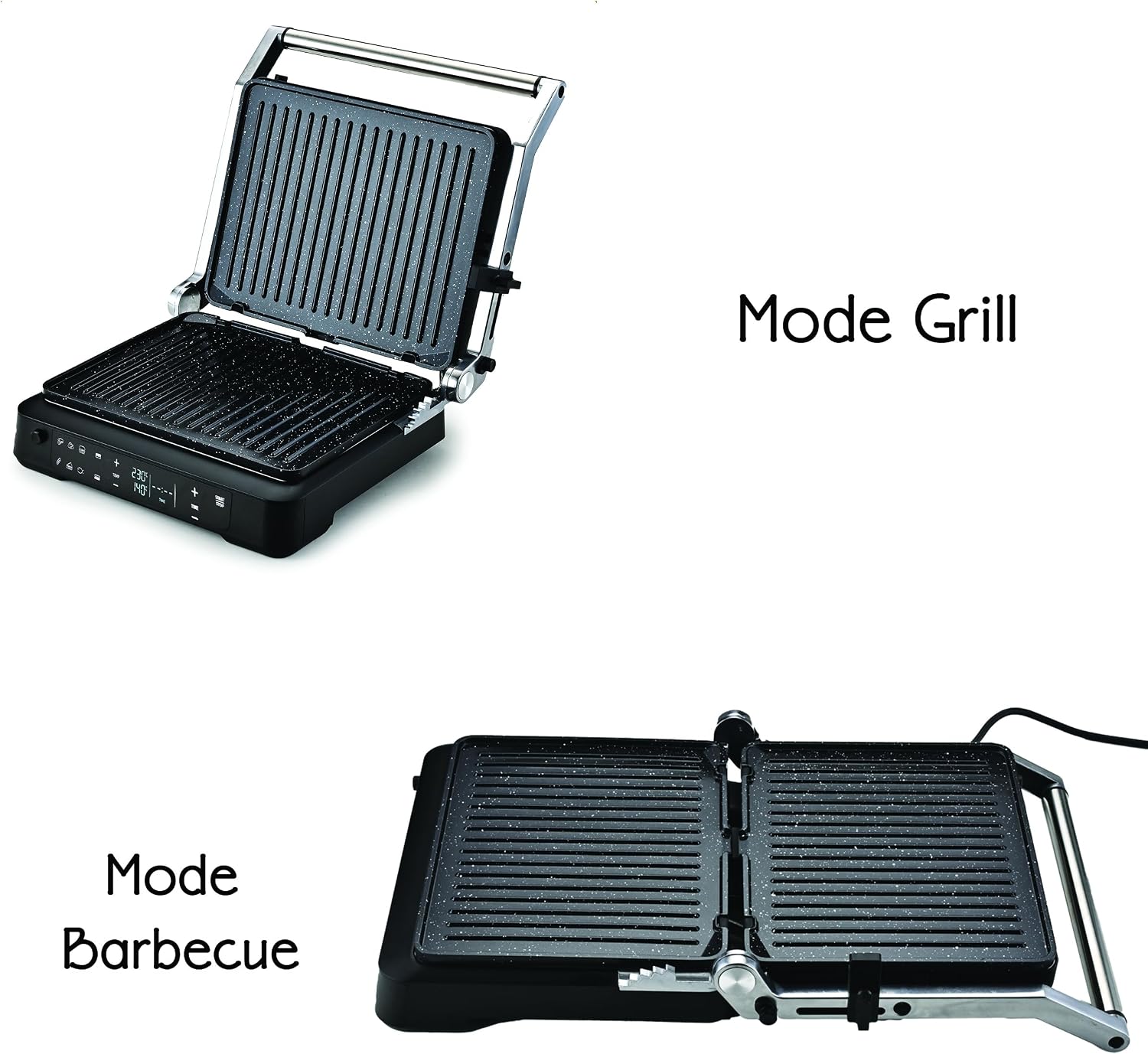

Figure 6: Grill Mode for contact cooking.

Figure 7: The floating plates accommodate various food thicknesses.

5.3. Barbecue Mode (180° Open Position)

For a larger cooking surface, ideal for multiple items or open-face grilling.

1. With the grill closed, gently lift the handle and push the release button (if present) to allow the top plate to open fully to a 180° flat position.
2. Place food on both cooking surfaces.
3. The grill features independent thermostats for each plate, allowing you to set different temperatures for each side if desired.

Figure 8: Barbecue Mode provides a larger cooking area.

Figure 9: Example of cooking shrimp in Barbecue Mode.

5.4. Pre-set Programs

The grill includes 5 pre-set cooking programs for common food types. Refer to the touch screen interface for program selection and specific instructions for each program.

6. Maintenance and Cleaning

Regular cleaning ensures the longevity and performance of your grill.

1. Cool Down: Always unplug the grill from the power outlet and allow it to cool completely before cleaning.
2. Remove Plates and Tray: Press the plate release buttons to detach the cooking plates. Remove the grease collection tray.
3. Wash Plates and Tray: Wash the removable cooking plates and grease tray in warm, soapy water. The PFAS-free non-stick coating makes cleaning easy. Avoid using abrasive scrubbers or metal utensils that could damage the non-stick surface.
4. Clean Exterior: Wipe the exterior of the grill with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
5. Dry Thoroughly: Ensure all parts are completely dry before reassembling or storing the grill.

Figure 10: The removable plates and grease tray simplify cleaning.

7. Troubleshooting

If you encounter issues with your grill, refer to the following common problems and solutions:

8. Specifications

• Brand: LITTLE BALANCE
• Model Number: 8734
• Power: 2000 Watts
• Plate Dimensions: 29 x 23 cm (XXL)
• Product Dimensions (L x W x H): 31.6 x 35.3 x 14.2 cm
• Weight: 4.46 Kilograms
• Material: Plastic (body), Non-stick coating (plates)
• Special Features: Temperature control, Dual zone cooking, Non-stick coating, Removable surface, Grease management system, Touch screen, 5 pre-set programs, 6 height adjustments, 180° opening.
• Color: Black/Stainless Steel
• Country of Origin: China

9. Warranty and Support

This LITTLE BALANCE 8734 Electronic Grill comes with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects under normal household use.

For warranty claims, technical support, or spare parts inquiries, please contact LITTLE BALANCE customer service. After-sales service is available in France.

Please retain your proof of purchase for warranty validation.
