1. Introduction
Thank you for choosing the Uplayteck Electric Heating Pad for Neck and Shoulders, Model HP-001. This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your heating pad. Please read all instructions carefully before use and retain this manual for future reference.
Important Safety Information
- DO NOT use the heat wrap when wet.
- To avoid burns, it is recommended to wear a piece of clothing between the heating pad and your skin.
- Do not bunch, sit on, or crush the pad. Avoid sharp folds during use or storage.
- Always unplug the heating pad when not in use.
- Keep the plastic packaging away from babies and children to avoid suffocation.
2. Product Overview
The Uplayteck Electric Heating Pad is designed to provide comfortable, soothing heat to your neck and shoulders. Its ergonomic design allows for flexible application to various body parts, including the waist, abdomen, arms, and legs. The pad features rapid heating, multiple temperature settings, and an automatic shut-off timer for safety and convenience.

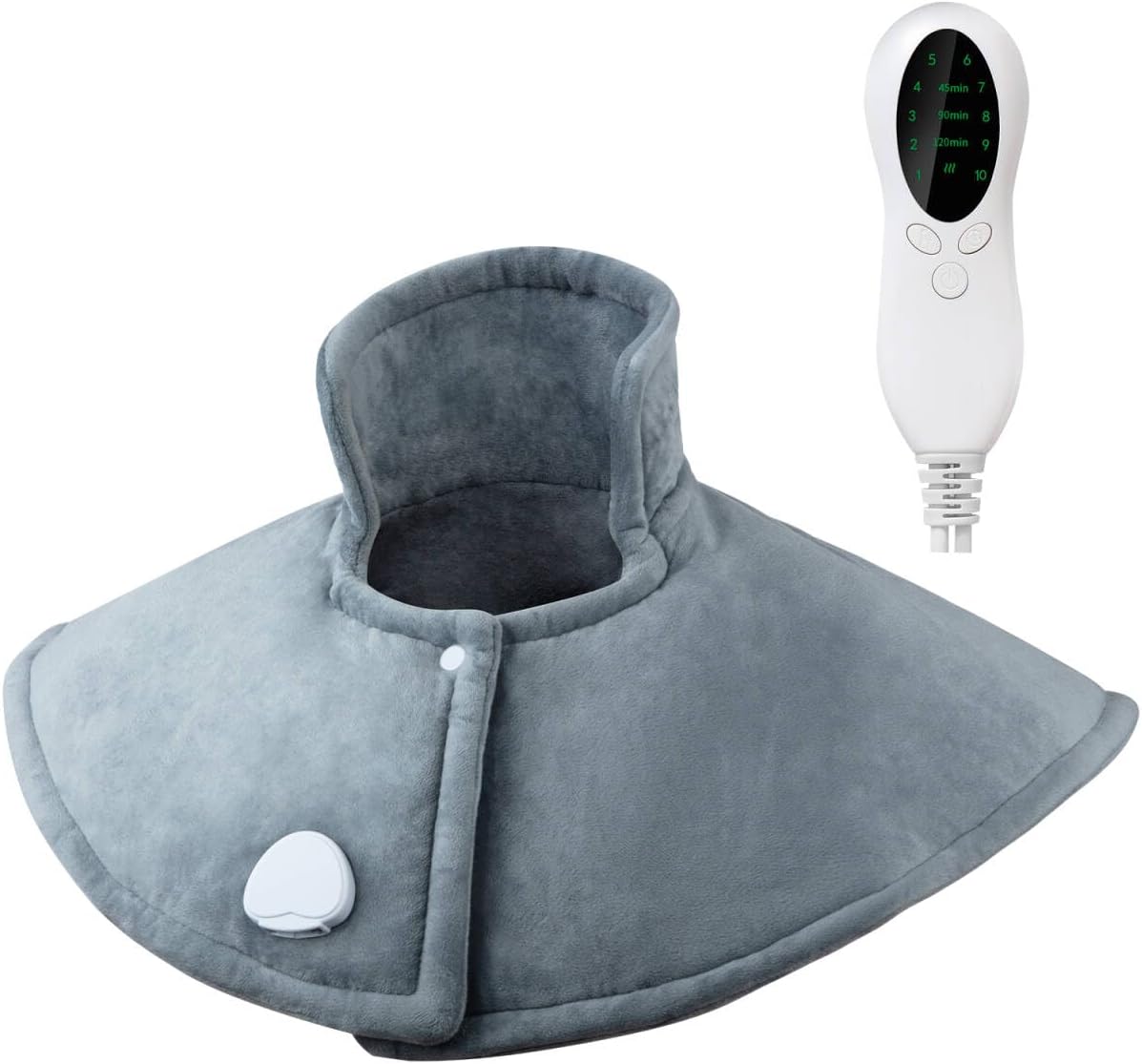

Figure 2.1: The Uplayteck heating pad designed for neck and shoulders, shown with its detachable controller.
3. Components
Your Uplayteck Electric Heating Pad package includes:
- 1 x Uplayteck Electric Heating Pad (Grey)
- 1 x Detachable Remote Control with Power Cord
Figure 3.1: Heating pad features including thickened edges, snap fastener, and safety connector. Dimensions are approximately 50cm x 45cm.
4. Setup
- Unpack the heating pad and its remote control from the packaging.
- Connect the remote control cable securely to the heating pad's safety connector. Ensure it clicks into place.
- Plug the power cord of the remote control into a standard electrical outlet.
- Position the heating pad on your neck and shoulders, or other desired body area. Use the snap fastener to secure it if needed.
5. Operating Instructions
The heating pad is operated using the detachable remote control.
Figure 5.1: Remote control illustrating LED display, 1-10 heating settings, ON/OFF button, and 3 time settings.
Power On/Off
- Press the ON/OFF button on the remote control to turn the heating pad on or off. The LED display will illuminate when powered on.
Adjusting Heat Settings
- The heating pad offers 10 temperature settings, ranging from 113°F (45°C) to 158°F (70°C).
- Use the temperature adjustment buttons (up/down arrows) on the remote control to select your desired heat level (1-10). The selected level will be shown on the LED display.
Setting the Auto-Off Timer
- The heating pad includes 3 auto shut-off timer options: 45, 90, and 120 minutes.
- Press the timer button on the remote control to cycle through the available timer settings. The selected time will be indicated on the LED display.
- The heating pad will automatically turn off once the set time has elapsed.
Figure 5.2: Examples of heating pad application on various body parts.
6. Care and Maintenance
Proper care ensures the longevity and performance of your heating pad.
Cleaning Instructions
- Always unplug the heating pad from the electrical outlet and disconnect the remote control from the pad before cleaning.
- The heating pad is machine washable. Place it in a laundry bag or pillowcase to protect it during washing.
- Wash on a gentle cycle with cold water. Do not bleach.
- Tumble dry on low heat or air dry. Ensure the pad is completely dry before reconnecting the controller and using it again.
- NOTE: The hand control unit cannot be immersed in water. Do not attempt to wash the remote control.
Storage
- Store the heating pad in a cool, dry place.
- Avoid placing heavy objects on the pad during storage to prevent damage to the internal heating wires.
7. Troubleshooting
If you encounter issues with your Uplayteck Electric Heating Pad, please refer to the following common solutions:
- Pad not heating:
- Ensure the power cord is securely plugged into a working electrical outlet.
- Verify that the remote control is firmly connected to the heating pad.
- Press the ON/OFF button to ensure the unit is powered on.
- Pad heats unevenly:
- Ensure the pad is laid flat and not bunched or folded during use.
- Remote control display not working:
- Check power connection and ensure the unit is turned on.
If the problem persists after attempting these solutions, please contact customer support.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | Uplayteck |
| Model Number | HP-001 |
| Material | 100% Soft Flannel |
| Color | Grey |
| Item Weight | 456 Grams |
| Item Dimensions (L x W) | 50 x 45 centimeters (approx. 20 x 18 inches) |
| Voltage | 230V |
| Wattage | 135W |
| Heat Settings | 10 levels (113°F / 45°C - 158°F / 70°C) |
| Auto-Off Timers | 45, 90, 120 minutes |
| Special Features | Automatic Shut Off, Lightweight, Machine Washable, Overheat Protection |
9. Warranty and Support
Uplayteck is committed to providing high-quality products. This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the product packaging or contact Uplayteck customer service for specific warranty details and duration.
Customer Support
For technical assistance, troubleshooting, or warranty claims, please contact Uplayteck customer support through the retailer where the product was purchased or visit the official Uplayteck website for contact information.
