Cangaroo Hoku i-Size Car Seat (40-150cm) Instruction Manual

Introduction

This manual provides essential information for the correct installation, use, and maintenance of your Cangaroo Hoku i-Size Car Seat. This car seat is designed for children from birth up to approximately 12 years old, covering a height range of 40 to 150 cm (Group 0+/1/2/3). Please read these instructions carefully before first use and keep them for future reference.

The Hoku i-Size car seat features an Isofix base with a support leg for enhanced safety and a 360° rotating seat for ease of use. It includes side impact protection (SIP) and a 5-point safety harness.

Image: Front view of the Cangaroo Hoku i-Size Car Seat, showcasing its design and harness system.

Safety Information

• Always ensure the car seat is correctly installed according to these instructions.
• Never leave a child unattended in the car seat.
• Ensure the child is properly secured with the harness system.
• Do not modify the car seat in any way.
• Replace the car seat after any accident, even if there is no visible damage.
• Refer to your vehicle's owner's manual for information on child restraint system installation.

Setup and Installation

1. Rear-Facing Installation (40-105 cm)

For children from 40 to 105 cm (approximately birth to 4 years), the car seat must be installed in a rear-facing position.

1. Extend Isofix Connectors: Press the Isofix release buttons (usually located on the base) and extend the Isofix connectors.
2. Attach to Vehicle Isofix Anchors: Align the Isofix connectors with the Isofix anchor points in your vehicle. Push firmly until you hear a "click" and the indicators turn green.
3. Push Seat Firmly: Push the car seat firmly against the vehicle's backrest to ensure a secure fit.
4. Adjust Support Leg: Extend the support leg until it firmly touches the vehicle floor. Ensure the indicator on the support leg turns green.
5. Check Stability: Wiggle the car seat to ensure it is securely installed and does not move excessively.

Image: Close-up of the Isofix indicators on the car seat base, showing green for correct installation.

2. Forward-Facing Installation (76-150 cm)

For children from 76 to 150 cm (approximately 15 months to 12 years), the car seat can be installed in a forward-facing position.

1. Extend Isofix Connectors: As with rear-facing, extend and attach the Isofix connectors to the vehicle's anchor points until they click and show green indicators.
2. Adjust Support Leg: Extend the support leg until it firmly touches the vehicle floor, ensuring the indicator is green.
3. Attach Top Tether: Locate the Top Tether strap at the back of the car seat. Attach the hook to the designated Top Tether anchor point in your vehicle (refer to your vehicle manual for location). Tighten the strap until the indicator on the Top Tether turns green.
4. Check Stability: Verify that the car seat is securely installed and does not move excessively.

Image: Multiple views of the car seat, demonstrating its adjustability and installation options.

Operating Instructions

1. Placing Your Child in the Seat

1. Rotate the Seat: The Hoku i-Size car seat features a 360° rotation function. Press the rotation release button (usually located on the front of the base) and turn the seat towards the car door for easy access.
2. Open Harness: Press the red button on the harness buckle to release the harness straps.
3. Position Child: Place your child in the seat. For newborns and smaller infants (40-75 cm), use the included newborn cushion for optimal support and comfort.
4. Secure Harness: Bring the two buckle tongues together and insert them into the buckle until you hear a "click". Pull the adjustment strap to tighten the harness snugly against your child's body, ensuring no more than one finger can fit between the strap and the child's collarbone.
5. Rotate Back: Rotate the seat back to the desired rear-facing or forward-facing position until it locks securely.

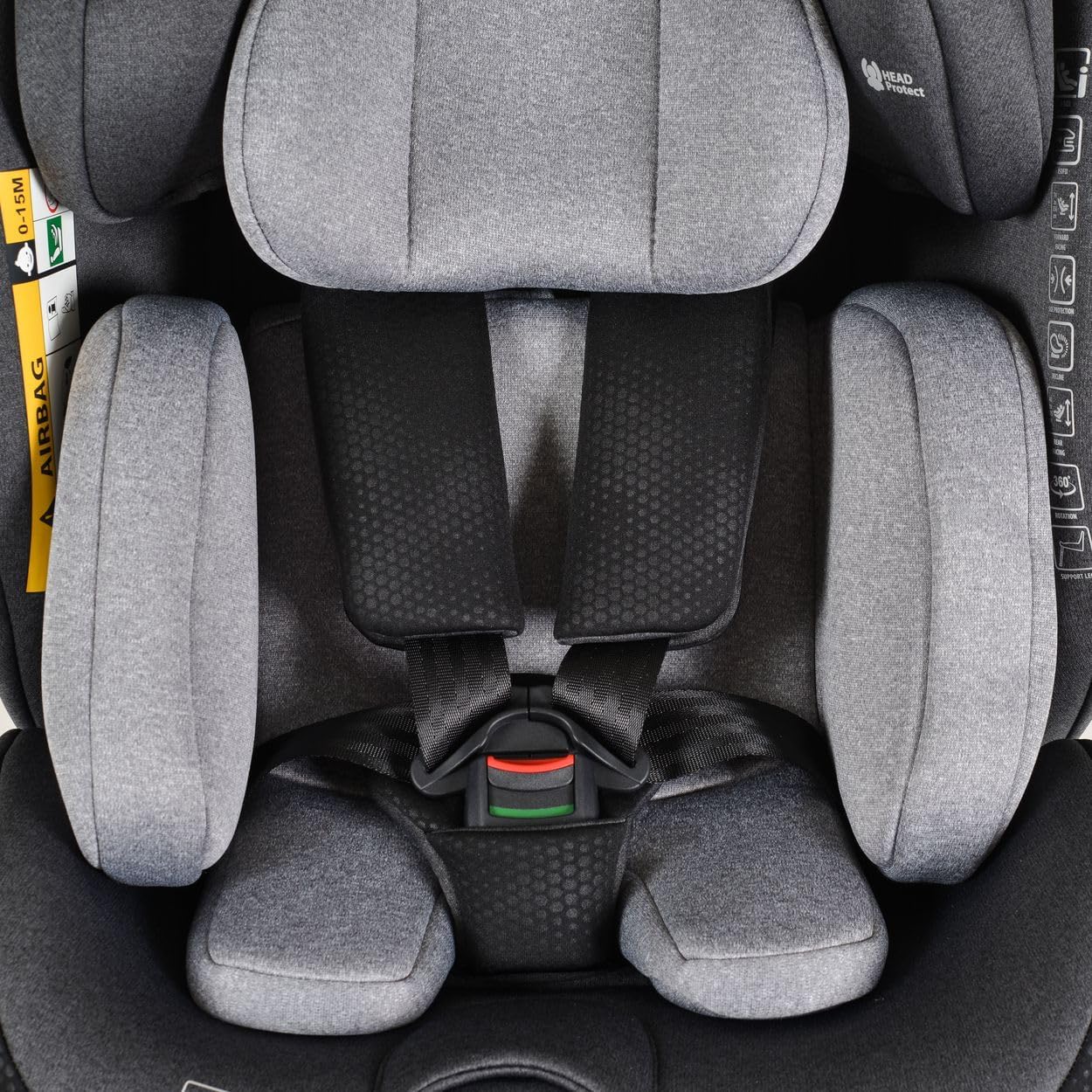

Image: Detailed view of the 5-point harness system and the soft newborn insert, designed for infant comfort and safety.

Image: The removable newborn cushion, providing extra support for infants.

2. Adjusting the Headrest and Backrest

The headrest and backrest are adjustable to accommodate your child's growth and comfort.

• Headrest Adjustment: Locate the headrest adjustment lever (usually at the top of the headrest). Squeeze the lever and slide the headrest up or down until it is positioned correctly, ensuring the shoulder straps are at or just below your child's shoulders for rear-facing, and at or just above for forward-facing.
• Backrest Recline: The backrest offers 4 recline positions. Locate the recline adjustment handle (usually under the front edge of the seat). Pull the handle and adjust the seat to the desired recline angle. Ensure it locks into place.

Image: The car seat shown in different recline positions, illustrating the 4-position adjustable backrest.

Maintenance

Regular cleaning and maintenance will help prolong the life of your car seat.

• Removable Cover: The car seat cover is removable and washable. Follow the washing instructions on the care label, typically a gentle cycle with cold water. Do not tumble dry.
• Harness System: Wipe the harness straps with a damp cloth and mild soap. Do not immerse the buckle in water or use harsh detergents, as this can compromise its function.
• Plastic Parts: Clean plastic parts with a damp cloth and mild soap. Do not use abrasive cleaners or solvents.
• Inspection: Periodically inspect the car seat for any signs of wear, damage, or loose parts. If any damage is found, discontinue use and contact the manufacturer.

Troubleshooting

If you encounter any issues with your Cangaroo Hoku i-Size Car Seat, please refer to the following common solutions.

• Seat Not Locking Securely: Ensure all Isofix connectors are fully engaged (green indicators visible) and the support leg is firmly extended and locked. Check for any obstructions under the base.
• Harness Difficult to Adjust: Check that the harness straps are not twisted. Ensure the harness adjustment strap is pulled smoothly and not caught on any part of the seat.
• Seat Rotation Stiff: Ensure no debris is obstructing the rotation mechanism. Apply gentle, even pressure when rotating.
• Indicators Not Green: Re-check all installation steps. For Isofix, push the seat firmly against the vehicle backrest. For the support leg, ensure it is fully extended and making firm contact with the floor. For the Top Tether, ensure it is taut.

If the problem persists, please contact Cangaroo customer support.

Specifications

Warranty and Support

For information regarding the warranty period and terms for your Cangaroo Hoku i-Size Car Seat, please refer to the warranty card included with your purchase or visit the official Cangaroo website.

If you require technical assistance, have questions about installation, or need to report a defect, please contact Cangaroo customer support directly. Contact details can typically be found on the manufacturer's website or on the product packaging.
