CHINS Smart 36V 100AH LiFePO4 Battery User Manual

1. Introduction

This manual provides essential information for the safe and efficient use of your CHINS Smart 36V 100AH LiFePO4 Battery. This battery is designed for deep cycle applications such as golf carts, trolling motors, and marine use. It features a built-in Battery Management System (BMS) and Bluetooth connectivity for enhanced monitoring and protection.

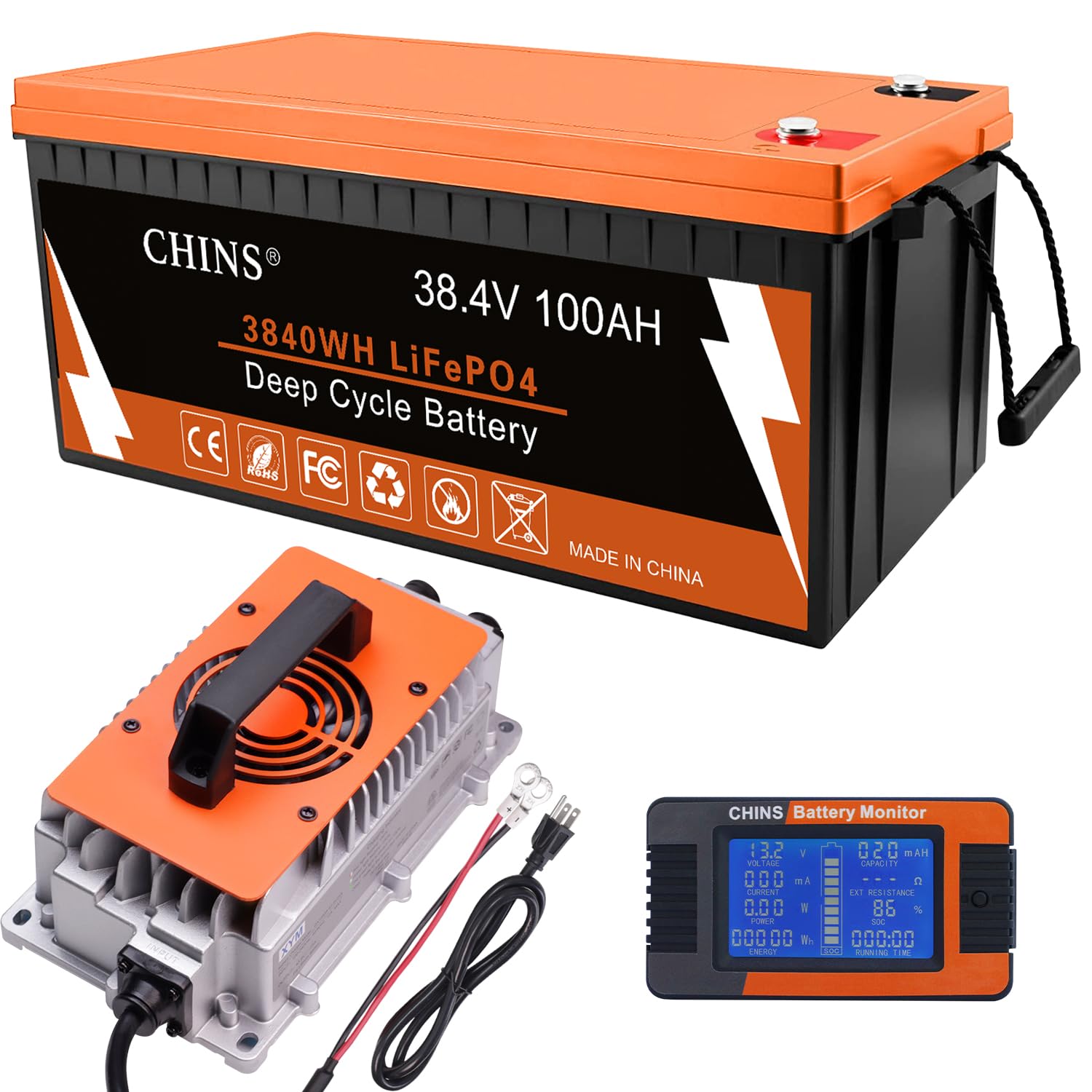

Image 1.1: CHINS Smart 36V 100AH LiFePO4 Battery. This image shows the main battery unit, typically a rectangular box with terminals for connection.

2. Product Features

• Lithium Iron Technology: The CHINS LiFePO4 battery offers high energy density and stable performance. It is designed with safety features to prevent burning from overcharge, over-discharge, overcurrent, or short circuit, and can withstand high temperatures. It supports fast charging and solar panel charging. This battery is environmentally friendly, containing no heavy metals or rare metals.
• Built-In BMS & Maintenance Free: An integrated Battery Management System (BMS) protects against overcharge, over-discharge, over-current, and short circuit. It also includes a high-temperature cut-off at 122 °F (50 °C). LiFePO4 batteries are generally safer than lead-acid batteries, which lack ground fault protection. This battery requires no maintenance.
• Bluetooth Function: The battery includes Bluetooth functionality, allowing users to connect via a mobile application to monitor various data, such as battery voltage, current, and State of Charge (SOC). The wireless connection range is typically within 5-10 meters from the battery.
• Low Temperature Cut-Off Function: The BMS automatically cuts off the charging function in low-temperature environments to prevent irreversible damage to the battery. Note: This battery does not have a low-temperature charging and heating function and cannot be charged in freezing conditions.
• Capacity Expansion: This battery supports parallel connection only. It is possible to connect multiple batteries in parallel, with a suggestion of no more than 8 units, to achieve a maximum capacity of 800Ah. Series connection is not supported and will cause irreversible damage.

3. Safety Information and Warnings

• No Series Connection: Never connect batteries in series. This will cause irreversible damage to the battery and void the warranty.
• Trolling Motor Compatibility: If using with a trolling motor, the battery's maximum continuous output current must be at least twice the motor's current requirement. Consult the manufacturer if unsure before purchase.
• Not for Engine Starting: This battery is not designed for use as a car starter battery.
• Low Temperature Charging: Do not attempt to charge the battery in low-temperature environments, as it lacks a heating function and charging under such conditions can cause permanent damage.
• Ventilation: Ensure adequate ventilation around the charger during operation.

4. Setup and Installation

The CHINS Smart LiFePO4 Battery comes with a dedicated charger and necessary connection cables. Proper installation is crucial for performance and safety.

4.1 Unpacking and Component Identification

Upon unpacking, verify that all components are present:

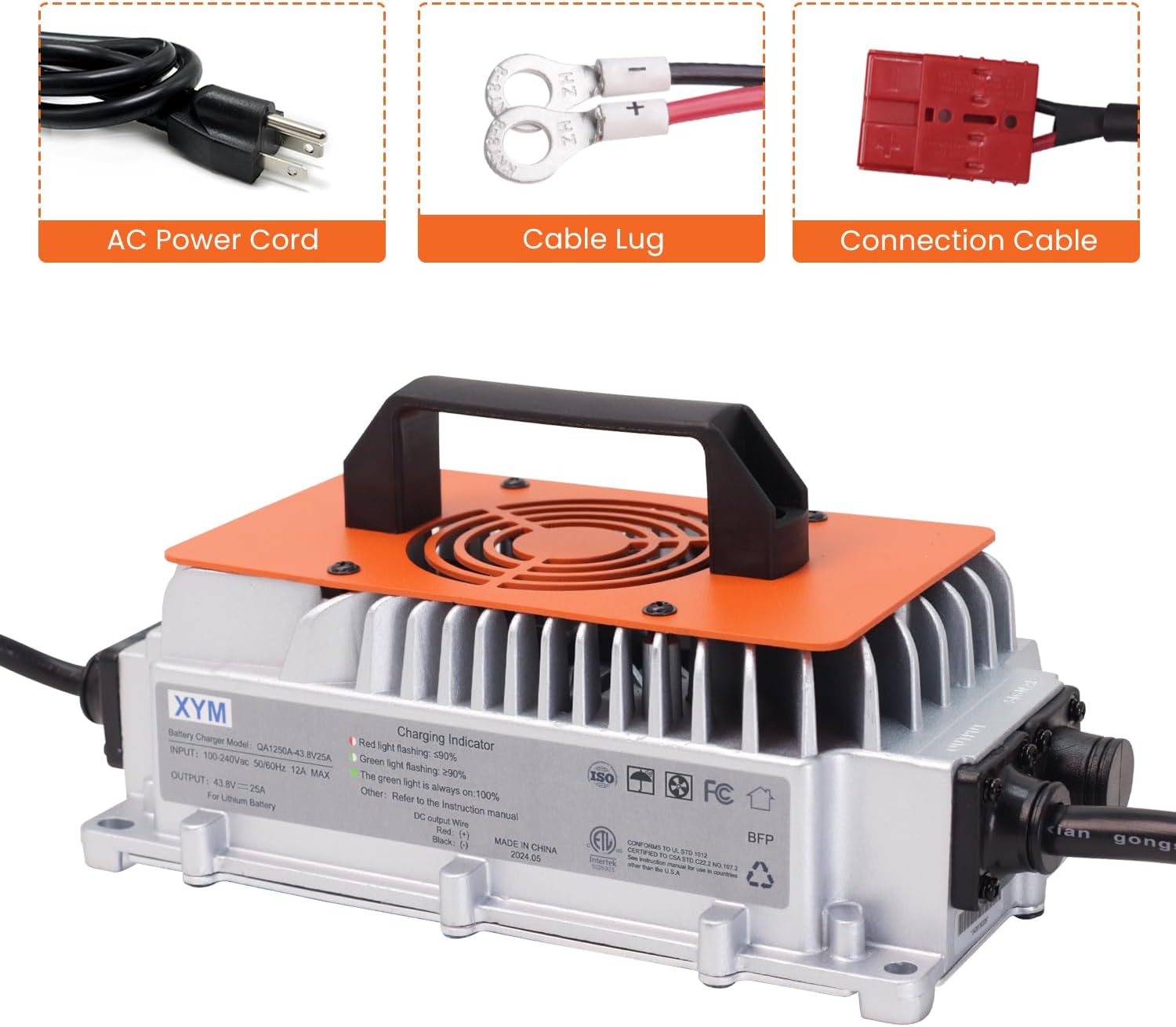

Image 4.1: CHINS Battery Charger Components. This image displays the AC power cord, cable lugs, and the connection cable that come with the charger.

• CHINS 36V 100AH LiFePO4 Battery
• 36V 25A Lithium Battery Charger
• AC Power Cord for Charger
• Cable Lugs for battery connections
• Connection Cable for charger output

4.2 Charger Mounting

The charger can be mounted in several orientations to ensure proper ventilation:

Image 4.2: Preferred Charger Mounting Orientations. This image illustrates three recommended mounting positions for the charger: horizontally flat with the fan facing upwards, vertically with cords facing up or down, and side-mounted with cords facing left or right.

• Horizontally Flat: Mount with the fan (handle) facing upwards, ensuring no obstruction to airflow.
• Vertically: Mount with AC/DC cords facing up or down.
• Side Mounted: Mount with AC/DC cords facing left or right.

The charger features a built-in fan and large vents for effective cooling during operation.

Image 4.3: CHINS Battery Charger with Built-in Fan. This image highlights the charger's integrated cooling fan and large ventilation openings.

4.3 Battery Connection

Connect the battery to your system (e.g., golf cart, trolling motor) using appropriate gauge wiring and secure terminals. Ensure all connections are tight and free from corrosion. Remember, only parallel connections are supported for capacity expansion.

For systems requiring 12V power (e.g., lights in a golf cart), a separate voltage reducer will be necessary as the battery provides 36V.

5. Operating Instructions

5.1 Charging the Battery

Use only the included 36V 25A Lithium Battery Charger. Follow these steps:

Image 5.1: CHINS 36V 25A Lithium Battery Charger. This image shows the dedicated charger unit with its indicator lights and connection ports.

1. Connect the charger's output cable to the battery's charging port.
2. Plug the charger's AC power cord into a standard wall outlet (100-240V AC, 50/60Hz).
3. Observe the charging indicator lights on the charger:
• Red light flashing: Charging (0-90% charged).
• Green light flashing: Charging (90-100% charged).
• Green light always on: Fully charged.
4. Once fully charged, disconnect the charger from the wall outlet, then from the battery.

Ensure the charging environment is not at low temperatures to prevent battery damage.

5.2 Bluetooth Functionality

Download the CHINS mobile application from your device's app store. Once installed:

1. Ensure Bluetooth is enabled on your mobile device.
2. Open the CHINS app.
3. The app will scan for nearby CHINS batteries. Select your battery from the list.
4. You can now monitor real-time battery data such as voltage, current, and State of Charge (SOC).

The wireless connection range for Bluetooth is typically 5-10 meters.

6. Maintenance

The CHINS LiFePO4 battery is designed to be maintenance-free due to its advanced chemistry and integrated BMS. Regular maintenance is not required.

• Cleaning: Keep the battery terminals and casing clean and dry. Use a dry cloth to wipe off any dust or debris.
• Inspection: Periodically inspect battery cables and connections for any signs of wear, damage, or loose connections.
• Storage: If storing the battery for an extended period, ensure it is charged to approximately 50-70% SOC and stored in a cool, dry place. Avoid extreme temperatures.

7. Troubleshooting

If you encounter issues with your CHINS LiFePO4 battery, consider the following general troubleshooting steps:

• Battery Not Charging:
  • Ensure the charger is properly connected to both the battery and the AC power source.
  • Check the charger's indicator lights. If no lights are on, verify the AC power source is active.
  • Confirm the ambient temperature is above freezing, as the BMS will prevent charging in low temperatures.
• No Power Output:
  • Check all battery connections for tightness and corrosion.
  • Verify the battery's State of Charge (SOC) using the Bluetooth app. A deeply discharged battery may require a specific charging sequence.
  • The BMS may have activated a protection mode (e.g., over-discharge, over-current). Disconnect the load, wait a few minutes, and attempt to reconnect.
• Bluetooth Connection Issues:
  • Ensure your mobile device's Bluetooth is on and you are within 5-10 meters of the battery.
  • Restart the CHINS app or your mobile device.

For persistent issues, refer to the warranty and support section.

8. Specifications

9. Warranty and Support

The CHINS Smart 36V 100AH LiFePO4 Battery comes with a 3-year warranty.

For warranty claims, technical assistance, or any product-related inquiries, please contact the manufacturer directly. Refer to the product packaging or the official CHINS website for contact information.
