TRINITY Basics 3-Tier Adjustable Wire Shelving with Wheels (Model TBFPBK-0970) Instruction Manual

1. Introduction

The TRINITY Basics 3-Tier Wire Shelving with Wheels is designed for versatile storage in various environments, including kitchens, garages, and laundry rooms. This freestanding unit features a durable black powder-coated finish and is NSF certified, making it suitable for food-grade applications. Its tool-free assembly and adjustable shelves allow for customized organization.

The shelving unit offers a substantial weight capacity, supporting up to 200 pounds per shelf when using wheels, for a total of 600 pounds. When equipped with the included feet levelers, the total capacity increases to 1,350 pounds, providing robust storage for heavy items. Shelves are adjustable in 1-inch increments, allowing users to configure the unit to meet specific storage needs. The inclusion of two locking and two non-locking swivel casters ensures easy mobility and secure placement.

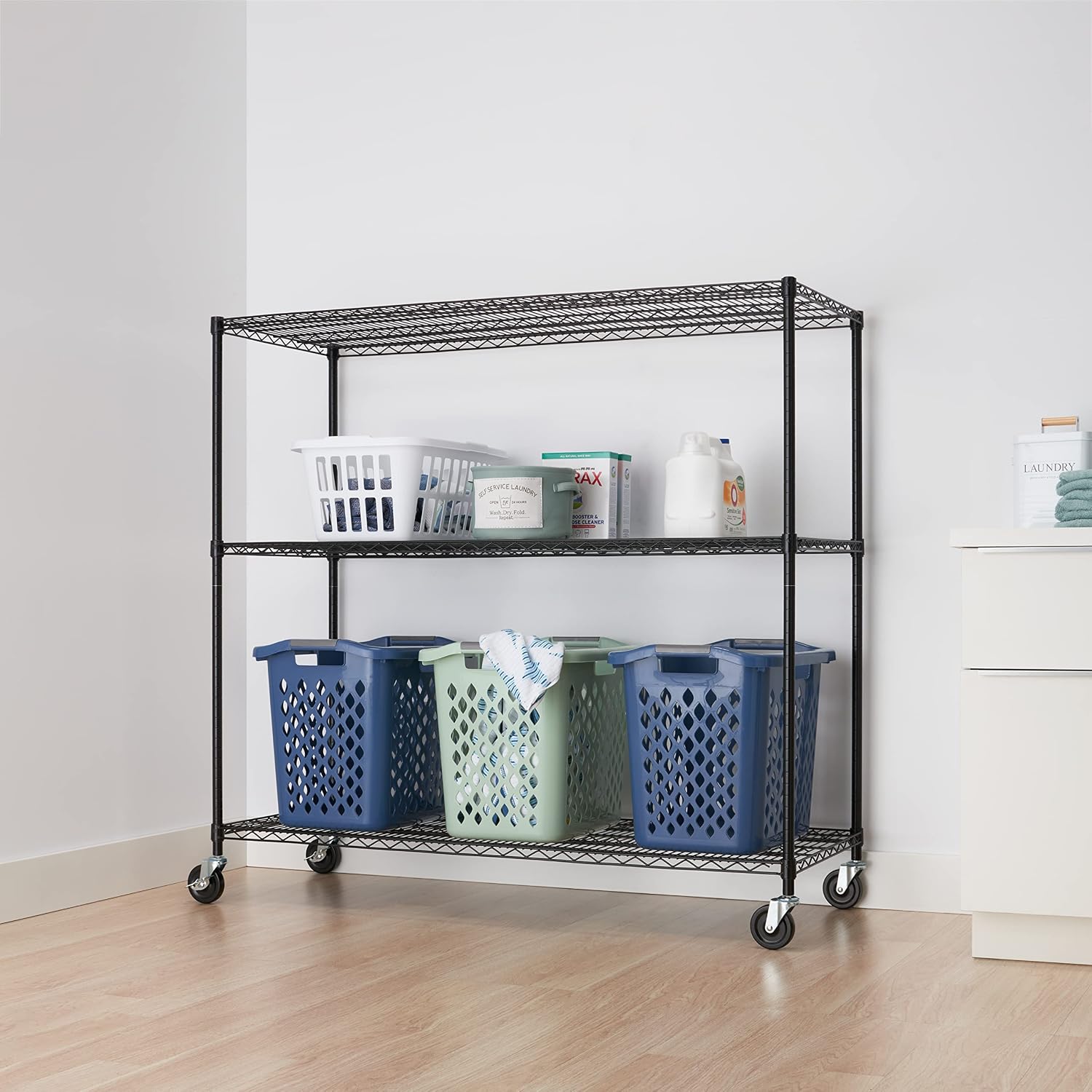

Image: Fully assembled TRINITY Basics 3-Tier Wire Shelving Unit with various items.

2. Components List

Before assembly, ensure all components are present and undamaged:

• 3 x Wire Shelves (60" W x 24" D)
• 4 x Top Poles
• 4 x Bottom Poles
• 4 x Feet Levelers
• 4 x Swivel Casters (2 locking, 2 non-locking)
• 26 x Slip Sleeves
• 1 x Assembly Hardware (additional small parts)

3. Setup and Assembly

Assembly of the TRINITY Basics shelving unit is designed to be straightforward and requires no tools, typically completed within 15 minutes. Follow these general steps:

1. Attach Casters or Feet Levelers: Screw the desired casters or feet levelers into the bottom of the four bottom poles. If using casters, ensure the two locking casters are installed on the same side for stability.


Image: Close-up of a locking caster wheel.

2. Connect Poles: Connect the top poles to the bottom poles by screwing them together.
3. Install Slip Sleeves: At the desired height for the bottom shelf, snap two slip sleeves onto each pole, ensuring they are at the same height and the arrow on each sleeve points upwards.


Image: Vertical pole with slip sleeves.

4. Place First Shelf: Slide the first wire shelf over the top of the poles and push it down firmly until it rests securely on the installed slip sleeves. Ensure the shelf is level.


Image: Installing a wire shelf onto the poles.

5. Install Remaining Shelves: Repeat step 3 and 4 for the remaining two shelves, adjusting the height as needed.

Assembly Video

Video: Official assembly video for the TRINITY Basics 3-Tier NSF Wire Shelving with Wheels, demonstrating step-by-step installation.

4. Operating Instructions

This shelving unit is designed for organizing various items in home or commercial settings. Its adjustable shelves allow for flexible storage of items of different sizes.

• Weight Capacity: When using the included wheels, each shelf can hold up to 200 pounds, with a total unit capacity of 600 pounds. If the feet levelers are installed instead of wheels, the total unit capacity increases to 1,350 pounds. Distribute weight evenly across shelves.
• Adjustable Shelves: To adjust shelf height, remove items from the shelf, lift the shelf off the slip sleeves, reposition the slip sleeves to the desired 1-inch increment on the poles, and then re-seat the shelf.
• Mobility: The unit can be easily moved using its swivel casters. Engage the locks on the two locking casters to secure the unit in a stationary position.
• NSF Certification: This unit is NSF certified, making it suitable for environments requiring specific sanitation standards, such as food storage areas.

5. Maintenance

To maintain the appearance and longevity of your TRINITY Basics shelving unit, follow these simple care instructions:

• Cleaning: Wipe the shelves and poles with a dry cloth to remove dust and debris. For stubborn marks, a damp cloth with mild soap can be used, followed by thorough drying.
• Inspection: Periodically check all connections, especially the slip sleeves and pole connections, to ensure they remain secure. Tighten any loose components.
• Caster Care: If using wheels, ensure they roll smoothly and the locks engage properly. Clean any debris from the casters as needed.

6. Troubleshooting

If you encounter any issues with your shelving unit, consider the following:

• Unit is Unstable/Wobbly:
  • Ensure all slip sleeves are correctly seated and locked into the grooves on the poles.
  • Verify that all poles are fully connected and tightened.
  • If using feet levelers, adjust them to compensate for uneven floor surfaces.
  • Ensure weight is distributed evenly across the shelves and not exceeding the maximum capacity.
• Shelves are Not Level:
  • Check that the slip sleeves for each corner of the shelf are at the exact same height on their respective poles.
  • Ensure the shelf is fully pushed down onto the slip sleeves.
• Casters Not Rolling Smoothly or Locking:
  • Inspect casters for any debris (hair, lint, etc.) that may be obstructing movement. Clean as necessary.
  • Ensure the locking mechanism is fully engaged or disengaged.

7. Specifications

8. Safety Information

Please read and adhere to the following safety guidelines to ensure safe use of your shelving unit:

• Ensure proper assembly according to the instructions provided. Incorrect assembly can lead to instability and potential hazards.
• Do not exceed the maximum weight limit of 1350 pounds (with feet levelers) or 600 pounds (with wheels). Overloading can cause the unit to collapse.
• Distribute weight evenly across all shelves. Concentrating heavy items on one side or a single shelf can compromise stability.
• Keep the shelving unit away from electrical components and outlets to prevent electrical hazards.
• Ensure the shelf is not accessible to children if there is a risk of falling hazards, especially if heavy items are stored on upper shelves.
• For mobile units, always engage the wheel locks when the unit is in its desired position to prevent unintended movement.
• Avoid climbing on the shelving unit.

9. Warranty and Support

For warranty information, product support, or to purchase replacement parts, please contact TRINITY customer service. Refer to the original product packaging or the TRINITY official website for contact details and specific warranty terms.

The product is sold by Trinity Products International. For further assistance, you may visit the TRINITY Store on Amazon.
