Introduction
This manual provides essential information for the safe and effective use of your Body-Solid Pro ClubLine SGLP500 Commercial Leg Press Machine. Please read all instructions carefully before assembly, operation, or maintenance. Retain this manual for future reference.
Important Safety Information
Always consult with a healthcare professional before starting any new exercise program. Failure to follow these safety guidelines may result in serious injury or equipment damage.
- Ensure all bolts and nuts are securely tightened before each use.
- Do not exceed the maximum weight capacity of 1500 pounds.
- Keep children and pets away from the machine during operation.
- Perform a warm-up before exercising and a cool-down afterward.
- If you experience pain or discomfort, stop exercising immediately.
- Use the flip-in-flip-out safety racking mechanism for secure operation.
- Ensure adequate space around the machine for safe operation and access.
Setup and Assembly
The Body-Solid Pro ClubLine SGLP500 Leg Press Machine requires assembly. It is recommended that two or more people assemble this equipment due to its size and weight (Item Weight: 556 Pounds, Package Weight: 717 Pounds). Refer to the separate assembly guide for detailed step-by-step instructions and diagrams.
Site Preparation
- Choose a level surface for installation.
- Ensure sufficient clearance around the machine for safe movement. Dimensions: 89 inches (L) x 68 inches (W) x 54 inches (H).
- Protect your flooring with a suitable mat if necessary.
Component Identification
Before assembly, identify all components. The main components include the frame, weight carriage, footplate, and back pad assembly.
Figure 1: Overview of the Body-Solid Pro ClubLine SGLP500 Leg Press Machine. This image shows the complete assembled unit from a front-right angle, highlighting its robust frame, large footplate, and weight storage horns.
Figure 2: Rear view of the Body-Solid Pro ClubLine SGLP500 Leg Press Machine, illustrating the integrated Olympic plate storage horns. These horns allow for convenient and quick access to weight plates during workouts.
Operating Instructions
Adjusting the Back Pad
The back pad features 5 adjustable positions to accommodate users of various heights and to maximize your range of motion. To adjust, locate the adjustment pin or lever beneath the back pad, pull it out, slide the back pad to the desired position, and release the pin to lock it in place. Ensure the back pad is securely locked before use.
Loading Weights
The weight carriage is equipped with 4.75-inch Olympic weight horns. Load Olympic plates evenly on both sides of the carriage to maintain balance and prevent undue stress on the machine. The machine has a robust weight capacity of 1500 lbs.
Figure 3: Detail of the Olympic weight horns and loaded plates on the leg press machine. This image demonstrates how weight plates are securely placed on the carriage for resistance during exercise.
Performing a Leg Press
- Sit comfortably on the seat with your back firmly against the back pad.
- Place your feet shoulder-width apart on the extra-wide 30" x 24" footplate. Ensure your feet are flat and secure.
- Grasp the assist handles for stability.
- Push the footplate away from you by extending your legs, disengaging the safety racking mechanism.
- Slowly lower the footplate by bending your knees, ensuring your knees do not go past your toes.
- Push back up to the starting position, extending your legs without locking your knees.
- Upon completion of your set, re-engage the safety racking mechanism before exiting the machine.

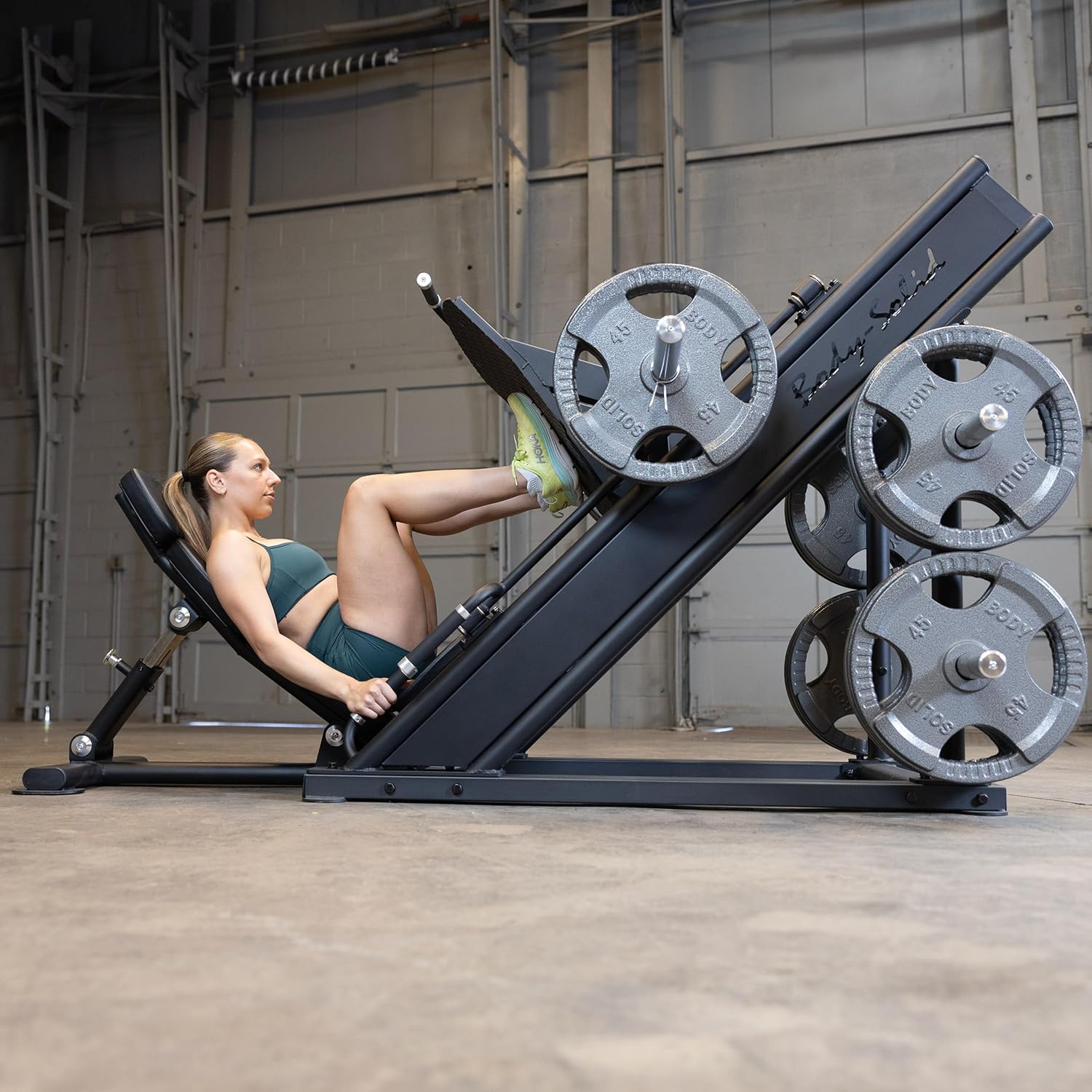

Figure 4: A user demonstrating the leg press exercise. This image shows proper form with the back supported and feet positioned on the footplate, illustrating the machine in active use.
Figure 5: Another user performing the leg press exercise, providing an alternative perspective on the machine's operation and the user's interaction with the footplate and handles.
Figure 6: A close-up view of the textured footplate and the safety racking mechanism. This detail highlights the non-slip surface and the robust design of the safety features.
Maintenance
Regular maintenance ensures the longevity and safe operation of your leg press machine.
- Daily: Wipe down the machine with a damp cloth after each use to remove sweat and dust.
- Weekly: Inspect all bolts, nuts, and connections for tightness. Tighten any loose fasteners.
- Monthly: Check the linear bearings for smooth, low-friction movement. If necessary, clean and apply a silicone-based lubricant to the guide rods.
- Annually: Conduct a thorough inspection of the frame for any signs of wear, cracks, or damage. Contact customer support if any significant damage is found.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Squeaking or grinding noise during operation | Lack of lubrication on linear bearings; loose fasteners. | Lubricate linear bearings with silicone spray; tighten all bolts and nuts. |
| Weight carriage feels stiff or sticky | Dust or debris on guide rods; insufficient lubrication. | Clean guide rods thoroughly; apply lubricant. |
| Machine wobbles during use | Uneven floor; loose assembly bolts. | Ensure machine is on a level surface; check and tighten all assembly bolts. |
Specifications
| Feature | Detail |
|---|---|
| Model Name | SGLP500 |
| Brand | Body-Solid |
| Maximum Weight Recommendation | 1500 Pounds |
| Item Dimensions (LxWxH) | 89 x 68 x 54 inches |
| Item Weight | 556 Pounds |
| Package Weight | 717 Pounds |
| Back Pad Positions | 5 adjustable positions |
| Footplate Dimensions | 30" x 24" (extra-wide) |
| Weight Horns | 4.75" Olympic weight horns on carriage, four 11" Olympic plate storage horns |
| Safety Mechanism | Flip-in-flip-out safety racking |
| UPC | 638448018877 |
Warranty and Support
The Body-Solid Pro ClubLine SGLP500 Commercial Leg Press Machine is backed by Body-Solid's industry-leading Full Commercial Warranty. For specific details regarding warranty coverage, please refer to the warranty card included with your product or visit the official Body-Solid website.
For technical assistance, replacement parts, or any other inquiries, please contact Body-Solid customer support. Contact information can typically be found on the manufacturer's website or on your purchase receipt.
Manufacturer: Body-Solid
Warranty Description: Body-Solid Full Commercial Warranty
