Introduction
Thank you for choosing the Kitchen in the box Planetary Stand Mixer. This manual provides essential information for the safe and efficient use of your new appliance. Please read it thoroughly before first use and keep it for future reference.

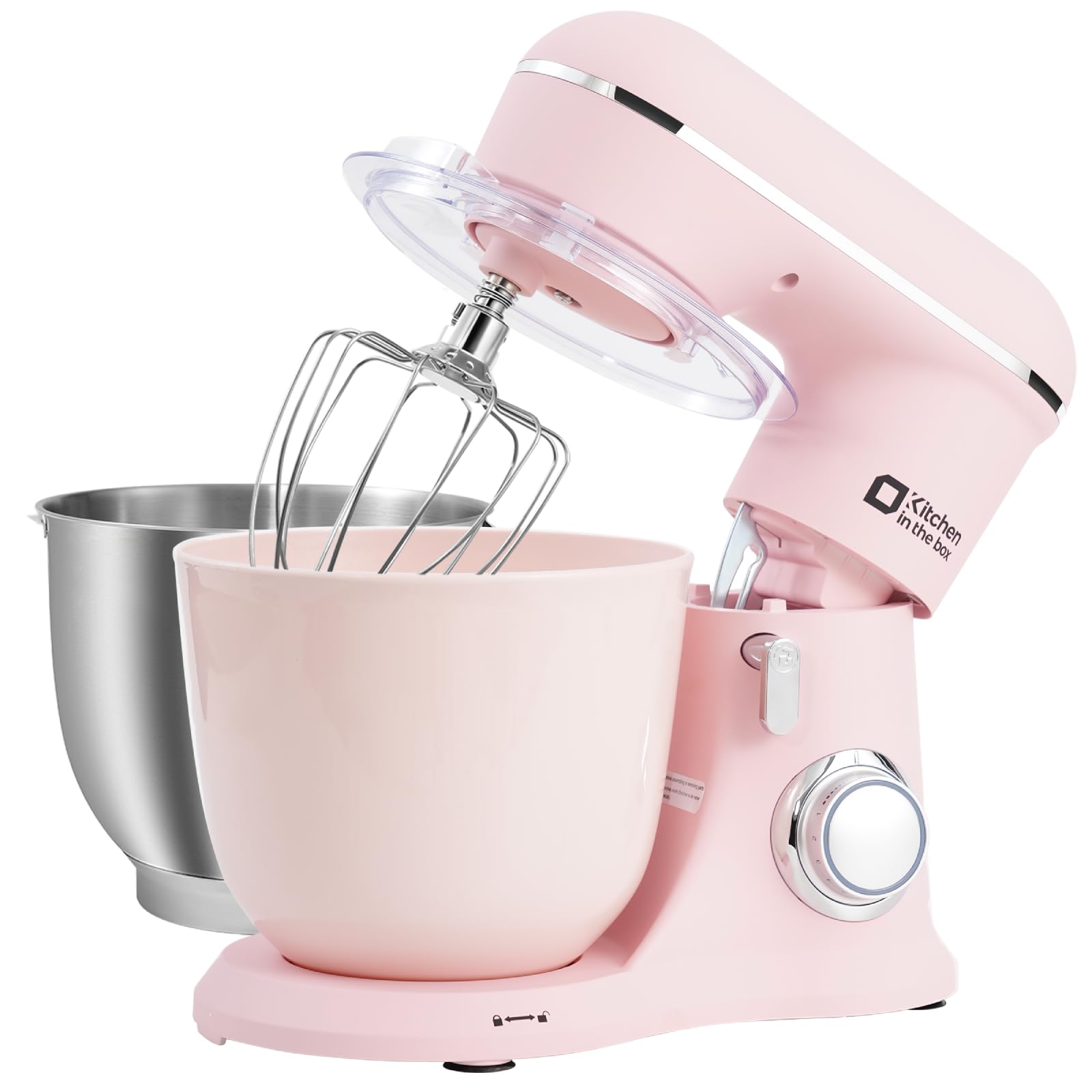

Image: The Kitchen in the box Planetary Stand Mixer in light pink, showcasing its sleek design.
Important Safety Instructions
- Read all instructions before operating the appliance.
- Do not immerse the motor unit in water or other liquids.
- Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
- Avoid contact with moving parts. Keep hands, hair, and clothing, as well as spatulas and other utensils, away from beaters during operation to reduce the risk of injury to persons and/or damage to the mixer.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
- The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter.
- Do not let cord contact hot surfaces, including the stove.
- Always operate the mixer on a dry, stable, and level surface.
Product Overview
Components
Image: Detailed diagram illustrating the various components of the stand mixer, including the main unit, bowls, and attachments.
- Main Unit: Houses the motor and speed control.
- 4.5L Stainless Steel Bowl: Primary mixing bowl with double handles.
- 5L Food-Grade Plastic Bowl: Additional mixing bowl for various preparations.
- Dough Hook: For kneading heavy mixtures like bread and pizza dough.
- Beater (Mescolatore): For medium mixtures like cookies and salads.
- Whisk (Frusta Sbattitrice): For light mixtures like egg whites, creams, and sauces.
- Transparent Splash Guard: Prevents splashing during operation.
- Spatula: For scraping ingredients from the bowl.
Key Features
- Powerful 1300W Motor: Ensures efficient mixing and kneading.
- 10 Speed Settings with Pulse Function: Offers precise control for various recipes.
- Dual Bowl System: Includes a 4.5L stainless steel bowl and a 5L plastic bowl for versatility and space-saving storage.
- Unique Surface Treatment: Provides an elegant appearance and tactile texture.
- Dishwasher-Safe Accessories: Dough hook, beater, and whisk are easy to clean.
- Heat Dissipation Holes: Located at the back for rapid cooling and extended lifespan.
Image: A close-up view highlighting the unique surface coating of the mixer, emphasizing its texture and finish.
Setup
- Unpack: Carefully remove all components from the packaging. Retain packaging for storage or future transport.
- Clean: Before first use, wash the mixing bowls, dough hook, beater, whisk, and splash guard in warm, soapy water. Rinse thoroughly and dry. Wipe the main unit with a damp cloth.
- Placement: Place the mixer on a clean, dry, stable, and level surface. Ensure adequate ventilation around the appliance.
- Attach Bowl: Place the desired mixing bowl onto the base and turn it clockwise until it locks securely into place.
- Install Attachment: Lift the mixer head. Insert the desired attachment (dough hook, beater, or whisk) into the attachment shaft and turn it counter-clockwise until it clicks into place.
- Lower Head: Gently lower the mixer head until it locks.
- Splash Guard: If desired, attach the transparent splash guard to the mixer head.
Operating Instructions
General Operation
- Ensure the mixer is properly assembled with the desired bowl and attachment.
- Add ingredients to the mixing bowl. Do not exceed the maximum capacity (e.g., for optimal mixing, do not exceed 1 kg of mixture).
- Plug the power cord into a suitable electrical outlet.
- Select the desired speed using the speed control dial. Start at a low speed and gradually increase as needed.
- For quick bursts of power, use the 'P' (Pulse) setting.
- When finished, turn the speed dial to '0' (Off) and unplug the appliance.
- Lift the mixer head and remove the attachment and mixing bowl.
Speed Guidelines for Attachments
Image: A visual guide indicating the appropriate speed ranges for the dough hook, beater, and whisk based on the type of mixture.
| Attachment | Mixture Type | Recommended Speed |
|---|---|---|
| Dough Hook | Heavy mixtures (e.g., bread, pizza dough) | 1-6 |
| Beater | Medium mixtures (e.g., cookies, salads, crepes) | 1-7 |
| Whisk | Light mixtures (e.g., egg whites, cakes, sauces) | 8-10 |
Video Demonstration
Video: A short demonstration of the planetary stand mixer in operation, showing the mixing action with ingredients in the bowl. This video illustrates the mixer's functionality and quiet operation.
Maintenance and Cleaning
Cleaning the Main Unit
- Always unplug the mixer before cleaning.
- Wipe the exterior of the main unit with a soft, damp cloth. Do not use abrasive cleaners or scourers.
- Never immerse the motor unit in water or any other liquid.
Cleaning Accessories
- The stainless steel bowl, plastic bowl, dough hook, beater, and whisk are dishwasher-safe.
- Alternatively, wash them in warm, soapy water, rinse thoroughly, and dry immediately.
- The transparent splash guard can be washed by hand with warm, soapy water.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Mixer does not turn on. | Not plugged in; power switch off; mixer head not locked. | Ensure power cord is securely plugged in. Turn speed dial to '0' and then to desired speed. Ensure mixer head is fully lowered and locked. |
| Mixer vibrates excessively. | Heavy mixture; uneven surface. | This is normal for heavy mixtures. Ensure the mixer is on a stable, level surface. Reduce batch size if vibration is severe. |
| Attachment does not reach ingredients. | Incorrect attachment; insufficient ingredients. | Ensure the correct attachment is used for the mixture. Increase ingredient quantity to meet minimum requirements for effective mixing. |
| Motor smells hot during use. | Overload; prolonged use. | This can be normal with heavy loads or extended operation. Allow the mixer to cool down. Reduce batch size or mixing time. The heat dissipation holes help manage temperature. |
Specifications
Image: The stand mixer with overlaid measurements, indicating its compact size and weight.
- Brand: Kitchen in the box
- Model: Planetary Stand Mixer
- Color: Light Pink (current model)
- Product Dimensions: 22 x 35.2 x 33 cm
- Weight: 4.25 kg
- Capacity: 4.5 Liters (stainless steel bowl), 5 Liters (plastic bowl)
- Number of Speeds: 10 + Pulse function
- Power: 1300 Watts
- Voltage: 240 Volts
- Material: Aluminum, Stainless Steel, Plastic
- Special Features: Dishwasher-safe containers, LED power indicator
Warranty and Support
For warranty information and customer support, please refer to the documentation included with your purchase or contact Kitchen in the box customer service. Keep your purchase receipt as proof of purchase.
