SOKANY Digital Air Fryer SK-10043 Instruction Manual

1. Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. Read all instructions carefully before operating the appliance.

• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the appliance is placed on a stable, heat-resistant surface.
• Do not block any ventilation openings.

2. Product Overview

The SOKANY Digital Air Fryer SK-10043 is designed for healthy cooking, utilizing rapid air circulation technology to cook food with little to no oil. It features a user-friendly digital control panel and a spacious 8.5-liter capacity.

Components:

• Main Unit with Digital Control Panel
• Removable Frying Basket
• Non-stick Coated Pan
• Power Cord

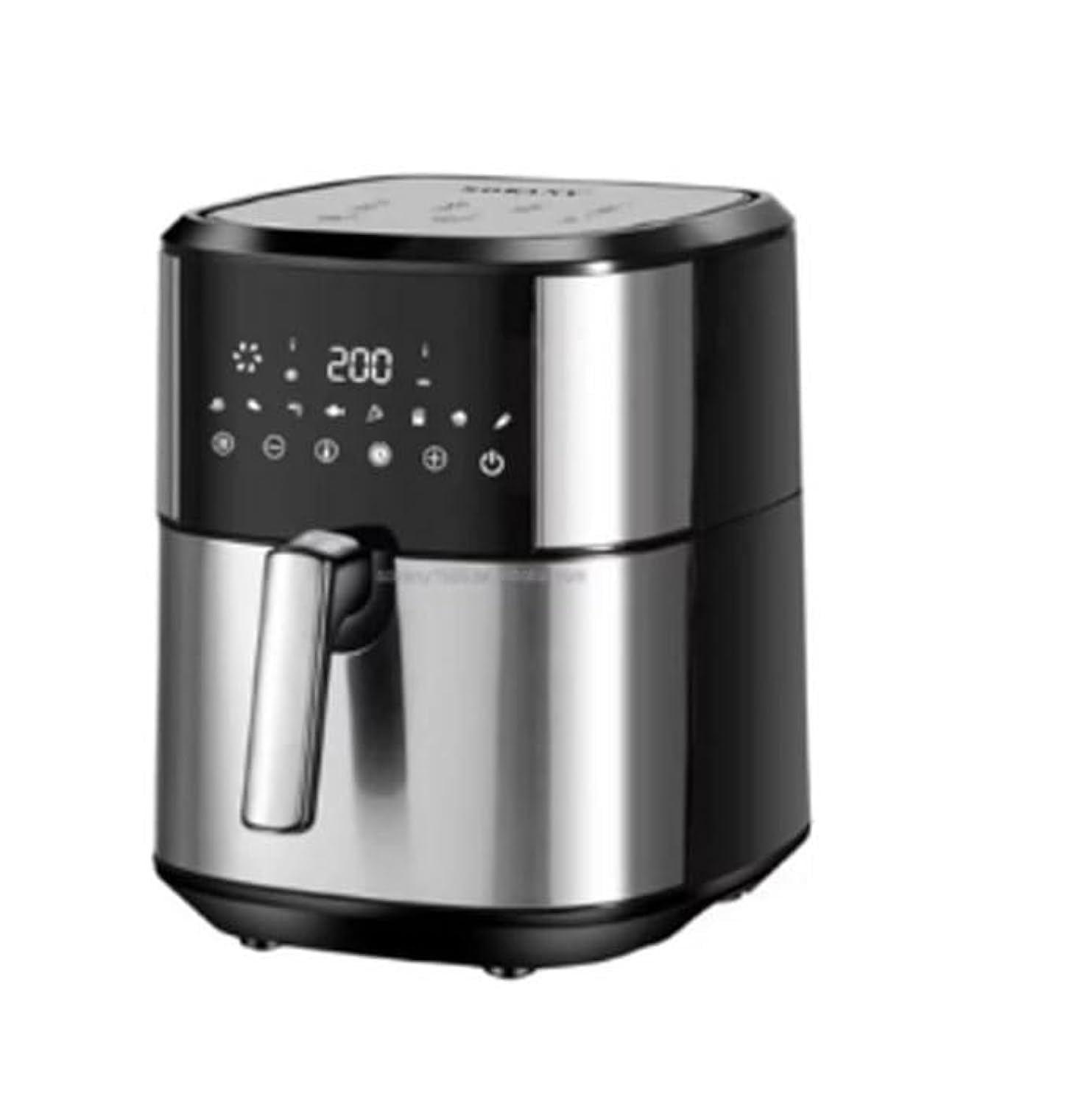

Figure 2.1: Front view of the SOKANY Digital Air Fryer SK-10043.

Figure 2.2: Digital Control Panel.

3. Setup and First Use

Unpacking:

• Remove all packaging materials, stickers, and labels from the appliance.
• Remove the frying basket and pan from the air fryer.

Cleaning Before First Use:

• Wash the frying basket and pan with hot water, a mild dishwashing liquid, and a non-abrasive sponge.
• Wipe the inside and outside of the appliance with a damp cloth.
• Ensure all parts are completely dry before use.

Placement:

• Place the air fryer on a stable, horizontal, and heat-resistant surface.
• Ensure there is at least 10 cm (4 inches) of free space on the back and sides of the appliance, and 10 cm (4 inches) above it, to allow for proper ventilation.
• Do not place the appliance against a wall or other appliances.

4. Operating Instructions

General Operation:

1. Plug the main power cord into a grounded wall outlet.
2. Carefully pull the frying basket out of the air fryer.
3. Place the ingredients into the frying basket. Do not exceed the MAX fill line.
4. Slide the frying basket back into the air fryer. Ensure it is fully closed.
5. Press the Power button (O/I) to turn on the appliance.
6. Use the temperature and time control buttons (+ / -) to set the desired cooking temperature and time. Alternatively, select a preset cooking program by pressing the Mode button.
7. Press the Start/Pause button to begin cooking. The fan and heating element will activate.
8. During cooking, you may pull out the basket to shake or flip ingredients. The air fryer will pause automatically. Return the basket to resume cooking.
9. When the set cooking time has elapsed, the air fryer will beep, and the heating element will turn off.
10. Carefully pull out the basket and place it on a heat-resistant surface.
11. Empty the food into a serving dish. Use tongs to remove larger items.
12. Unplug the appliance after use.

Digital Control Panel:

• Power Button: Turns the air fryer on/off.
• Temperature Control: Adjusts cooking temperature (typically 80°C - 200°C).
• Time Control: Adjusts cooking time (typically 1-60 minutes).
• Mode Button: Cycles through various preset cooking programs (e.g., fries, chicken, fish, steak, cake).
• Start/Pause Button: Starts or pauses the cooking process.

5. Cooking Guide

The air fryer is versatile and can be used for reheating, toasting, baking, and steaming. Cooking times and temperatures may vary based on food type, quantity, and desired crispiness. Always ensure food is cooked thoroughly to safe internal temperatures.

Tips for Best Results:

• For smaller ingredients, a shorter cooking time is generally required.
• Shaking smaller ingredients halfway through the cooking process optimizes the end result and can help prevent unevenly fried ingredients.
• Add a little oil to fresh potatoes for a crispy result. Fry your ingredients in the air fryer within a few minutes after you added the oil.
• Snacks that can be prepared in an oven can also be prepared in the air fryer.
• The optimal amount for preparing crispy fries is 500 grams.
• Use pre-made dough for quick and easy filled snacks. Pre-made dough also requires a shorter cooking time than homemade dough.
• You can also use the air fryer to reheat food. To reheat food, set the temperature to 150°C for up to 10 minutes.

6. Maintenance and Cleaning

Proper cleaning and maintenance will ensure the longevity and optimal performance of your air fryer.

Cleaning After Every Use:

1. Unplug the appliance and allow it to cool down completely before cleaning.
2. Wipe the outside of the appliance with a damp cloth.
3. Clean the frying basket and pan with hot water, a mild dishwashing liquid, and a non-abrasive sponge. The non-stick coating allows for easy cleaning.
4. For stubborn food residue, soak the basket and pan in hot water with some dishwashing liquid for approximately 10 minutes.
5. Clean the inside of the appliance with hot water and a non-abrasive sponge.
6. Clean the heating element with a cleaning brush to remove any food residue.

Note: The frying basket and pan are not dishwasher safe. Do not use abrasive cleaning materials or metal scouring pads, as this may damage the non-stick coating.

7. Troubleshooting

If you encounter issues with your air fryer, refer to the following common problems and solutions:

8. Specifications

Technical details for the SOKANY Digital Air Fryer SK-10043:

• Model: SK-10043
• Brand: SOKANY
• Capacity: 8.5 Liters
• Power Output: 2000 Watts
• Control Method: Touch Digital Control
• Special Features: Digital control, Multiple cooking options, Timer
• Product Dimensions (D x W x H): 40 cm x 40 cm x 40 cm
• Item Weight: 2 Kilograms
• Color: Black
• Exterior Material: Aluminum
• Interior Material: Stainless Steel
• Non-stick Coating: Yes
• Dishwasher Safe: No (for basket/pan)
• Recommended Uses: Reheating, Toasting, Baking, Steaming

9. Warranty and Support

This product comes with a manufacturer's warranty. For detailed information regarding the warranty period and terms, please refer to the warranty documentation included with your purchase.

For technical support, service, or inquiries, please contact SOKANY customer service through the contact information provided in your product packaging or on the official SOKANY website.
