PHOTOOLEX 4 Colors Photography Flashlight User Manual

1. Introduction

The PHOTOOLEX 4 Colors Photography Flashlight is a versatile and portable lighting solution designed for various creative applications, including photography, video recording, and vlogging. Featuring an 8400mAh battery, it offers extended operation and multiple color modes to enhance your visual content.

Key Features:

4 Color Modes: Easily switch between Sunset Orange, Cold Blue, Warm White, and Scarlet Red to set the desired mood.
10 Brightness Levels: Adjust light intensity with a simple rotation for precise control.
20 Shadow Gobos: Unlock creative lighting patterns and effects for unique visuals.
Light Diffuser: Transform harsh light into softer, more flattering illumination.
8400mAh Battery: Provides up to 240 minutes of continuous use at maximum brightness.
Ergonomic & Portable: Lightweight aluminum alloy body with anti-slip surface for comfortable handheld use.
Zoomable Front Shell: Adjusts beam width for focused or diffused lighting.
1/4" Threaded Ports: Compatible with cameras, tripods, and selfie sticks for flexible mounting.

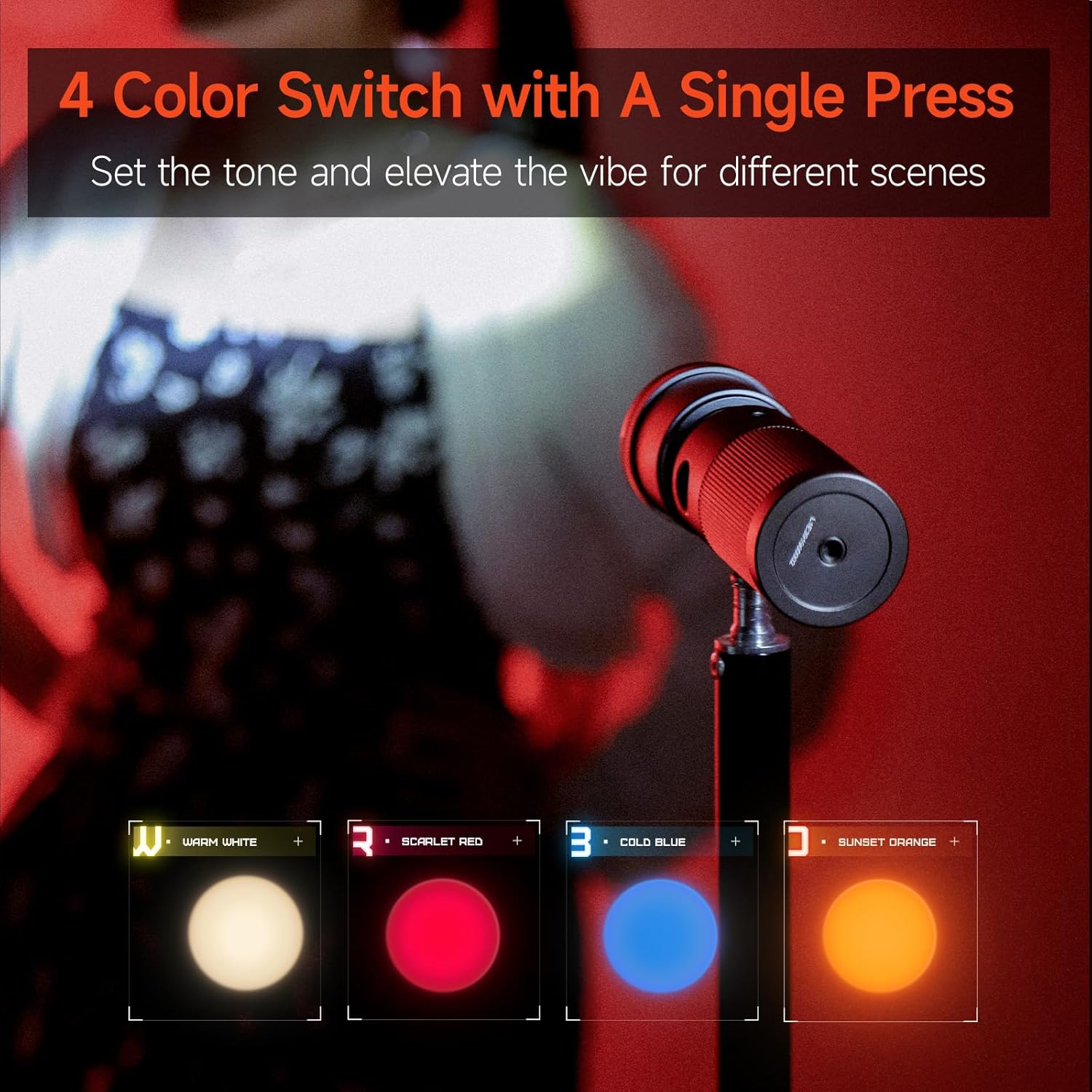

PHOTOOLEX Flashlight displaying four color modes: Warm White, Scarlet Red, Cold Blue, and Sunset Orange. — Image: The PHOTOOLEX flashlight showcasing its four distinct color modes: Warm White, Scarlet Red, Cold Blue, and Sunset Orange, illustrating its versatility for various scene settings.

PHOTOOLEX Flashlight projecting a sunset orange pattern on a model's face, with various gobo shapes displayed. — Image: A model illuminated by the flashlight projecting a creative sunset orange shadow pattern, with a selection of 20 included gobo shapes shown on the side.

2. What's in the Box

10W Photography Flashlight x1
Scenes Gobos x20
Silicone Diffuser x1
Gobos Projection Cover x1
Type-C Cable x1
Carry Bag x1

All components of the PHOTOOLEX Photography Flashlight kit laid out: flashlight, 20 gobos, silicone diffuser, gobo projection cover, Type-C cable, and carry bag. — Image: A visual representation of all items included in the PHOTOOLEX Photography Flashlight package, ensuring users can verify their contents.

3. Specifications

Feature	Detail
Product Dimensions	2.2"L x 2.2"W x 6.2"H
Item Weight	1.09 pounds
Brand	PHOTOOLEX
Output Power	10W (Max)
Battery Capacity	8400mAh
Battery Life	Up to 4 Hours (at lower brightness) / 240 minutes (at max brightness)
Charging Voltage	5V/2A
Charging Port	USB Type C
Material	Aluminum Alloy

4. Setup

Initial Charging:

Before first use, fully charge the flashlight using the provided USB-C cable and a 5V/2A power adapter. The charging port is located on the device.

Attaching Accessories:

Gobos: Insert your desired gobo (shadow pattern) into the silicone gobo cover.
Diffuser: Place the silicone diffuser over the front of the flashlight for softer light.
Mounting: Utilize the three 1/4" threaded ports to attach the flashlight to a tripod, camera, or other compatible equipment.

Video: A short demonstration titled "Important Usage Instruction" by Baimei Tech, showing basic handling and setup of the flashlight.

5. Operating Instructions

Power On/Off:

To power on the flashlight, quickly press the button once, then quickly rotate it to activate. To power off, press and hold the button for more than 2 seconds.

Changing Colors:

Short press the control button to cycle through the 4 available color modes: Sunset Orange, Cold Blue, Warm White, and Scarlet Red.

Adjusting Brightness:

Rotate the control button to adjust the brightness through 10 levels. The flashlight supports continuous adjustment for precise light output.

PHOTOOLEX Flashlight with illuminated control button and battery indicators showing 100-20% (Green), 20-5% (Red), and <5% (Red Blinking). — Image: Close-up of the flashlight's control button and battery indicators, detailing how to short press for color changes and rotate for brightness adjustments.

Using Gobos and Diffuser:

Attach the gobo cover with a chosen gobo or the silicone diffuser to the front of the flashlight to create various shadow patterns or soften the light, respectively. For best gobo effects, use in darker indoor environments within 7 feet.

Video: A demonstration by Baimei Tech titled "PHOTOOLEX Led Photography Flashlight with 10 Magnetic Gobos," illustrating the use of gobos for creative lighting.

Zoom Function:

The front shell of the LED flashlight is zoomable. Slide it to narrow, prolong, and enhance the beam of light, or extend it to widen, spread, and soften the beam.

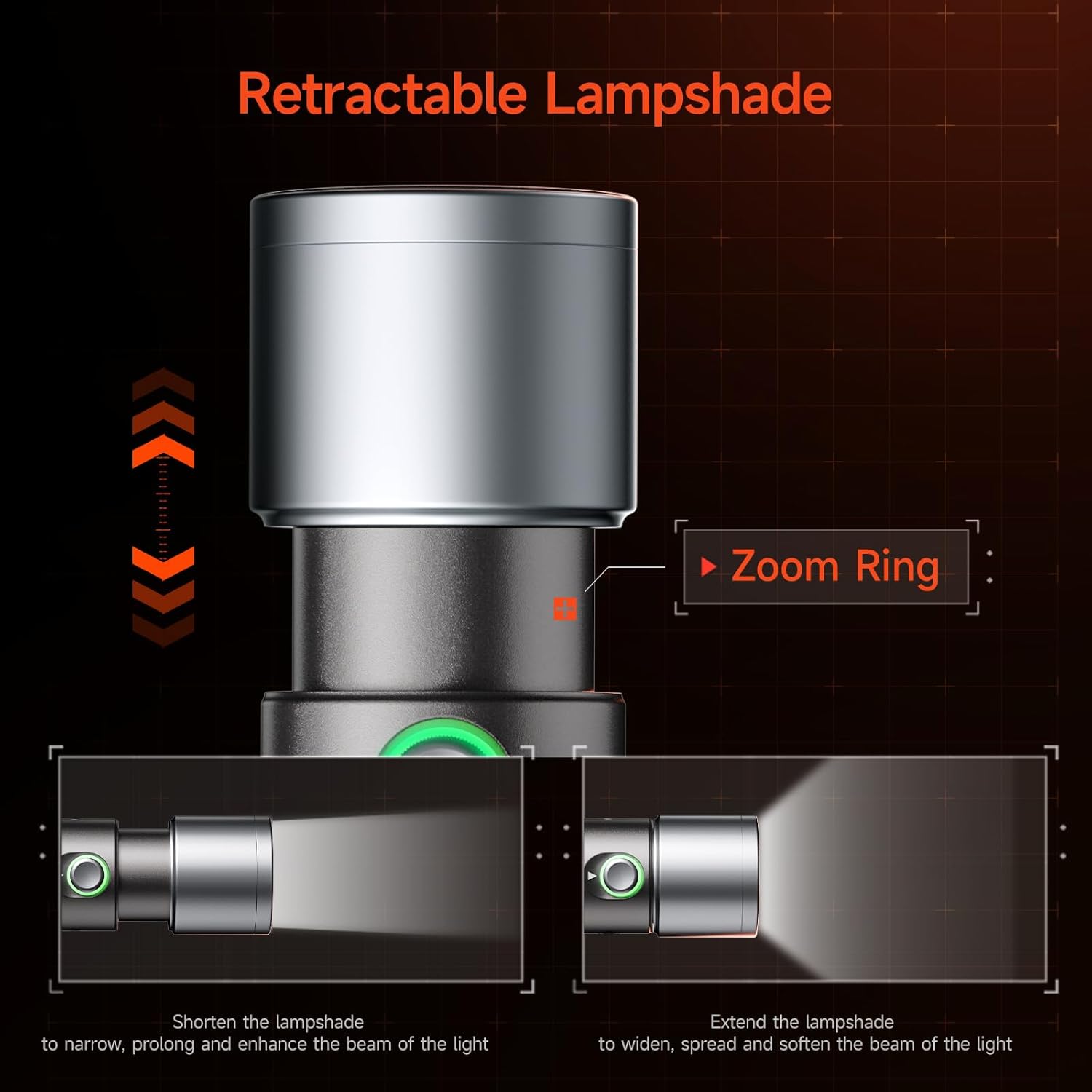

PHOTOOLEX Flashlight demonstrating its retractable lampshade for adjusting light beam from narrow to wide. — Image: The retractable lampshade feature of the flashlight, showing how it can be shortened for a narrow, enhanced beam or extended for a wider, softer light spread.

Power Bank Function:

The flashlight can also function as a power bank. Connect your mobile device via USB-C to charge it in case of emergency.

Extra Bottom Light:

An additional light is integrated into the bottom of the flashlight, providing convenient lighting for outdoor nighttime activities or general utility.

Video: A detailed guide by Baimei Tech titled "How to use-8400mAh Power Portable Spotlight for Photography," covering various operational aspects.

6. Maintenance

Cleaning: Use a soft, dry cloth to clean the exterior of the flashlight. Avoid using harsh chemicals or abrasive materials.
Storage: Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures. Use the provided carry bag for protection during transport and storage.
Battery Care: To prolong battery life, avoid fully discharging the device frequently. Recharge regularly, even if not in active use.

7. Troubleshooting

Flashlight not turning on: Ensure the battery is charged. Remember the anti-mispress protection: quickly press the button once, then quickly rotate it to activate.
Light output is dim: Check the brightness setting and ensure the battery is sufficiently charged.
Charging issues: Verify the USB-C cable is securely connected to both the flashlight and the power source. Ensure the power adapter is functioning correctly.
Gobo patterns are unclear: Ensure the gobo is correctly inserted into the cover and that you are using the flashlight in a sufficiently dark environment within the recommended 7-foot range.

8. Warranty and Support

PHOTOOLEX offers a 2-year after-sales service for this photography flashlight. If you have any questions or require assistance, our support team is available 24/7 to help you. Please refer to the contact information provided in your product packaging or visit the official PHOTOOLEX website for further details.
