1. Introduction
This manual provides comprehensive instructions for the usvehj S1156F 1/2 Inch High Capacity Water Pressure Regulator. This device is designed to efficiently fill boiler and system piping in both commercial and residential hydronic heating systems. Its primary function is to maintain consistent water pressure within the system and to supply reserve water in the event of a leak. The S1156F is a direct replacement for the Watts 1156F series and S1156F 1/2 inch nominal regulators.

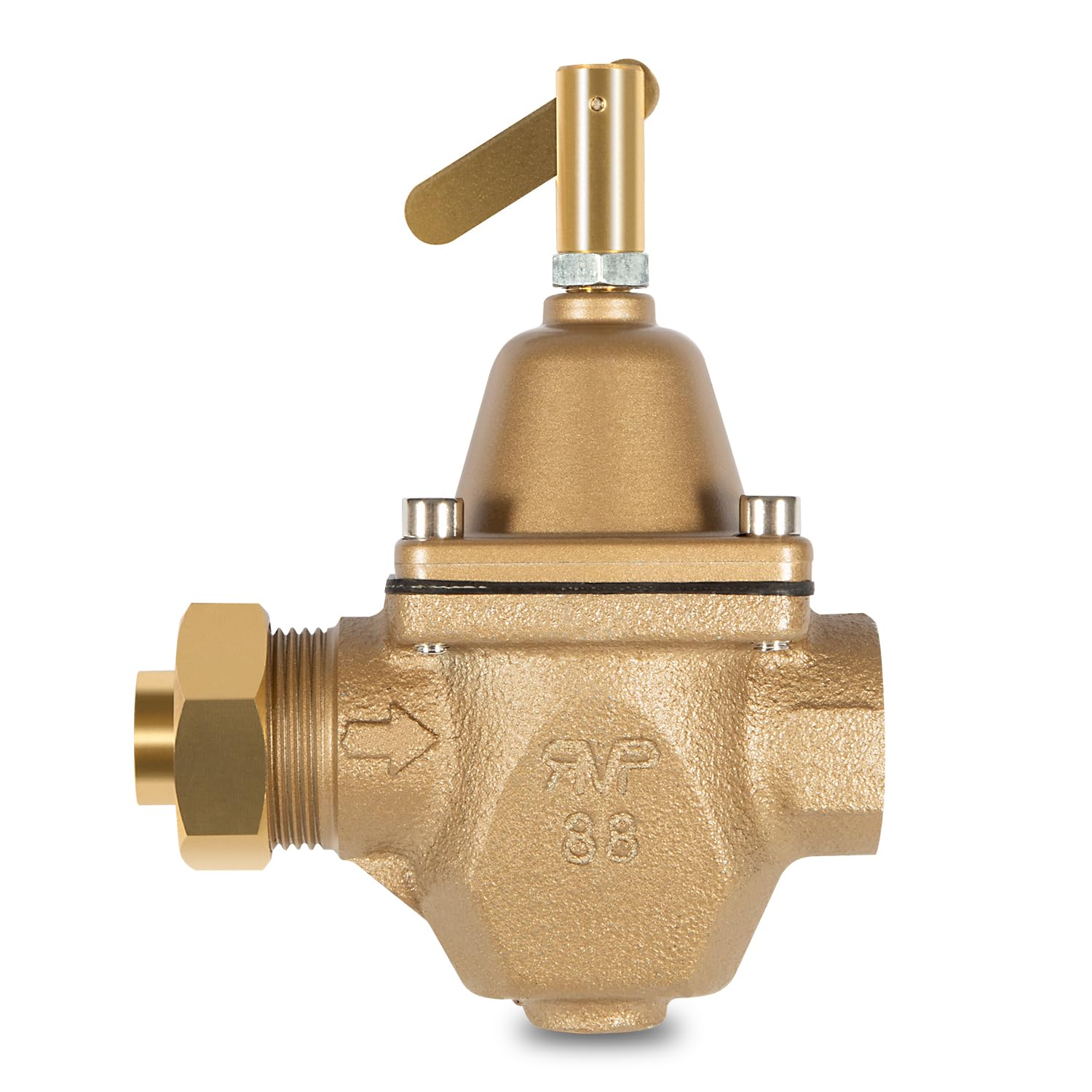

Image: A close-up view of the S1156F 1/2-inch boil water pressure regulator, highlighting its design and model number.
2. Specifications
| Specification | Value |
|---|---|
| Inlet/Outlet Connection Size | 1/2 Inch |
| Inlet Connection Type | Union Joint |
| Outlet Connection Type | Female Threaded |
| Outlet Thread Type | NPT |
| Pressure Setting Range | 10-25 PSI (0.7-1.7 BAR) |
| Maximum Working Pressure | 100 PSI (6.9 BAR) |
| Maximum Operating Temperature | 100℃ (212℉) |
| Minimum Temperature | 0.5℃ (33℉) |
| Material | Bronze |
| Exterior Finish | Brass |
| Item Weight | 1.96 pounds |
| Package Dimensions | 5.51 x 5.24 x 2.83 inches |
Image: An exploded view diagram illustrating the internal components and specifications of the S1156F regulator.
3. Product Features
The usvehj S1156F Water Pressure Regulator incorporates several design elements for reliable performance and ease of use:
- Durable Construction: Manufactured from a combination of stainless steel, bronze, plastic, and rubber components for longevity.
- Integrated Check Valve: Features a tight seating check valve to prevent backflow.
- Manual Purge Lever: Equipped with a purge lever for convenient manual purging of the system.
- Stainless Steel Strainer: Includes a stainless steel strainer to filter debris and protect internal components.
- High Capacity: Designed for high capacity performance in demanding hydronic systems.
- Simplified Servicing: Engineered for ease of maintenance and repair.
Image: Hands holding the S1156F regulator, with text highlighting its key functions and features like the purge lever and simplified servicing design.
4. Installation Instructions
Proper installation is crucial for the optimal performance and longevity of your water pressure regulator. Please follow these guidelines carefully:
- Location: The regulator must be installed on the cold water supply line that leads directly to the boiler.
- Orientation: The regulator can be installed either vertically or horizontally. Ensure the flow arrow on the regulator body matches the direction of water flow.
- Pre-Installation Flush: Before connecting the regulator, thoroughly flush the water supply line to remove any debris, scale, or dirt that could obstruct the regulator or system.
- Clearance: Ensure sufficient space is left around the regulator to allow for easy operation of the quick fill and purge lever.
- Connections: Use appropriate tools and sealing compounds (e.g., PTFE tape or pipe dope) to ensure watertight connections for the 1/2 inch union joint inlet and NPT female threaded outlet.
Image: A diagram illustrating the correct installation of the feed water pressure regulator on a cold water supply line leading to a hot water boiler, including other system components like a pressure relief valve and backflow preventer.
Image: A detailed installation diagram showing the feed water pressure regulator's position relative to the hot water boiler, cold water supply, and other plumbing components.
5. Operating Instructions
The usvehj S1156F Water Pressure Regulator operates largely automatically to maintain the desired system pressure. Once installed and the system is filled, it will continuously regulate the incoming cold water pressure to the boiler.
- Automatic Pressure Maintenance: The regulator is factory-set to maintain a pressure between 10-25 PSI (0.7-1.7 BAR) within the hydronic heating system. It will automatically open to allow water into the system if the pressure drops below the set point.
- Reserve Water Supply: In the event of minor leaks in the system, the regulator will automatically supply additional water to maintain pressure, preventing system shutdown due to low water levels.
- Manual Purging: The integrated purge lever allows for manual filling or purging of the system. To manually fill or purge, operate the lever as needed. Refer to your boiler's specific instructions for proper purging procedures.
6. Maintenance
Regular maintenance helps ensure the long-term reliability and efficiency of your usvehj S1156F Water Pressure Regulator. While the regulator features a simplified servicing design, periodic checks are recommended.
- Visual Inspection: Periodically inspect the regulator and connections for any signs of leaks, corrosion, or damage.
- Strainer Cleaning: The stainless steel strainer can accumulate debris over time. If you notice a reduction in water flow or inconsistent pressure, the strainer may need cleaning. This typically involves disassembling the regulator to access the strainer.
- Diaphragm and Seal Check: The internal diaphragm and seals are wear items. If the regulator fails to maintain pressure or leaks internally, these components may need inspection and replacement. The simplified servicing design facilitates access to these parts.
Disassembly and Assembly Overview
The following video provides a visual overview of the disassembly and assembly process, which is useful for maintenance tasks such as cleaning the strainer or replacing internal components.
Video: A demonstration of the disassembly and reassembly of the S1156F water pressure regulator, showing how to access and replace internal parts.
Image: Hands using a screwdriver to disassemble the bottom plate of the regulator.
Image: Hands carefully reassembling the top housing onto the regulator body.
7. Troubleshooting
If you encounter issues with your usvehj S1156F Water Pressure Regulator, consider the following general troubleshooting steps:
- Low System Pressure: Check the incoming water supply pressure. Ensure the regulator's strainer is not clogged. Inspect for leaks in the hydronic system.
- High System Pressure: Verify that the regulator is installed correctly and that no external factors are causing pressure spikes. The regulator is designed to prevent over-pressurization within its operating limits.
- No Water Flow: Confirm that the main water supply valve is open. Check for severe clogs in the strainer or piping.
- Leaks: Inspect all connections for proper sealing. If leaks originate from the regulator body, internal seals or the diaphragm may need replacement.
For persistent issues or complex problems, it is recommended to consult a qualified plumbing professional.
8. Product Dimensions
Understanding the physical dimensions of the regulator is important for installation planning and ensuring proper fit within your plumbing system.
Image: A diagram showing the key dimensions of the S1156F water pressure regulator, including overall height (5.41"), width (4.10"), and specific connection measurements.
9. Warranty and Support
The usvehj S1156F Water Pressure Regulator comes with a commitment to customer satisfaction and product quality.
- Satisfaction Guarantee: We offer a 30-day refund for returns if you are not satisfied with the product.
- Product Warranty: A 12-month warranty is provided, covering manufacturing defects and ensuring product reliability.
For any questions, technical assistance, or warranty claims, please contact usvehj customer support through the retailer where the product was purchased. Please have your model number (S1156F) and purchase details ready when contacting support.
